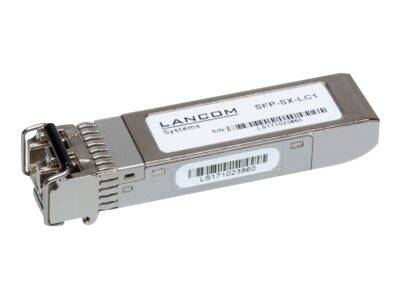

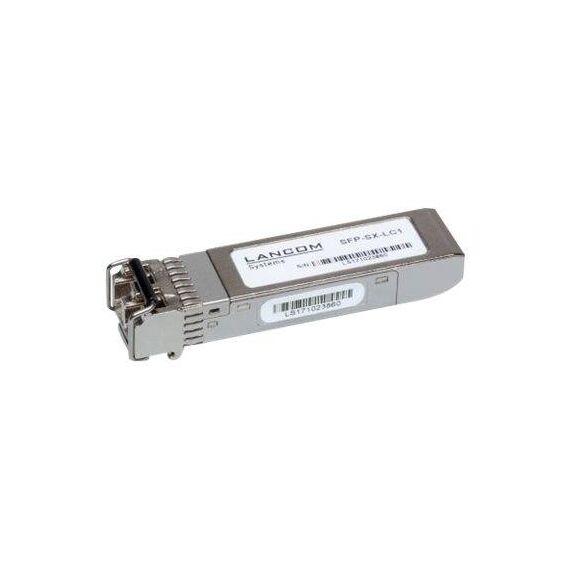

LANCOM SFP-SX-LC1 - SFP (mini-GBIC) transceiver module - GigE - 1000Base-SX - LC multi-mode - up to 550 m - 850 nm (pack of 10) | 60184
Please sign in so that we can notify you about a reply
Special Fetures
- 1000Base-SX standard
- Hot pluggable
- Support 50µm and 62.5µm multimode fiber (MMF) cable
- Full duplex mode
Product Specification
| Packaged Quantity | 10 (specifications are for single item) |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 550 m |
| Features | Full duplex capability, Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode |
| Miscellaneous | |
| Compliant Standards | Laser Class 1, EN 60825-1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Lancom Systems - 60184
More Details
Product Code
CB13736
EAN Code
4044144601842
Manufacturer
Lancom Systems
