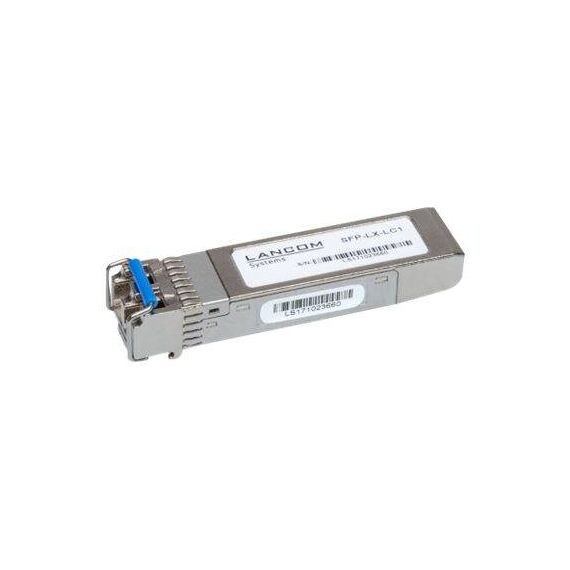

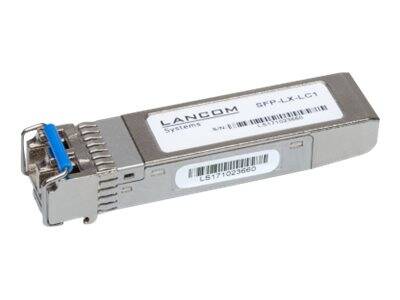

LANCOM SFP-LX-LC1 - SFP (mini-GBIC) transceiver module - GigE - 1000Base-LX - LC single-mode - up to 10 km - 1310 nm (pack of 10) | 60185
Please sign in so that we can notify you about a reply
Special Fetures
- 1000Base-LX standard
- Hot pluggable
- Support 9µm single mode fiber (SMF) cable
- Full duplex mode
Product Specification
| Packaged Quantity | 10 (specifications are for single item) |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Features | Full duplex capability, Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode x 2 |
| Miscellaneous | |
| Compliant Standards | Laser Class 1, IEC 60825-1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Lancom Systems - 60185
More Details
Product Code
04:371194
EAN Code
4044144601859
Manufacturer
Lancom Systems
