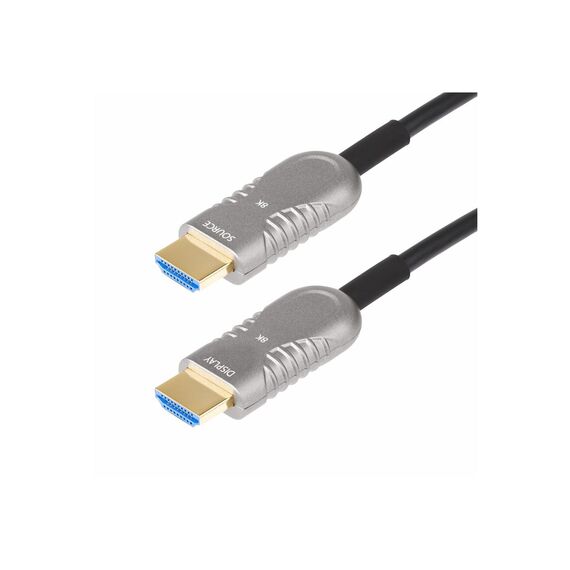

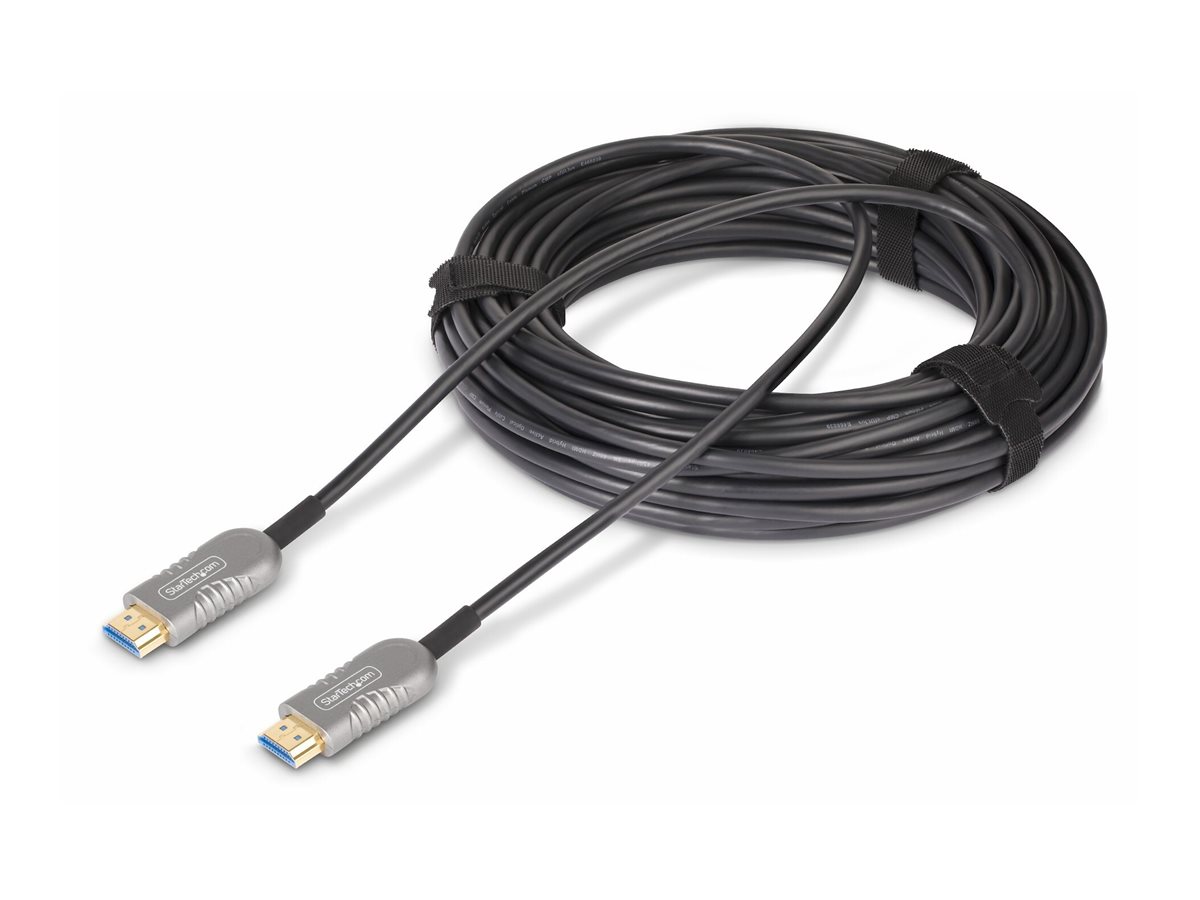

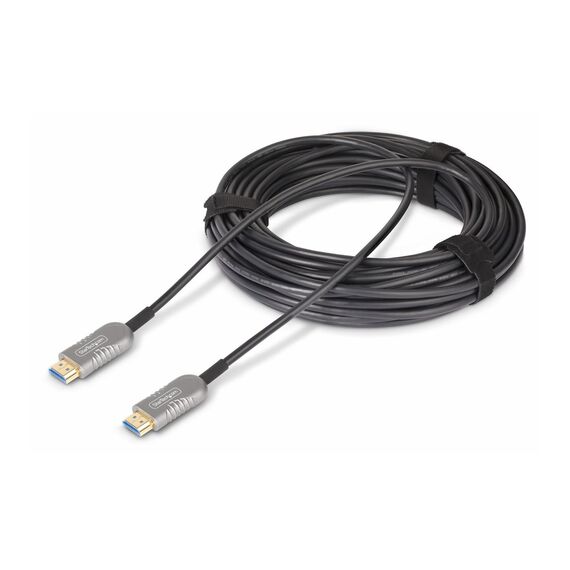

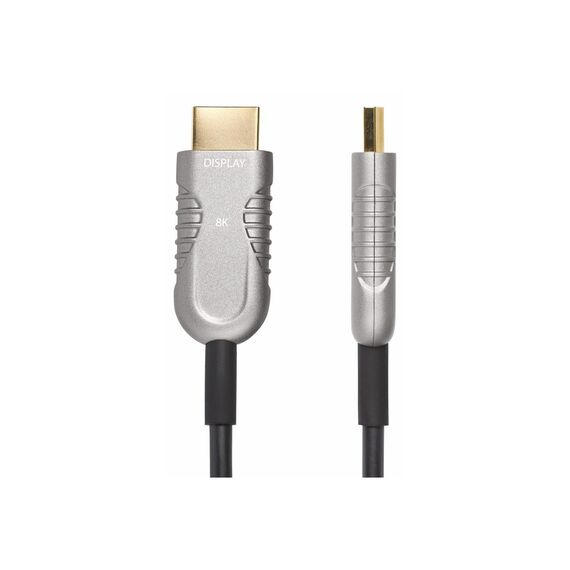

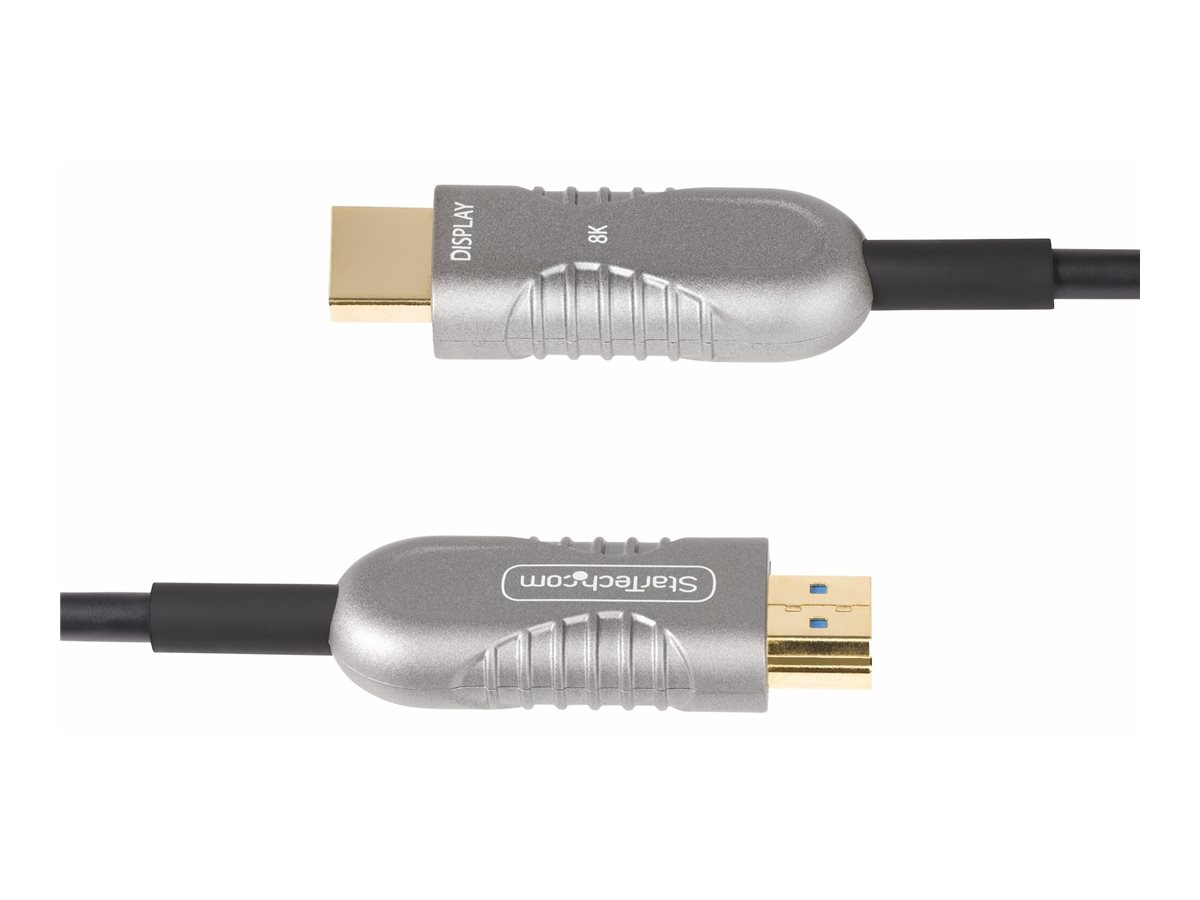

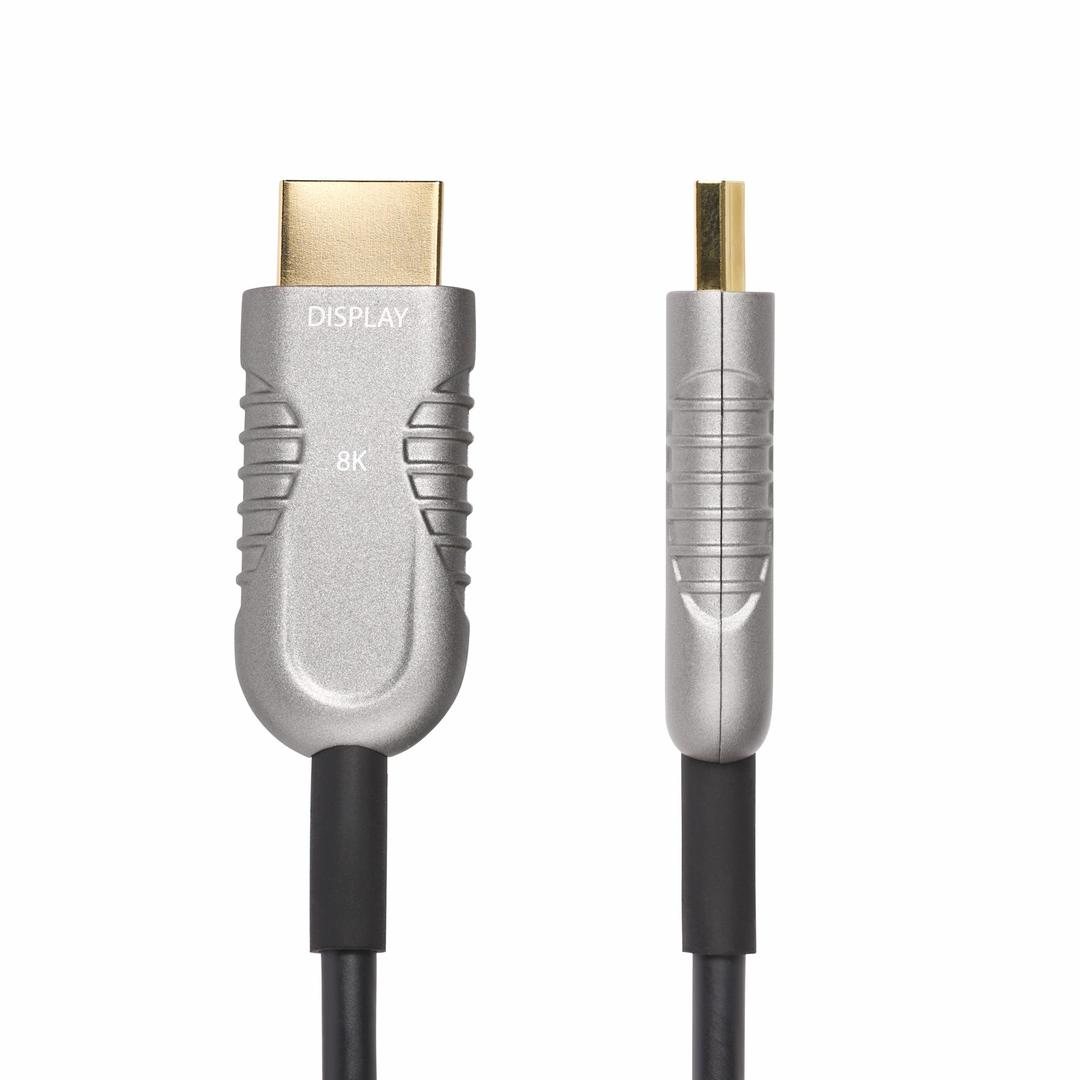

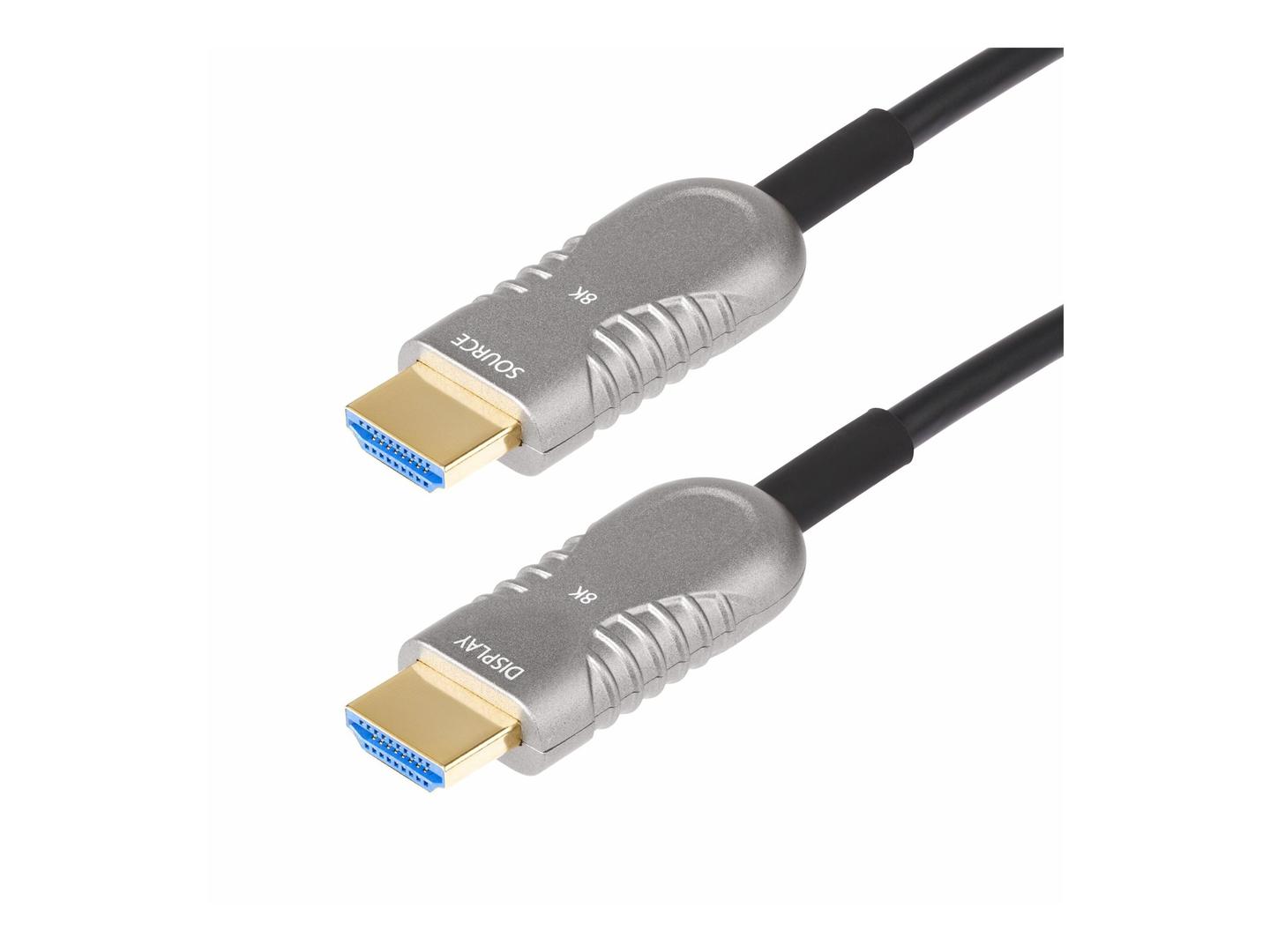

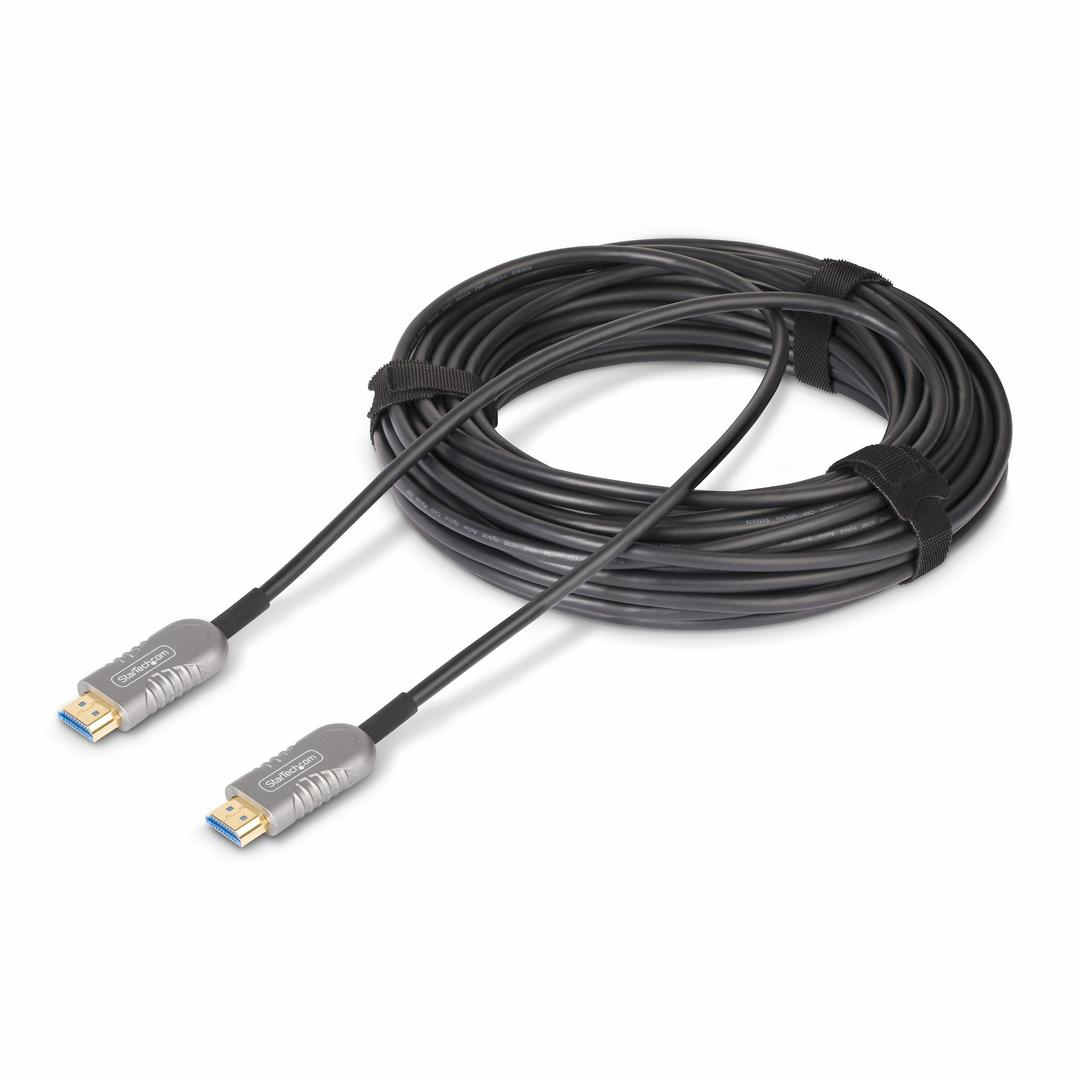

StarTech.com 100ft (30.4m) HDMI 2.1 Hybrid Active Optical Cable (AOC), CMP, Plenum Rated, 8K Ultra High Speed HDMI Fiber Optic Cable, 48Gbps, 8K 60Hz/4K 120Hz, HDR10+/FRL/TMDS/eARC - CMP In Wall HDMI 2.1/2.0 Cord (8K-A-100F-HDMI-CABLE) - Ultra High Speed
Please sign in so that we can notify you about a reply
Product Features
- Hybrid AOC construction
The HDMI 2.1 AOC incorporates a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances. - Full-featured HDMI 2.1
The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications. High Bit Rate 3 (HBR3) supports up to 48Gbps bandwidth for higher refresh rates. High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality. Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio. Display Stream Compression 1.2a (DSC) for maximum resolution output. Forward Error Correction to manage data transmission errors. High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display. - Flexible plenum-rated cabling

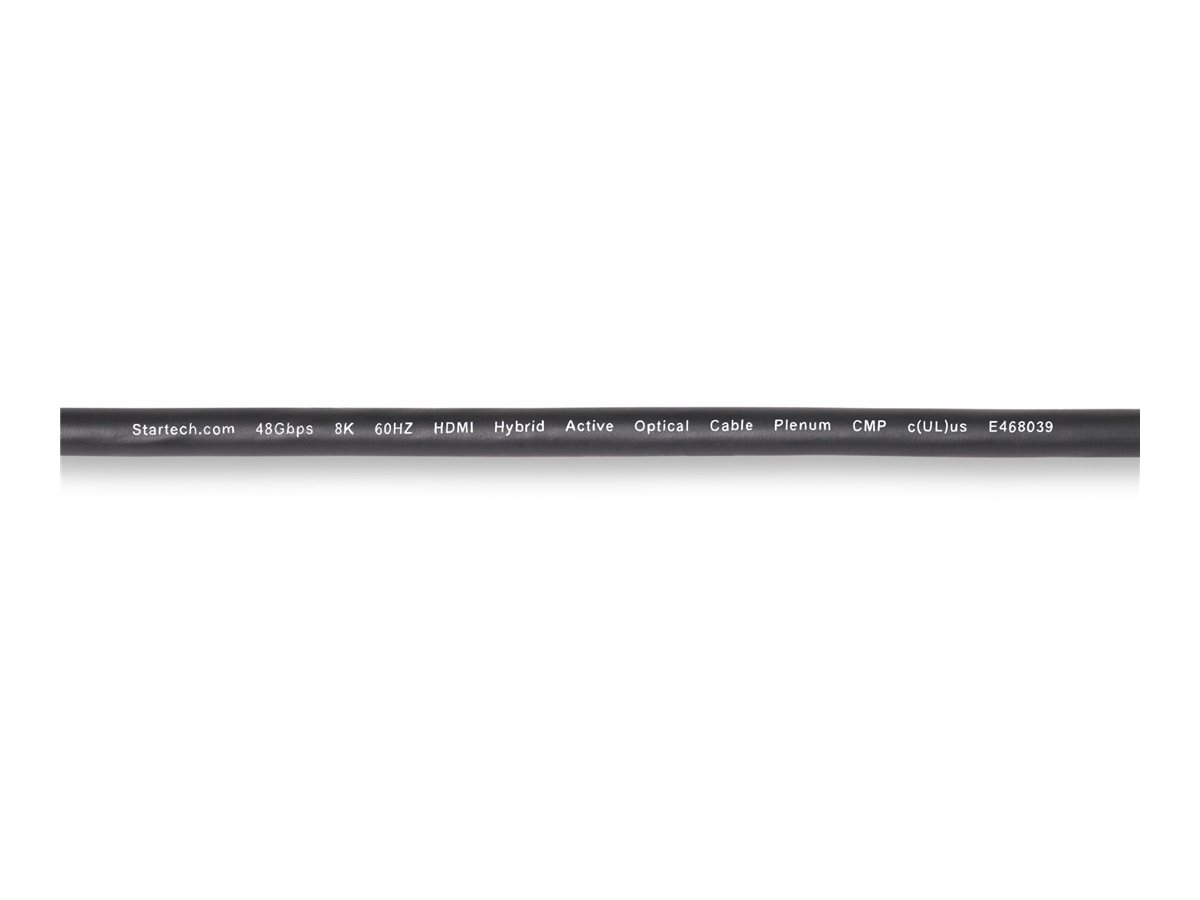

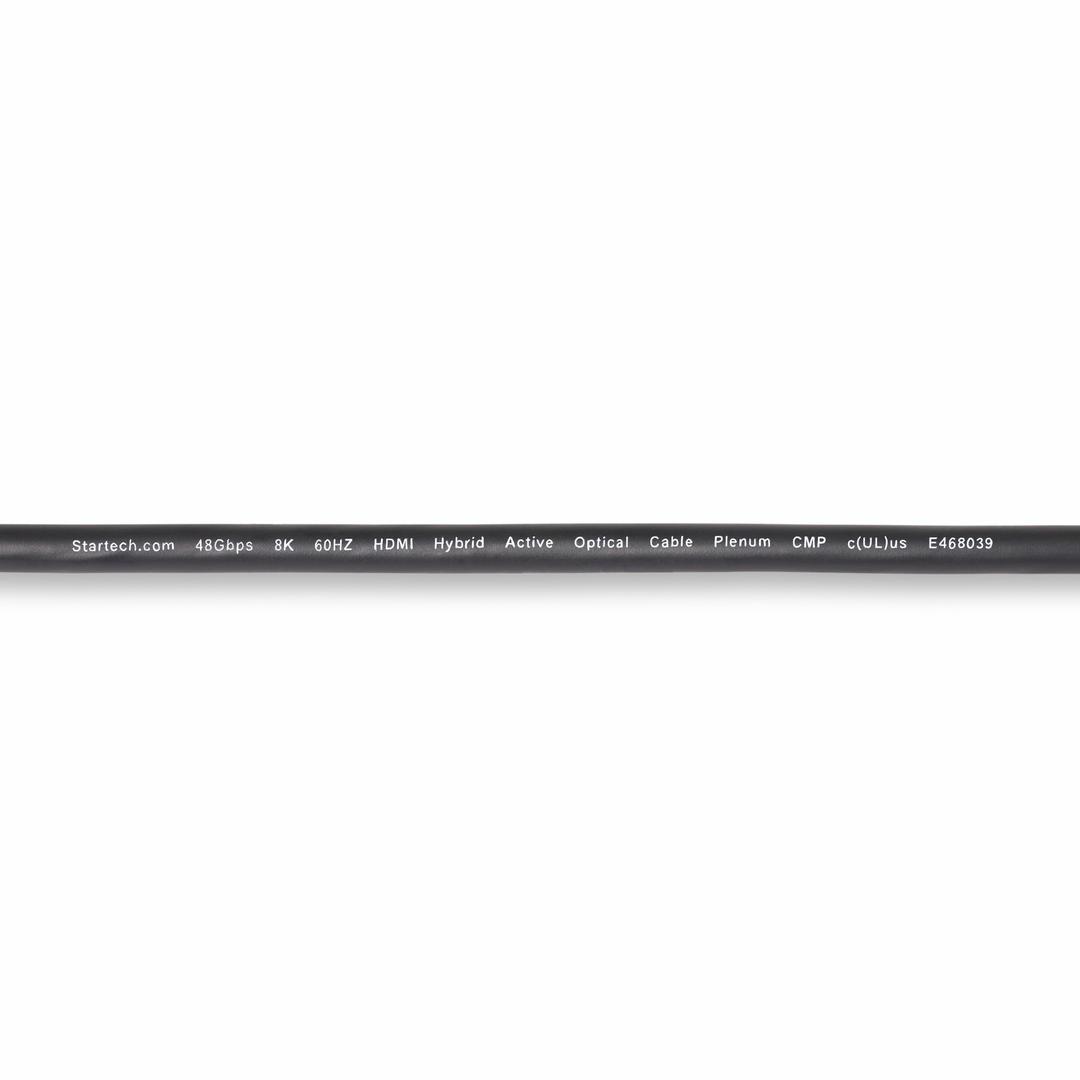

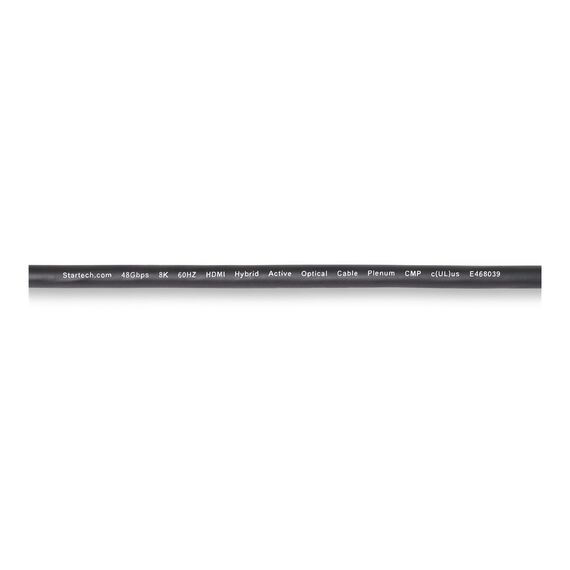

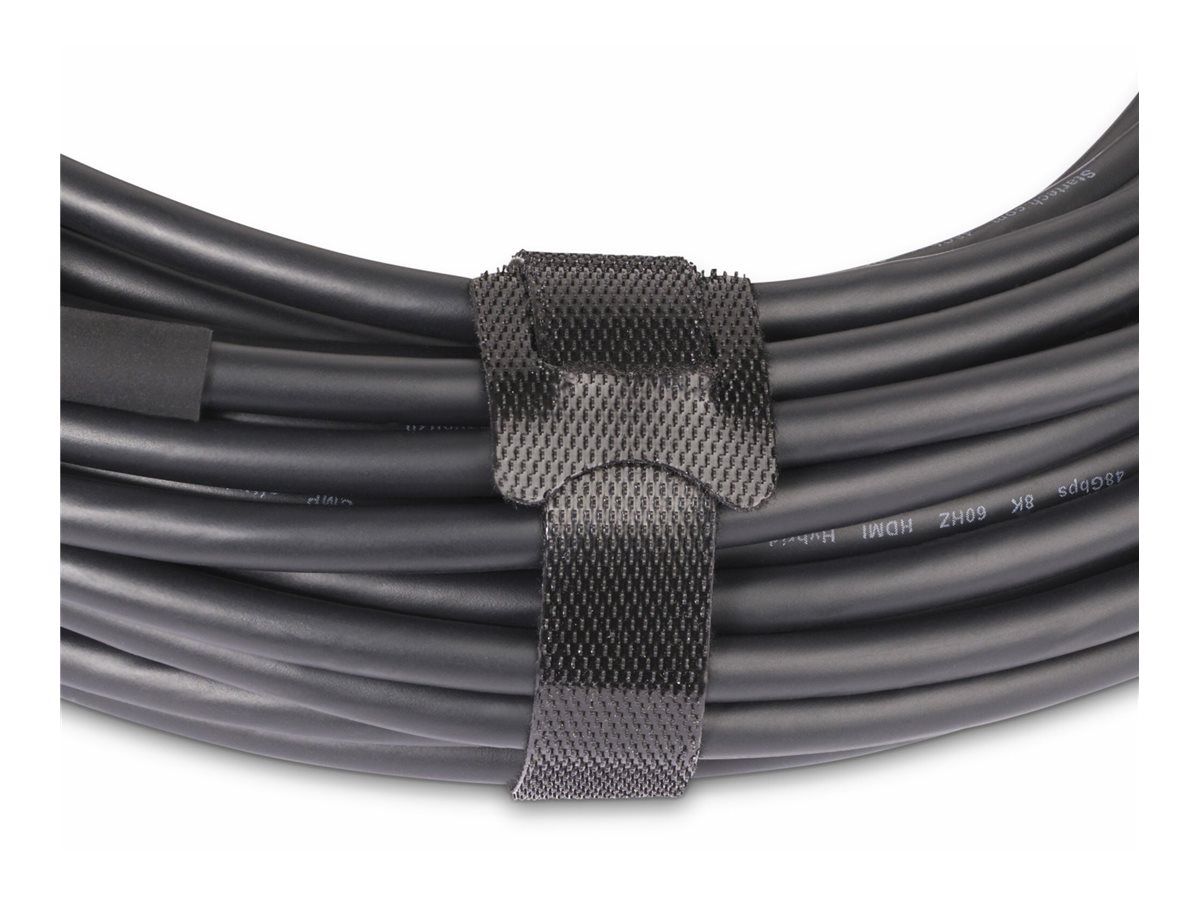

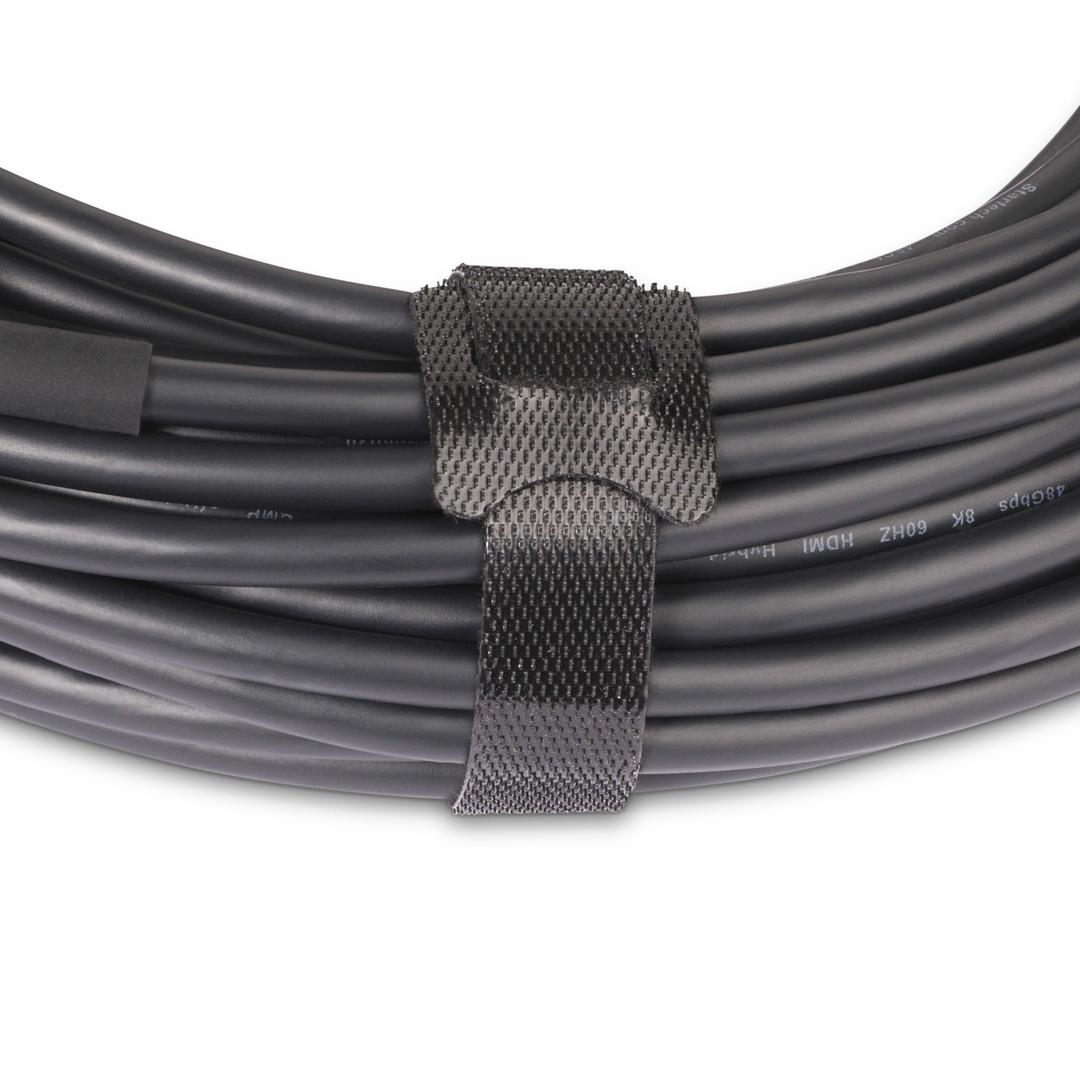

This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends. The 4.6 mm (0.18 in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.
Special Fetures
- Deliver 8K 60Hz video over longer distances with minimal signal degradation
- Ideal for use in plenum spaces in buildings
Product Specification
| Cable Type | Ultra High Speed - HDMI cable Active Optical Cable (AOC), 4K120Hz support, 8K60Hz support, 4K60Hz support |
| Technology | Hybrid copper/fibre optic |
| American Wire Gauge (AWG) | 28/30 |
| Jacket Material | PVC |
| Shielding Material | Aluminium-polyester foil |
| Length | 30.4 m |
| Plated Connector | Gold |
| Features | Enhanced Audio Return Channel (eARC), HBR3 audio support, HDR 10+ support, Display Stream Compression (DSC) 1.2a, HDCP, 32 audio channels, plenum cable, bus powered, zinc alloy housing, outer diameter 4.6 mm, bandwidth of 48 Gbps, 7.1 audio channel support (HDMI) |
| Colour | Black |
| Connectivity | |

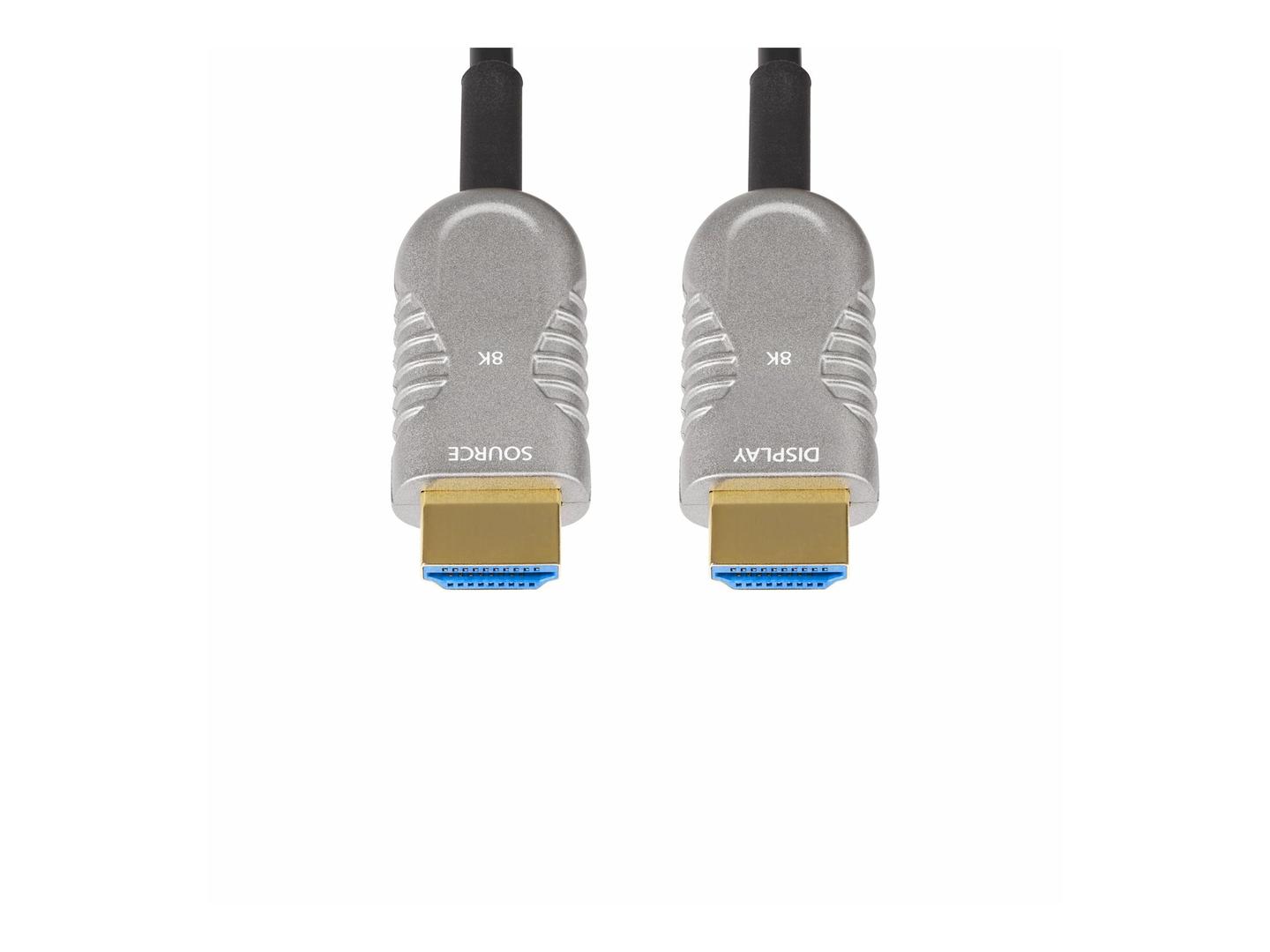

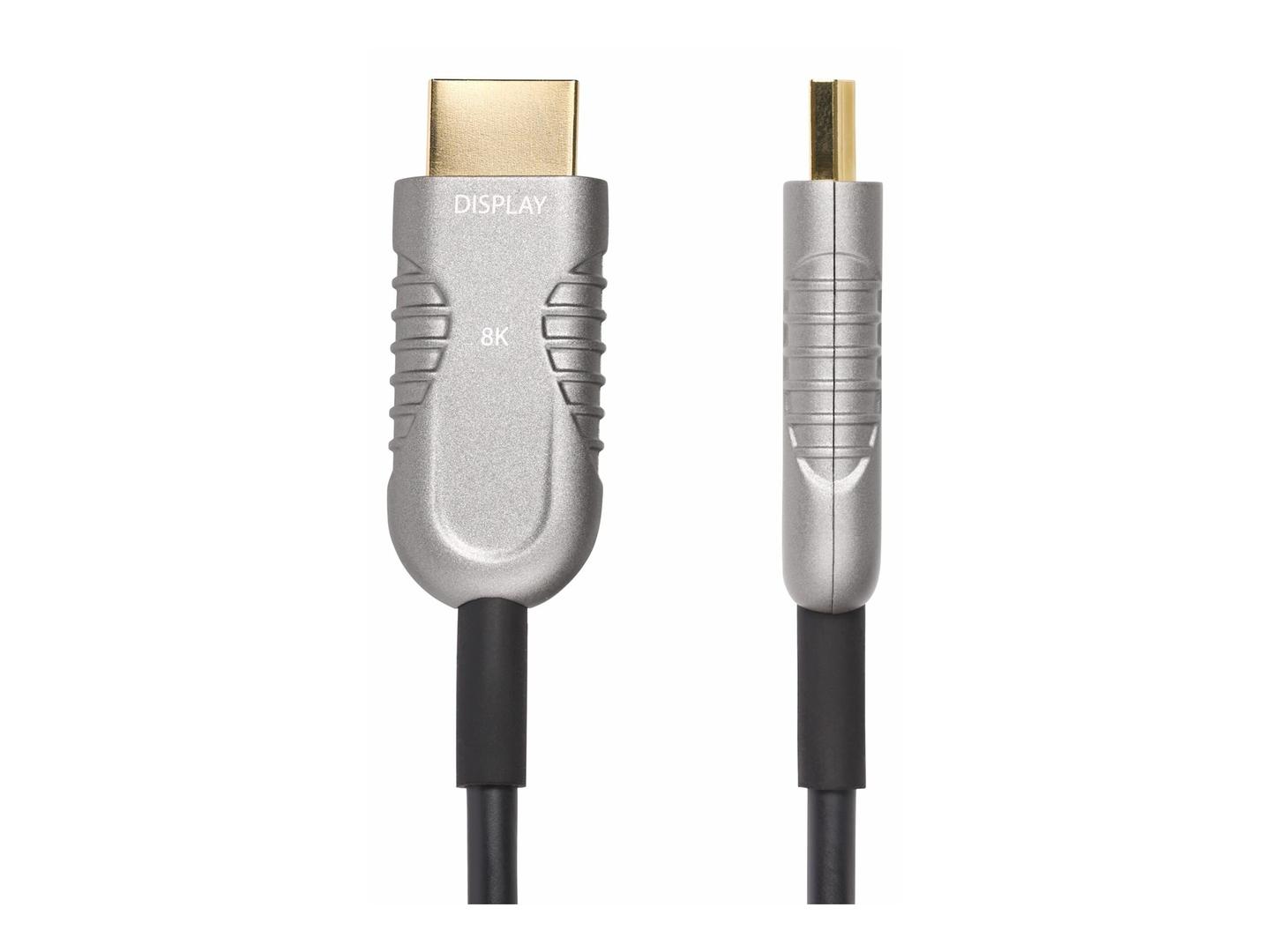

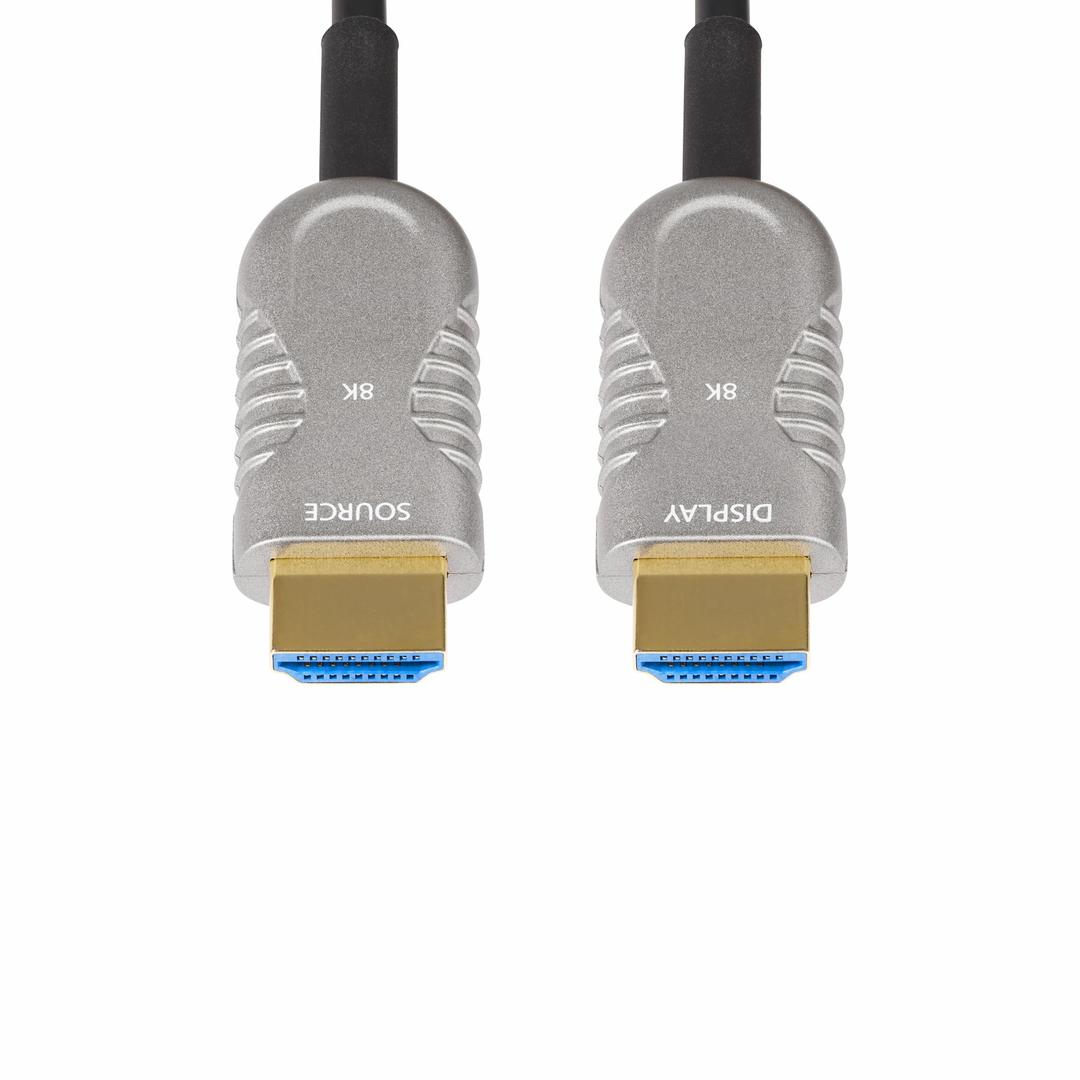

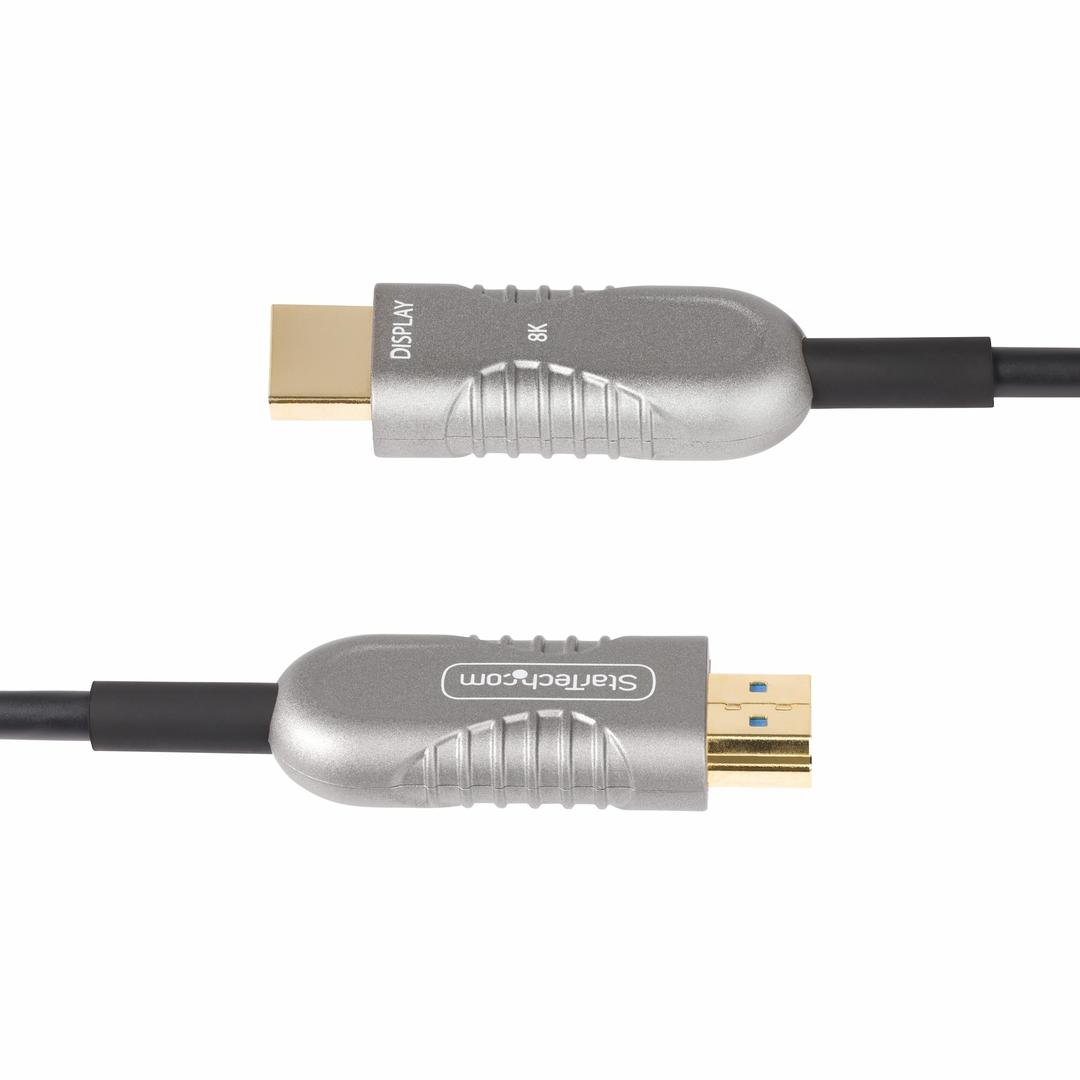

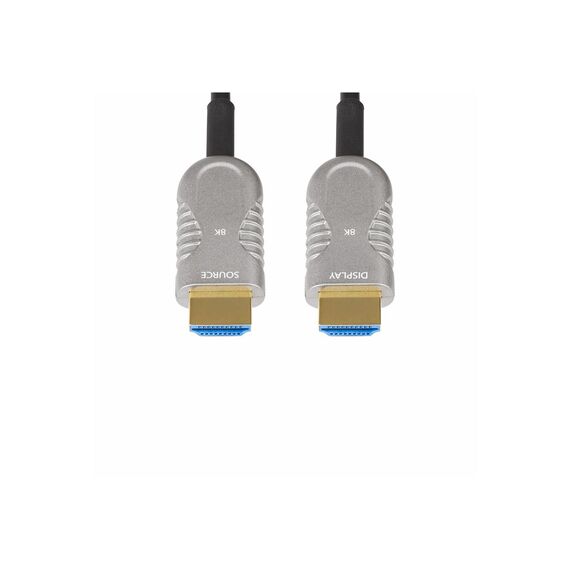

| Connector | 19 pin HDMI Type A - male |
| Connector (Second End) | 19 pin HDMI Type A - male |
| Miscellaneous | |
| Compliant Standards | HDCP 2.3 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.5 cm |
| Shipping Depth | 22 cm |
| Shipping Height | 3.8 cm |
| Shipping Weight | 900 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
Features - StarTech.com - 8K-A-100F-HDMI-CABLE
Colour
black
Length
30m
More Details
Product Code
CK19158
EAN Code
0065030907897
Manufacturer
StarTech.com
