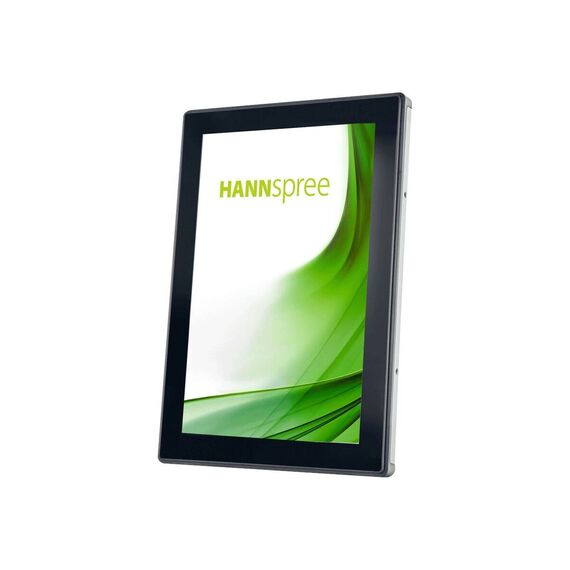

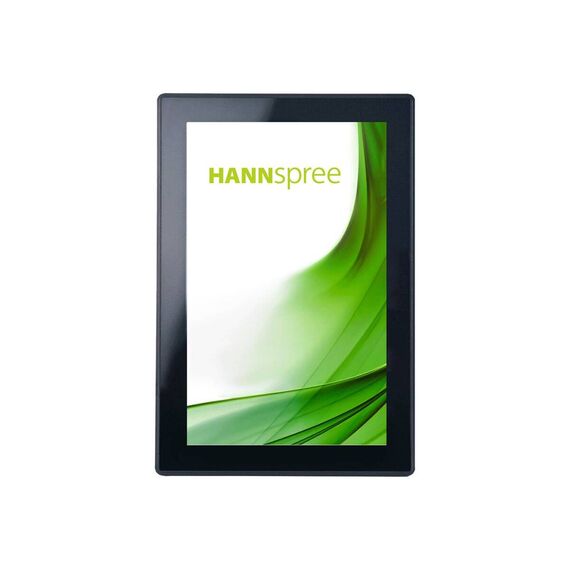

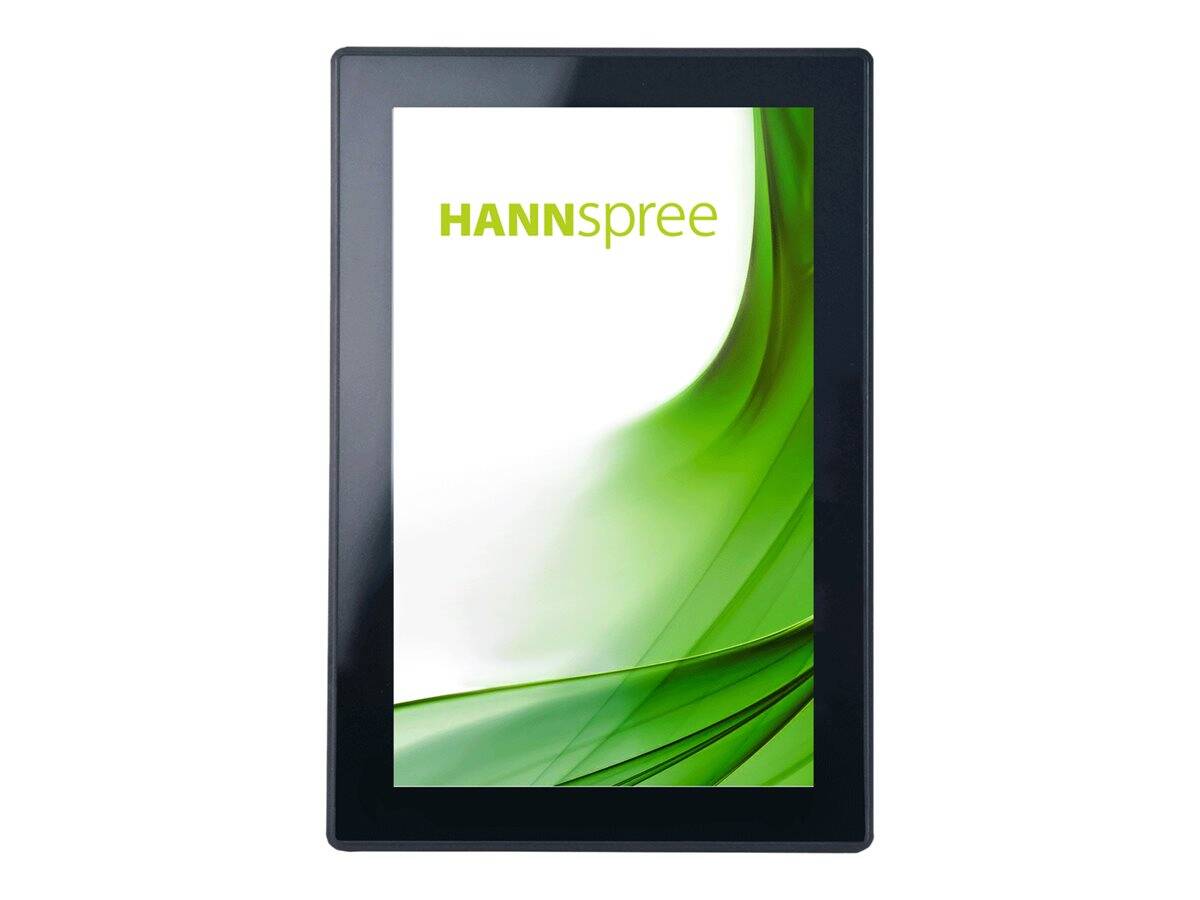

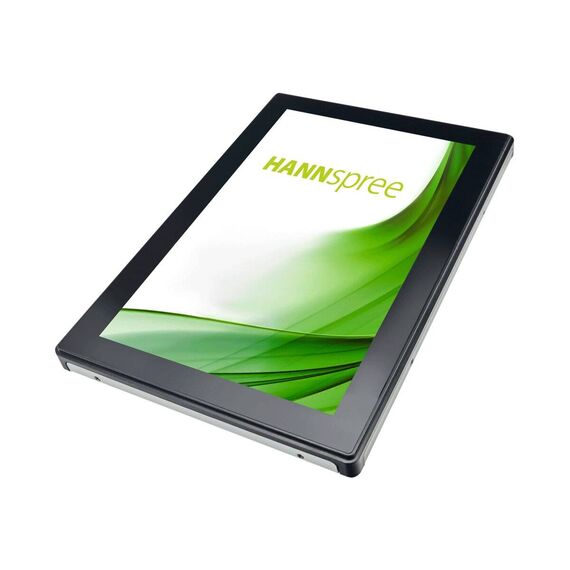

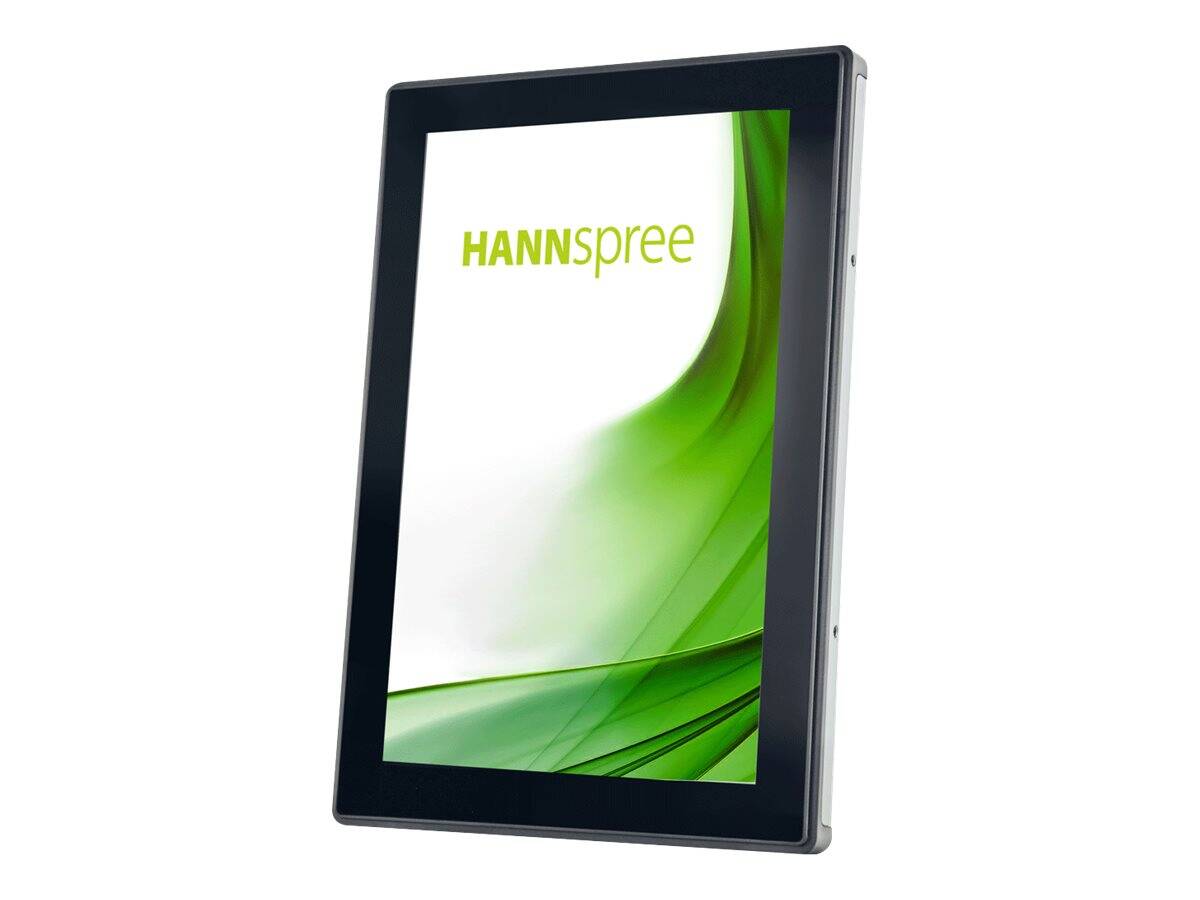

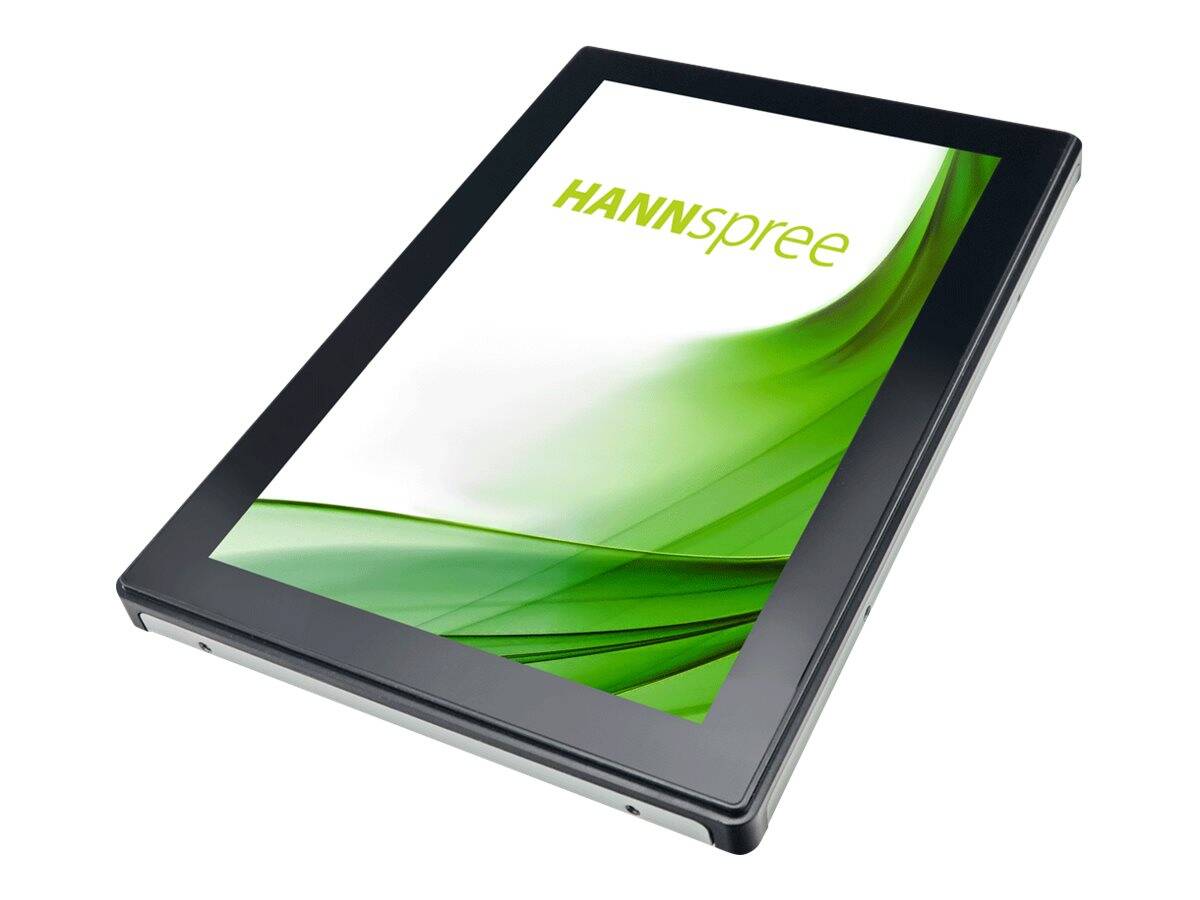

Hannspree HO105 HTB - HO Series - LED monitor - 10.1" - open frame - touchscreen - 1280 x 800 @ 60 Hz - IPS - 350 cd/m² - 800:1 - 25 ms - HDMI, VGA | HO105HTB
Product Features
- Projected capacitive (PCAP) touch technology
Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touchpoints, the HANNSpree HO105HTB Monitor allows everyone to play and collaborate at the same time. The precise and accurate multi-touch display - allowing up to 10 simultaneous touches - is optimized for use with Windows 8, 8.1 and 10, allowing you to work smarter and more efficiently. This technology delivers super-fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today's touch-enabled applications. - Vivid images, lifelike visuals the latest technology with 170° wide view angle
The Touch monitor HO105HTB features a 16:10 aspect ratio LED-backlit panel with a 170° wide view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It delivers improved color accuracy plus increased energy efficiency. The HO105HTB uses a 170°(H) / 170°(V) wide viewing angle panel that eliminates color shift from almost any direction and in nearly every angle. - Connectivity
The HANNspree HO105HTB features a host of connectivity options that include HDMI and VGA. The HO105HTB Open Frame Touch Monitor ensures that your monitor is more compatible and ready to handle all of your content. Enabling touch is easy! Simply connect the USB cable from your PC to the monitor's USB upstream port, and connect one of the video inputs to project images onscreen. - Scratch resistant - multi-touchscreen with 6H surface hardness
6H scratch resistant surface hardness ensures durability, as well as a consistent high-quality touch experience. Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions. The toughened Hard Glass fronted LED monitors (6H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long-life solution. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Special Fetures
- 1280 x 800 resolution
- 10-point touch P-Cap technology
- 170° / 170° wide viewing angle
- Dual input: HDMI + VGA
- IP65 (front) rating level
- 12 Volt external power supply
- 6H toughened hard panel surface
- TP module thickness 2mm

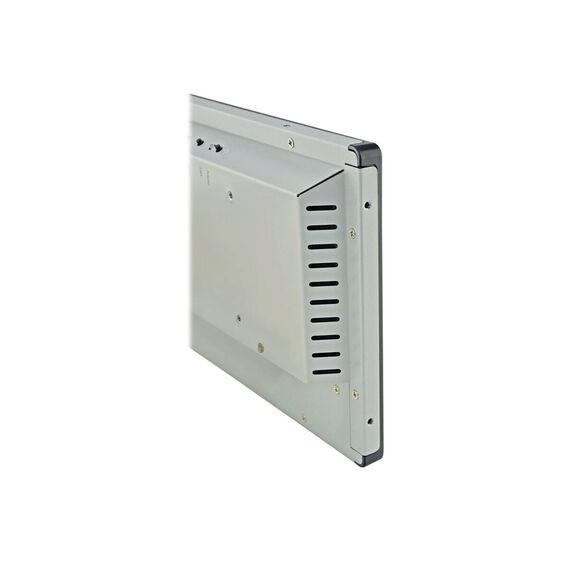

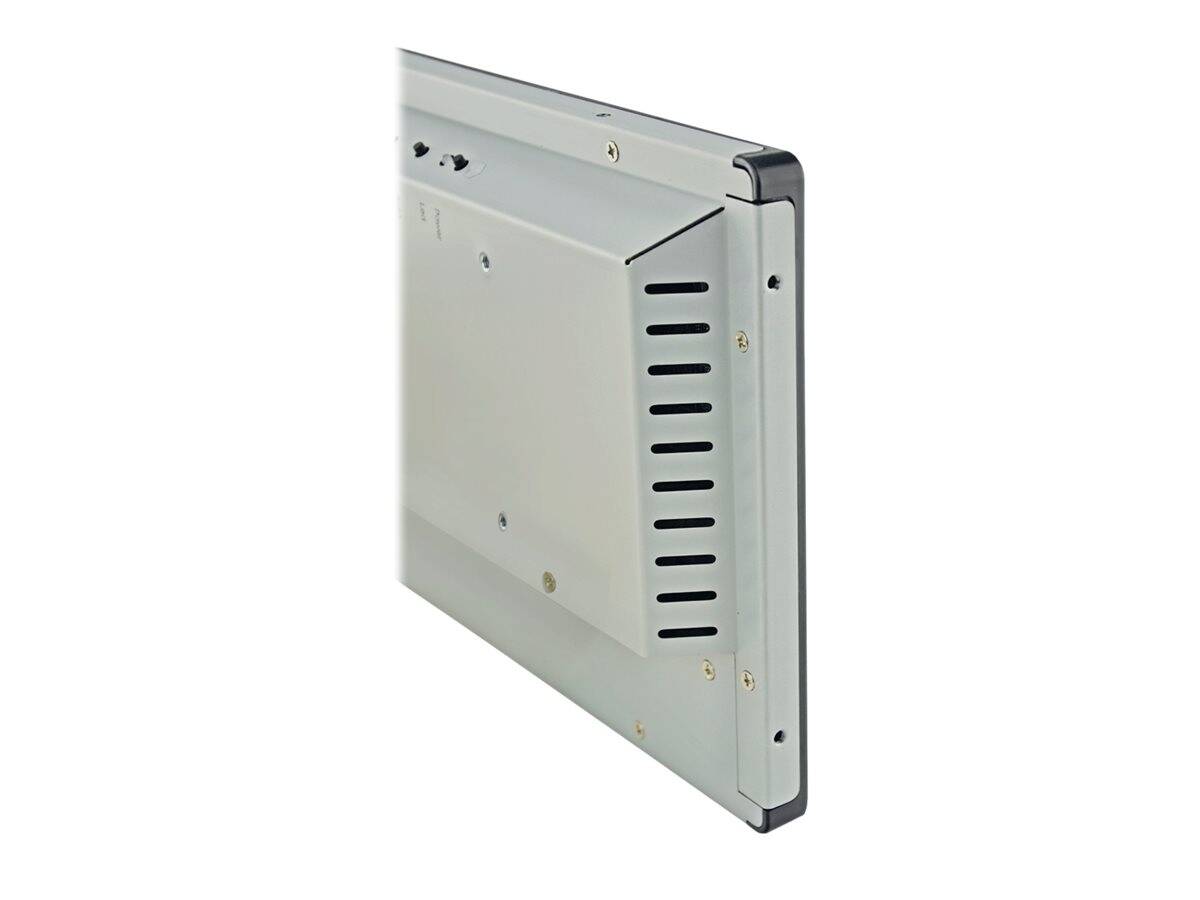

- Sturdy metal case
- Orientation: landscape, portrait, face-up
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Energy Class | Class C |
Energy Consumption per Year | 7 kWh |
Diagonal Size | 10.1" |
Panel Type | IPS |
Aspect Ratio | 16:10 |
Native Resolution | 1280 x 800 at 60 Hz |
Pixel Pitch | 0.1695 mm |
Brightness | 350 cd/m² |
Brightness w/touchscreen | 300 cd/m² |
Contrast Ratio | 800:1 |
Colour Support | 16.7 million colours |
Response Time | 25 ms |
Vertical Refresh Rate | 56 - 60 Hz |
Horizontal Refresh Rate | 30 - 55 kHz |
Horizontal Viewing Angle | 170 |
Vertical Viewing Angle | 170 |
Screen Coating | 6H Hard Coating |
Backlight Technology | LED backlight |
Colour Temperature | 9300K, 6500K, 7500K |
Features | Ultra wide viewing angle, g+g touch screen, metal casing |
Dimensions (WxDxH) | 26 cm x 3.58 cm x 17.8 cm |
Weight | 1.4 kg |
Input | |
Type | Touch-screen - touchscreen |
Movement Detection Technology | Capacitance intelligence (PCAP) |
Connectivity | |
Interfaces | VGA ¦ HDMI ¦ USB (touchscreen only) |
Mechanical | |
VESA Mounting Interface | 75 x 75 mm |
Miscellaneous | |
Features | Water-resistant, dust-resistant, landscape / portrait mounting, scratch-resistant |
Cables Included | 1 x USB cable - 1.8 m ¦ 1 x HDMI cable - 2 m |
Backlight Life | 20,000 hours |
Compliant Standards | WEEE, IP65 |
Power | |
Input Voltage | DC 12 V |
Power Consumption (On mode) | 5 W |
Power Consumption SDR (On mode) | 5 kWh/1000h |
Power Consumption (Typical) | 4.6 Watt |
Power Consumption Stand by | 0.145 Watt |
Power Consumption (Off Mode) | 0.04 Watt |
On / Off Switch | No |
Dimensions & Weight (Shipping) | |
Shipping Width | 37 cm |
Shipping Depth | 9 cm |
Shipping Height | 23.7 cm |
Shipping Weight | 2.2 kg |
