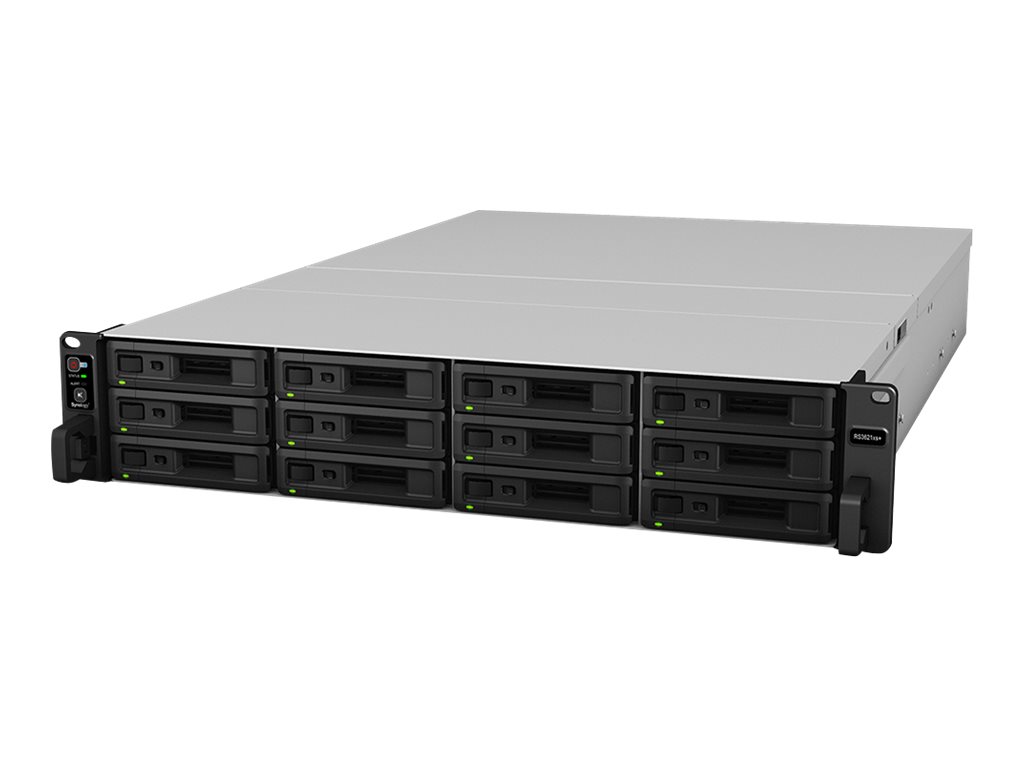

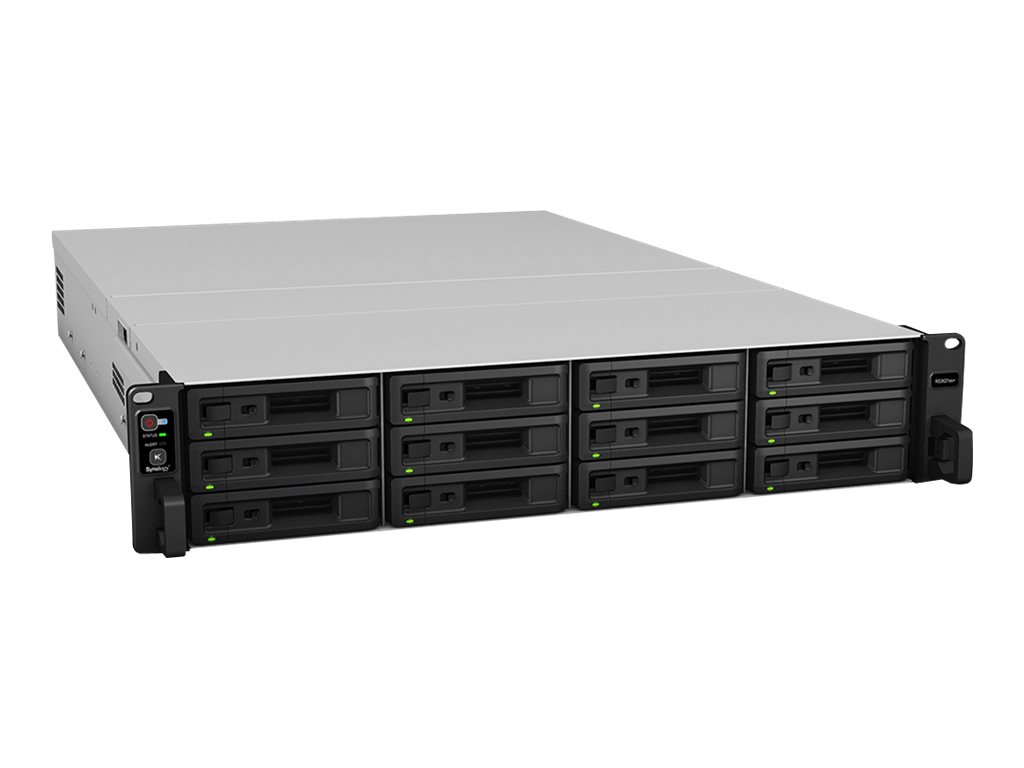

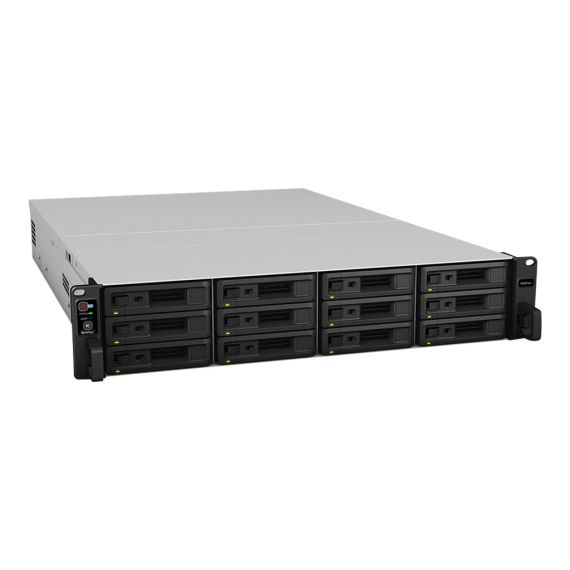

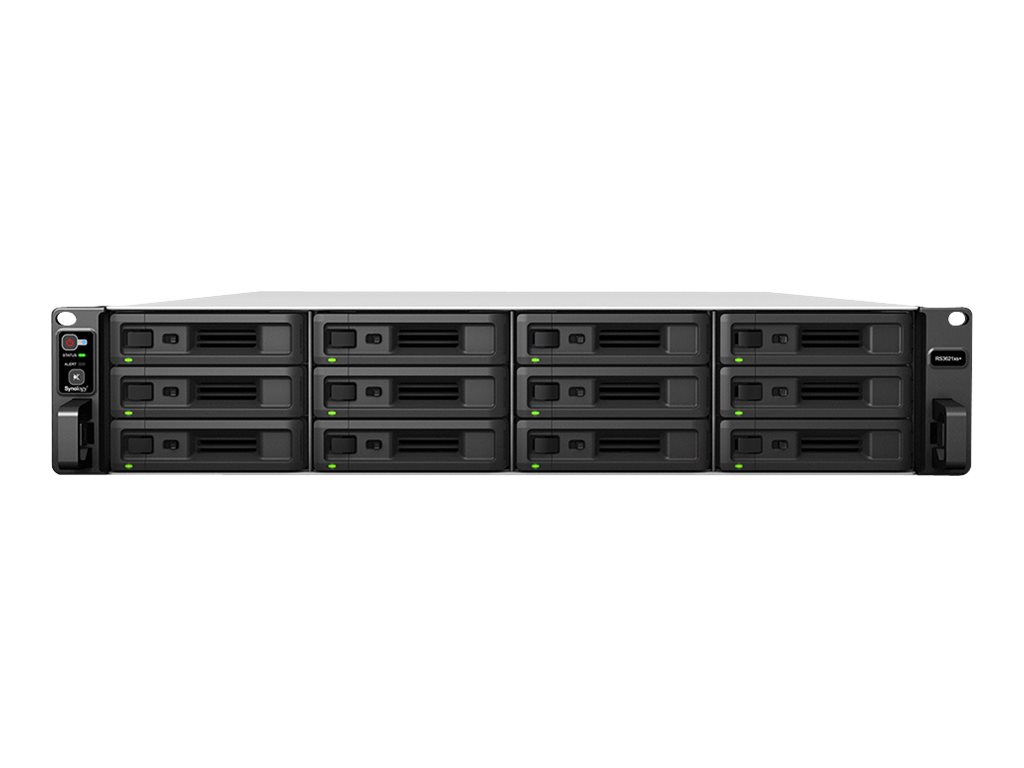

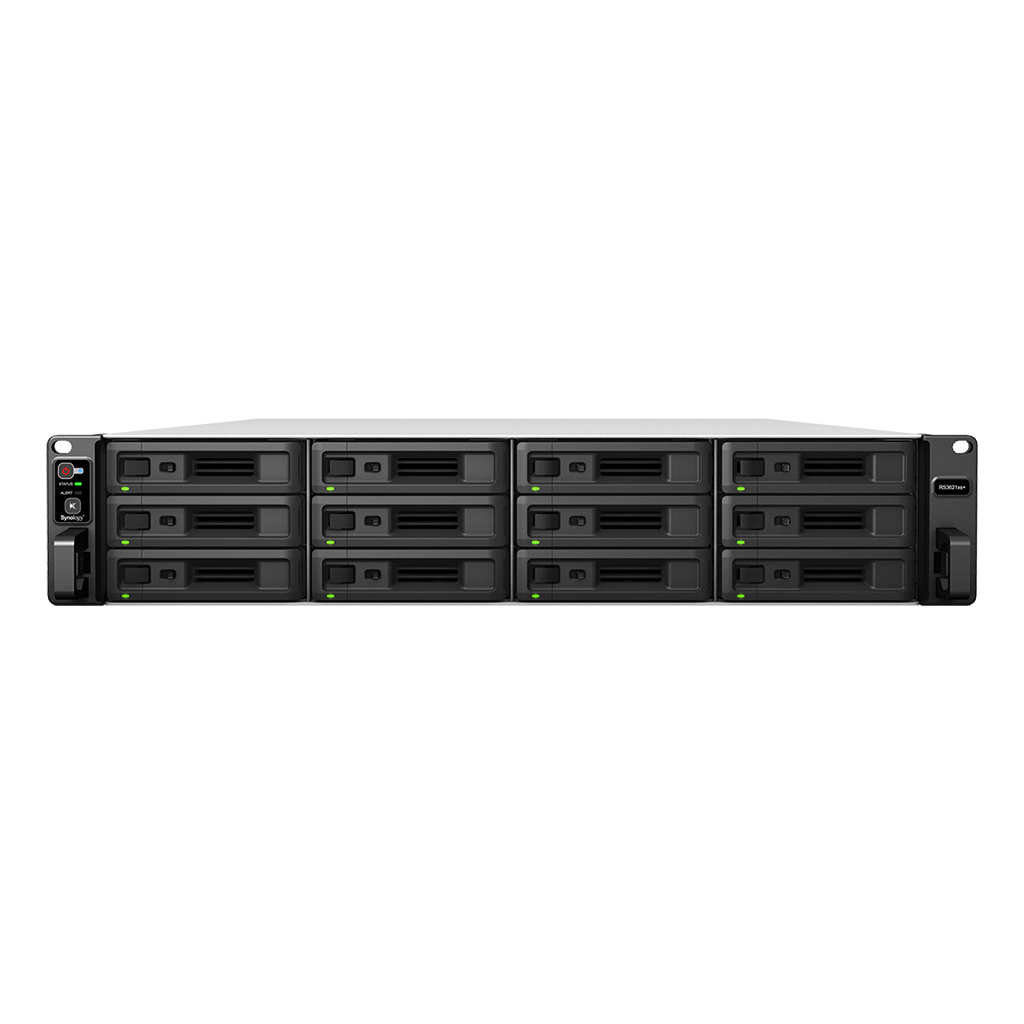

NAS server - 12 bays - rack-mountable - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1, 1 hot spare, 10 hot spare, 5 hot spare, 6 hot spare, F1 hot spare - RAM 8 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U | RS3621XS+
Product Features
- Accelerate your business operations
The 12-bay RS3621xs+ is a true enterprise powerhouse. With full power supply redundancy, an 8-core processor, ECC memory, advanced snapshot technology, and file self-healing, the RS3621xs+ provides a reliable foundation to any data-driven business. - Storage you can trust
The RS3621xs+ keeps your data protected while you concentrate on delivering great results to your customers - even when disaster strikes. - Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans allow them to be replaced without powering down the system. - Maximize service availability
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover. - Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots. - Tailored to your business
The RS3621xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment. - Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage use. - Snapshot replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption. - Active backup suite
Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows and Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.
Special Fetures
- Accelerate your business operations
- Storage you can trust
- Redundant power
- Maximize service availability
- Next-generation file system
- Tailored to your business
- Hyper Backup
- Snapshot replication
- Active backup suite
Product Specification
Device Type | NAS server |
Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
Enclosure Type | Rack-mountable - 2U |
Total Storage Capacity | 0 GB |
Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
Width | 48.2 cm |
Depth | 72.4 cm |
Height | 8.8 cm |
Weight | 14.5 kg () |
Processor / Memory | |
Processors Installed | 1 x Intel Xeon D-1541 2.1 GHz |
Number of Cores | 8-core |
Max Supported Qty | 1 |
Max Turbo Speed | 2.7 GHz |
RAM | 8 GB (installed) / 64 GB (supported) - DDR4 |
Storage Controller | |
Type | RAID |
Interface Type | SATA 6Gb/s |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1, RAID 1 hot spare, RAID 10 hot spare, RAID 5 hot spare, RAID 6 hot spare, RAID F1 hot spare |
Networking | |
Data Link Protocol | 1GbE, 10GbE |
Network / Transport Protocol | PPTP, L2TP, iSCSI, SMTP, FTP, DHCP, POP3, IMAP |
Remote Management Protocol | SNMP, Telnet, HTTPS |
Network Services Compatibility | Microsoft Active Directory (AD), Network File System (NFS), Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
Features | Firewall protection, VPN support, LDAP support, VLAN support, wake on LAN (WOL), print server, antivirus analysis, High Availability, web server, backup server, file sharing, event log, Access Control List (ACL) support, iTunes server, DHCP server, FTP server, BitTorrent Client, e-mail server, bandwidth control, surveillance station, eMule client, e-mail notification |
Encryption Algorithm | 256-bit AES |
Compliant Standards | DLNA CERTIFIED |
Expansion / Connectivity | |
Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
Expansion Slots | 2 (total) / 2 (free) x PCI Express 3.0 x8 <br /> 4 (total) / 3 (free) x DIMM 288-pin |

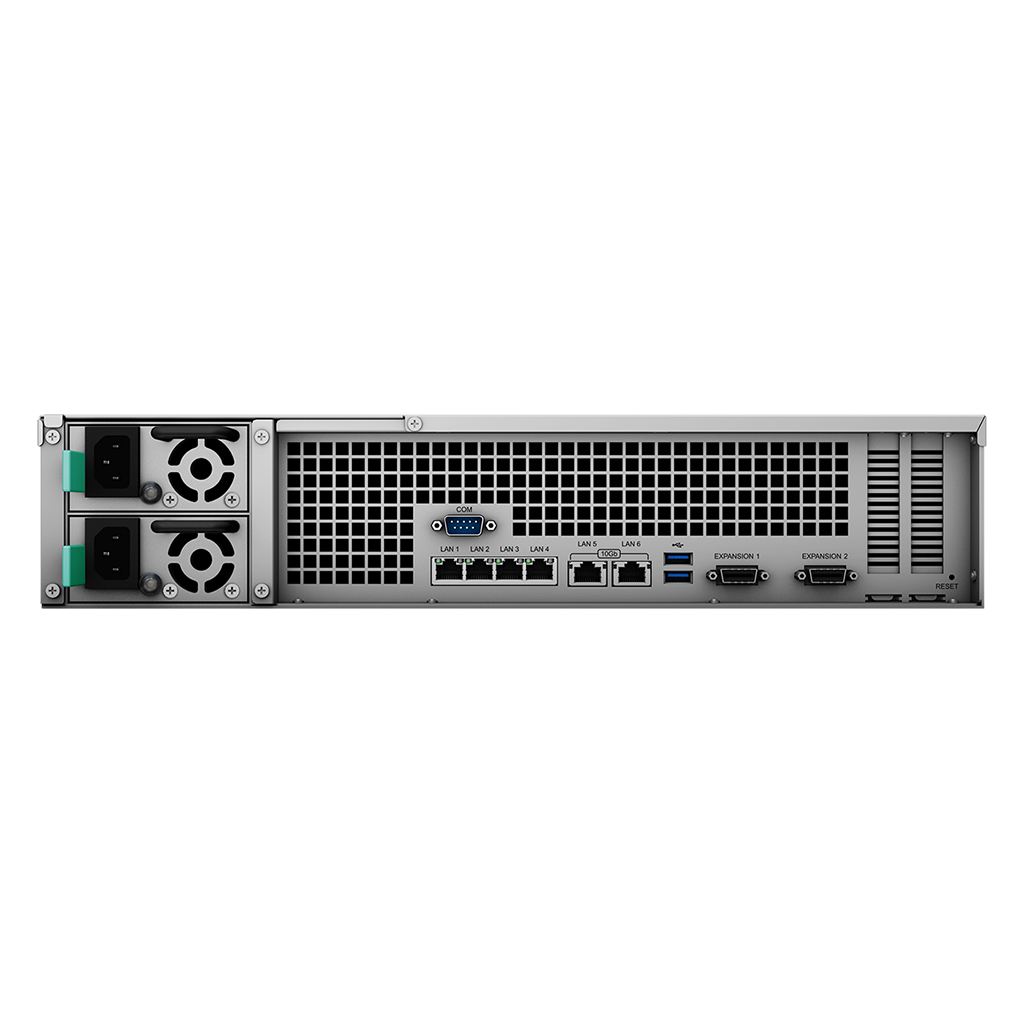

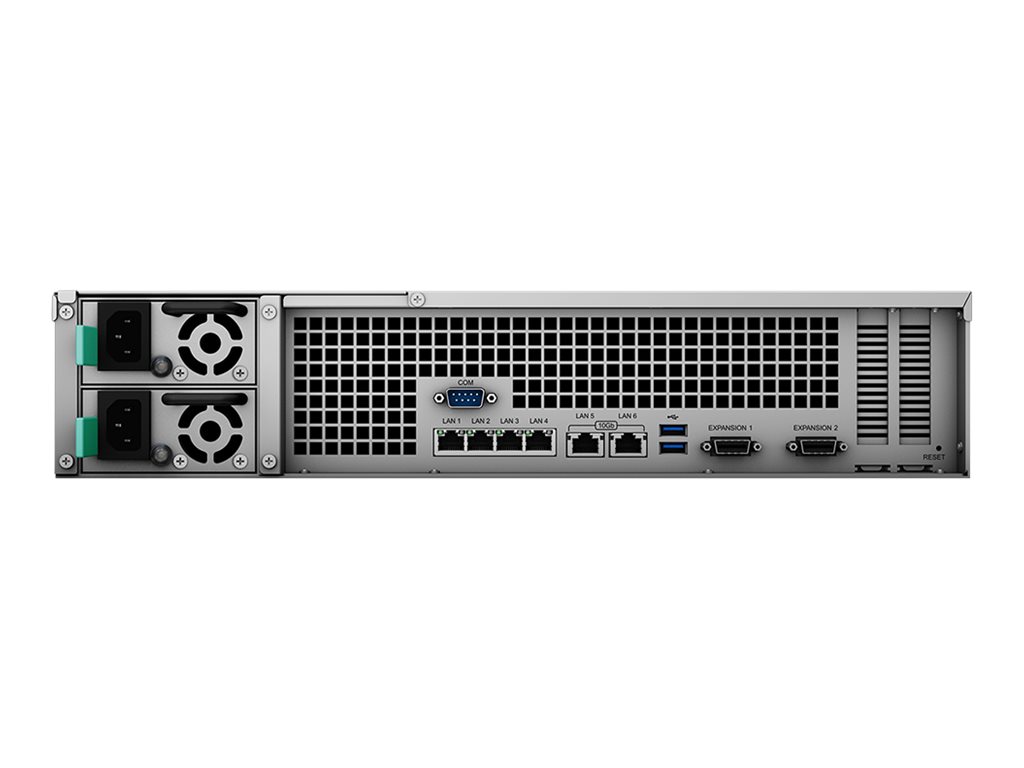

Interfaces | 4 x Ethernet 1000Base-T - RJ-45 <br /> 2 x USB 3.2 Gen 1 - Type A <br /> 2 x Ethernet 10Gb - RJ-45 <br /> 2 x expansion port <br /> 1 x management |
Miscellaneous | |
Compliant Standards | FCC, BSMI, VCCI, RCM, EAC, CCC, KC, UL, RoHS |
Included Accessories | Accessory pack |
Power | |
Power Device | Internal power supply |
Installed Qty | 2 |
Max Supported Qty | 2 |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 142.5 Watt |
Power Provided | 500 Watt |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 5 - 95% |
Sound Emission | 50.2 dBA |
