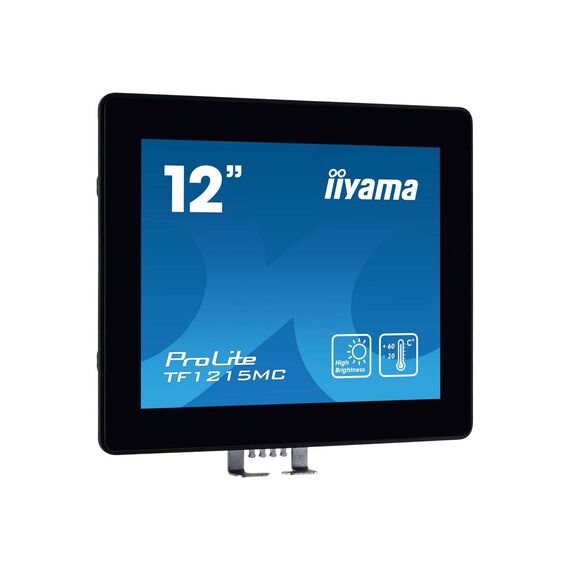

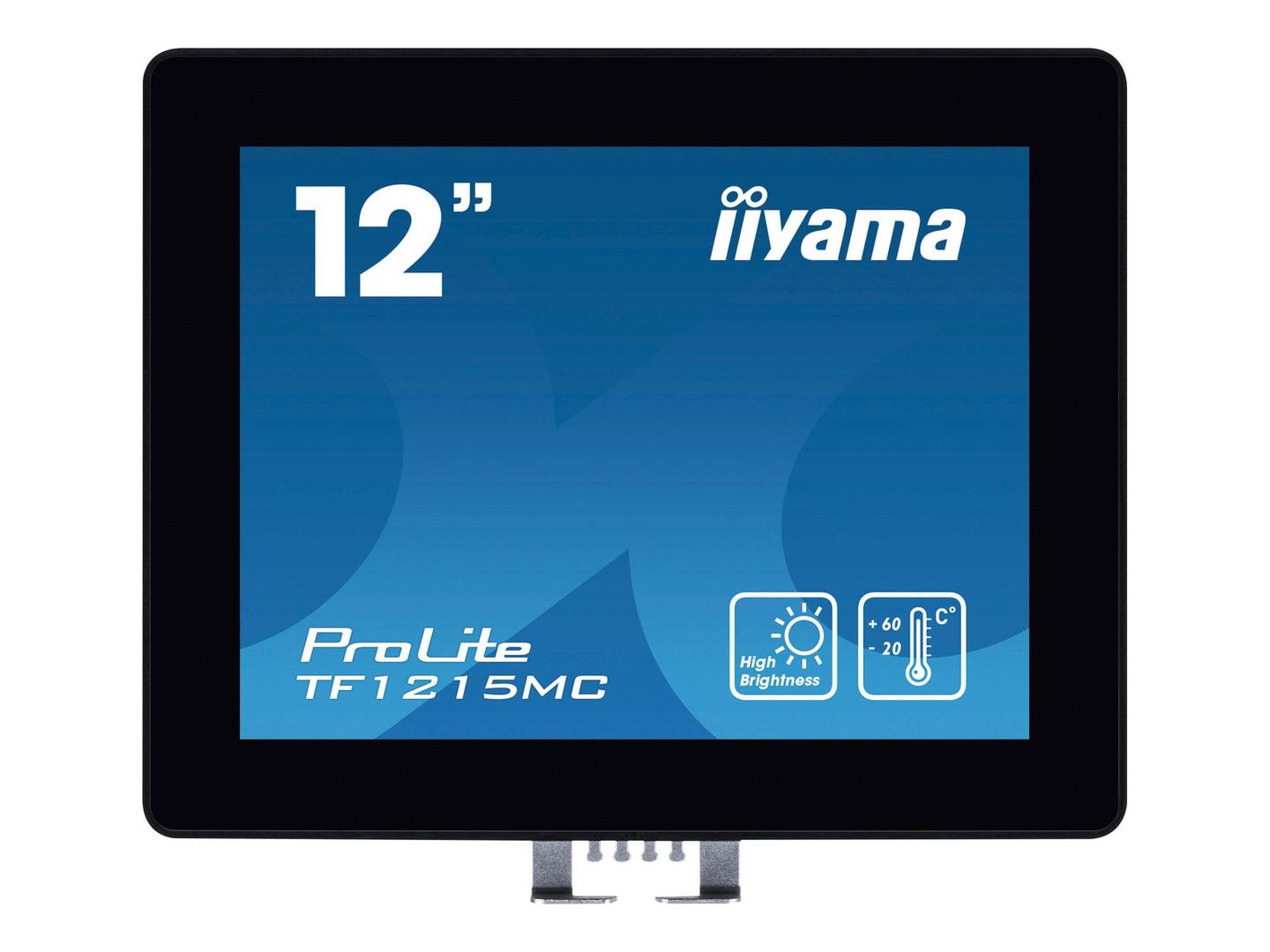

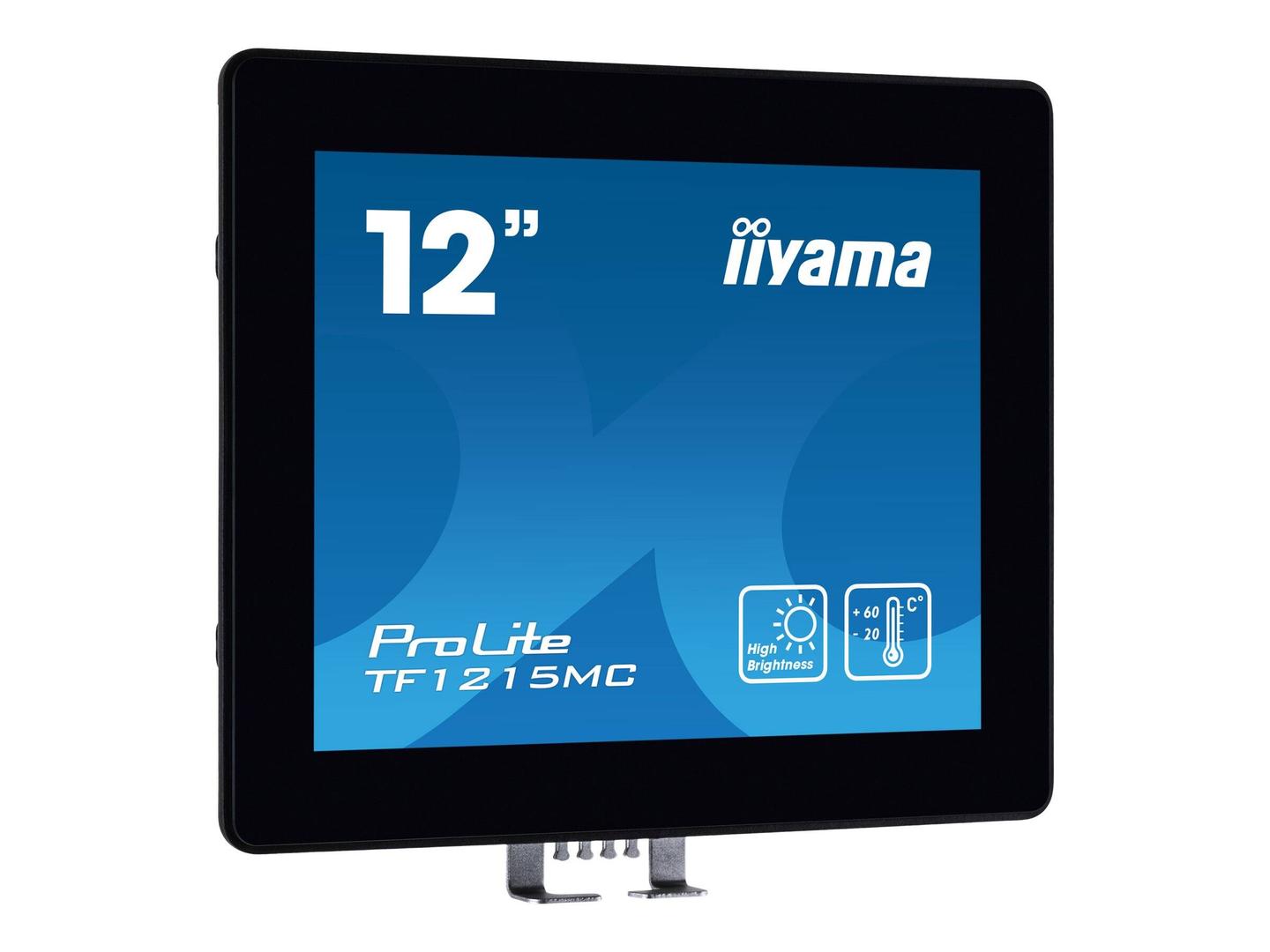

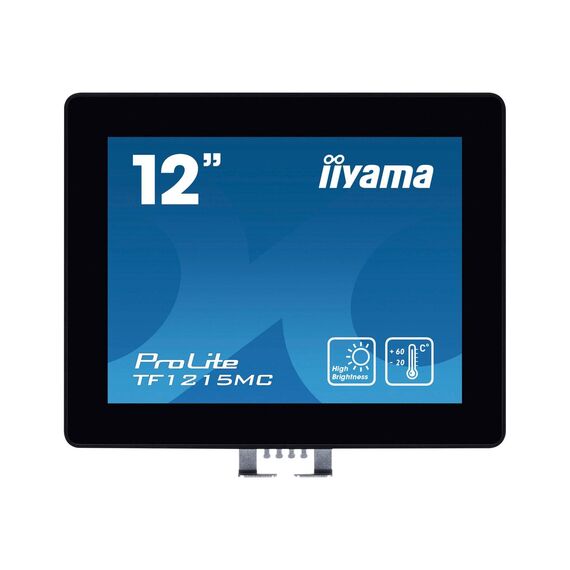

iiyama ProLite TF1215MC-B1 / LED monitor / 12.1" / open frame / touchscreen / 1024 x 768 / IPS / 540 cd/m² / 1000:1 / 25 ms / HDMI, VGA, DisplayPort / black | TF1215MC-B1
Please sign in so that we can notify you about a reply
Product Features
- Semi outdoor solution
The screen can operate in low and high temperatures and is IP65 rated resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks in environments like petrol or train stations. High brightness ensures legibility in any lighting conditions. - Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Special Features
- Semi outdoor solution
- Touch through-glass
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class F |
| Energy Consumption per Year | 16 kWh |
| Diagonal Size | 12.1" |
| Panel Type | IPS |
| Native Resolution | 1024 x 768 |
| Pixel Pitch | 0.24 mm |
| Brightness | 540 cd/m² |
| Brightness w/touchscreen | 450 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.2 million colours |
| Response Time | 25 ms |
| Vertical Refresh Rate | 56 - 75 Hz |
| Horizontal Refresh Rate | 31.4 - 60 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Screen Coating | 7H Hard Coating |
| Backlight Technology | LED backlight |
| OSD Languages | English, German, French, Italian, Spanish, Japanese, Chinese |
| Features | HDCP, High Frame Rate Control (Hi-FRC), edge-to-edge glass, OSD lock, anti-fingerprint, landscape mode, portrait mode, 6 mm through-glass, touch through glass function |
| Colour | Black |

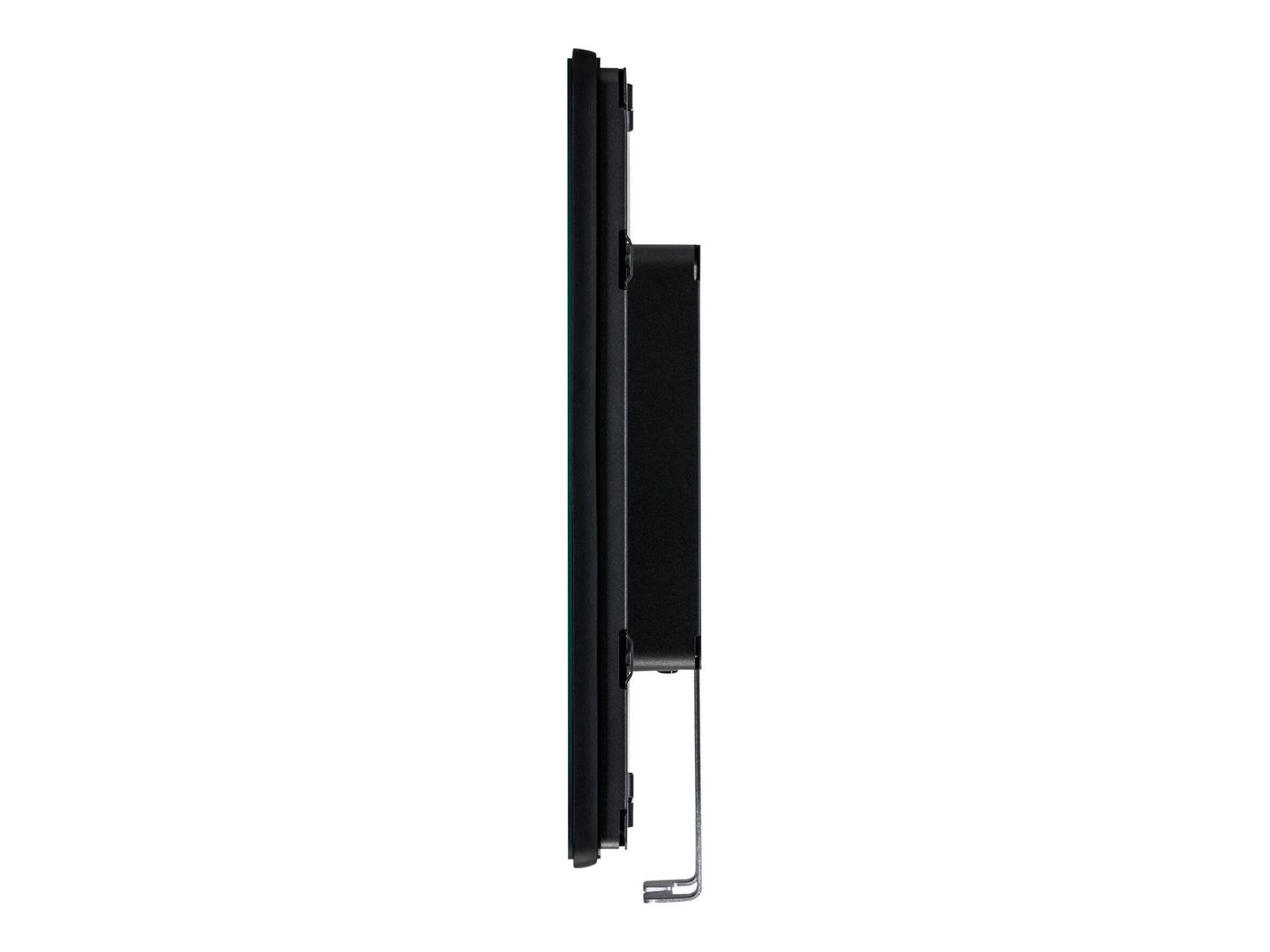

| Dimensions (WxDxH) | 30.85 cm x 4.15 cm x 24.8 cm |
| Weight | 2.1 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |

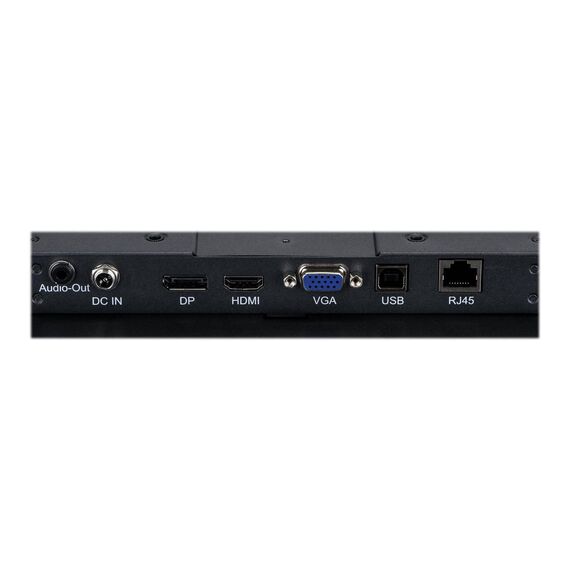

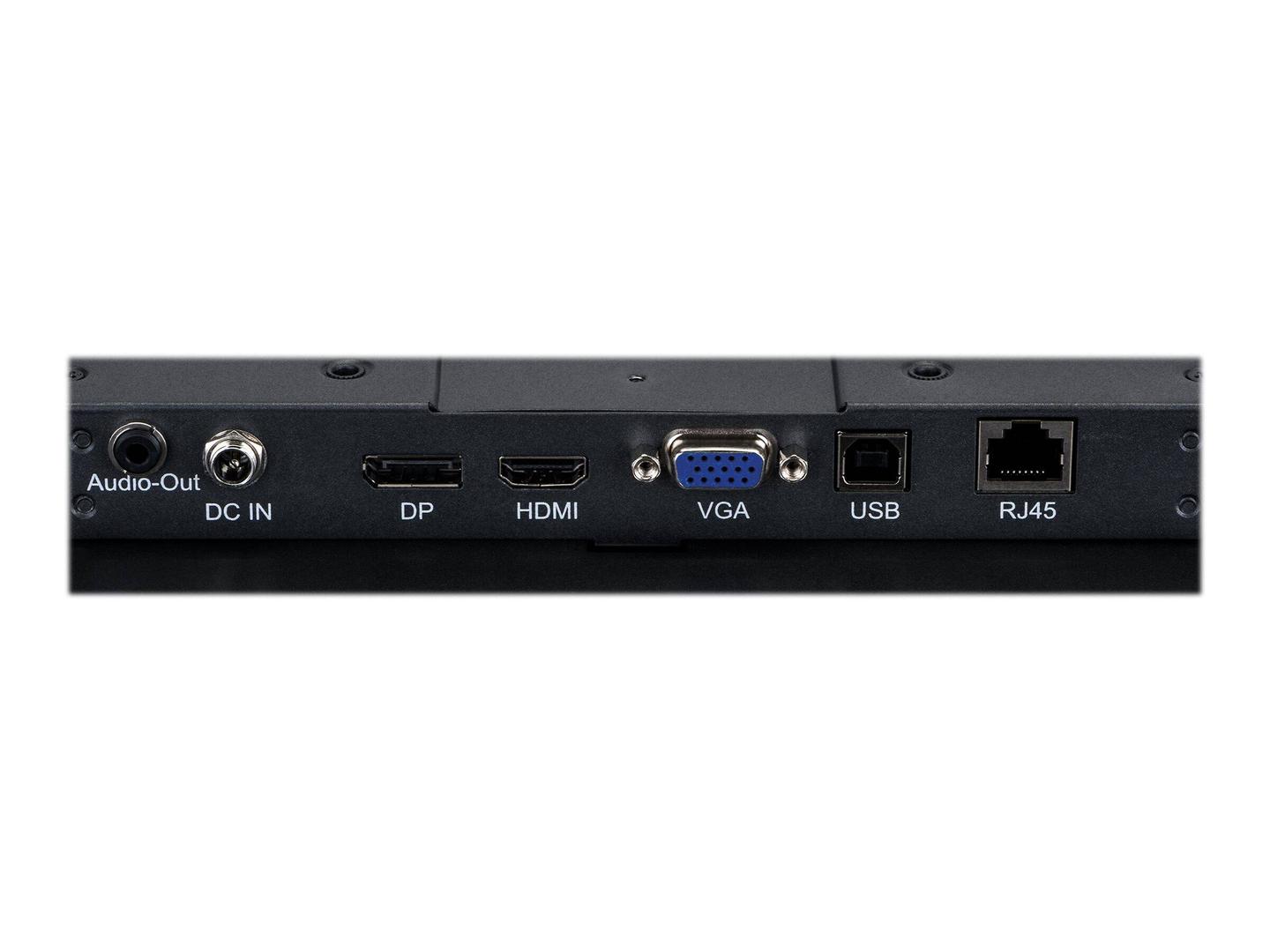

| Interfaces | VGA ¦ DisplayPort ¦ HDMI ¦ USB ¦ Audio line-out |
| Mechanical | Mechanical |

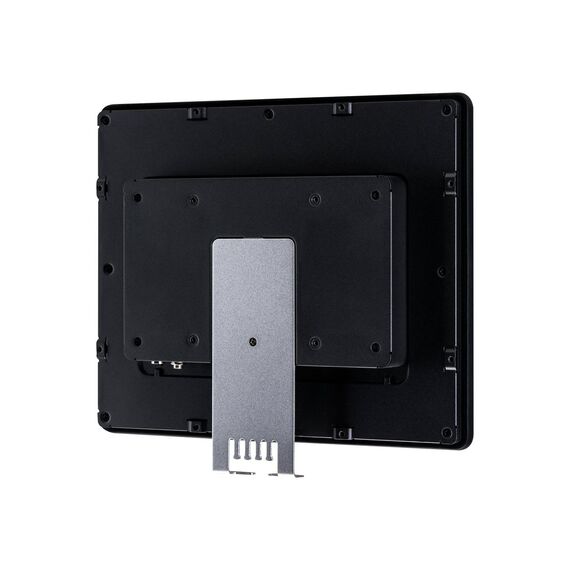

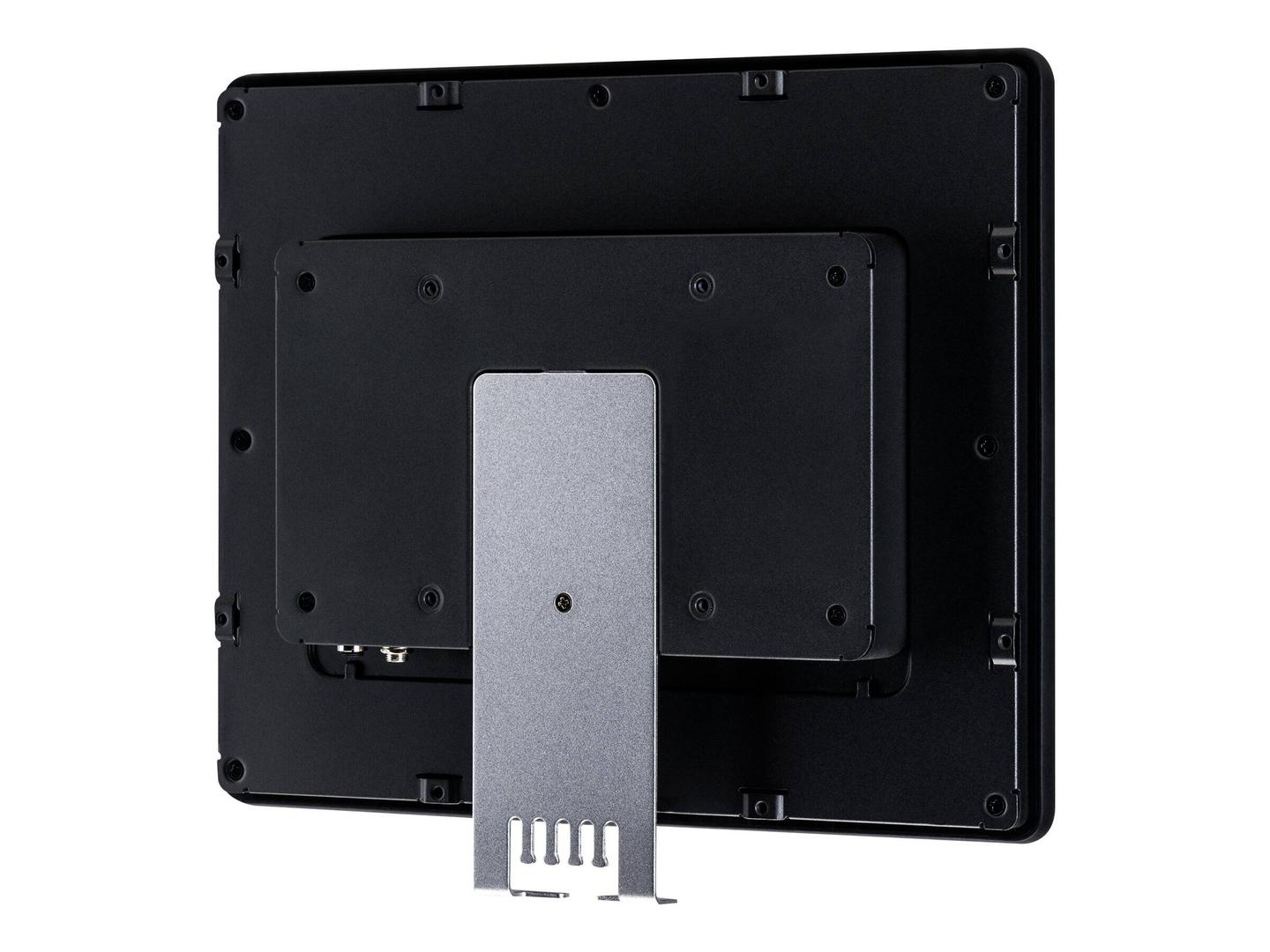

| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Features | IP65 protection |
| Included Accessories | Remote control |
| Cables Included | 1 x HDMI cable ¦ 1 x DisplayPort cable ¦ 1 x USB cable |
| Compliant Standards | Plug and Play, DDC-2B, RoHS, WEEE, cULus, REACH, ERP, EAC |
| Power | Power |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (On mode) | 11 W |
| Power Consumption SDR (On mode) | 11 kWh/1000h |
| Power Consumption (Typical) | 10 Watt |
| Power Consumption Stand by | 0.55 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 43.5 cm |
| Shipping Depth | 16.5 cm |
| Shipping Height | 35.5 cm |
| Shipping Weight | 3.9 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - Iiyama - TF1215MC-B1
Resolution
1024 x 768
More Details
Product Code
04:353440
EAN Code
4948570118007
Manufacturer
Iiyama
