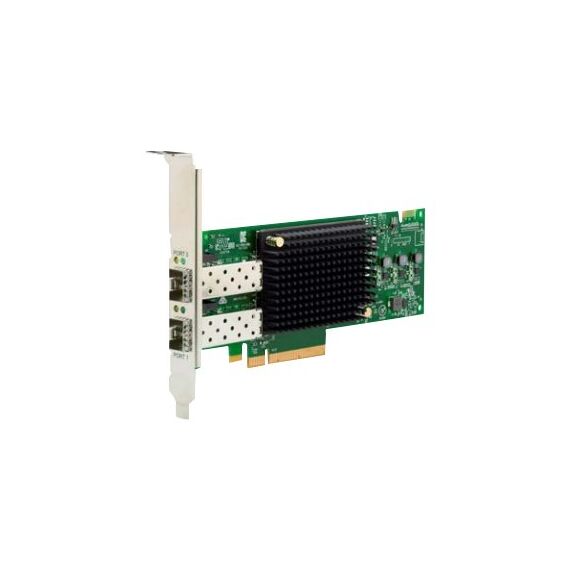

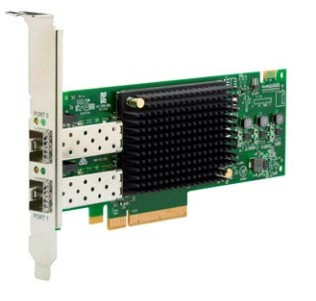

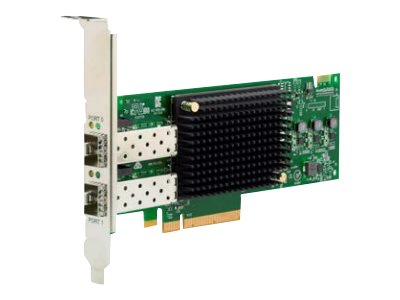

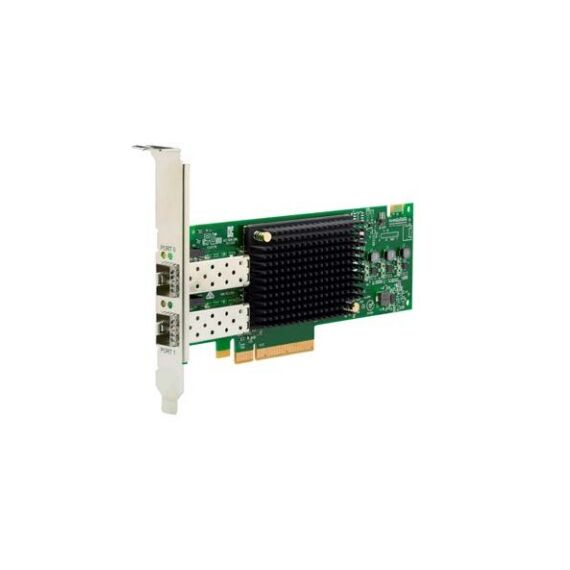

Emulex LightPulse LPe31002-M6-F / Host bus adapter / PCIe 2.0 x8 low profile / 16Gb Fibre Channel x 2 / for PRIMERGY CX2560 M5, CX2570 M4, RX2520 M5, RX2530 M5, RX2540 M5, RX4770 M4, TX2550 M5 | S26361-F5596-L502
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Host bus adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 1.0, PCIe 2.0 |
| Networking | Networking |
| Ports | 16Gb Fibre Channel x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Fibre optic |
| Data Link Protocol | 16Gb Fibre Channel (Short Wave) |
| Fibre Channel | FC-AL, FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-Tape, FC-SP, FCP-4, FCP, FCP-2, FC-PI-2, FC-FS-2, FC-GS-5, FC-PI-4, FC-GS-6, FC-HBA, FC-PI-5, FC-LS-2, FC-SP-2, FC-MJS, FC-SB-4, RFC2625, SSC-2, SBC-2, SPC-3, SBC-3, SPC-4, SSC-3 |
| Data Transfer Rate | 14.025 Gbps |
| Status Indicators | Link/activity |
| Features | Auto-negotiation |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 16Gb Fibre Channel - LC multi-mode - x 2 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Emulex OneCommand Manager |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Fujitsu PRIMERGY CX2550 M2, CX2550 M2 Liquid Cooling, CX2560 M4 air cooling, CX2560 M4 liquid cooling, CX2560 M5, CX2570 M2, CX2570 M4 PCI air cooling, CX2570 M4 SXM2 liquid cooling, RX1330 M4, RX2510 M2, RX2520 M4, RX2520 M5, RX2530 M2, RX2530 M4, RX2530 M4 Liquid Cooling, RX2530 M5, RX2530 M5 Liquid Cooling, RX2540 M2 Storage Spaces, RX2540 M4, RX2540 M5, RX4770 M3, RX4770 M4, RX4770 M4 liquid cooling, RX4770 M4 Performance, TX1330 M4, TX2550 M4, TX2550 M5 |
Features - Fujitsu - S26361-F5596-L502
More Details
Product Code
04:255736
EAN Code
4057185676779
Manufacturer
Fujitsu
