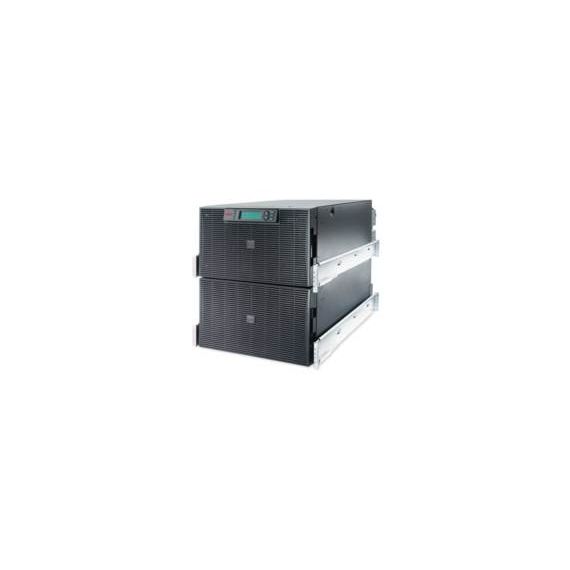

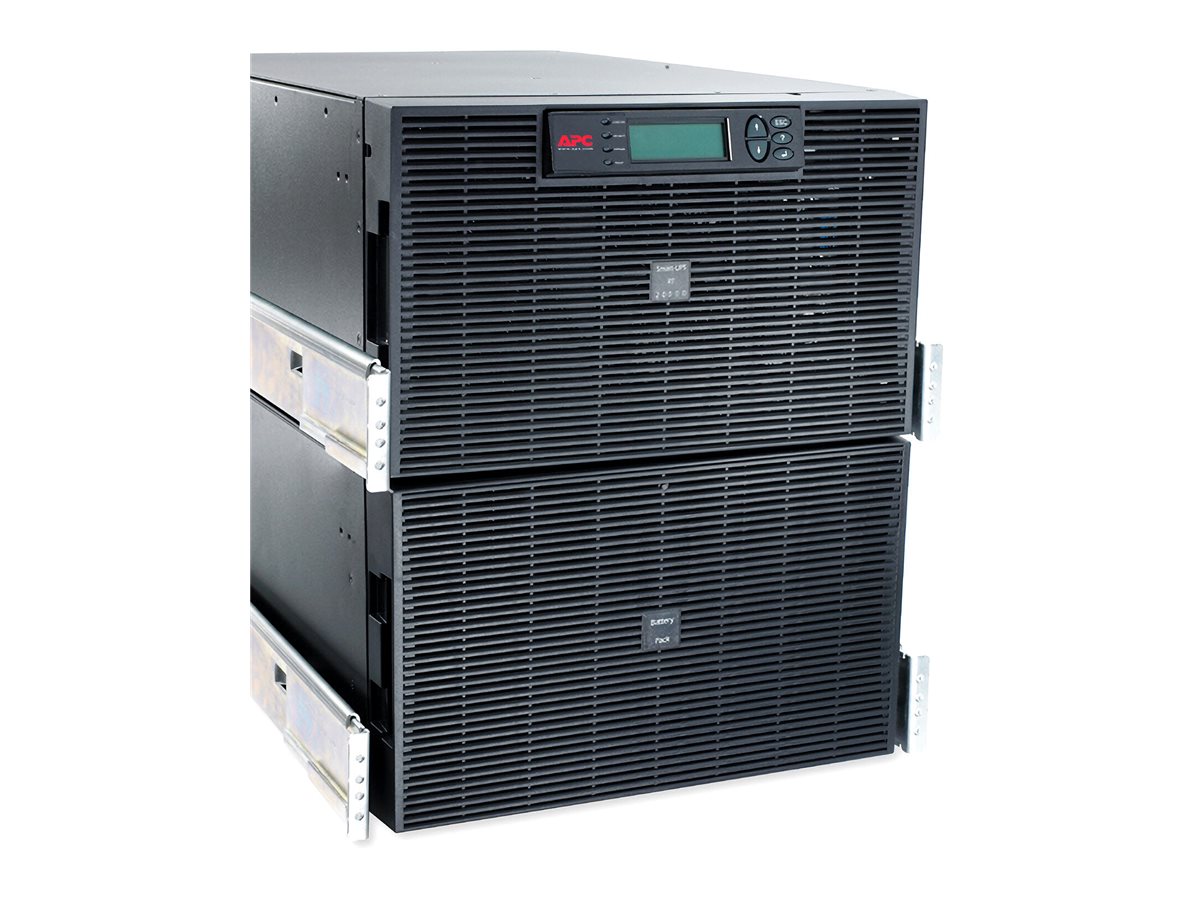

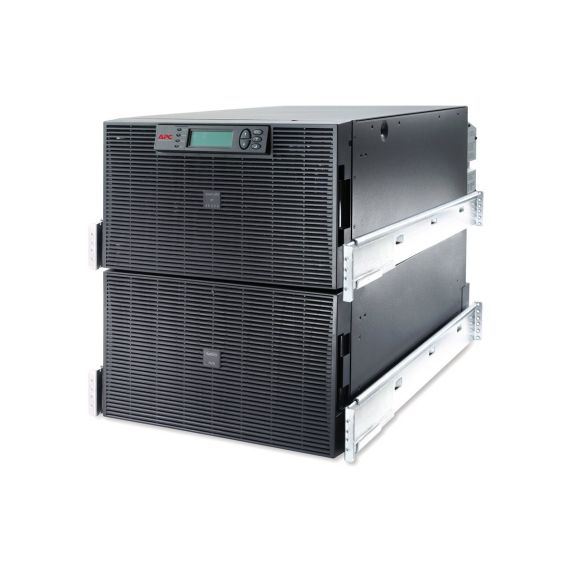

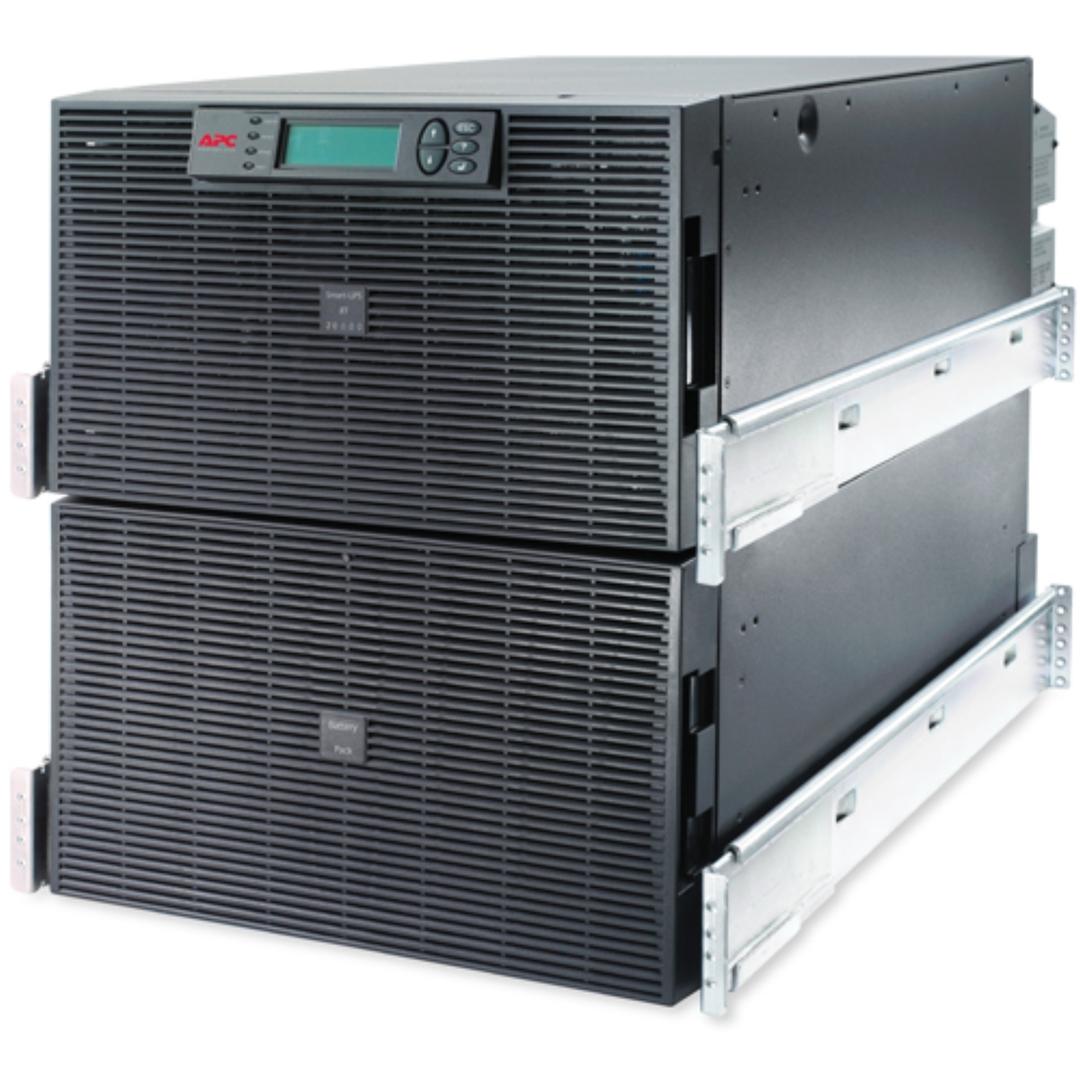

AC 220/230/240 V / 16 kW / 20000 VA / 3-phase / 1-phase / Ethernet 10/100, RS-232 / output connectors: 10 / 12U / black / for P/N: AR2487G, AR3105W, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, NBWL0356A | SURT20KRMXLI
Please sign in so that we can notify you about a reply
Product Features

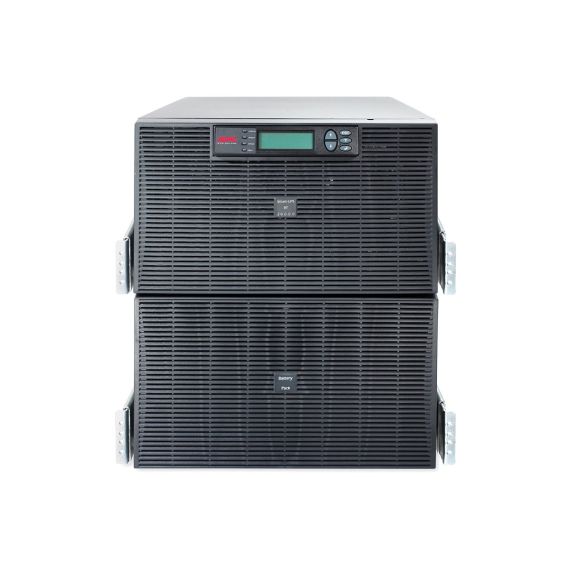

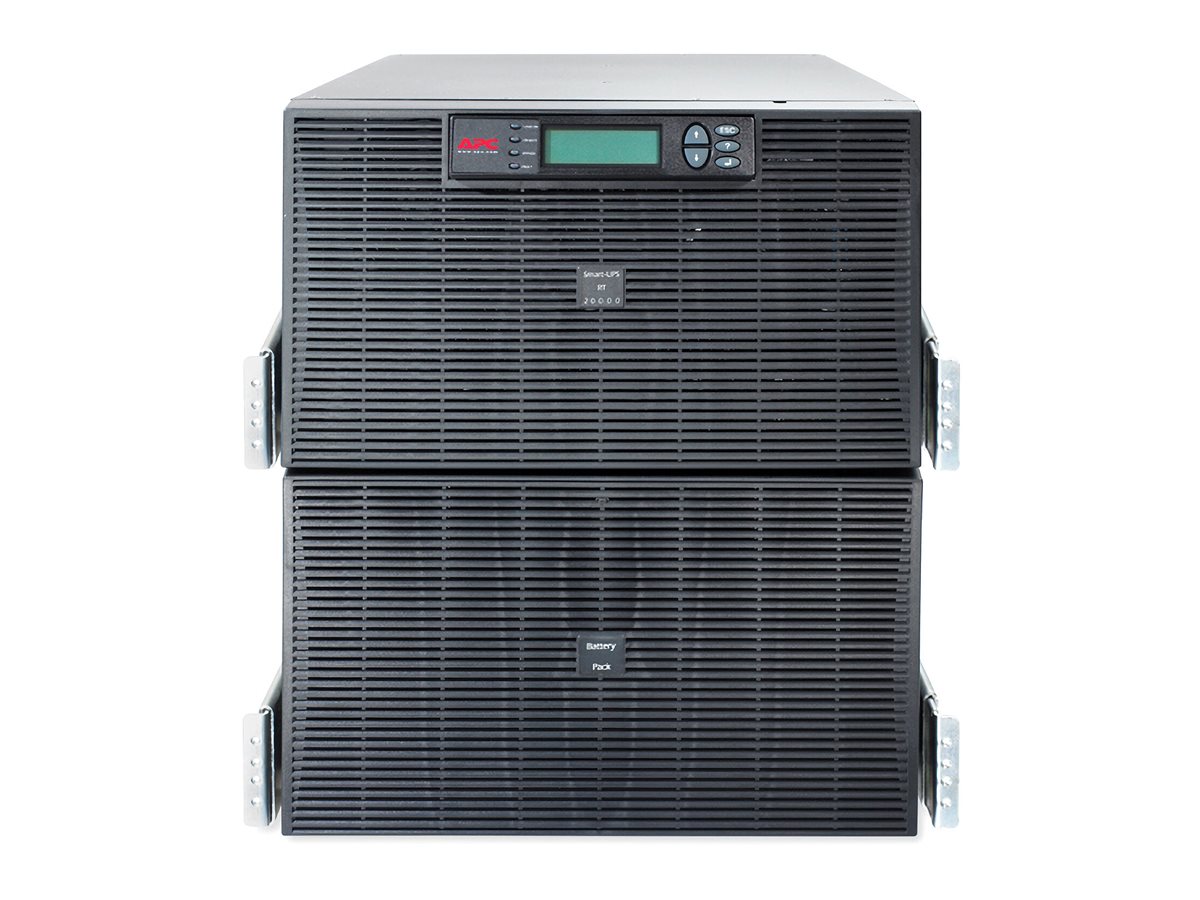

- LCD display
Alpha-numeric display which displays system parameters and alarms. - Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources. - Manageable external batteries

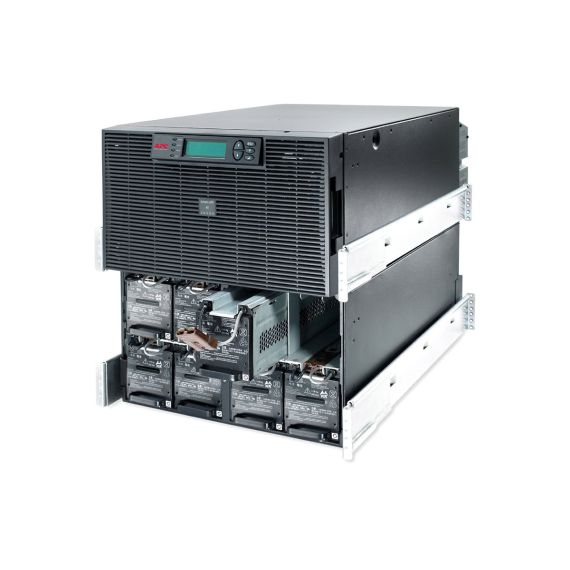

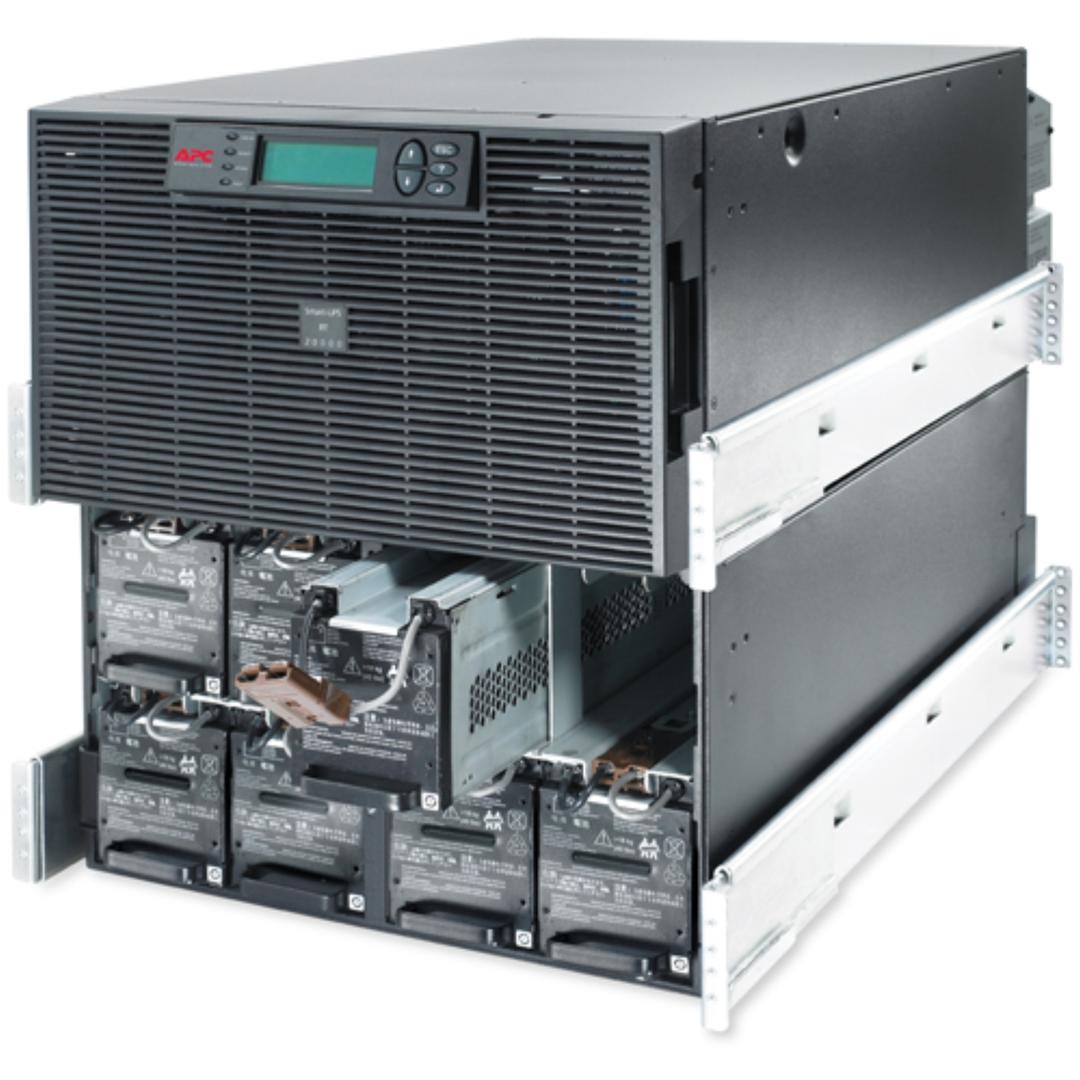

Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime. - Rack/tower convertible

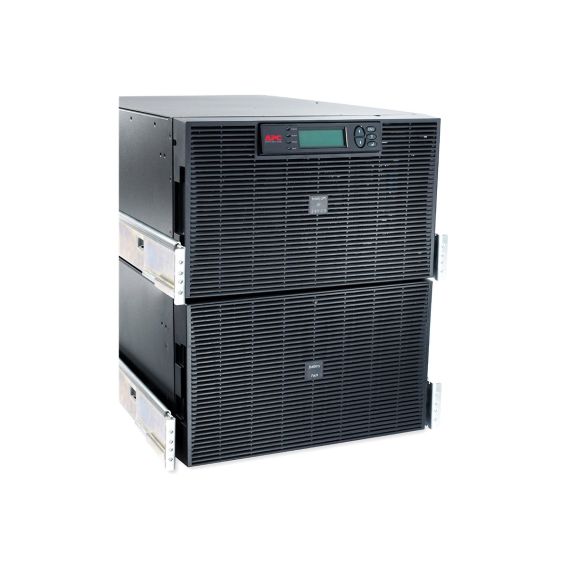

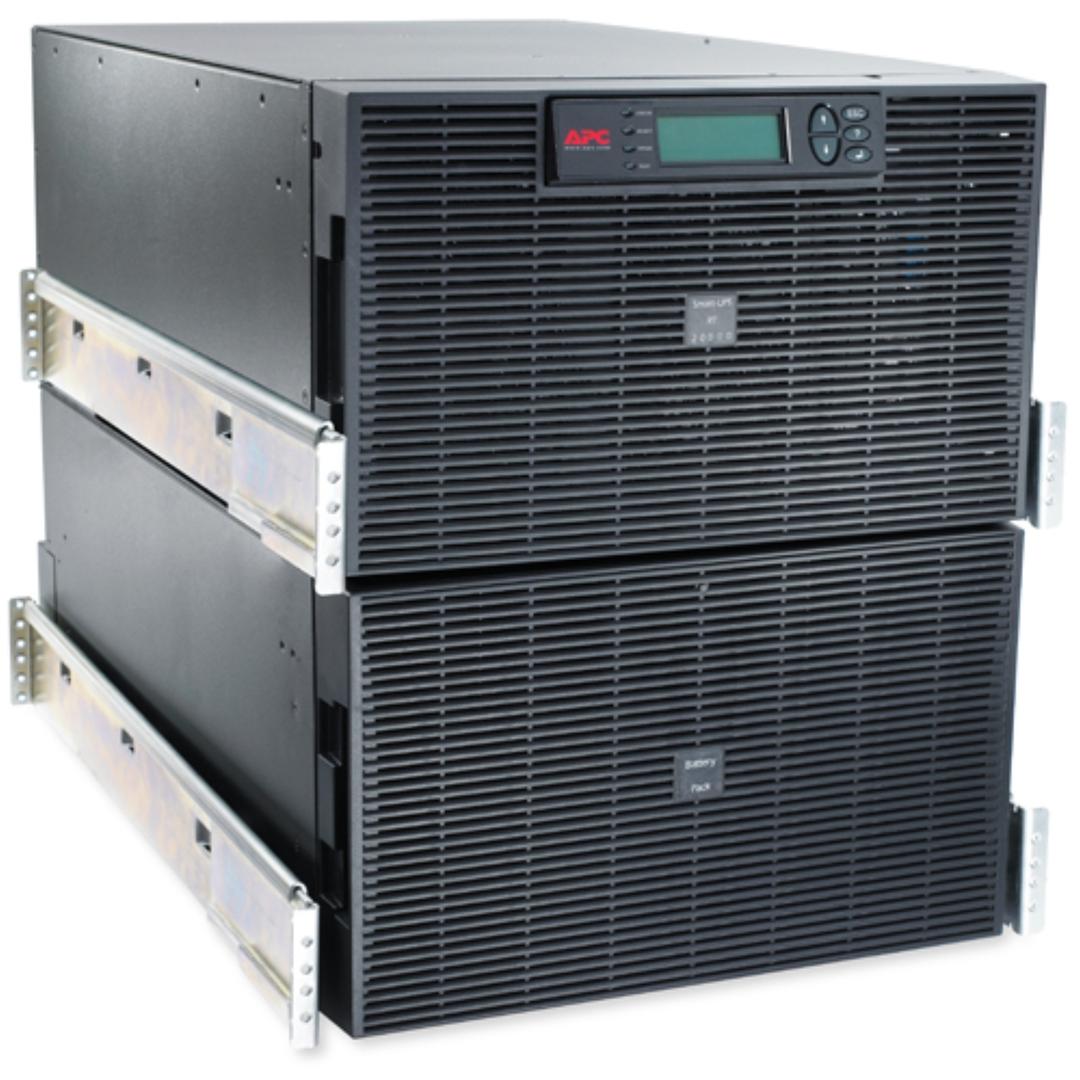

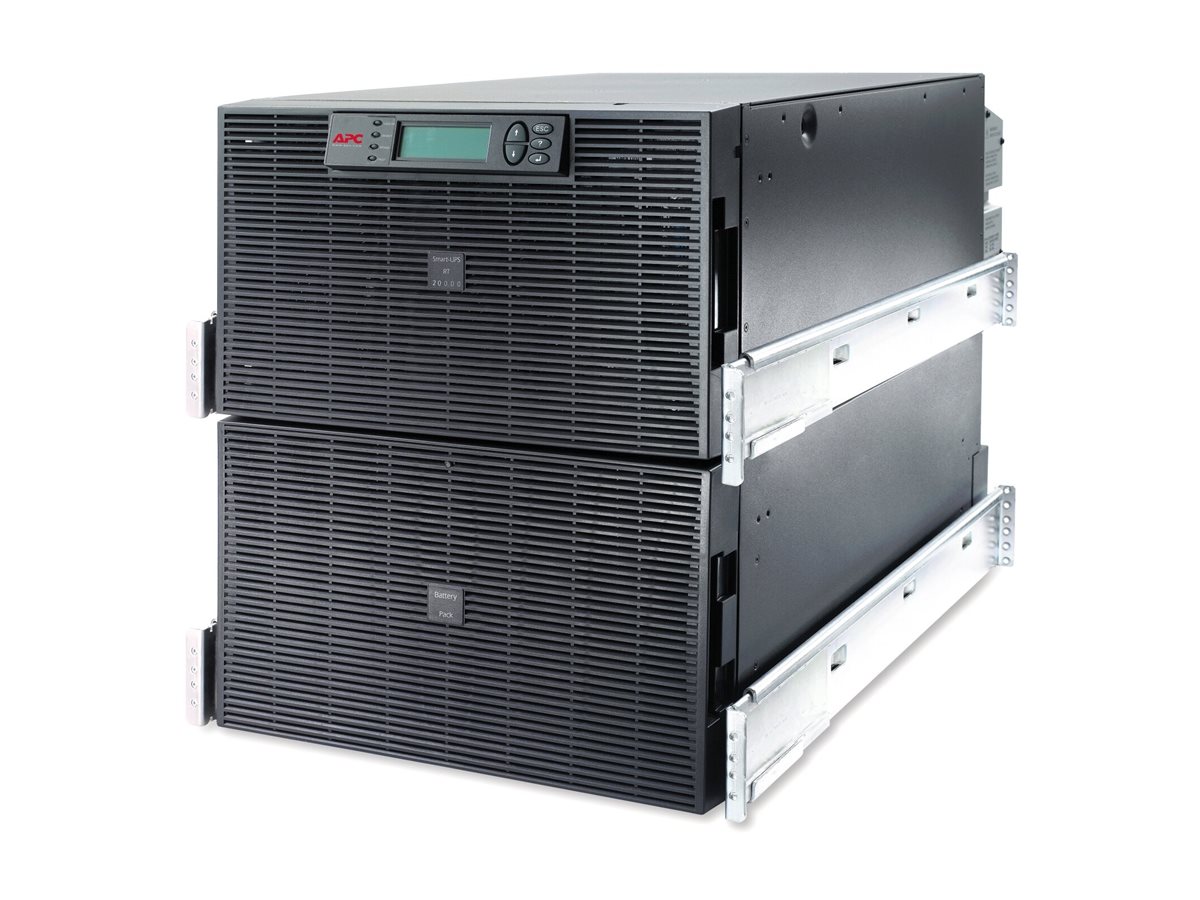

Protects the initial investment in the UPS when migrating from tower to rack-mount environment. - Removable input/output wiring tray
Allows quick and easy installation and maintenance of the UPS. - Single or three-phase input wireable
Provides flexibility for the UPS to be installed using either single or three-phase input wiring.
Special Fetures
- Built-in static bypass, Internal bypass
- Less than 5% for full load
- Maintenance-free sealed lead-acid battery with suspended electrolyte
- Multi-function LCD status and control console
- Audible and visible alarms
- Full time multi-pole noise filtering
- 0.3% IEEE surge let-through
- Zero clamping response time
Product Specification
| Device Type | UPS - rack-mountable |

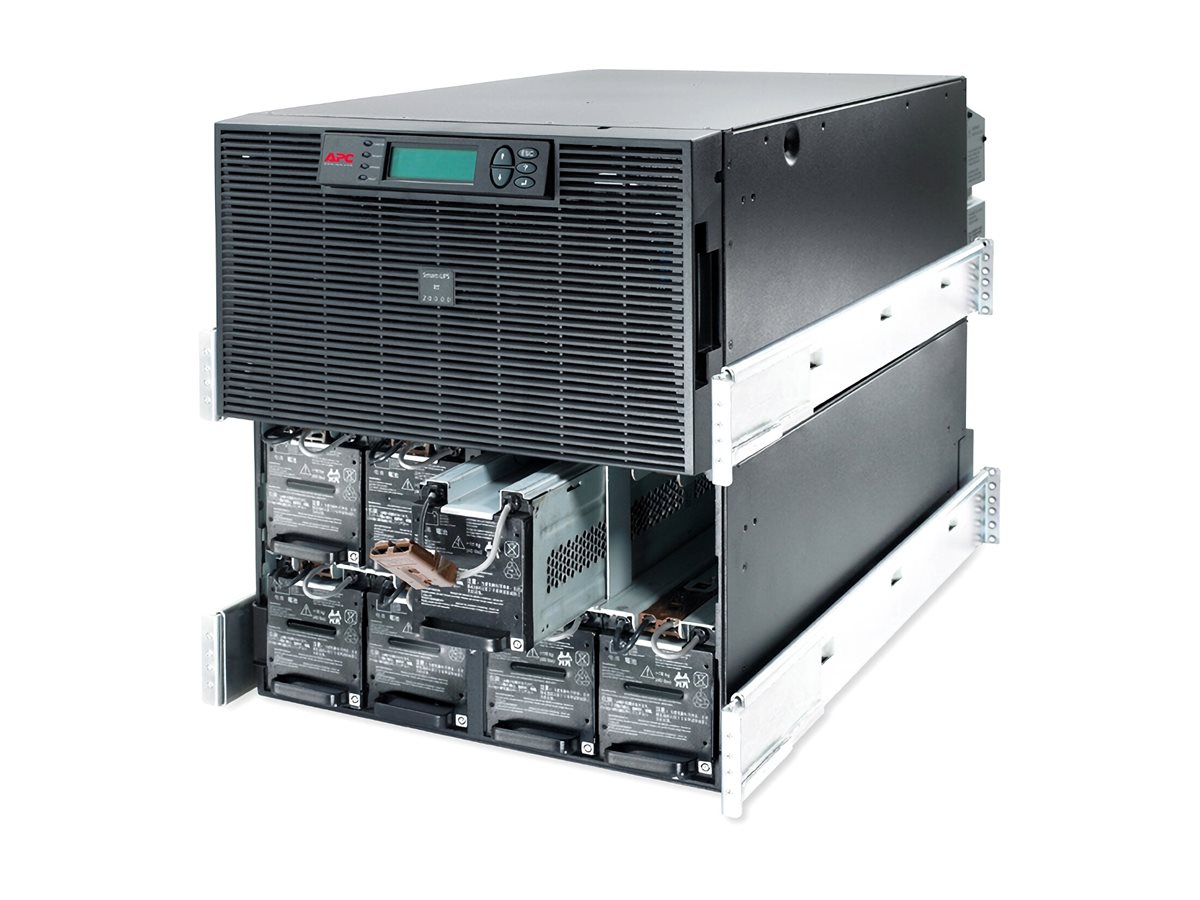

| Battery Enclosure Type | Plug-in module |
| Height (Rack Units) | 12U |
| Colour | Black |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 220/230/240 V |
| Input Voltage Range | AC 160 - 280 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase / 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |

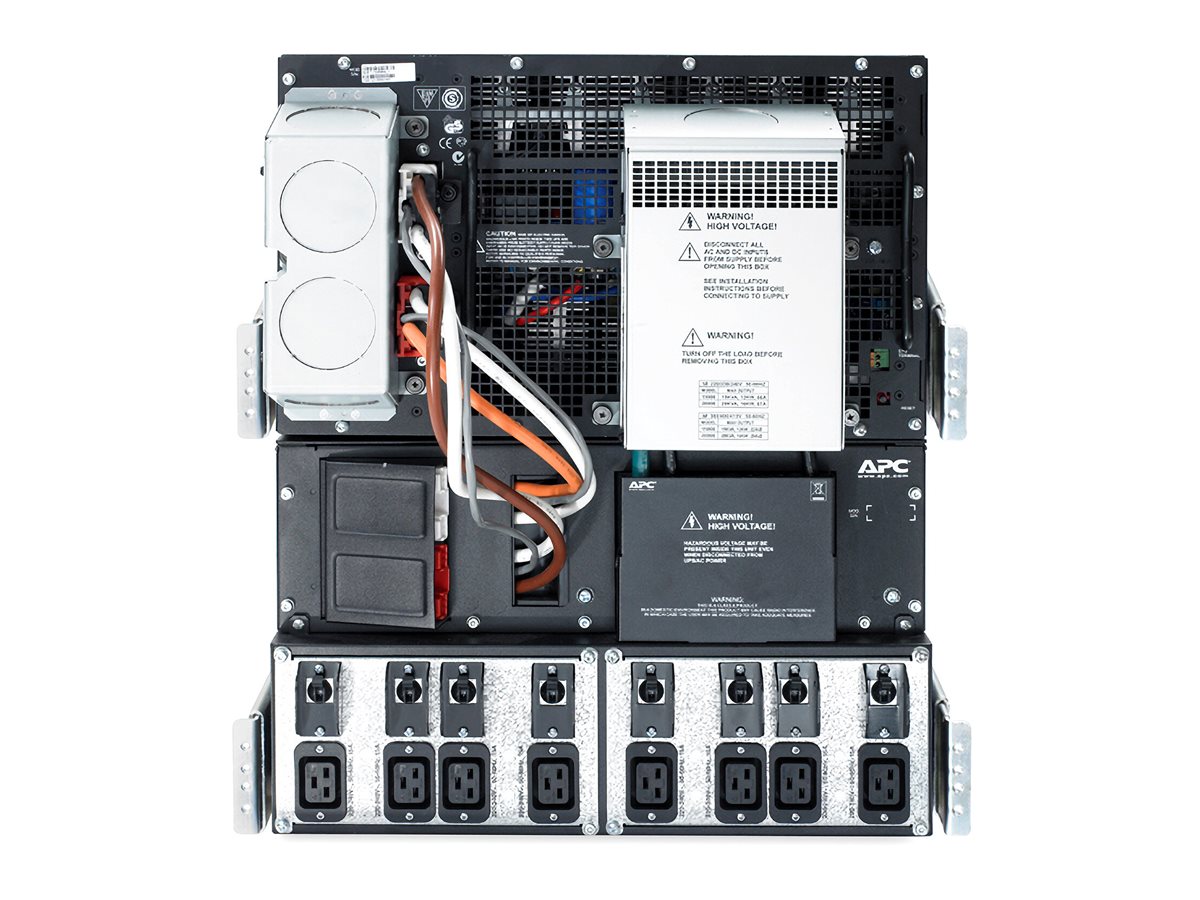

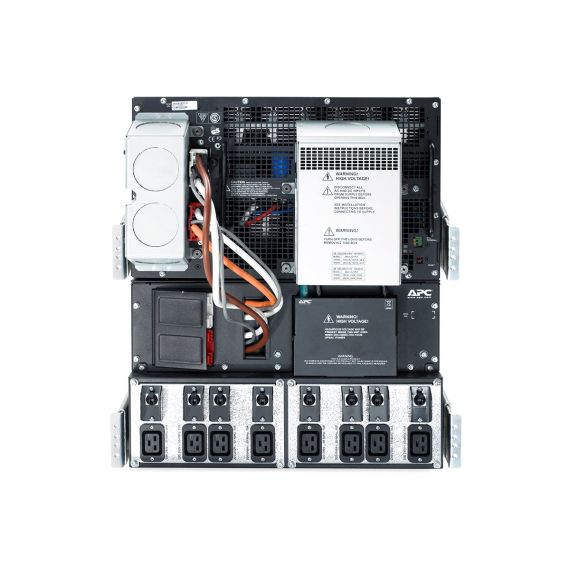

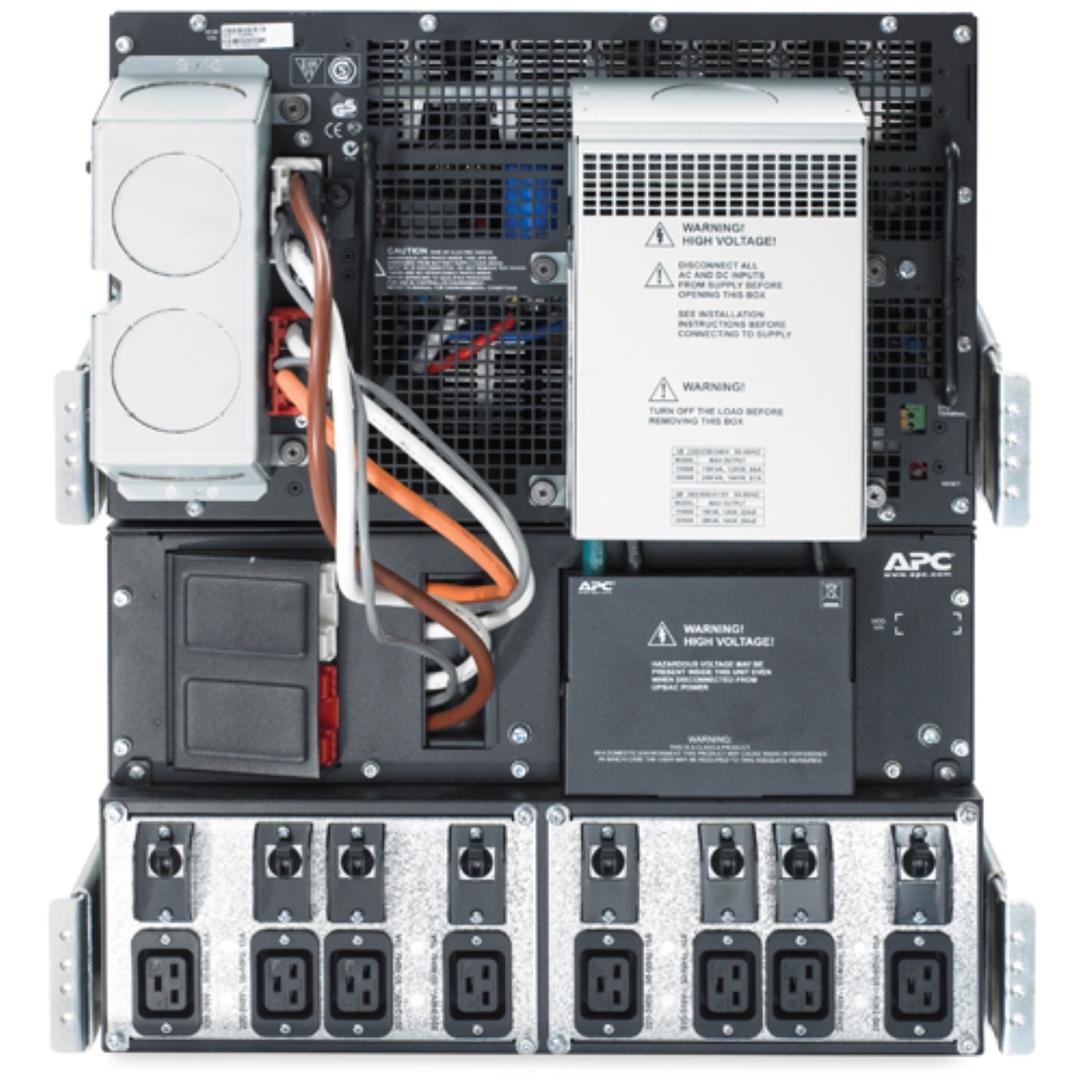

| Power Output Connectors Details | 1 x hardwire 3-wire (2PH + G) <br /> 1 x hardwire 5-wire (3PH + N + G) <br /> 8 x power IEC 60320 C19 |
| Output Voltage | AC 220/230/240 V ± 5% - 50/60 Hz |
| Power Capacity | 16 kW / 20000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Quantity | 4 |
| Technology | Lead Acid |
| Voltage Provided | 192 V |
| Run Time (Up To) | 4.9 min at full load |
| Recharge Time | 2.5 hours |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) <br /> 1 x management (Ethernet) - RJ-45 <br /> 1 x EPO (emergency power off) |
| Expansion Slots | SmartSlot |
| Miscellaneous | |
| Cables Included | Serial cable - external |
| Rack Mounting Kit | Included |
| Features | Audible alarm, emergency power off, LCD display, built-in static bypass, internal bypass |
| Compliant Standards | UL 1449, VDE, IEC 62040-1-1 |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 59 dBA |
| Dimensions & Weight | |
| Width | 43.2 cm |
| Depth | 77.3 cm |
| Height | 53.3 cm |
| Weight | 248 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 61 cm |
| Shipping Depth | 100 cm |
| Shipping Height | 99 cm |
| Shipping Weight | 314 kg |
| Compatibility Information | |
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A |
Features - APC - SURT20KRMXLI
More Details
Product Code
07:110157
EAN Code
0731304255710
Manufacturer
APC
