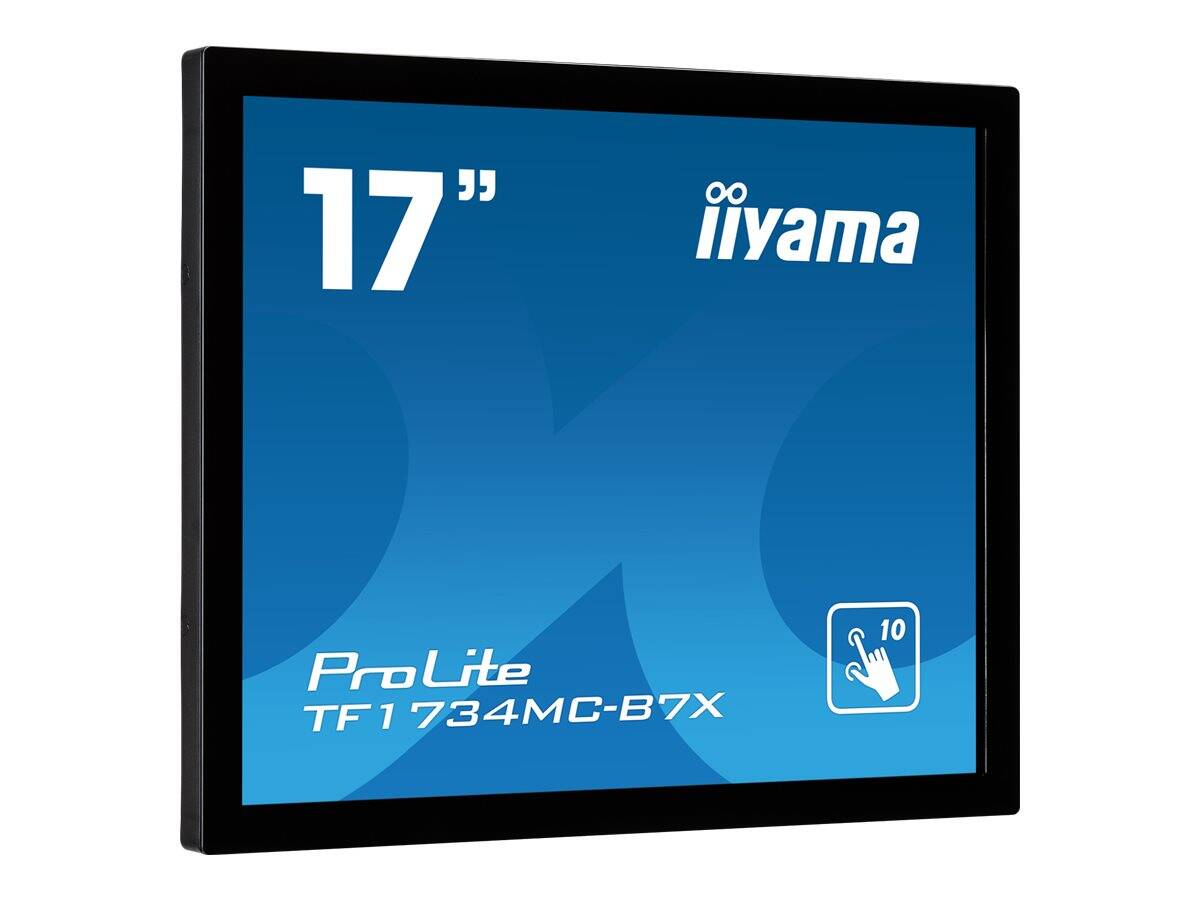

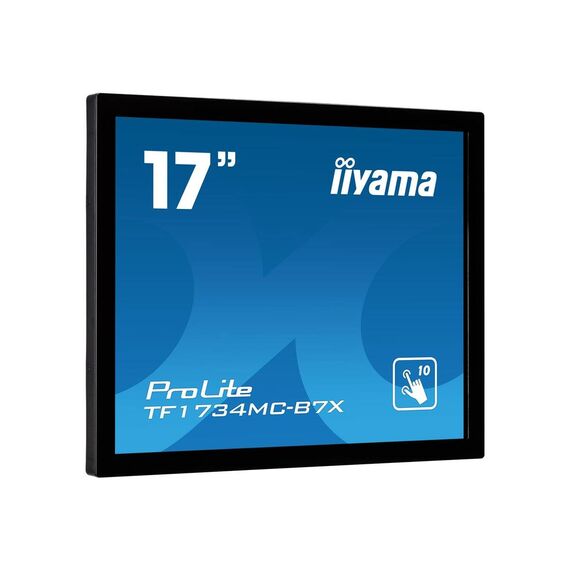

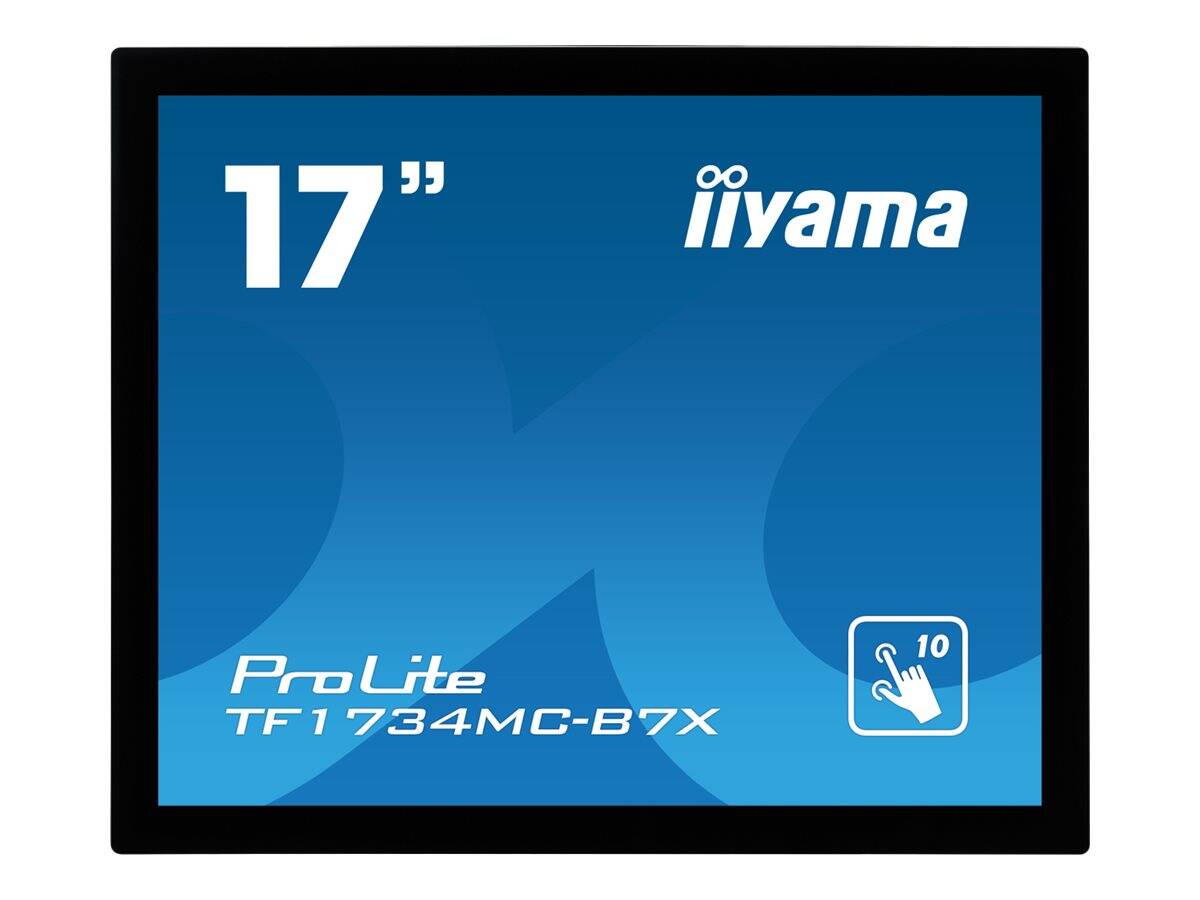

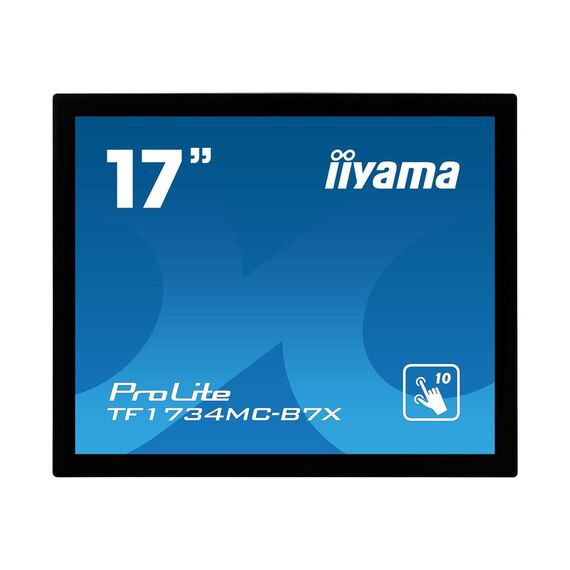

iiyama ProLite TF1734MC-B7X / LED monitor / 17" / open frame / touchscreen / 1280 x 1024 / IPS / 350 cd/m² / 1000:1 / 5 ms / HDMI, VGA, DisplayPort / black | TF1734MC-B7X
Please sign in so that we can notify you about a reply
Special Features
- Touch technology - capacitive
- Touch through-glass
- Scratch resistance
- IP
- Open frame brackets
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class E |
| Diagonal Size | 17" |
| Panel Type | IPS |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 |
| Brightness | 350 cd/m² |
| Brightness w/touchscreen | 315 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 5 ms |
| Horizontal Refresh Rate | 31.4 - 80 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Screen Coating | Matte |
| Backlight Technology | LED backlight |
| OSD Languages | English, German, French, Italian, Spanish, Japanese, Chinese |
| Features | HDCP, scratch-resistant, Projected Capacitive Touch (PCT) technology, anti-fingerprint, landscape mode, portrait mode, Face Up mode, touch through glass function |
| Colour | Black |
| Dimensions (WxDxH) | 36.9 cm x 4.75 cm x 30.7 cm |
| Weight | 3.6 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |

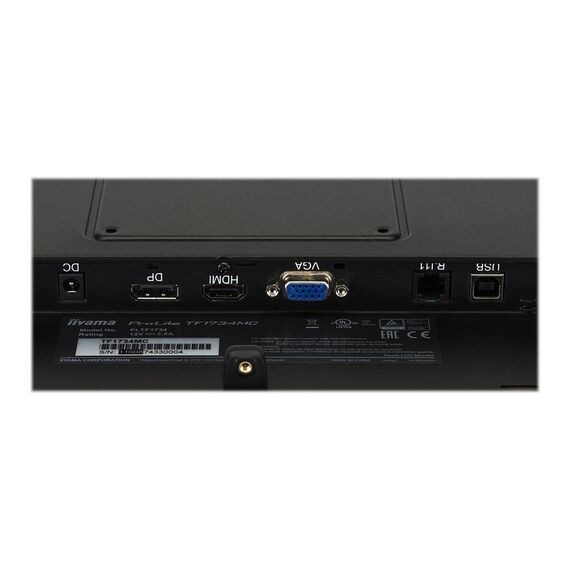

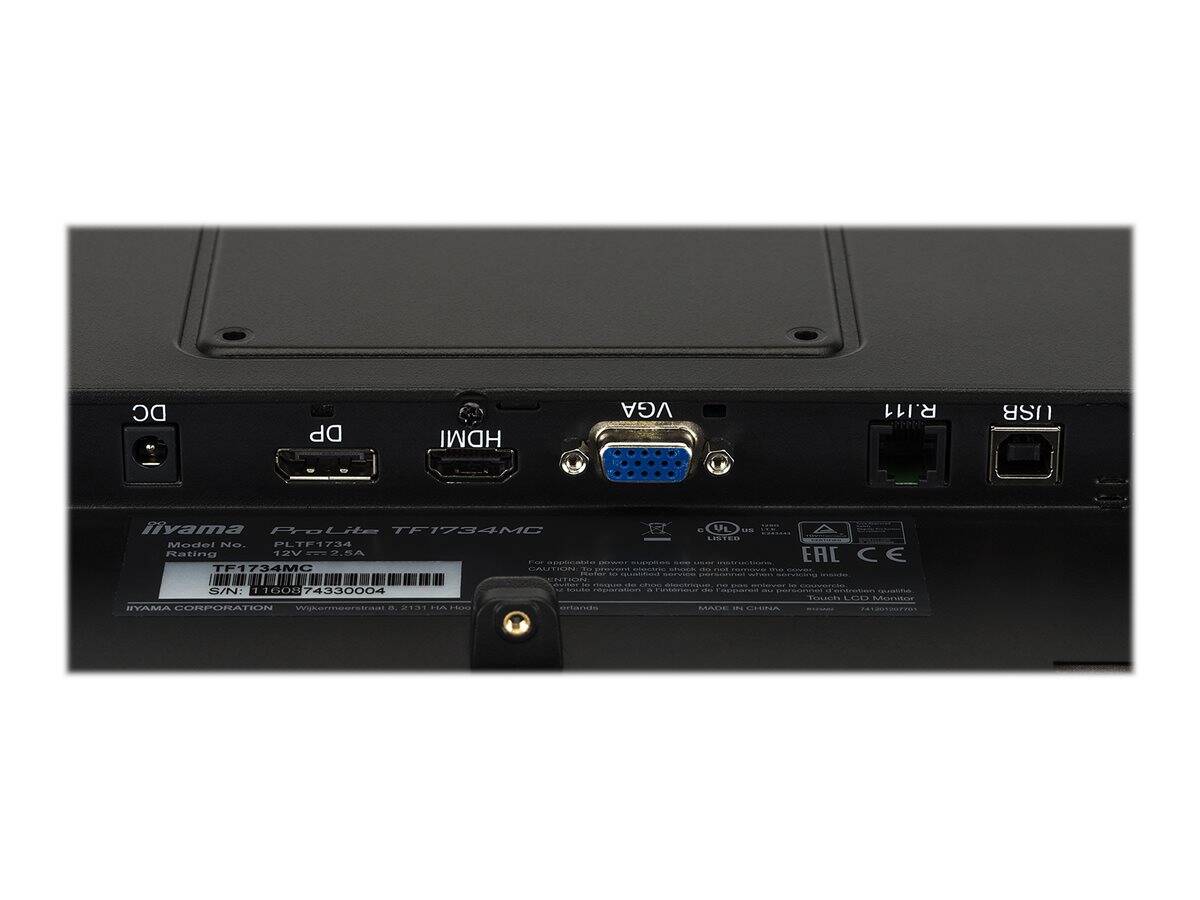

| Interfaces | VGA ¦ HDMI (HDCP) ¦ DisplayPort (HDCP) |
| Mechanical | Mechanical |

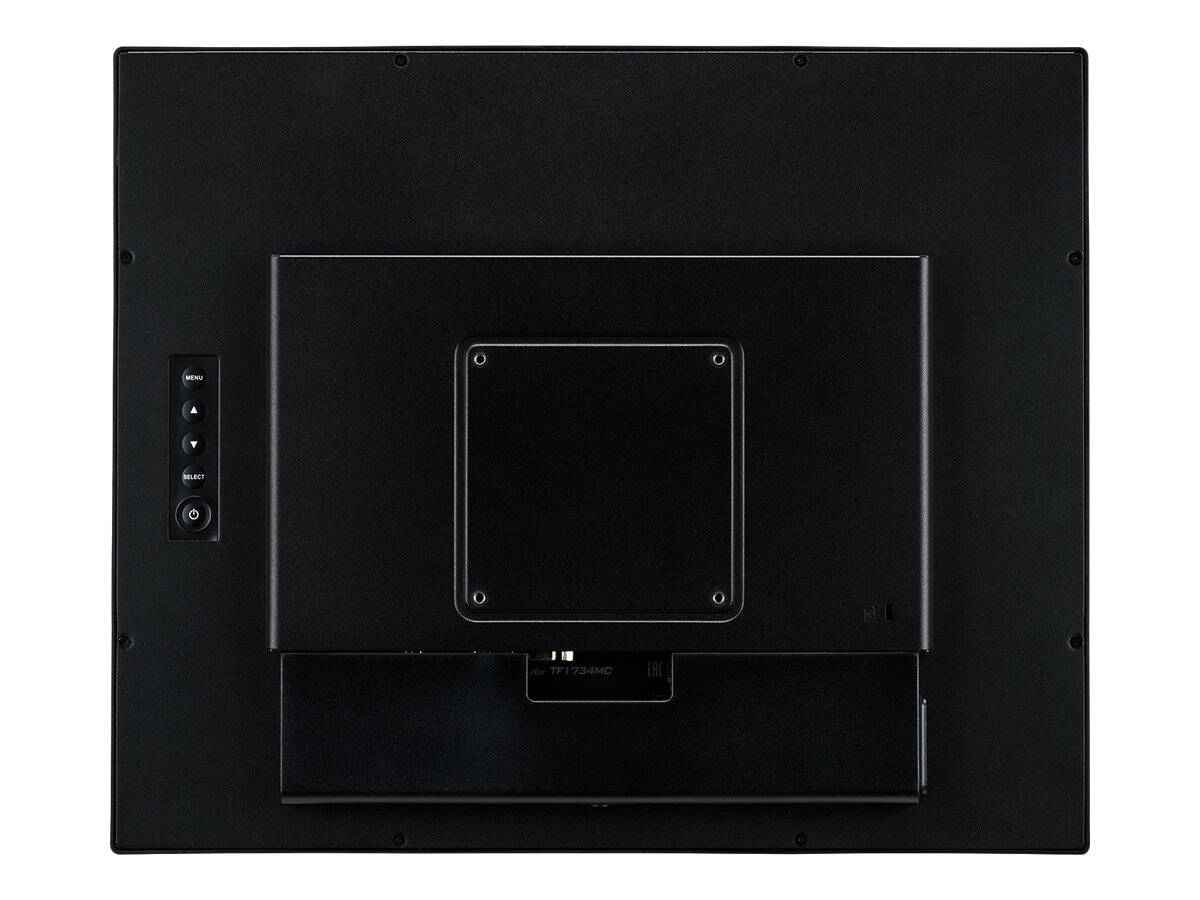

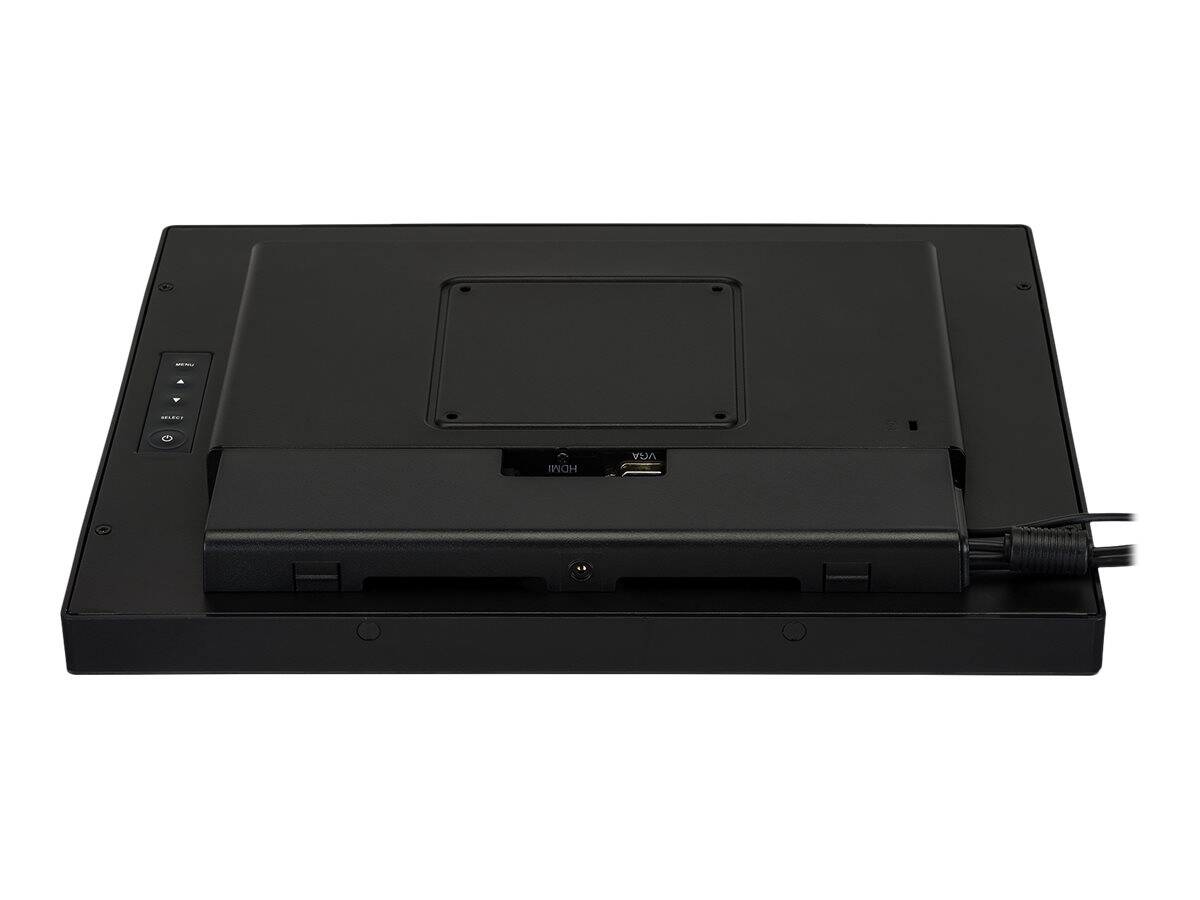

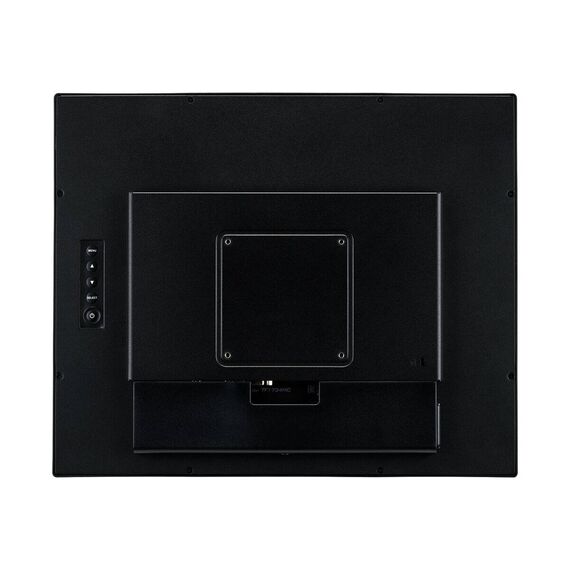

| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Features | 90% light transmittance |
| Included Accessories | Power adapter |
| Cables Included | 1 x USB cable ¦ 1 x HDMI cable ¦ 1 x DisplayPort cable |
| Mounting Kit | Included |
| Compliant Standards | DDC-2B, RoHS, WEEE, cULus, REACH, ERP, EAC, CE/EMC, REACH SvHC, IP65 front |
| Power | Power |
| Input Voltage | DC 12 V |
| Power Consumption (On mode) | 11.4 W |
| Power Consumption SDR (On mode) | 11.4 kWh/1000h |
| Power Consumption (Typical) | 13 Watt |
| Power Consumption Stand by | 1.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Software / System Requirements | Software / System Requirements |
| Included Software | Drivers & Utilities |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 45.5 cm |
| Shipping Depth | 14.5 cm |
| Shipping Height | 38.7 cm |
| Shipping Weight | 4.9 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
Features - Iiyama - TF1734MC-B7X
Resolution
1280 x 1024
More Details
Product Code
CA99667
EAN Code
4948570118397
Manufacturer
Iiyama
