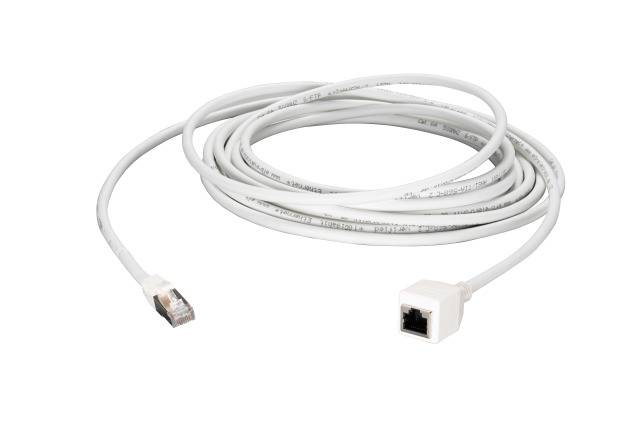

EFB-Elektronik / Patch extension cable / RJ-45 (M) to RJ-45 (F) / 1 m / 6.2 mm / S/FTP / CAT 6a / IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt / halogen-free, molded, snagless, stranded / white | K5546WS.1
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Patch extension cable - CAT 6a - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt |
| Technology | S/FTP |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 26/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Halogen-free, molded, snagless, stranded, Anti-kink sleeve, PoE++ ready, copper conductors, length imprint |
| Length | 1 m |
| Diameter | 6.2 mm |
| Colour | White |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | ISO/IEC 11801, TIA/EIA-568-B, IEC 60603-7-51, EN 50173, ANSI/TIA 568.B.2 - up to 500 MHz |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | 1-year warranty |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -15 °C |
| Max Operating Temperature | 60 °C |
Features - EFB - K5546WS.1
Colour
white
Length
1.0m
More Details
Product Code
04:385776
EAN Code
4049759260996
Manufacturer
EFB
