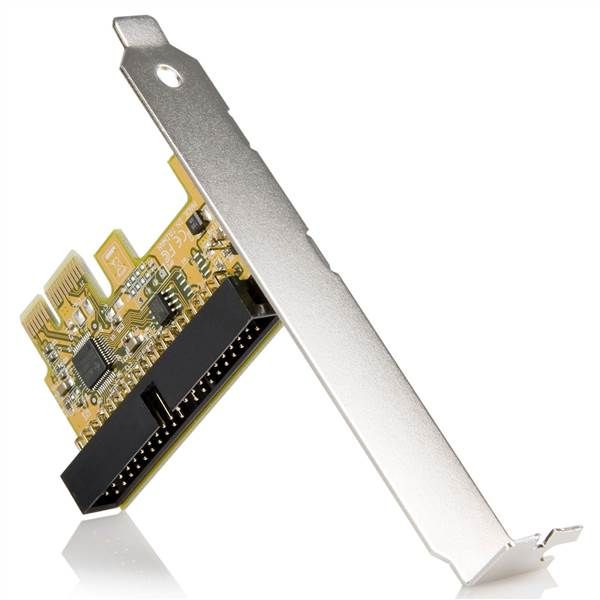

StarTech.com PEX2IDE 1Port PCI Express IDE Controller Adapter Card
1Port PCI Express IDE Controller Adapter Card
Technical Specifications
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Hardware | |
| Interface | IDE |
| Ports | 1 |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | JMicron - JMB368 |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| Internal Ports | 1 - IDE (40 Pin; EIDE/PATA) Male |
| Performance | |
| LBA support | 48-bit |
| Software | |
| OS Compatibility | Windows 2000/ XP (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit) |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express expansion slot |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| What's in the Box | |
| Included in Package | 1 - PCI Express IDE Controller Card |
| 1 - IDE Cable | |
| 1 - Low Profile Bracket | |
| 1 - Instruction Manual | |
1Port PCI Express IDE Controller Adapter Card
Features - StarTech.com - PEX2IDE
More Details
Product Code
03:149623
EAN Code
0065030825153
Manufacturer
StarTech.com
