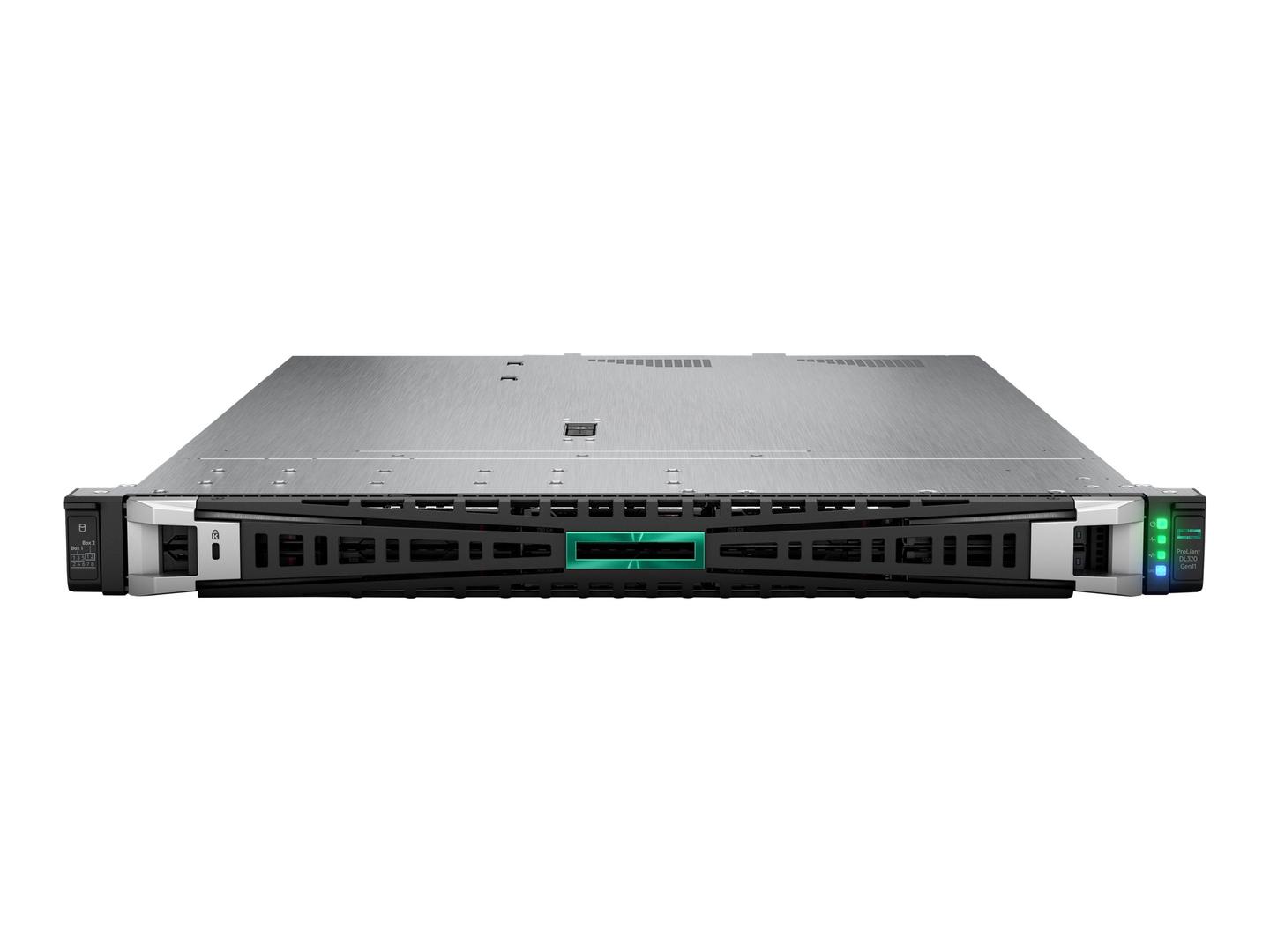

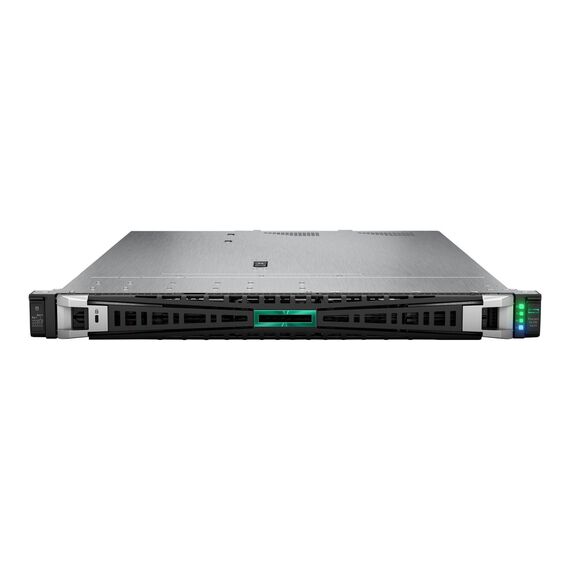

rack-mountable 1U - 1-way - 1 x Xeon Silver 4415Y / up to 3.4 GHz - RAM 64 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet - no OS - monitor: none | P77243-425
rack-mountable 1U - 1-way - 1 x Xeon Silver 4415Y / up to 3.4 GHz - RAM 64 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet - no OS - monitor: none | P77243-425
€5,459.67
P77243-425
CPU TypeIntel Xeon
Memory Size64GB
Product CodeCL56447
EAN Code0190017767772
ManufacturerHewlett Packard
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Advanced performance
Equipped with a 12-core Xeon Silver processor and a clock speed of 2 GHz, boosting up to 3.9 GHz, this server delivers reliable and high-speed performance for demanding applications. - Robust storage options
With 8 hot-swap bays and support for RAID 0, 1, 10, 5, 50, and 60 configurations, the HPE ProLiant DL320 Gen11 offers flexible and secure storage solutions, ensuring data integrity and performance. - High-speed memory
Features 16 GB of DDR5 SDRAM with an 8-channel memory architecture and HPE SmartMemory technology, enhancing data processing speeds and system reliability. - Efficient power management
The server includes a hot-plug power supply with the capability to support an additional unit, ensuring uninterrupted power and operational efficiency. - Comprehensive connectivity
Offers a variety of interface options including HPE iLO for remote management, USB 3.2 Gen 1, VGA, and dual Gigabit Ethernet ports, facilitating easy integration and management.
Special Fetures
- 12-core Xeon Silver processor for high-speed performance
- Supports RAID 0, 1, 10, 5, 50, and 60 for versatile storage configurations
- 16 GB DDR5 SDRAM with HPE SmartMemory for enhanced processing speed
- Hot-plug power supply with an option for an additional unit for redundancy
- Dual Gigabit Ethernet ports and HPE iLO for comprehensive connectivity and remote management
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | Led panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: Europe |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4415Y |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| Chipset Type | Intel C741 |
| Cache Memory | |
| Installed Size | L3 Cache - 30 MB |
| Cache Per Processor | 30 MB |
| RAM | |
| Installed Size | 64 GB (installed) / 2.04 TB (max) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed | 2800 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 16 (Total) / 14 (empty) |
| Features | Registered, HPE SmartMemory, 8-channel memory architecture |
| Configuration Features | 2 x 32 GB |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 480 GB |
| Interface Type | SATA |
| Storage Controller | |
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | ACPI support, PXE support, Wake on LAN (WoL) |
| Expansion / Connectivity | |
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) <br /> 1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces | 1 x HPE iLO (1 in front) (service port) <br /> 3 x USB 3.2 Gen 1 (1 front, 2 rear) <br /> 1 x USB 2.0 <br /> 1 x VGA <br /> 2 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Included Accessories | 7 x standard fans |
| Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Operating System / Software | |
| OS Provided | No operating system |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, Ubuntu 22.04 LTS, CentOS |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width | 43.46 cm |
| Depth | 60.51 cm |
| Height | 4.28 cm |
| Weight | 12 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
