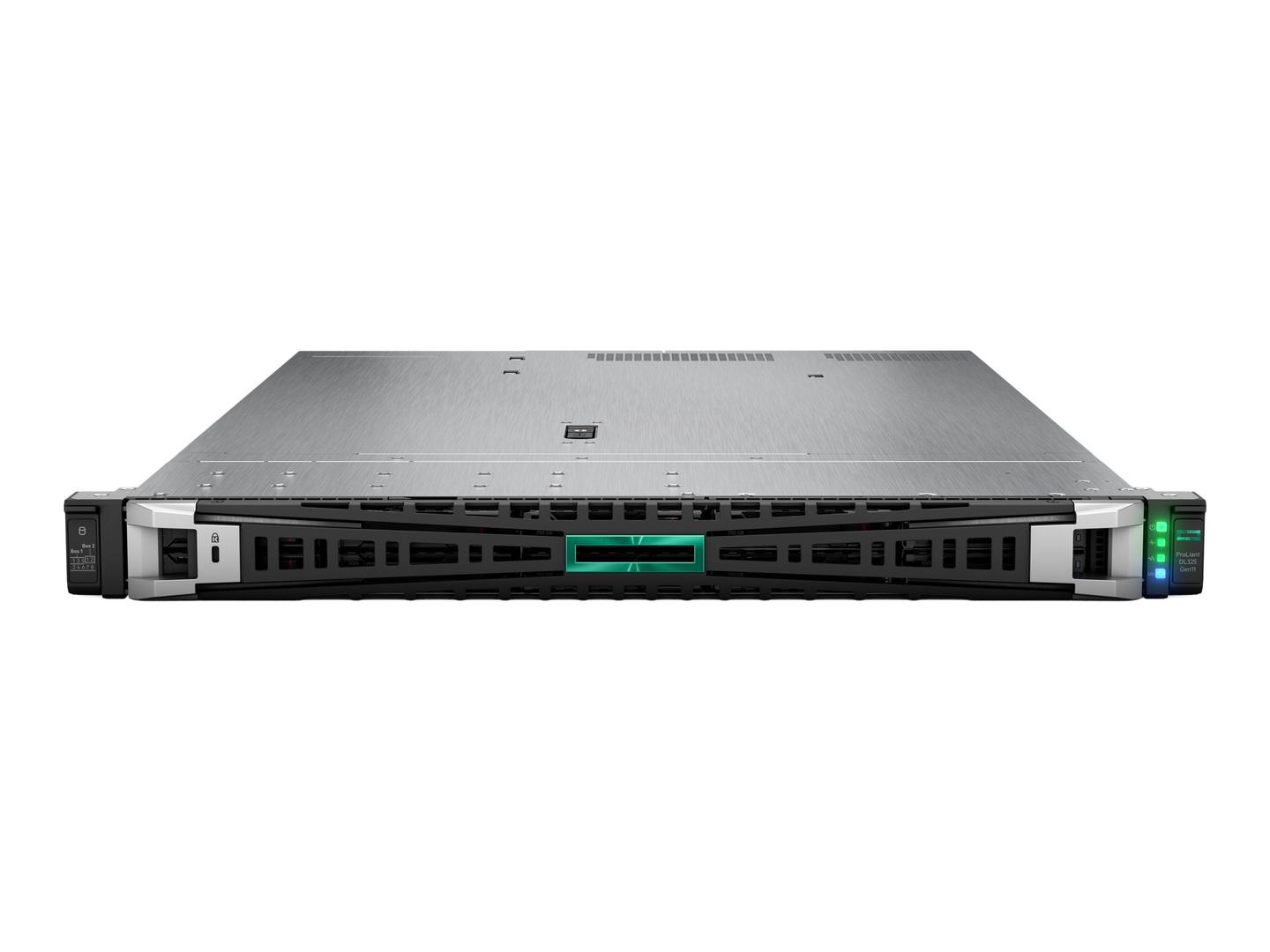

rack-mountable 1U - 1-way - 1 x EPYC 9224 / up to 3.7 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none - Smart Choice | P77239-425
rack-mountable 1U - 1-way - 1 x EPYC 9224 / up to 3.7 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none - Smart Choice | P77239-425
€6,814.43
P77239-425
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | Led panel |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: EMEA |
| Processor / Chipset | |
| CPU | AMD EPYC 9224 |
| Clock Speed | 2.5 GHz |
| Max Turbo Speed | 3.7 GHz |
| Number of Cores | 24-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Cache Memory | |
| Installed Size | L3 Cache - 64 MB |
| Cache Per Processor | 64 MB |
| RAM | |
| Installed Size | 64 GB (installed) / 3 TB (max) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 12 (Total) / 10 (empty) |
| Features | Registered, HPE SmartMemory, Online Spare Memory |
| Configuration Features | 2 x 32 GB |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 480 GB |
| Interface Type | SATA |
| Storage Controller | |
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | PXE support, Wake on LAN (WoL) |
| Expansion / Connectivity | |
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) |
| Interfaces | 1 x HPE iLO (1 in front) (service port) <br /> 1 x HPE iLO - RJ-45 <br /> 1 x VGA <br /> 2 x LAN (1/10 Gigabit Ethernet) <br /> 5 x USB 3.2 Gen 1 (1 front, 2 rear, 2 internal) |
| Miscellaneous | |
| Included Accessories | 7 x standard fans, HPE Easy Install Rail 2 Kit |
| Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1, SMBIOS 3.1, Redfish API, ErP Lot 9, UEFI 2.7, UEFI Class 3, Active Directory v1.0, APML 1.0 |
| Manufacturer Selling Program | HPE Smart Choice |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V (50/60 Hz) |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Operating System / Software | |
| OS Certified | CentOS, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, SuSE Linux Enterprise Server 12 SP3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.7 (ESXi) |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width | 43.46 cm |
| Depth | 64.94 cm |
| Height | 4.29 cm |
| Weight | 12.56 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 60 cm |
| Shipping Depth | 91.6 cm |
| Shipping Height | 24.2 cm |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
Features - Hewlett Packard - P77239-425
More Details
Product Code
CL56437
EAN Code
0190017767734
Manufacturer
Hewlett Packard
