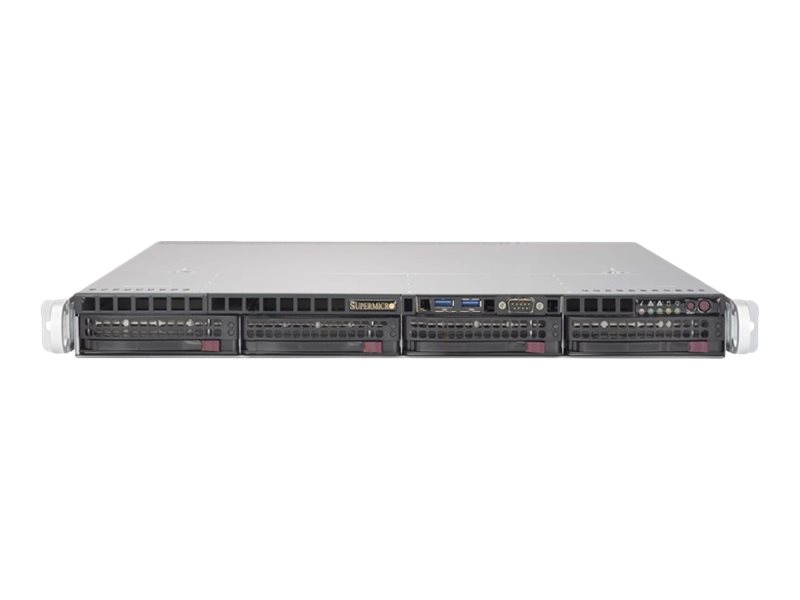

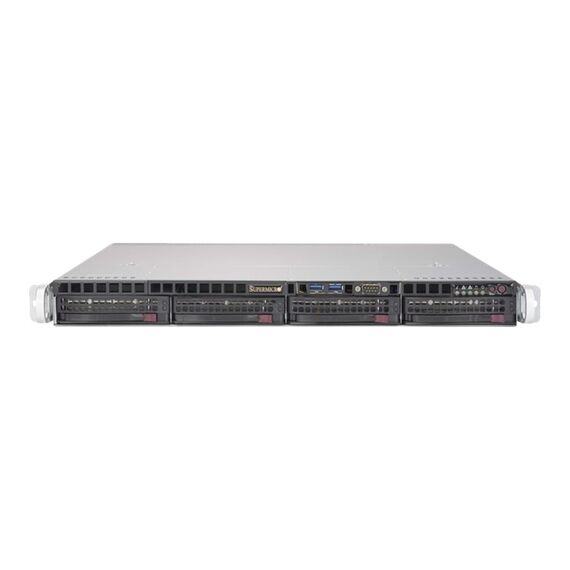

Server - rack-mountable - 1U - 1-way - no CPU - RAM 0 GB - SATA - hot-swap 3.5" bay(s) - no HDD - AST2500 - GigE, 10 GigE - no OS - monitor: none | SYS-5019P-MTR
SYS-5019P-MTR
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Web hosting
- Application and data serving
- Database applications
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Colour | Black |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P |
| Chipset Type | Intel C622 |
| RAM | |
| Installed Size | 0 GB / 1 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 8 (Total) / 8 (empty) |
| Features | Registered, 3DS Load-Reduced DIMM (LRDIMM) |
| RAM Supported | 1 TB 3DS Load-Reduced - ECC ¦ 256 GB registered - ECC |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Intel X772, X557 |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Aspeed AST2500 |
| Features | ACPI support, KVM over IP support |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" |
| Slots | 1 (total) / 1 (free) x CPU ¦ 8 (total) / 8 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x M.2 Card |
| Interfaces | 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x management (NIC) - RJ-45 ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x serial ¦ 4 x USB 3.0 (2 front, 2 rear) |
| Miscellaneous | |
| Included Accessories | CPU Heatsink, air shroud |
| Cables Included | Serial ATA cable ¦ SGPIO cable |
| Compliant Standards | RoHS |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 400 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided | No operating system |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labour - 3 years ¦ Limited warranty - parts - 1 year |
| Dimensions & Weight | |
| Width | 43.7 cm |
| Depth | 50.3 cm |
| Height | 4.3 cm |
| Weight | 8 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
