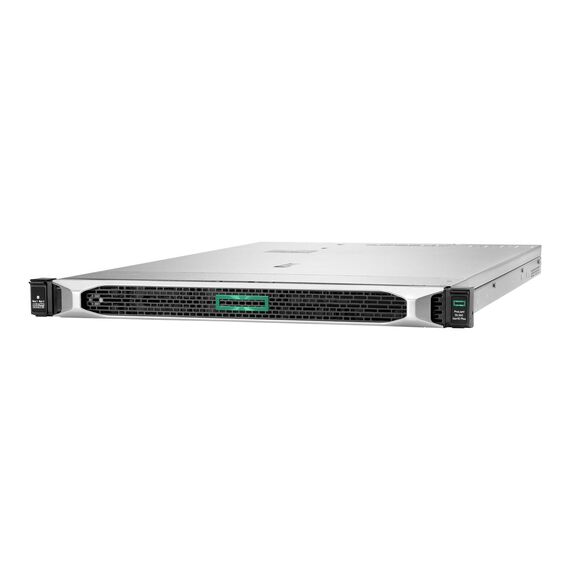

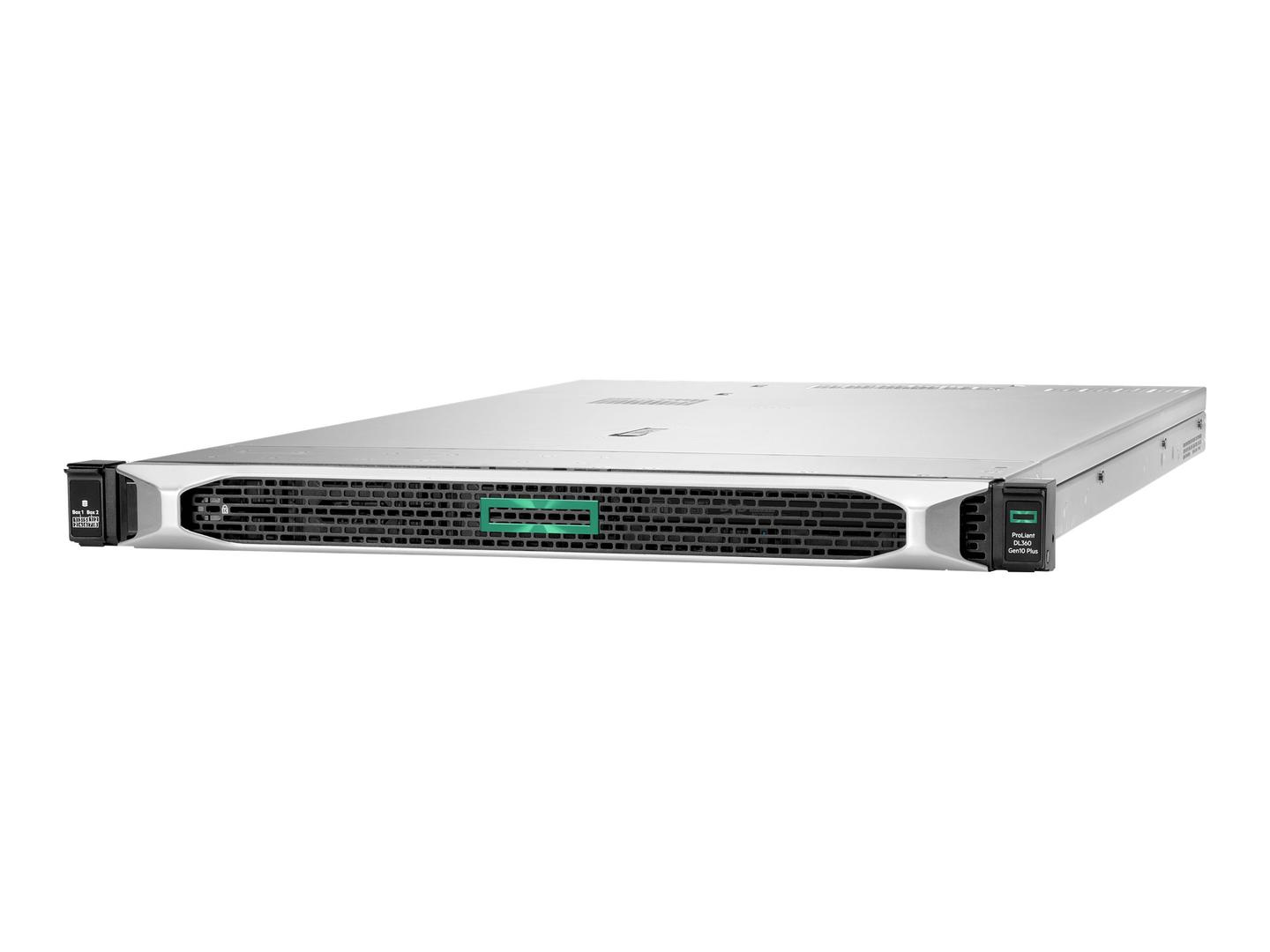

Server - rack-mountable 1U - 2-way - 1 x Xeon Silver 4309Y / up to 3.6 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet - monitor: none | P77128-425
Product Features
- Built for some of the most demanding workloads
The HPE ProLiant DL360 Gen10 Plus server is powered by 3rd Generation Intel Xeon processors and built with foundational intelligence to transform IT with insights that enhance workload performance, placement, and efficiency, delivering better outcomes faster. HPE ProLiant servers provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to adjust to better serve changing business needs. - 360-degree holistic security
The HPE ProLiant DL360 Gen10 Plus server provides an enhanced holistic, 360-degree view to security that begins in the manufacturing supply chain and concludes with a safeguarded, end-of-life decommissioning. HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component - hardware and firmware - to provide verification that the server begins its lifecycle uncompromised through the supply chain. HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, identify and contain malicious code, and protect healthy servers. HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations. When it's time to retire or repurpose an HPE ProLiant server, one button secure erase speeds and simplifies the complete removal of passwords, configuration settings, and data, preventing inadvertent access to previously secured information. - Intelligent management automation
The HPE ProLiant DL360 Gen10 Plus server simplifies and automates management tasks, establishing a solid foundation for a standards-based, hybrid cloud platform enabled by automation. Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out(iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues. Automation and software-defined control reduces time spent on provisioning and maintenance, and reduces deployment times. HPE InfoSight for Servers continually analyzes server infrastructure and applies real-world examples of hundreds of thousands of servers to predict and prevent problems before they can adversely affect business operations. - Delivered As-a-Service
The HPE ProLiant DL360 Gen10 Plus server is supported by HPE GreenLake to simplify IT. With 24x7 monitoring and management, the experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
Special Fetures
- Supports 3rd Generation Intel Xeon Processors for enhanced compute performance
- 64 PCIe Gen4 lanes, resulting in more devices, improved bandwidth and augmented balanced I/O capabilities
- Support for industry-standard OCP 3.0 Network Adapters, enhancing customer choice
- Enhanced storage capabilities with Tri-mode controllers supporting NVMe/SAS/SATA drives, allowing customers to select the ideal media type and mix for their exact application
- Choice of storage backplanes and cages, offering diverse bay counts, protocols, and bandwidth that enable customers to design their server storage for their precise needs
- Slot-less HW RAID protected M.2 boot solution, providing peace-of-mind O/S deployment while saving invaluable slots and storage bays
Product Specification
Type | Server |
Product Form Factor | Rack-mountable - 1U |
Built-in Devices | Led panel |
Embedded Security | Trusted Platform Module (TPM) Security Chip |
Server Scalability | 2-way |
Hot-Swap Bays Qty | 8 |
Localisation | Region: Europe |
Processor / Chipset | |
CPU | Intel Xeon Silver 4309Y |
Clock Speed | 2.8 GHz |
Max Turbo Speed | 3.6 GHz |
Number of Cores | 8-core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
Chipset Type | Intel C621A |
Cache Memory | |
Installed Size | L3 Cache - 12 MB |
Cache Per Processor | 12 MB |
RAM | |
Installed Size | 64 GB (installed) / 8 TB (max) |
Technology | DDR4 SDRAM - Advanced ECC |
Effective Memory Speed | 1600 MHz |
Rated Memory Speed | 1600 MHz |
Form Factor | DIMM 288-pin |
Slots | 32 (Total) / 30 (empty) |
Features | Registered, HPE SmartMemory |
Configuration Features | 2 x 32 GB |
Hard Drive | |
Type | SSD |
Capacity | 2 x 480 GB |
Interface Type | SATA |
Storage Controller | |
Type | 1 x RAID |
Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
Storage Controller Name | HPE MR416i-a Gen10 |
Channel Qty | 16 |
Buffer Size | 4 GB |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Video Memory | 16 MB |
Video Interfaces | VGA |
Networking | |
Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
Ethernet Ports | 4 x Gigabit Ethernet |
Ethernet Controller | Broadcom BCM5719 |
Data Link Protocol | Gigabit Ethernet, Ethernet, Fast Ethernet |
Remote Management Protocol | SNMP 3, IPMI 2.0 |
Features | Wake on LAN (WoL), PXE support |
Expansion / Connectivity | |
Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-height <br /> 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile |
Interfaces | 5 x USB 3.0 (1 front, 2 rear, 2 internal) <br /> 1 x HPE iLO (1 in front) (service port) <br /> 1 x VGA <br /> 4 x LAN (Gigabit Ethernet) |
Miscellaneous | |
Included Accessories | 5 x standard fans |
Compliant Standards | WEEE 2002/95/EC, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2, IPv6 Ready |
Power | |
Device Type | Power supply - hot-plug |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Installed Qty | 2 |
Max Supported Qty | 2 |
Voltage Required | AC 200-240 V |
Power Provided | 800 Watt |
80 PLUS Certification | 80 PLUS Titanium |
Sustainability Information | |
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 4.0 |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
Dimensions & Weight | |
Width | 43.46 cm |
Depth | 74.19 cm |
Height | 4.29 cm |
Environmental Parameters | |
Min Operating Temperature | 10 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 8 - 90% RH (non-condensing) |
