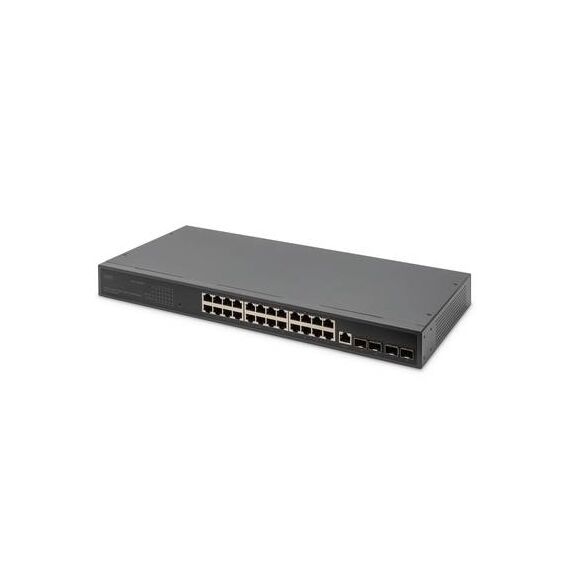

Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19", L2+ Features. | DN-80223

Product Features

· Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w,IEEE 802.3ad
· Interface: 24*10/100/1000Mbps RJ45 Port, 4* 10G SFP+ Slots, 1*Console
· Indicator: PWR, LINK/ACT, SYS
· Network media: 10BASE-T: UTP category 3,4,5 cable100m, 100BASE-TX: UTP category 5, 5e cable100m,1000BASE-T: UTP category 5e, 5 cable100m 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF
· MAC Address Table: 16K, Auto-learning, Auto-aging
· jumbo frame: 12K Bytes
· Transfer Mode: Store-and-forward
· Packet Forward Speed: 95.23Mpps
· Switching Capacity:128Gbps
· Packet buffer: 12Mbit
· Dimensions(L*W*H): 440*260*44mm
· Fan Quantity: Fanless
· Green energy saving: IEEE 802.3az
· Power supply: 24W
· Input Power Supply: 12V/2A
· Operating Temperature: 0°C ~ 40 °C
· Storage Temperature:-40 °C ~ 70 °C
· Operating Humidity: 10% ~ 90% non-condensing
· Storage Humidity: 5% ~ 90% non-condensing
· System Settings: Basic information, system status, user management,SNTP configuration, importing/exporting configuration files, firmware upgrade
· Port Settings: Basic configuration, port statistics, Broadcast Storm, Port Rate limiting, Port security, link aggregation, port Mirroring, and port Isolation, Port aggregation,Load balancing, static aggregation, LACP
· MAC binding: MAC static binding, dynamic learning, MAC binding automatic conversion, MAC aging and learning restriction, and MAC filtering
· VLAN configuration: VLAN information, VLAN configuration, VLAN port configuration, Voice VLAN, QinQ, Guest-VLAN, GVRP, MVR
· ARP: IP Source Guard, ARP Check, gratuitous-ARP, ARP defense, DAI, tri-binding
· DHCP: IPV4/IPV6 DHCP Snooping, DHCP Server, DHCP Relay
· STP: STP/MSTP/RSTP, PortFastRoot Guard, Bpdu Guard
· SNMP configuration: SNMP community, SNMP view, SNMP TRAP, SNMP(V1,V2C,V3)
· RMON configuration: RMON(1,2,3,9)
· ACL configuration: Standard ACLs, ipv6-based ACLs, extended ACLs, Mac-based ACLs, expert ACLs, and time-range ACLs
· QOS configuration: QOS Application, QOS Scheduling Strategy, Queue Mapping (DSCP&CoS)
· IGMP Snooping configuration: IGMP SNOOPING configuration, multicast group information, IGMP SNOOPING VLAN, IGMP SNOOPING (V1,V2,V3)
· ERPS: ERPS configuration, ERPS mode, ERPS role
· LLDP: LLDP TLV configuration to view neighbor information
· Error-Disable: Error-Disable, Loopback-detection
· Web tools: Ping/Ping6, Traceroute/Traceroute 6, cable detection
· Log management: Log management and Debug information

Special Features

· Support RJ45 Auto-MDI/MDIX
· Panel light monitors working status and assists in fault analysis
· Supports full-duplex ieee 802.3x flow control and Backpressure half-duplex flow control
· Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
· High reliability design, supporting traditional STP/RST layer 2+ link protection technology; Supports manual aggregation and dynamic aggregation, which increases link bandwidth, improves link reliability, and implements load balancing and link backup
· Management and maintenance Supports Console, Telnet, and SSH management modes
· The system supports WEB management, which facilitates installation and debugging for engineers and maintenance personnel
· Virtual Gateway Supports file upload and download management through TFTP

Product Specification

Switch type	Managed
Switch layer	L3
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
Console port	RJ-45
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Rack mounting	Yes
Form factor	1U
