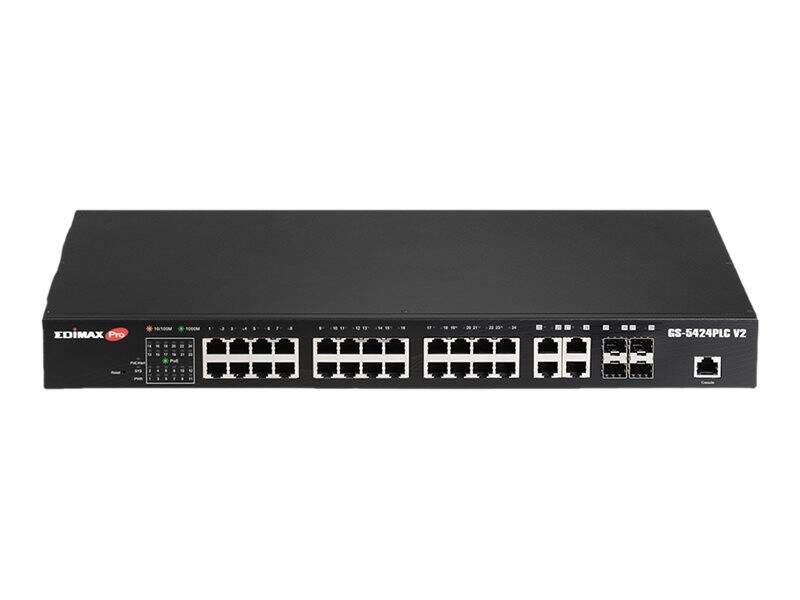

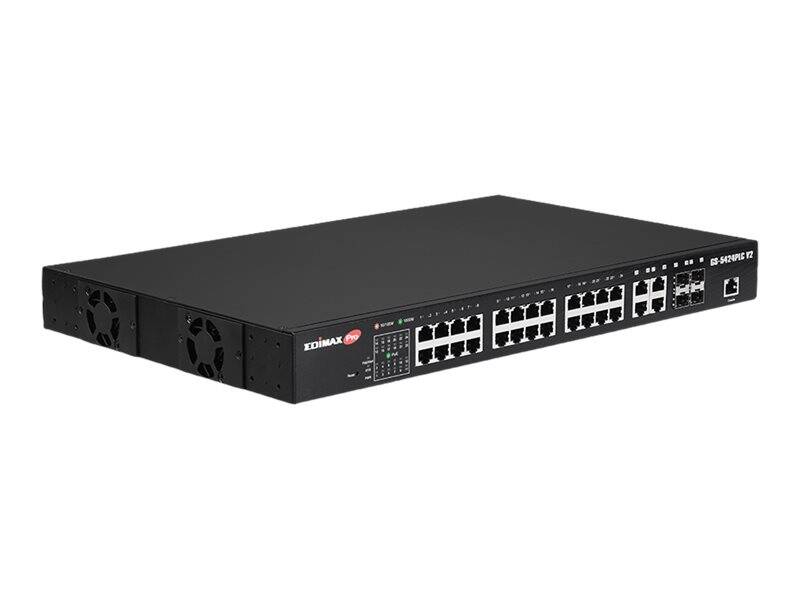

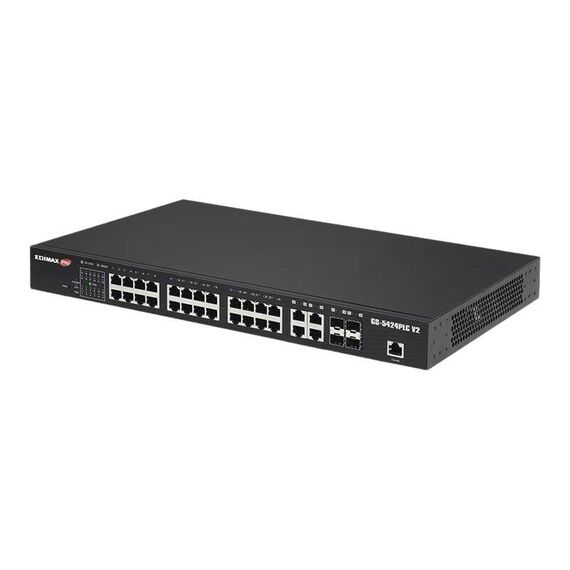

Edimax Pro GS-5424PLC V2 - Switch - smart - 24 x 10/100/1000 (PoE+) + 4 x combo SFP - rack-mountable - PoE+ (400 W) | GS-5424PLC V2
Please sign in so that we can notify you about a reply
Product Features
- All fit together
The EDIMAX ONVIF switches series greatly enhances IP surveillance network systems; it supports the ONVIF Profile Q standard, which is compatible with working ONVIF compliant Profiles G/Q/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication. - Let safety be known
The built-in power backfeed protection/PoE detection function keeps the PoE network safe and efficient. - Strong ability to proceed data
With 56Gbps backplane bandwidth and a forwarding rate of 41.6Mpps, the GS-5424PLC V2 provides maximum available bandwidth without delay. - Robust failover mechanisms
The GS-5424PLC V2 has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems. - Going the distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5424PLC V2 long-range mode provides extended power and data delivery distance to 200 meters at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations. - Safe power backfeed protection
Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Special Fetures
- Supports ONVIF Profile Q standard which is compatible with working ONVIF compliant profiles G/Q/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication
- PoE powered devices (PD) alive check to enhance the reliability of the network
- Guaranteed PoE long distance to 200 meters
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- IEEE 802.3af/at PoE compliant, up to 30W per port for powering PoE-enabled devices
- Power backfeed protection to avoid damaging the PoE ports
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring
- Two fans with hot-swappable fan tray and 19-inch 1U rack-mount design
Product Specification
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x combo SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 400 W |
| Performance | Switching capacity: 56 Gbps |
| Capacity | VLAN IDs: 4096 ¦ Virtual interfaces (VLANs): 200 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Remote Management Protocol | SNMP 3, HTTP |
| Authentication Method | RADIUS |
| Features | Flow control, full duplex capability, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Dynamic ARP Inspection (DAI), reset button, IPv4 support, hot swappable dual fans, Link Aggregation Control Protocol (LACP), dual firmware images, Strict Priority Queuing (SPQ), Class of Service (CoS), Generic VLAN Registration Protocol (GVRP), ONVIF support, 4.1MB packet buffer, Protocol-based VLANs support, Storm Control, IP source guard, Authentication, Authorization and Accounting (AAA), Voice VLAN, protected ports, Energy-Efficient Ethernet (EEE), DSCP based CoS, MAC based VLAN, port-based VLAN, port trunking |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified |
| Dimensions & Weight | |
| Width | 44.1 cm |
| Depth | 27 cm |
| Height | 4.5 cm |
| Weight | 4.45 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Features - Edimax - GS-5424PLC V2
General
24-Port
More Details
Product Code
04:370224
EAN Code
4717964704276
Manufacturer
Edimax
