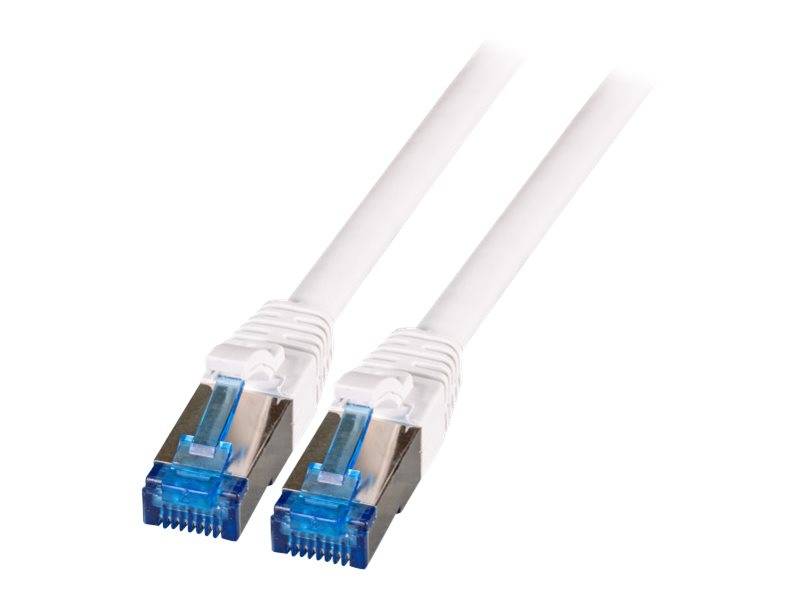

EFB-Elektronik / Patch cable / RJ-45 (M) to RJ-45 (M) / 2 m / SFTP / CAT 7 (cable) / CAT 6a (connectors) / halogen-free, molded / white | K5525FWS.2
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Patch cable - CAT 7 (cable) / CAT 6a (connectors) |
| Technology | Shielded foiled twisted pair (SFTP) |
| Jacket Material | Low Smoke Zero Halogen (LSZH)/ Thermoplastic elastomer (TPE) |
| American Wire Gauge (AWG) | 26/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Impedance | 100 Ohm |
| Plated Connector | Gold |
| Features | Halogen-free, molded, flame retardant, GHMT certified |
| Length | 2 m |
| Colour | White |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IEC 60332-1, TIA/EIA-568-B, IEC 60603-7-51, IEC 60754-2, IEC 61034 - up to 500 MHz |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
Features - EFB - K5525FWS.2
Colour
white
Length
2m
General
CAT7
More Details
Product Code
04:341185
EAN Code
4049759206499
Manufacturer
EFB
