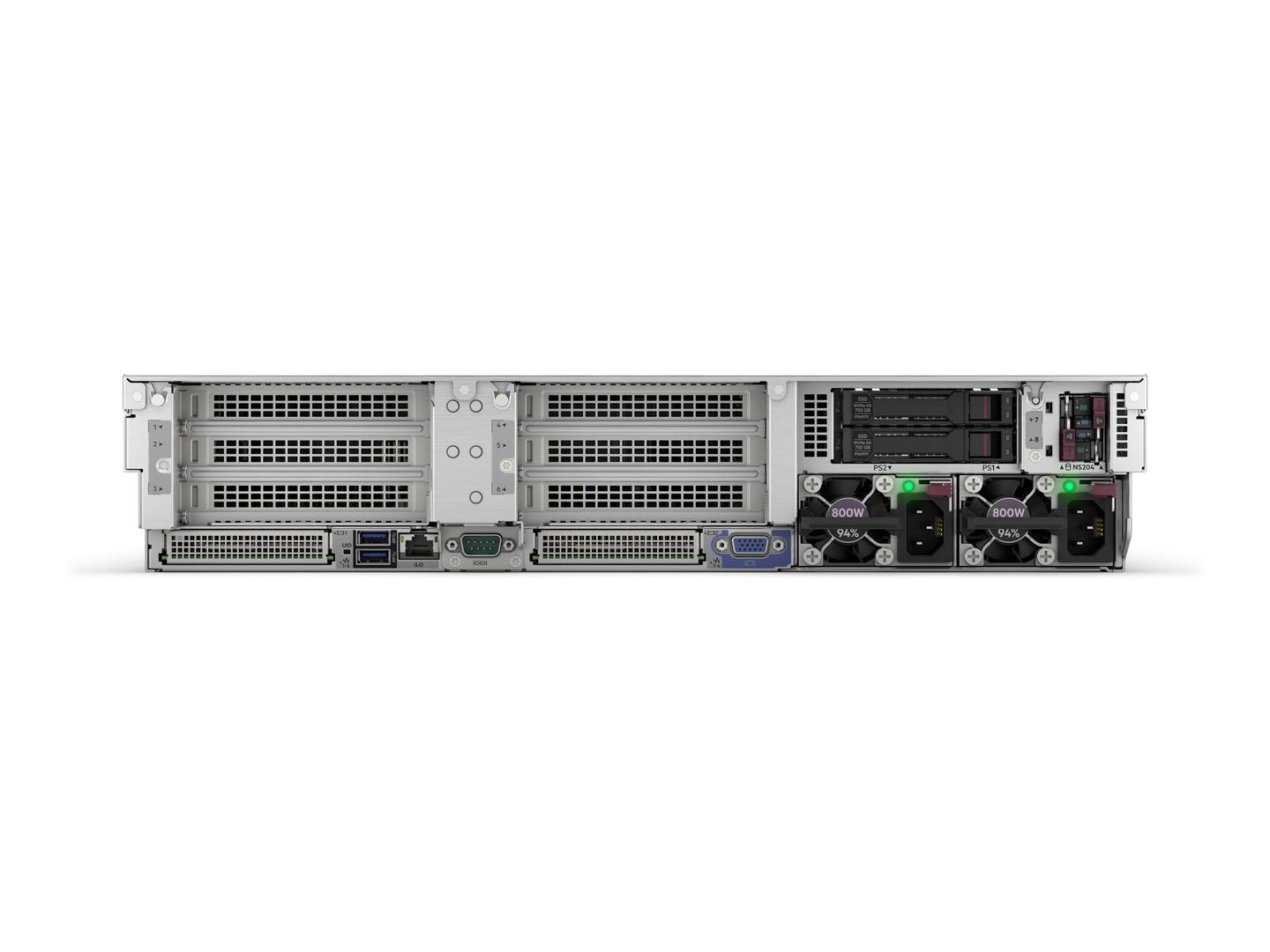

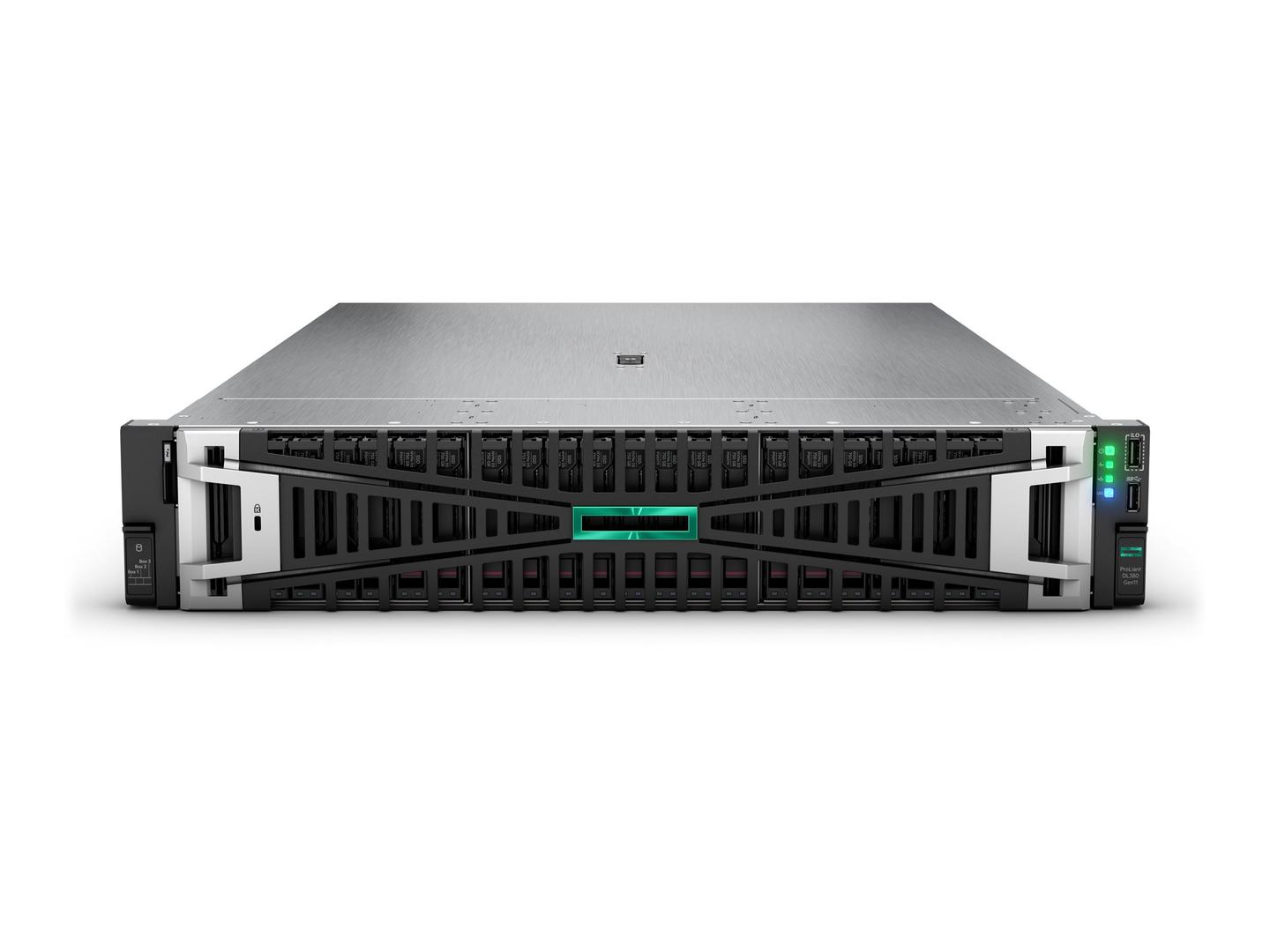

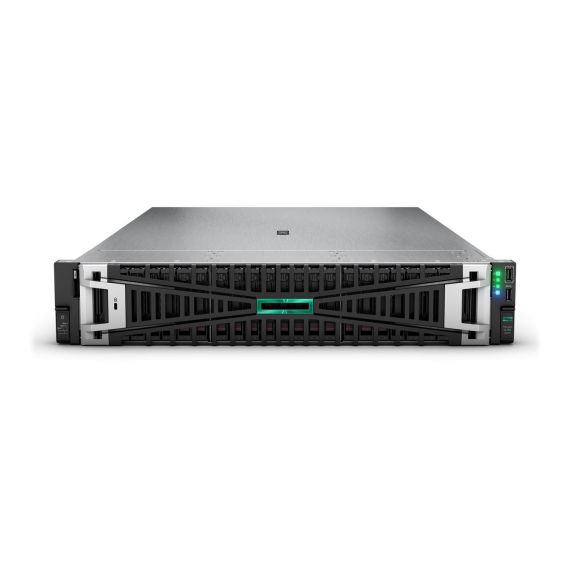

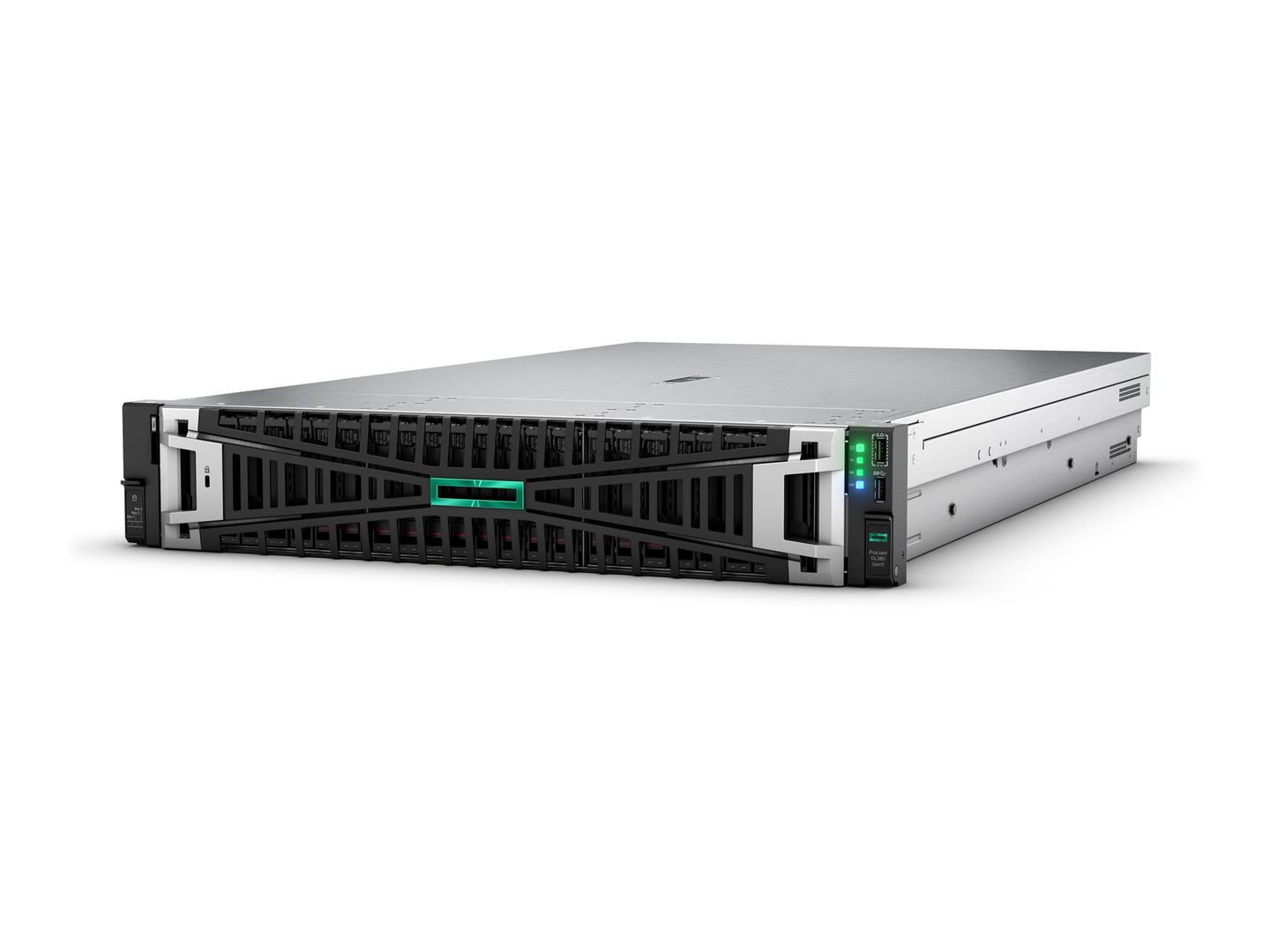

HPE ProLiant DL380 Gen11 / Server / rack-mountable 2U / 2-way / 1 x Xeon Silver 4516Y+ / up to 3.7 GHz / RAM 64 GB / SATA/SAS/NVMe / hot-swap 2.5" bay(s) / SSD 2 x 480 GB / Gigabit Ethernet, 10 Gigabit Ethernet / no OS / monitor: none | P81786-425

Product Features
- Efficient storage capabilities
The server features eight hot-swap storage bays, allowing for easy installation and maintenance of drives. It supports various interface options including SATA, SAS, and NVMe, providing the flexibility needed for different storage setups. - Robust expansion options
With a total of 32 RAM slots and the capability to support expansion cards in available half-length, full-height slots, the HPE ProLiant DL380 Gen11 offers the scalability needed for growing business demands. - Effective cooling and operation
Designed for a wide range of operating environments, the DL380 Gen11 operates efficiently between 10°C and 35°C and can handle humidity levels of 8% to 90% RH, ensuring reliability in various conditions. - Integrated management tools
Equipped with Integrated Lights-Out 6, this server streamlines remote management, allowing administrators to monitor and maintain server health and performance without being onsite. - Enhanced security features
The embedded Trusted Platform Module (TPM 2.0) ensures a strong foundation for secure boot processes and encryption, protecting the integrity of sensitive data.
Special Features
- Xeon Silver processor with upgradable options
- Flexible storage options with hot-swap bays for easy maintenance
- Robust memory support with DDR5 SDRAM technology
- Comprehensive remote management capabilities with integrated Lights-Out 6
- Secure design with Trusted Platform Module (TPM 2.0)
Product Specification
Type | Server |
Product Form Factor | Rack-mountable - 2U |
Built-in Devices | Led panel |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability | 2-way |
Hot-Swap Bays Qty | 8 |
Localisation | Region: Europe |
Processor / Chipset | Processor / Chipset |
CPU | Intel Xeon Silver 4516Y+ |
Clock Speed | 2.2 GHz |
Max Turbo Speed | 3.7 GHz |
Number of Cores | 24-core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
Chipset Type | Intel C741 |
Cache Memory | Cache Memory |
Installed Size | L3 Cache - 45 MB |
Cache Per Processor | 45 MB |
RAM | RAM |
Installed Size | 64 GB (installed) / 8 TB (max) |
Technology | DDR5 SDRAM |
Effective Memory Speed | 2200 MHz |
Rated Memory Speed | 2800 MHz |
Form Factor | DIMM 288-pin |
Slots | 32 (Total) / 30 (empty) |
Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
Configuration Features | 2 x 32 GB |
Hard Drive | Hard Drive |
Type | SSD |
Capacity | 2 x 480 GB |
Interface Type | SATA 6Gb/s |
Features | HPE Multi Vendor, Read Intensive |
Storage Controller | Storage Controller |
Type | 1 x RAID - OCP |
Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
Storage Controller Name | HPE MR408i-o Gen11 SPDM |
Channel Qty | 8 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
Buffer Size | 4 GB |
Optical Storage | Optical Storage |
Type | No optical drive |
Monitor | Monitor |
Monitor Type | None. |
Graphics Controller | Graphics Controller |
Video Memory | 16 MB |
Video Interfaces | VGA |
Networking | Networking |
Ethernet Ports | 2 x 10 Gigabit Ethernet |
Ethernet Controller | Broadcom BCM57416 |
Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, Ethernet, Fast Ethernet |
Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
Remote Management Controller | Integrated Lights-Out 6 |
Features | Wake on LAN (WoL), PXE support |
Expansion / Connectivity | Expansion / Connectivity |
Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) 1 (total) / 0 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) 2 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 |
Interfaces | 1 x USB 3.0 (1 in front) (HPE iLO Service Port) 4 x USB 3.0 (2 rear, 2 internal) 1 x HPE iLO - RJ-45 (1 rear) 1 x VGA (1 rear) 4 x LAN (Gigabit Ethernet) - RJ-45 |
Miscellaneous | Miscellaneous |
Included Accessories | 4 standard fans |
Compliant Standards | AES, ACPI 6.3, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, Active Directory v1.0, WEEE 2002/95/EC, FIPS 140-2, SMBIOS 3.2, Redfish API, Triple DES, UEFI 2.7 |
Power | Power |
Device Type | Power supply - hot-plug |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Installed Qty | 2 |
Max Supported Qty | 2 |
Voltage Required | AC 100-240 V |
Power Provided | 1000 Watt |
80 PLUS Certification | 80 PLUS Titanium |
Operating System / Software | Operating System / Software |
OS Provided | No operating system |
OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1, VMware ESXi 8.0 update 2, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, SUSE Linux Enterprise Micro 5.3, Canonical Ubuntu 20.04.5 LTS, Canonical Ubuntu 22.04 LTS, Oracle Linux 9 |
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Server UEFI |
Sustainability Information | Sustainability Information |
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 3.0 |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
Dimensions & Weight | Dimensions & Weight |
Width | 44.8 cm |
Depth | 72.7 cm |
Height | 8.75 cm |
Weight | 16 kg |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 10 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 8 - 90% RH (non-condensing) |
