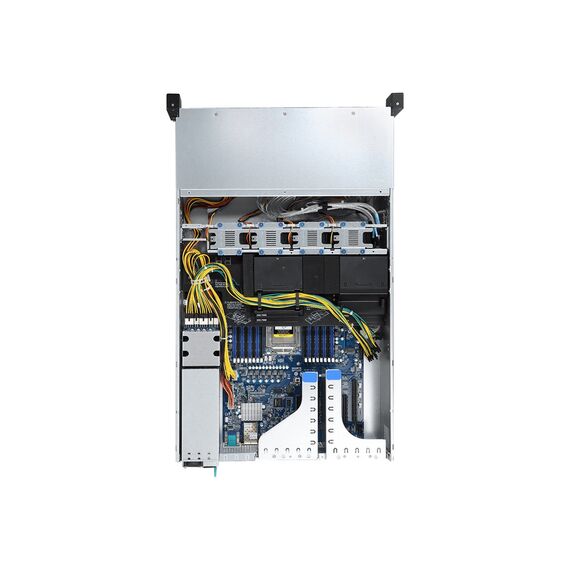

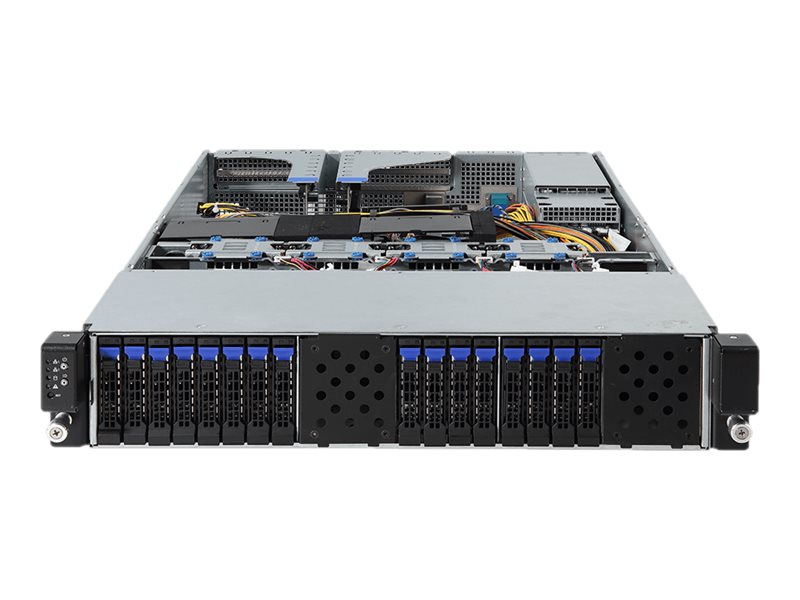

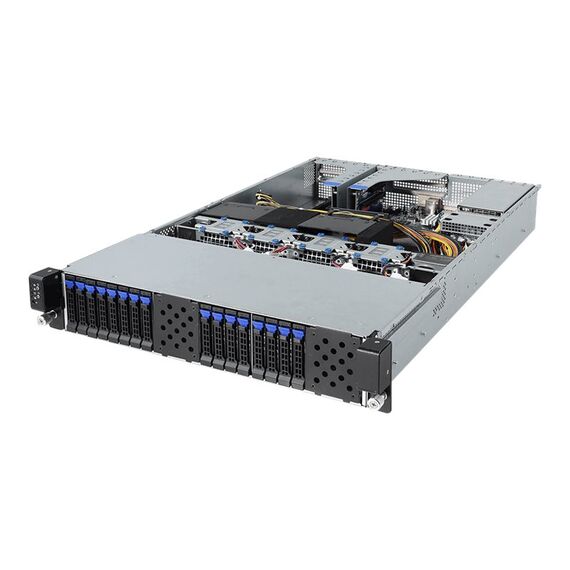

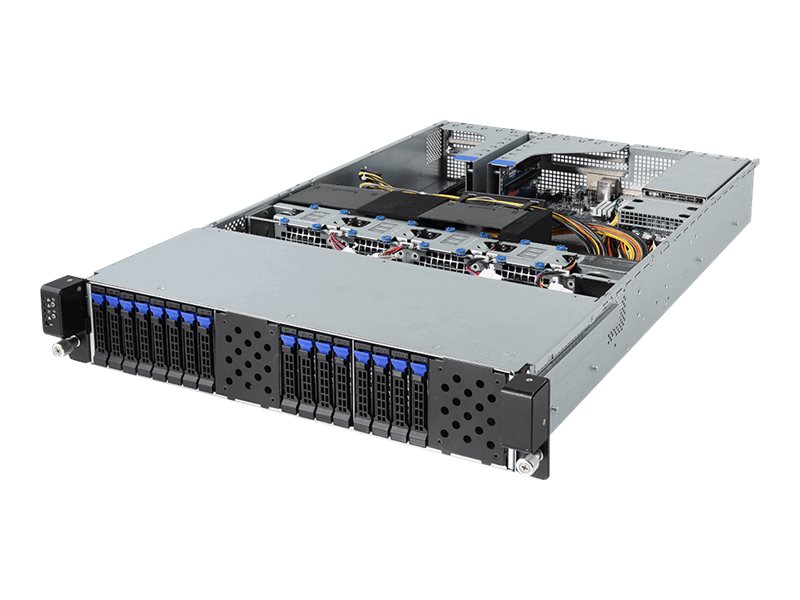

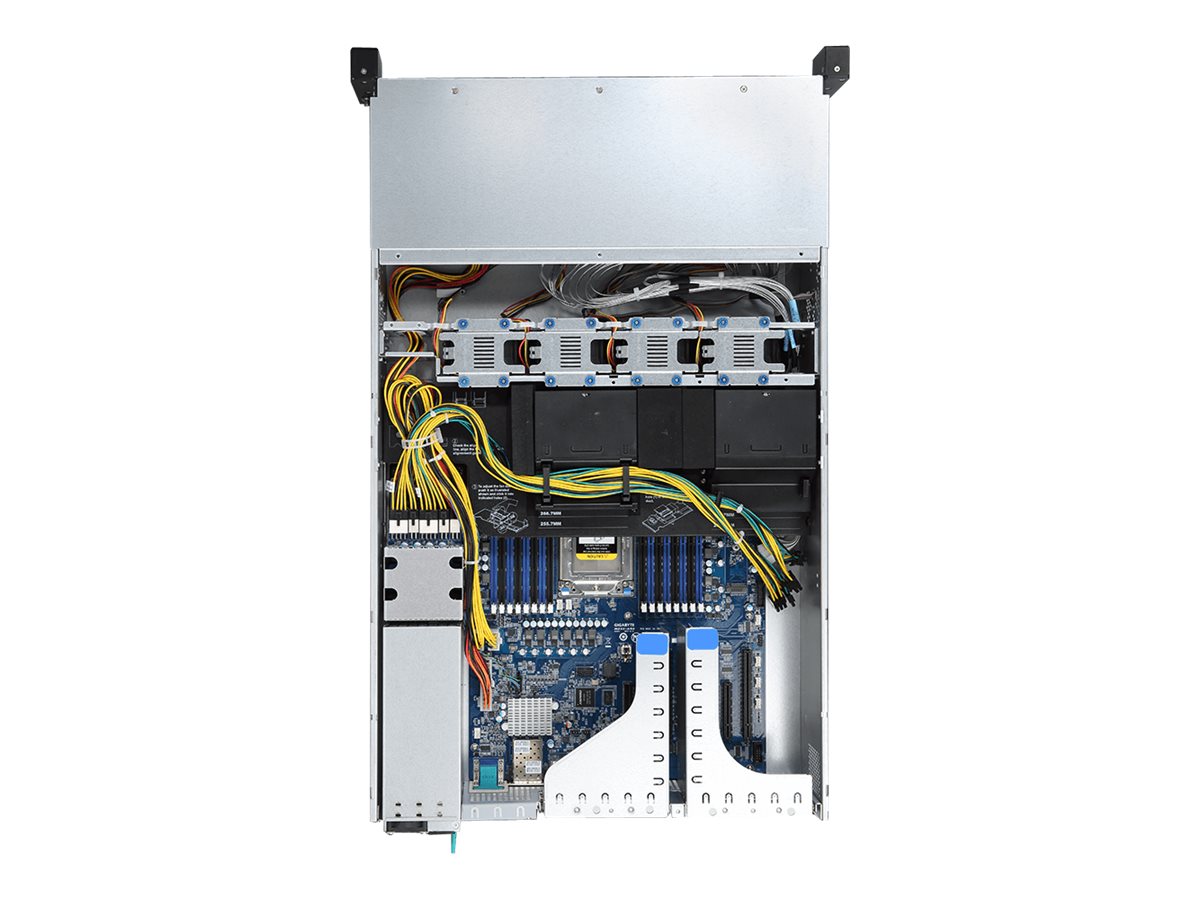

Gigabyte G221-Z30 (rev. 100) / Server / rack-mountable / 2U / 1-way / no CPU up to / RAM 0 GB / SATA / hot-swap 2.5" bay(s) / no HDD / AST2500 / 10 Gigabit Ethernet / no OS / monitor: none | 6NG221Z30MR-00
Please sign in so that we can notify you about a reply
Product Features
- Dynamic fan speed control
GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system's current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited when necessary according to the user's custom requirements. - Carefully selected components
GIGABYTE's passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE's server motherboards are built with long lasting components for a high degree of reliability and durability.
Special Features
- 2x SFP+ 10Gb/s LAN ports
- 1x dedicated management port
- 16x 2.5" hot-swappable HDD/SSD bays
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 4x PCIe Gen3 expansion slots
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 16 |
| Processor / Chipset | Processor / Chipset |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket SP3 |
| RAM | RAM |
| Installed Size | 0 GB |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 16 (Total) / 16 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Networking | Networking |
| Ethernet Ports | 2 x SFP+ |
| Ethernet Controller | Broadcom BCM 57810S |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Aspeed AST2500 |
| Features | KVM over IP support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 16 (total) / 16 (free) x hot-swap 2.5" |
| Slots | 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height (x16/x8 mode) 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height (x0/x8 mode) 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key M) |

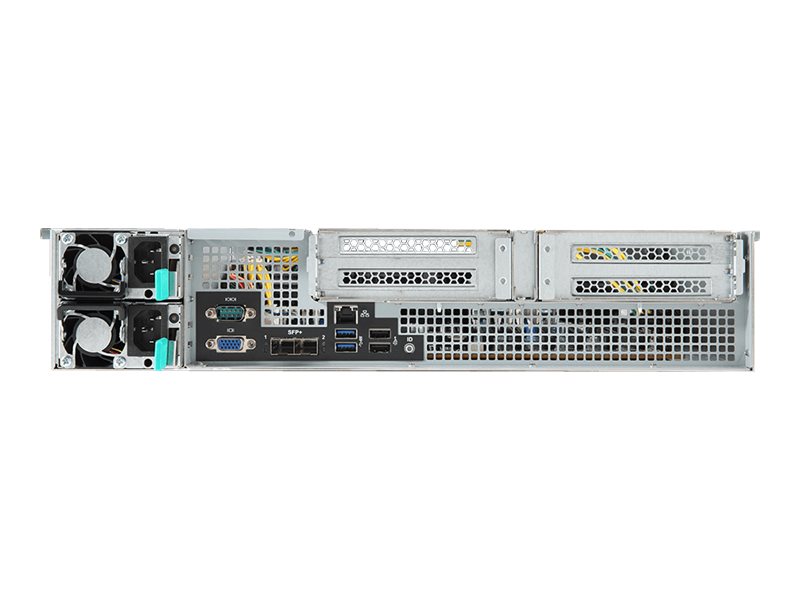

| Interfaces | 2 x USB 3.0 1 x VGA 2 x LAN (10Gigabit Ethernet) (SFP+) - SFP+ 1 x management (NIC) - RJ-45 2 x USB 2.0 1 x serial |
| Miscellaneous | Miscellaneous |
| Included Accessories | CPU Heatsink, rack rail kit |
| Compliant Standards | RoHS |
| Power | Power |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 1200 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43 cm |
| Depth | 71 cm |
| Height | 8.7 cm |
| Weight | 22 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 58.8 cm |
| Shipping Depth | 98.2 cm |
| Shipping Height | 26.8 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 80% (non-condensing) |
