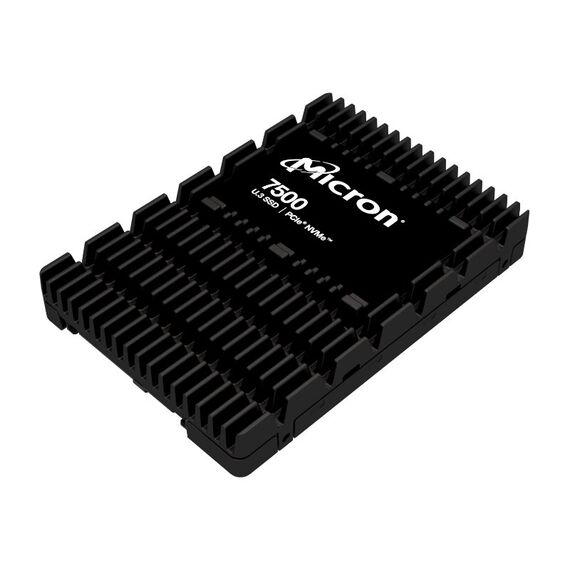

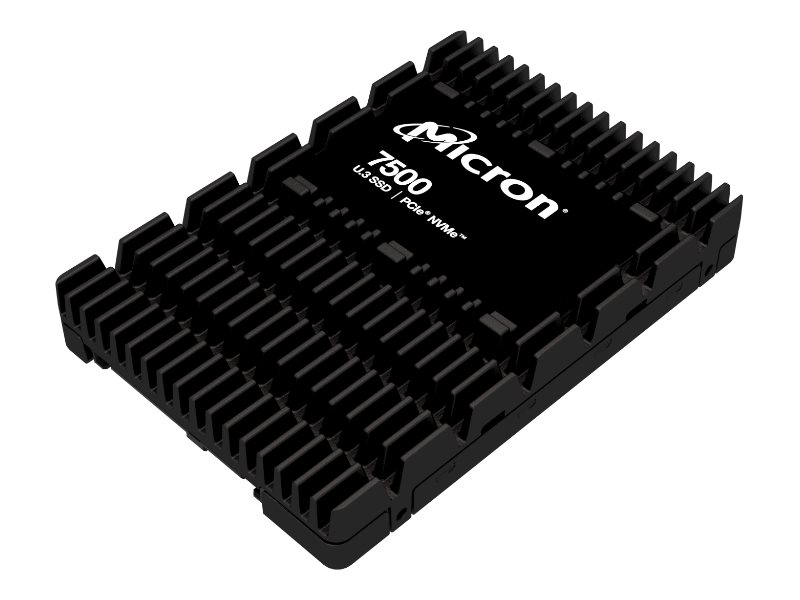

Micron 7500 MAX / SSD / Mixed Use / encrypted / 3.2 TB / internal / 2.5" / U.3 PCIe 4.0 (NVMe) / FIPS 140-3 Level 2, 256-bit AES, 3072-bit RSA, 208-bit RSA / TCG Opal Encryption 2.01 | MTFDKCC3T2TGQ-1BK1DABYYR
Product Features
- Enhanced durability
With an MTBF of 2,000,000 hours, this Micron 7500 MAX solid state drive offers exceptional durability and reliability for continuous operation in mixed-use environments. - Advanced security
Featuring a Micron Secure Encrypted Environment (SEE) with multiple encryption algorithms including 256-bit AES and 208-bit RSA, this drive ensures your data is protected with high-level security. - Optimized performance
Equipped with NVMe 2.0b and U.3 PCIe 4.0 interfaces, the Micron 7500 MAX delivers high-speed data transfer rates, making it suitable for demanding applications and workloads. - Power efficiency
With power consumption modes optimized for sequential read and write operations, this drive balances performance with efficiency, ensuring lower energy costs without compromising on speed. - Comprehensive data protection
Features like End-to-end data protection, Enterprise Power-Loss Protection, and Dynamic and Static Wear Leveling work together to safeguard your data from corruption and loss during unexpected power outages.
Special Features
- MTBF of 2,000,000 hours for enhanced reliability
- Supports 256-bit AES and 208-bit RSA encryption for high-level data security
- Utilizes NVMe 2.0b and U.3 PCIe 4.0 for high-speed data transfers
- Optimized power consumption for efficient operation
- Includes features like End-to-end data protection and Enterprise Power-Loss Protection
Product Specification
Device Type | Solid state drive - internal |
Capacity | 3.2 TB |
Hardware Encryption | Yes |
Encryption Algorithm | FIPS 140-3 Level 2, 256-bit AES, 3072-bit RSA, 208-bit RSA |
NAND Flash Memory Type | 3D triple-level cell (TLC) |
Form Factor | 2.5" |
Interface | U.3 PCIe 4.0 (NVMe) |
Bytes per Sector | 512 |
Features | NVM Express (NVMe) 2.0b, Micron Secure Encrypted Environment (SEE), Self-Encrypting Drive (SED), Key-Based Firmware Update, Strong Asymmetric Key Support, Digitally Signed Firmware, Surprise Insertion capable, Surprise Removal capable, Hot-Plug Support, field-upgradeable firmware, Firmware Activate without Reset, NVMe Management Interface (NVMe-MI) 1.2b, Dynamic and Static Wear Leveling, NVME Urgent Weighted Round Robin, End-to-end data protection, Enterprise Power-Loss Protection, Read Unrecoverable Bit Error Rate (UBER) 10e-18, Open Compute Project 2.0, S.M.A.R.T. |
Height | 15 mm |
Performance | Performance |
Drive Writes Per Day (DWPD) | 3 |
SSD Endurance | 17520 TB |
Drive Class | Mixed Use |
Internal Data Rate | 6800 MBps (read) / 5300 MBps (write) |
4KB Random Read | 1100000 IOPS |
4KB Random Write | 390000 IOPS |
Average Latency | 15 µs |
Reliability | Reliability |
MTBF | 2,000,000 hours |
Non-Recoverable Errors | 1 per 10^18 |
Expansion & Connectivity | Expansion & Connectivity |
Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
Compatible Bay | 2.5" |
Power | Power |
Power Consumption | 15.5 Watt (sequential read) 18.3 Watt (sequential write) |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Features - Micron - MTFDKCC3T2TGQ-1BK1DABYYR
- 2.5"
- Internal
- U.3
