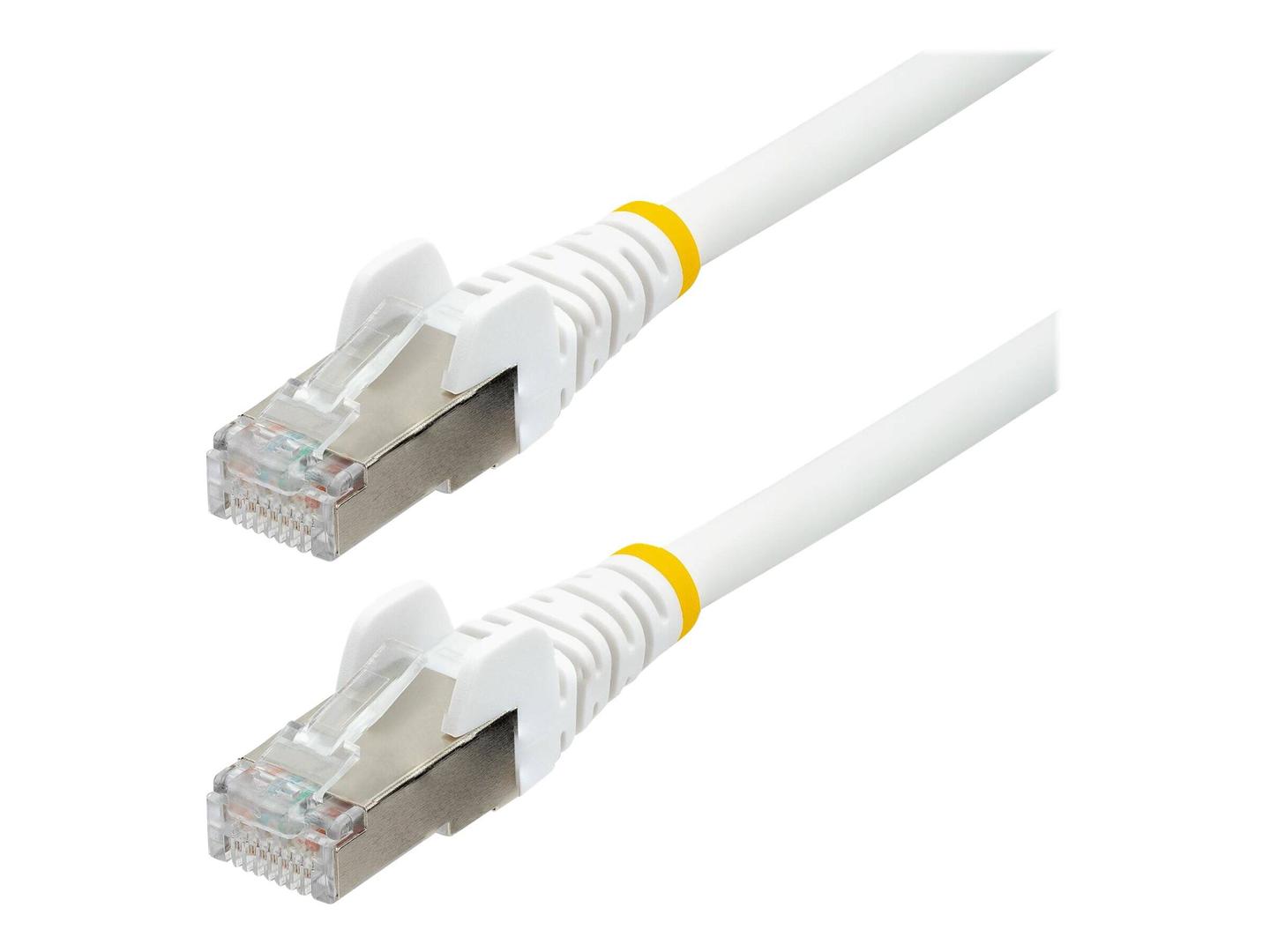

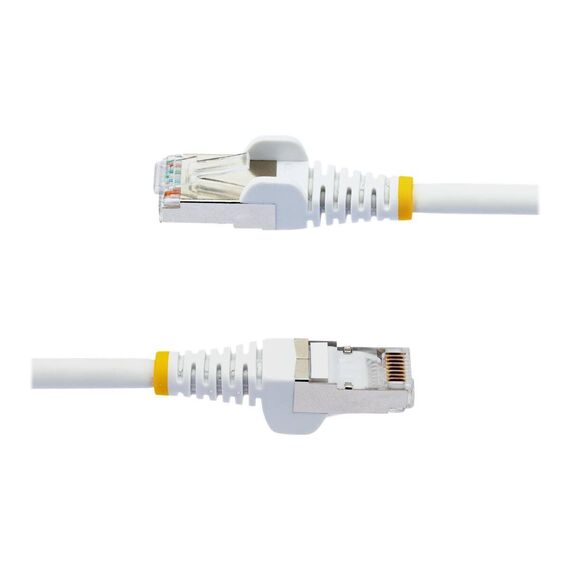

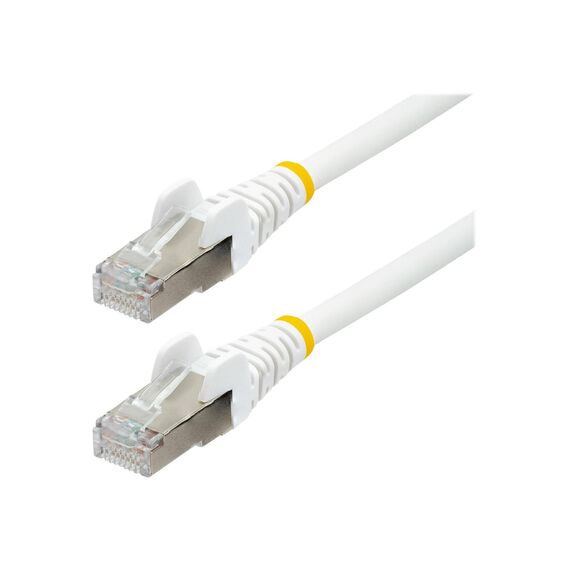

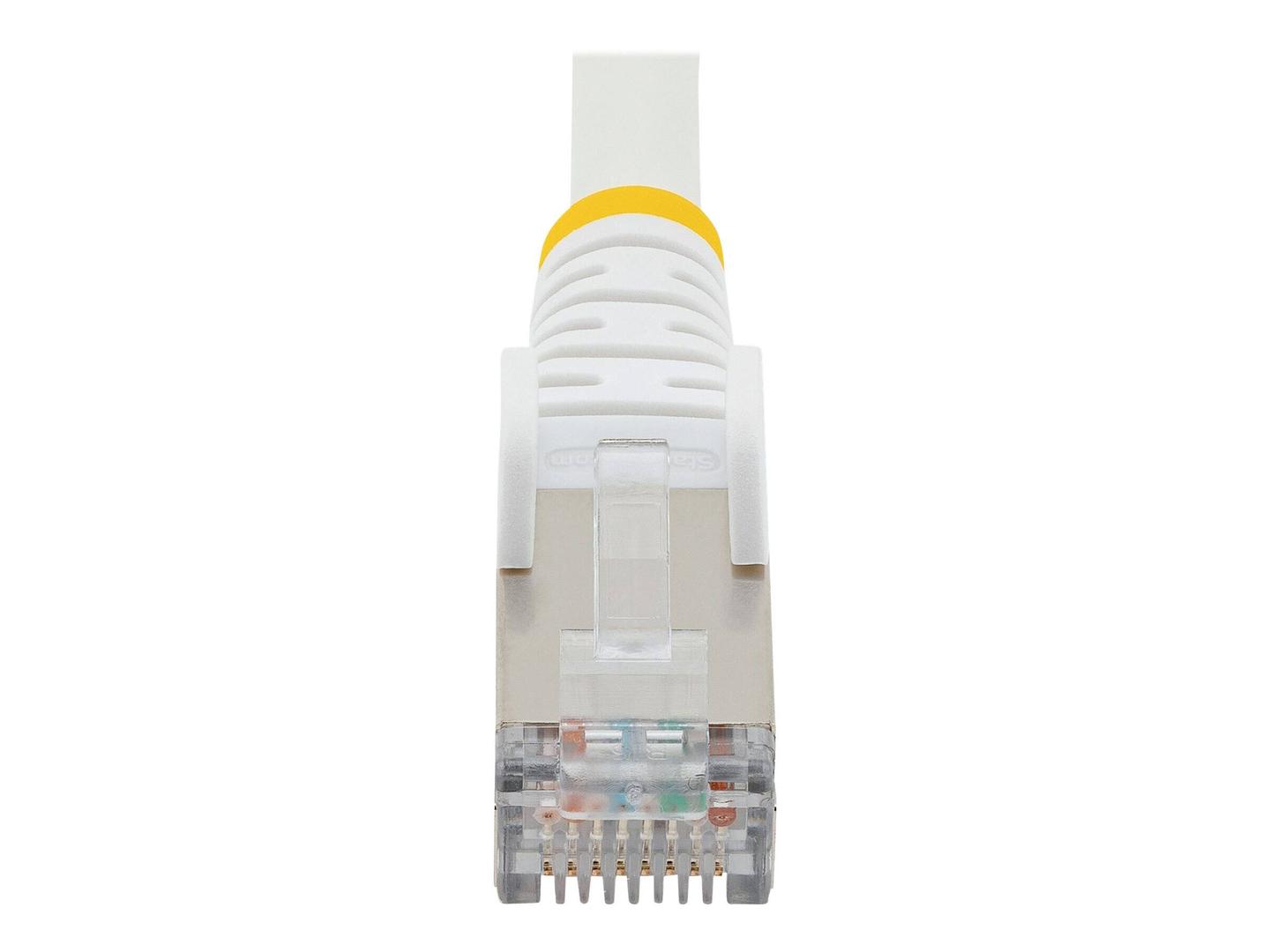

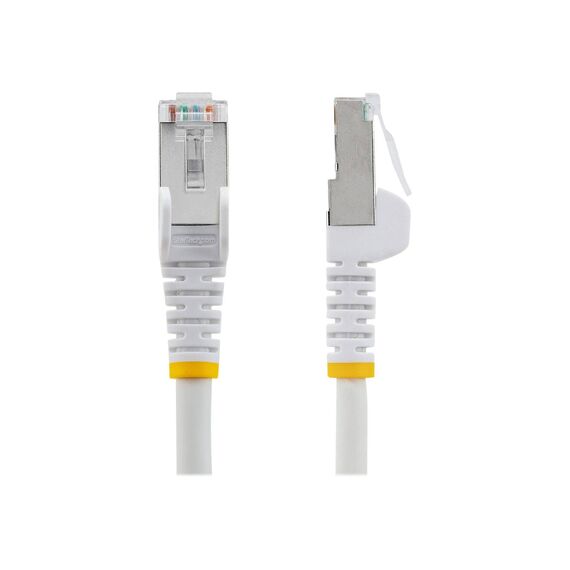

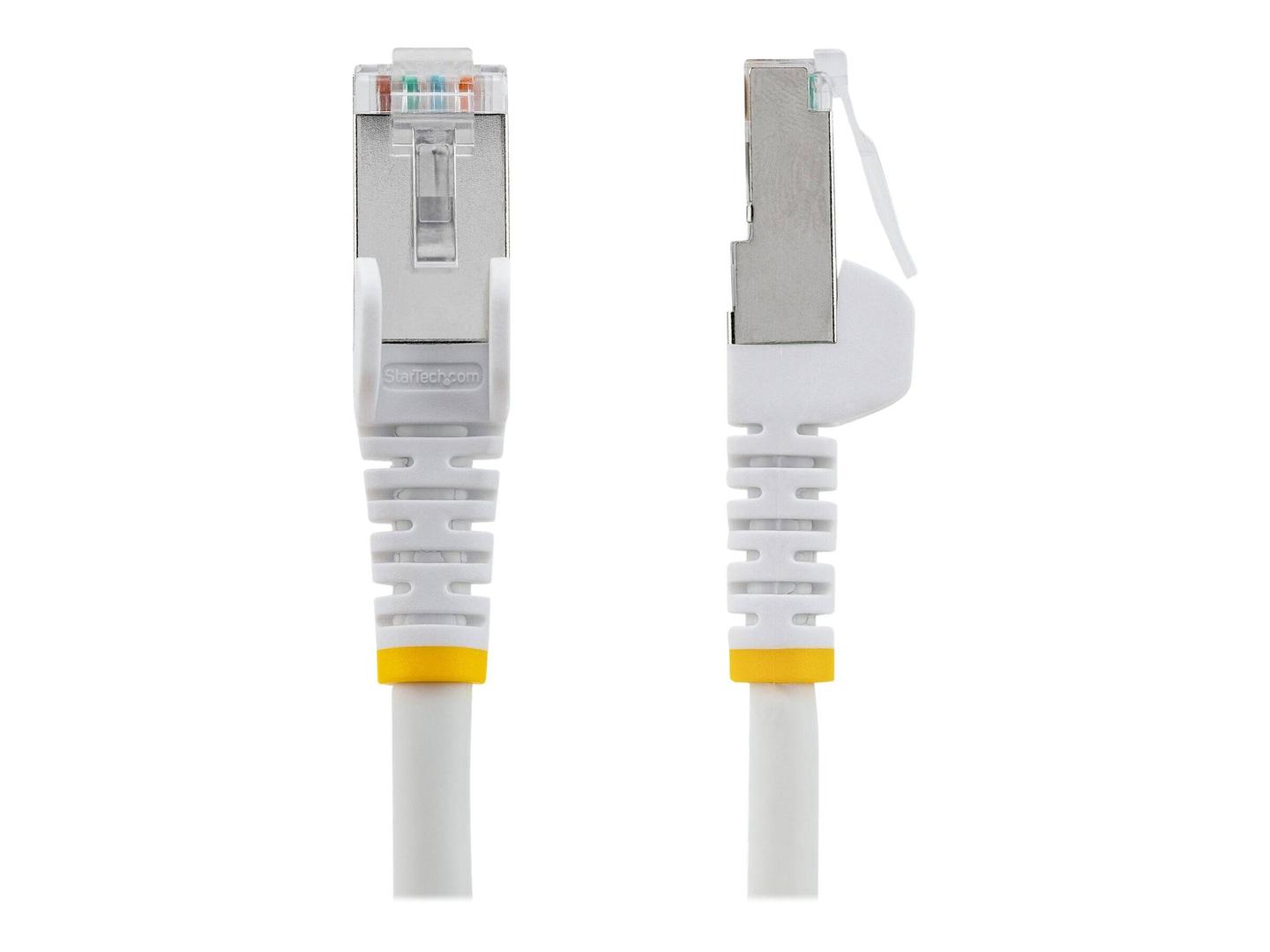

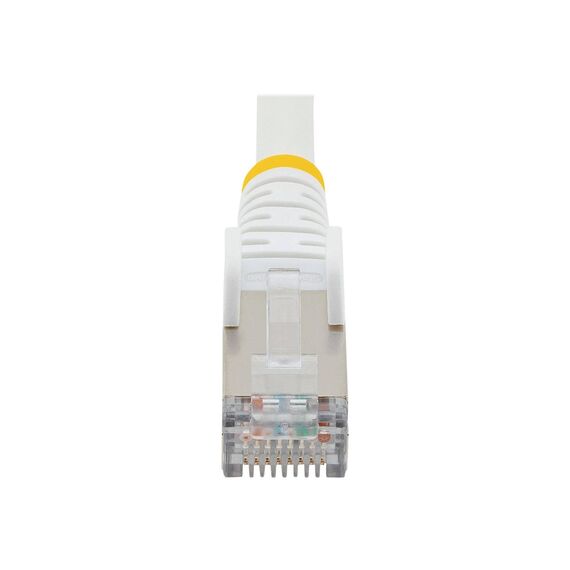

StarTech.com 3m CAT6a Ethernet Cable - White - Low Smoke Zero Halogen (LSZH) - 10GbE 500MHz 100W PoE++ Snagless RJ-45 w/Strain Reliefs S/FTP Network Patch Cord - Patch cable - RJ-45 (M) to RJ-45 (M) - 3 m - S/FTP - CAT 6a - IEEE 802.3bt - halogen-free, mo
Please sign in so that we can notify you about a reply
Special Fetures
- CAT6A ETHERNET CABLE: Ethernet cable for error-free 1/2.5/5/10Gbps multi-gigabit/multi-speed connections - Low proximity crosstalk (NEXT)/return loss (RL) - Meets ANSI/TIA-568.2-D standards - Tested by Fluke and Verified by ETL
- SHIELDED CAT6A CABLE: Enhanced signal and EMI/RFI protection - Individual twisted pairs wrapped in aluminum foil - Outer cover with braided shield - Shielded RJ45 connectors with gold-plated pins
- 100W ETHERNET POWER SUPPLY: 100% stranded copper wire provides stable PoE power, unlike copper-clad aluminum versions - Supports PoE devices up to 100W PoE++ - IEEE 802.3bt compliant
- DURABLE LSZH SHEATH: PVC-free, low-smoke, halogen-free (LSZH) cable sheath produces less dense, less corrosive smoke than PVC - Braided FABRICATION resists damage caused by bending
- SPECS: Category 6A network cable - 3m - White - 10Gbps - 500 MHz - 4 pairs S/FTP - Snagless RJ-45 with Strain Reliefs - EVA, Al(OH)3 - LSZH - 27 AWG - 100% copper - ETL verified - ANSI/TIA-568.2-D - Supports Cat6 and earlier standards
Product Specification
| Network Cable Type | Patch cable - CAT 6a - IEEE 802.3bt |
| Technology | S/FTP |
| Shielding Material | Foil |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 27 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Halogen-free, molded, snagless, stranded, strain relief, minimised Near-End Crosstalk (NEXT), test fluke pass, copper conductor, EMI/RFI protection, 100 Watt maximum input power, reduced Return Loss (RL), damage protection, up to 10 Gbps |
| Length | 3 m |
| Weight | 108.4 g |
| Colour | White |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | RoHS, ETL, WEEE, ANSI/TIA-568.2-D, PoE++ - up to 500 MHz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22 cm |
| Shipping Depth | 19 cm |
| Shipping Height | 2 cm |
| Shipping Weight | 117.1 g |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
Features - StarTech.com - NLWH-3M-CAT6A-PATCH
Colour
white
Length
3m
General
CAT6a
More Details
Product Code
CF70695
EAN Code
0065030896818
Manufacturer
StarTech.com
