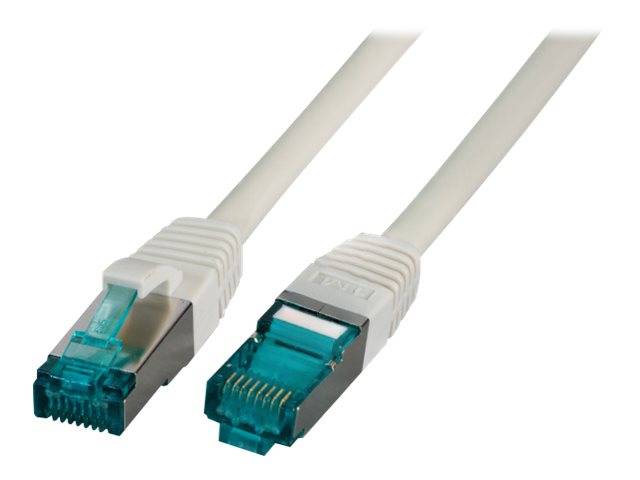

EFB-Elektronik / Patch cable / RJ-45 (M) to RJ-45 (M) / 40 m / 6 mm / S/FTP / CAT 6a / IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt / halogen-free, molded, snagless, silicone-free / grey | MK6001.40G
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Patch cable - CAT 6a - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt |
| Technology | S/FTP |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 27/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Impedance | 100 Ohm |
| Conductor Resistance (per km) | 185 Ohm |
| Plated Connector | Gold |
| Features | Halogen-free, molded, snagless, silicone-free, Slim, flame retardant, Anti-kink sleeve, shielded connectors, PoE+ Ready, PoE ready, copper conductors, bending radius 30mm, length imprint |
| Length | 40 m |
| Diameter | 6 mm |
| Colour | Grey |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | ISO/IEC 11801, TIA/EIA-568-B, IEC 60603-7-51, ANSI/TIA-568-C.2 - up to 500 MHz |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - EFB - MK6001.40G
Colour
grey
Length
40m
General
CAT6a
More Details
Product Code
04:366741
EAN Code
4049759226442
Manufacturer
EFB
