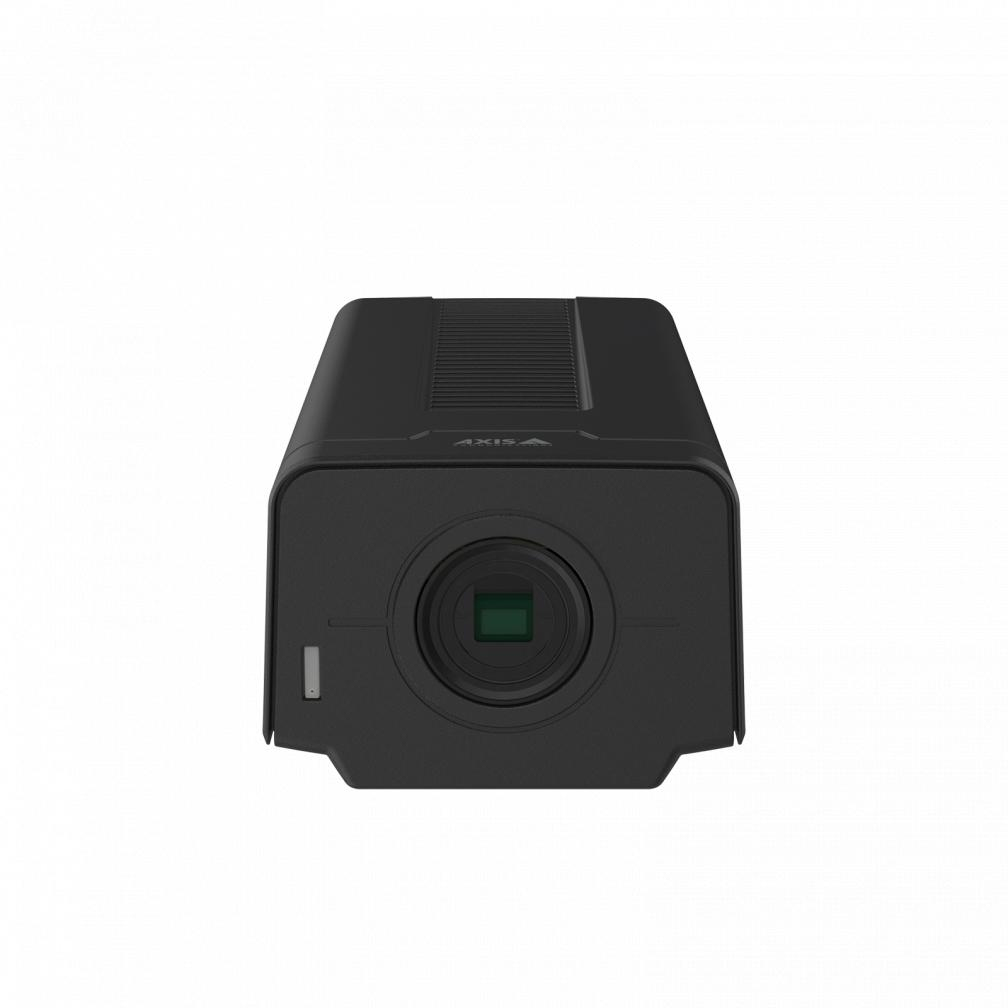

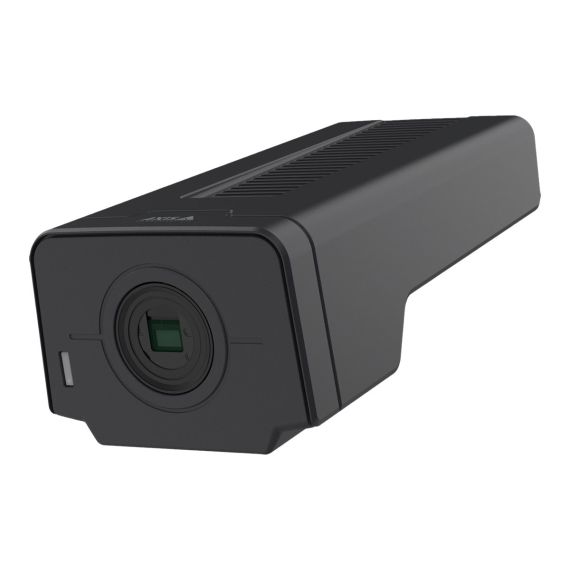

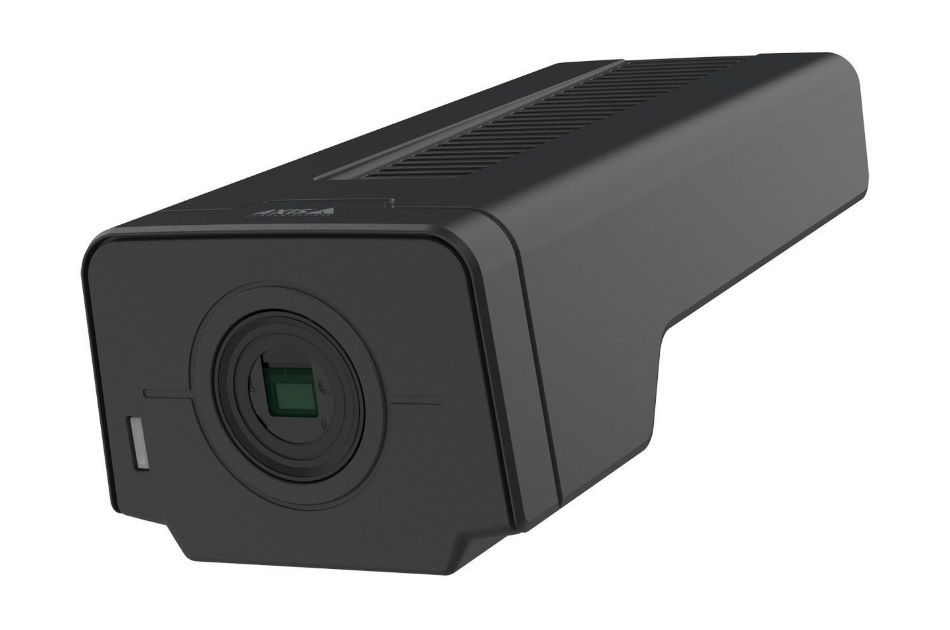

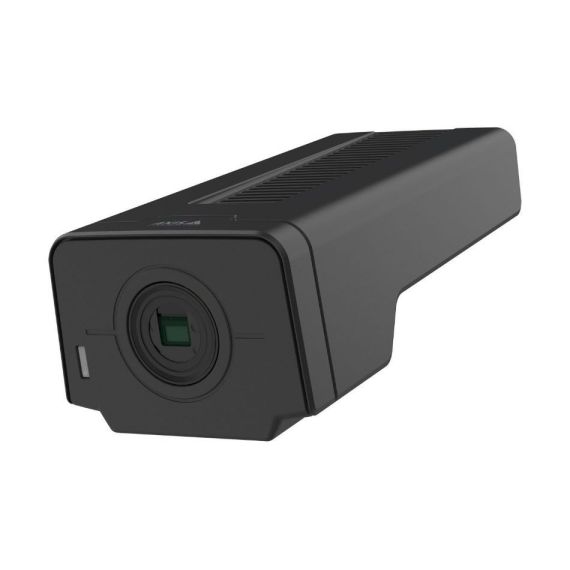

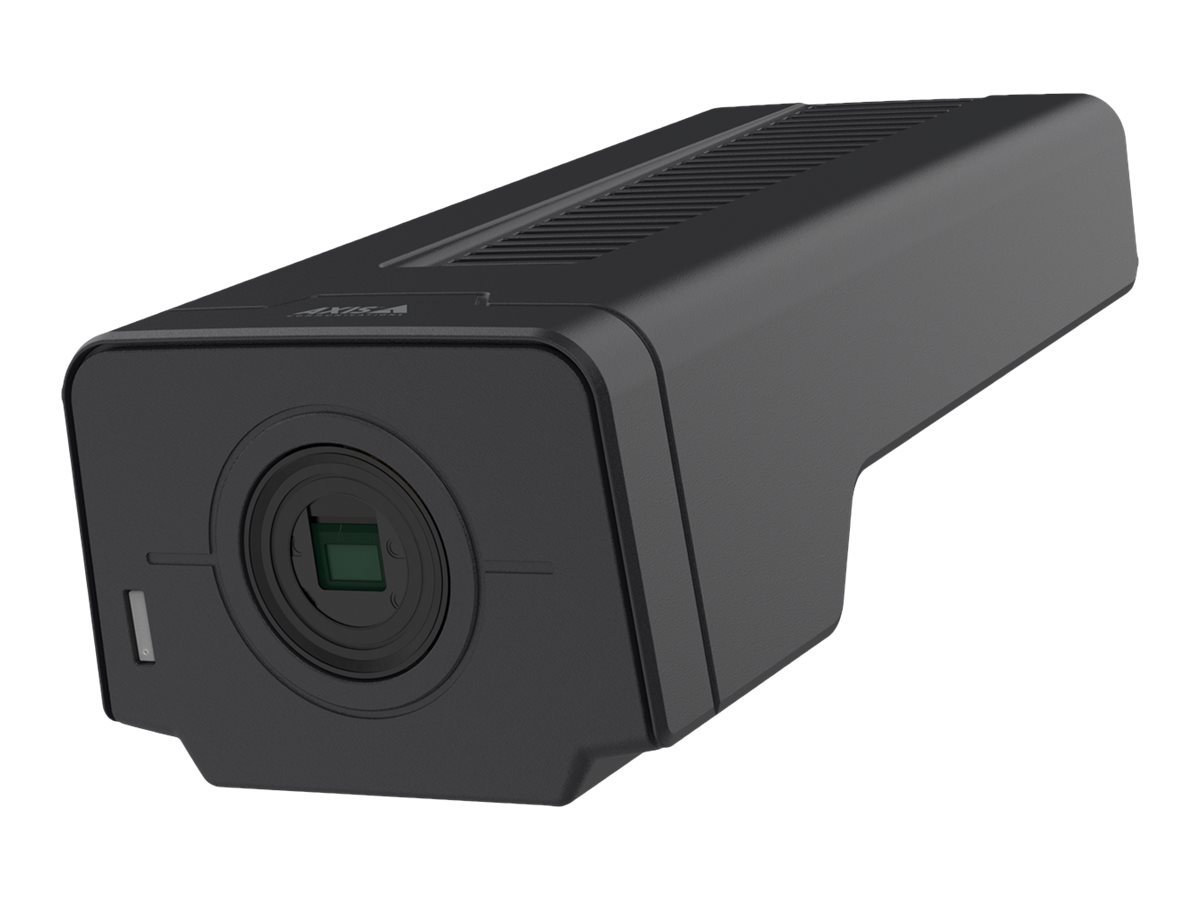

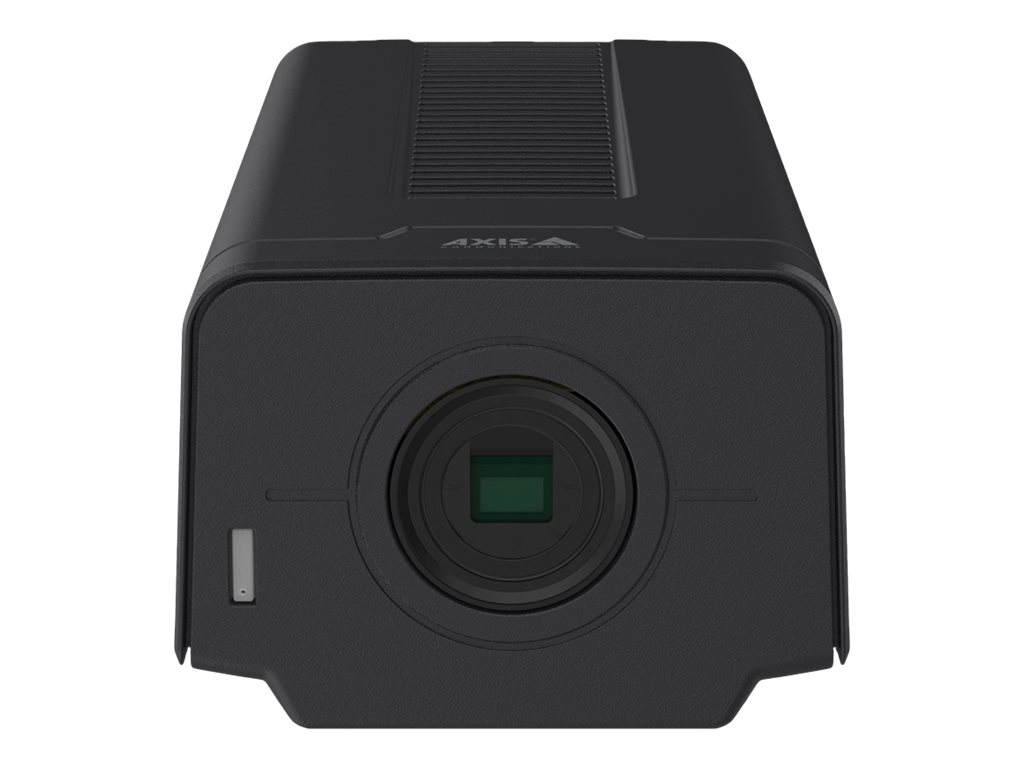

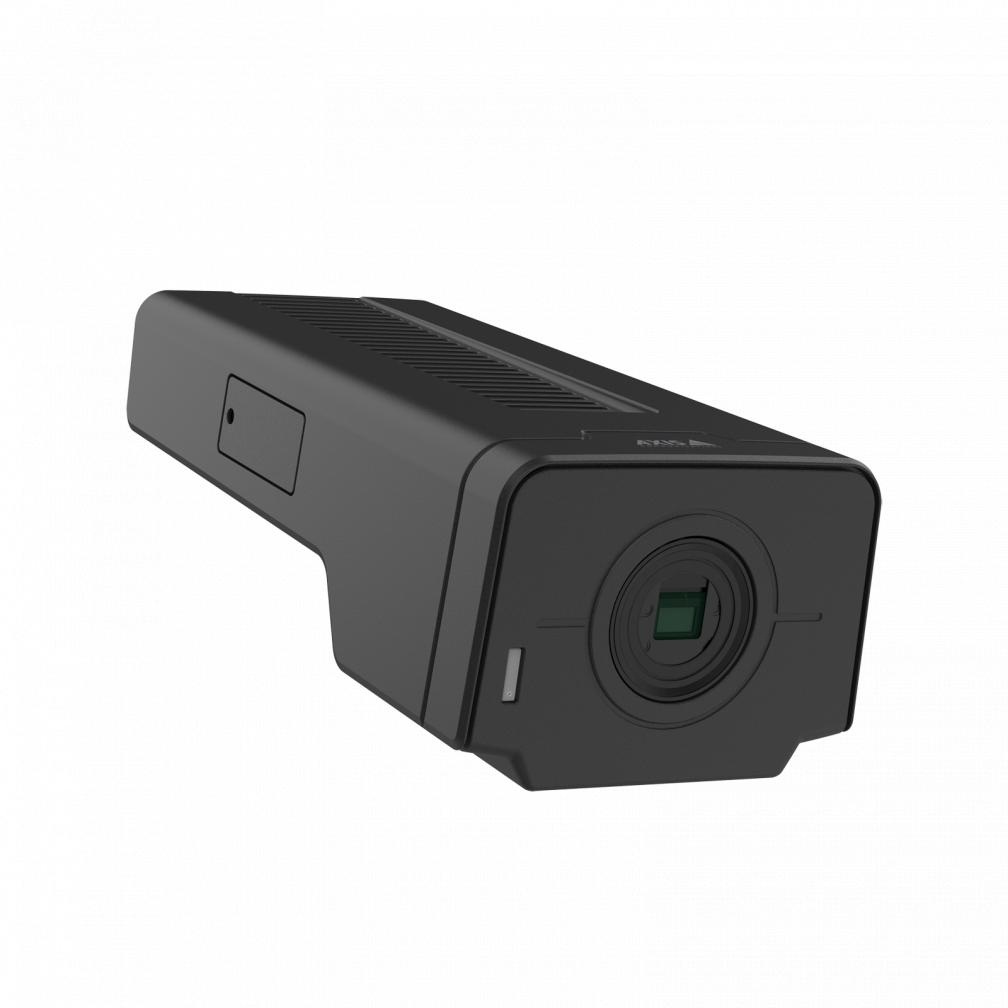

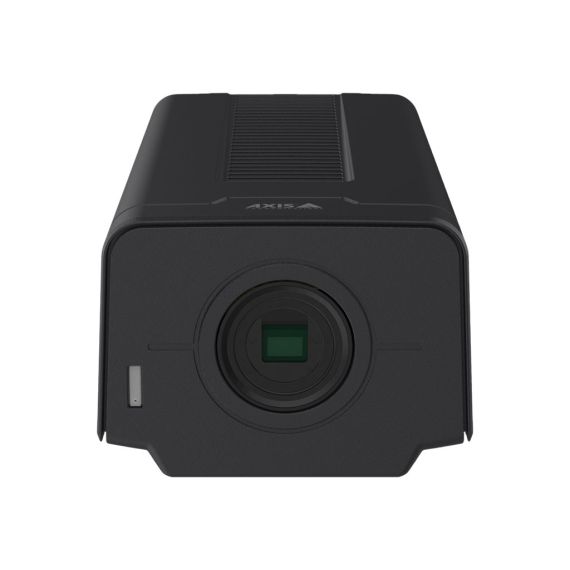

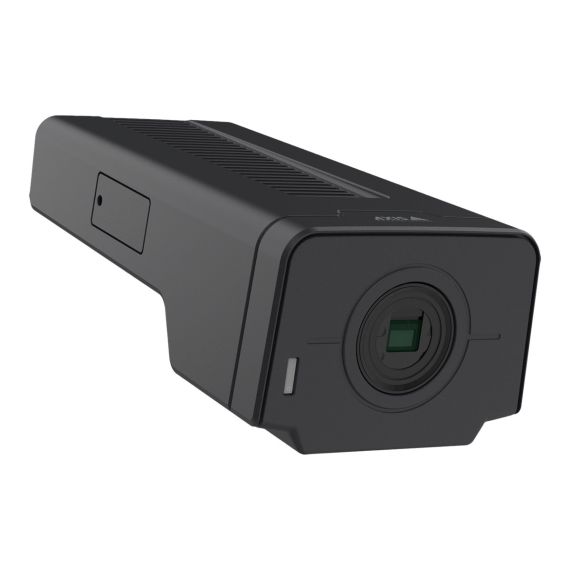

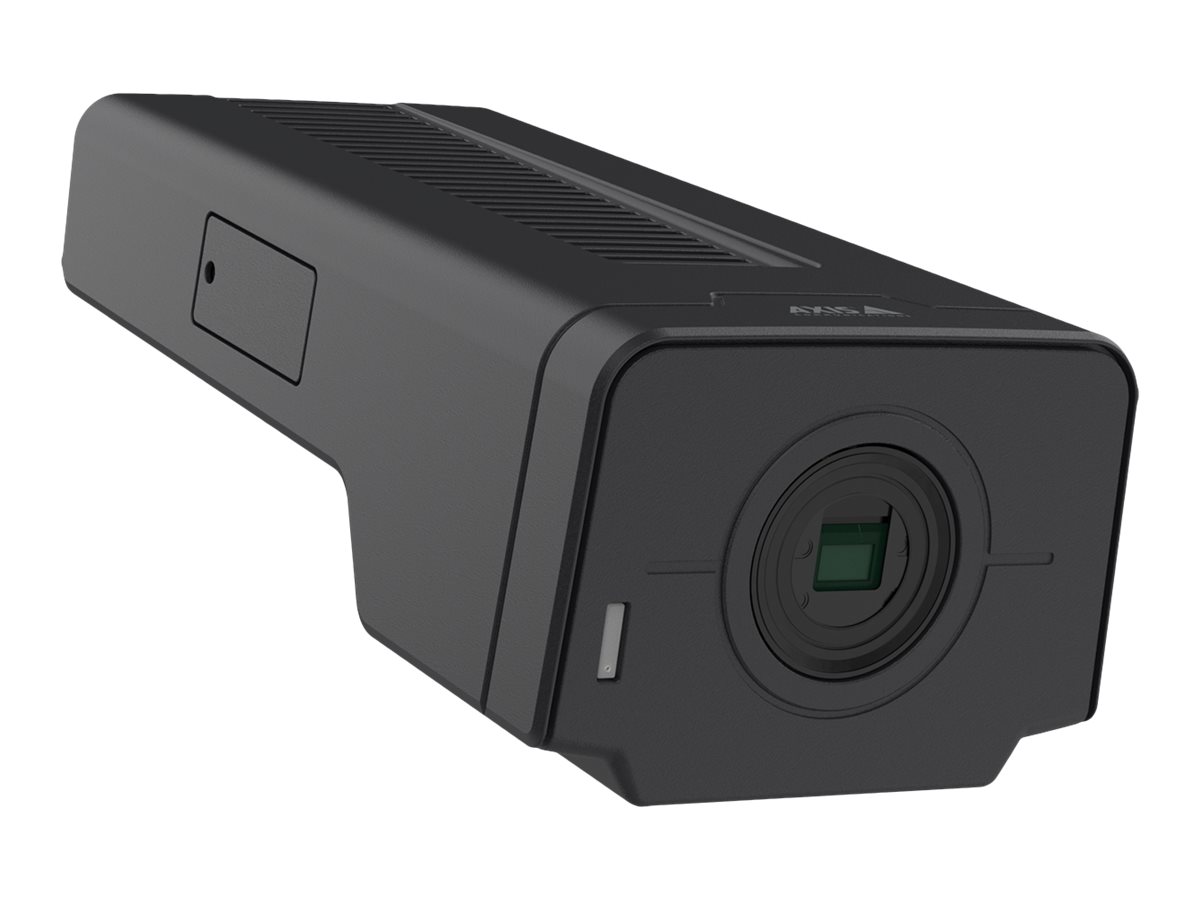

box - colour (Day&Night) - 4 MP - 2688 x 1512 - i-CS-mount - audio - GbE - MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 - DC 10 - 28 V / PoE Plus Class 4 | 02164-031
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to operate in extreme conditions, this camera thrives in temperatures ranging from -20°C to 60°C and humidity levels of 10 - 85% (non-condensing), ensuring reliable performance in almost any environment. - Advanced optical performance
Equipped with a 1/1.8" PS CMOS sensor and supporting a lens mount for i-CS-mount lenses, the camera delivers clear, detailed images with a total of 4,000,000 pixels, making it ideal for critical surveillance needs. - Comprehensive connectivity options
Featuring a wide array of interfaces including RJ-45 for LAN/power, 3.5 mm jacks for audio in/out, and terminal blocks for serial connections, this camera offers versatile connectivity for various audio and network configurations. - Enhanced surveillance capabilities
With infrared LEDs for night vision, day and night functionality, and advanced video analytics such as Audio Detection, Line Crossing Detection, and Vehicle Detection, the camera provides effective monitoring around the clock. - Superior video quality
Supports high-definition video capture at 60 fps with resolutions up to 2688 x 1512, utilizing technologies like Forensic WDR, Lightfinder 2.0, and Zipstream to enhance image clarity and reduce bandwidth and storage requirements.
Special Fetures
- Exceptional images with 1/1.8" sensor
- Support for analytics with deep learning
- Built-in cybersecurity features
- Support for i-CS lens
- Ready to customize for specific needs
Product Specification
| Device Type | Network surveillance camera (no lens) |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Box |
| Camera Mount Type | Tripod mount |
| Connectivity Technology | Wired |
| Width | 15.9 cm |
| Depth | 8 cm |
| Height | 5.8 cm |
| Weight | 400 g |
| Camera | |
| Type | Colour - Day&Night - fixed |
| Digital Video Format | MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 2688 x 1512 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/47500 sec |
| Minimum Illumination | 0.05 lux - colour - F1.5 - 50 IRE <br /> 0.01 lux - B&W - F1.5 - 50 IRE <br /> 0 lux - IR |
| Infrared LEDs | Yes |
| Video Capture | 2688 x 1512 @ 60 fps |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | White balance, saturation control, brightness control, contrast control, image mirror, heater, window wiper, multi-streaming, notification picture to E-mail, digital PTZ function, notification picture to FTP, password protection, distortion correction function, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Defog, Zipstream technology, Pelco Protocol, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, Pixel Counter Support, infrared-cut filter, Line Crossing Detection, Vehicle Detection, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, human detection, Remote Back Focus, signed firmware, secure boot, TPM 2.0 module, Audio Noise Reduction, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, brute force delay protection, ONVIF (Profile M) support |
| Image Sensor | |
| Type | 4 MP PS CMOS 1/1.8" |
| Lens Construction | |
| Type | I-CS-mount |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT |
| Control Interface | RS-485, RS-422 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 <br /> Audio line out - 3.5 mm jack <br /> Audio line-in/microphone - 3.5 mm jack <br /> Serial RS-485/RS-422 - terminal block |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | |
| Included Accessories | Stand, drill hole template, Resistorx L-key |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, IEC 62471, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEC/EN/UL 60950-22, ISO 21207 method B, IEEE 802.3af, IEEE 802.3at, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, CAN ICES-3(B)/NMB3(B), IEC/EN 62262 IK10, IEC/EN 60529 IP67, IK08, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547 |
| Colour | Black |
| Power | |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 4 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
Features - AXIS - 02164-031
More Details
Product Code
CD37044
EAN Code
7331021074668
Manufacturer
AXIS
