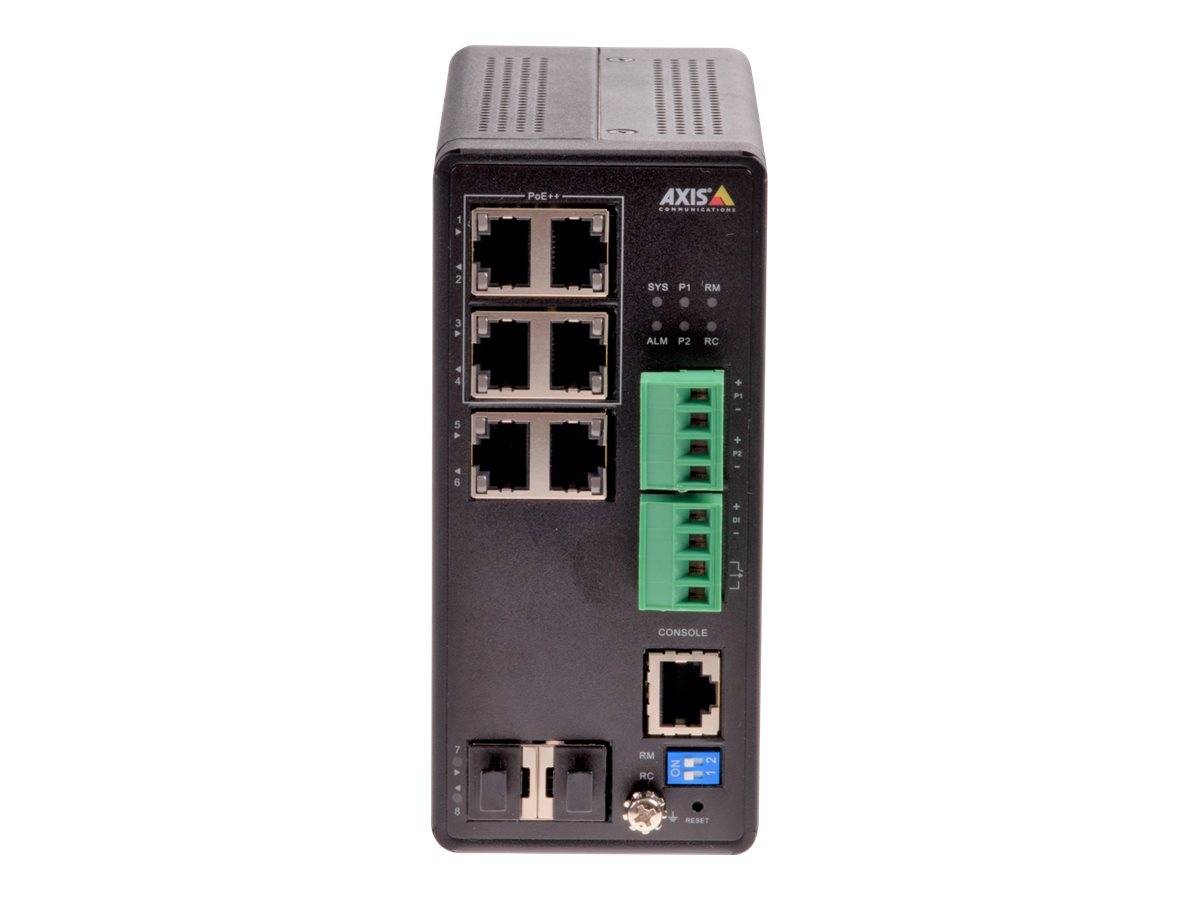

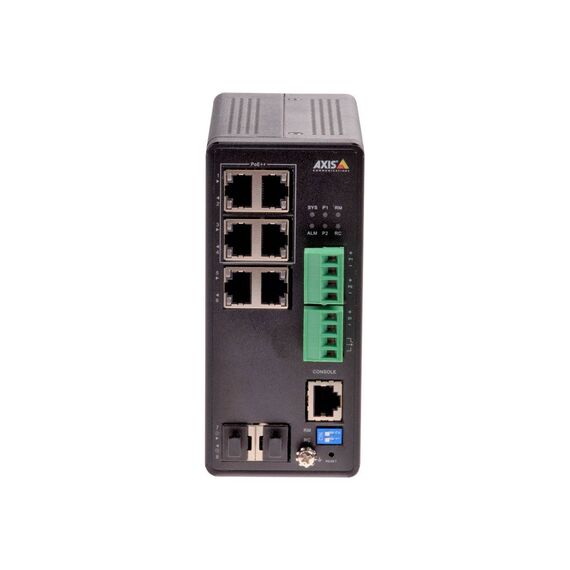

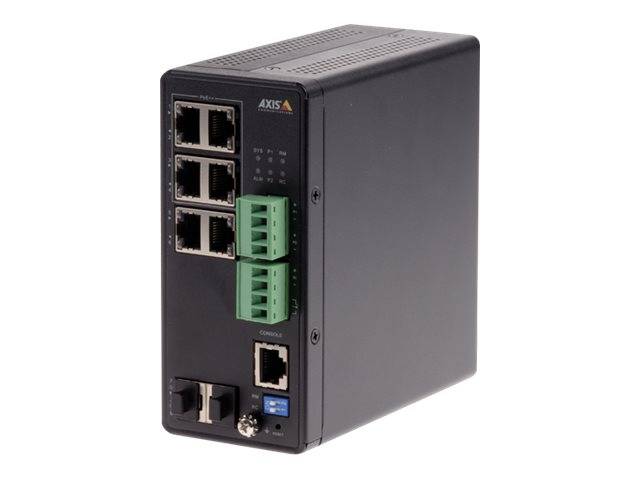

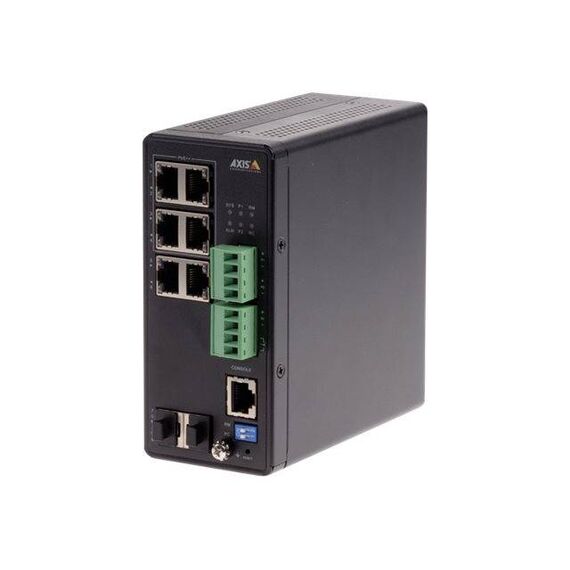

Axis T8504-R / Switch / Managed / 4 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP / desktop, rack-mountable / PoE++ (240 W) / DC power / for AXIS A1610, C1410, D3110, M3215, P1385, Q3538, W400; Camera Station S1216, S1232, S12 | 01633-001
Please sign in so that we can notify you about a reply
Product Features
- For high demanding installations
The ruggedized industrial switch is developed for challenging environments, when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and extremely high and low temperatures, making it perfect for high demanding installations such as alongside highways and tunnels. - Easy to install and configure
AXIS T8504-R Industrial PoE Switch, is easy to install by using standard Axis tools as AXIS IP Utility and AXIS Device Manager. AXIS T8504-R also comes with an individual password, an easy to use setup wizard, and a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as Rapid Ring Protection Protocol, VLAN, QoS, Security, and Spanning tree to further optimize the total solution. - Total overview with unique user interface
AXIS T8504-R uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series .The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.
Special Features
- Compliant with High PoE 60W
- High availability with Rapid Ring
- Dual DC power redundancy
- NEMA TS-2 compliant
Product Specification
| Device Type | Switch - 4 ports - Managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 240 W |
| Performance | Throughput: 11.9 Mpps Switching capacity: 16 Gbps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP |
| Features | DHCP support, ARP support, VLAN support, IPv6 support, IP address filtering, surge protection, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, RRPP, IPv4 support, fanless, LLDP support, LACP, NAC, 802.1x authentication, BPDU, ICMP, NTP, LLDP-MED, Private VLAN, HTTPS encryption |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at, UPnP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 10/100/1000 Base-T RJ-45 PoE 2 x 10/100/1000 Base-T RJ-45 1 x console 2 x SFP |
| Power | Power |
| Voltage Required | DC 54 - 57 V |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Included Accessories | Mounting brackets |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, EN 61000-6-3, FCC Part 15 B Class A, IEC 60068-2-31, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, AS/NZS CISPR 32 Class A, EN 55032 Class A, NEMA TS-2-2003 v02.06, Subsection 2.2.8, NEMA TS-2-2003 v02.06, Subsection 2.2.9 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.2 cm |
| Depth | 13.5 cm |
| Height | 13 cm |
| Weight | 600 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Compatibility Information | Compatibility Information |
| Designed For | AXIS A1610-B, C1410, D3110, M3215-LVE, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q3538-LVE, W400 AXIS Camera Station S1216 Recording Server, S1232, S1296 |
Features - AXIS - 01633-001
More Details
Product Code
B093571
EAN Code
7331021066199
Manufacturer
AXIS
