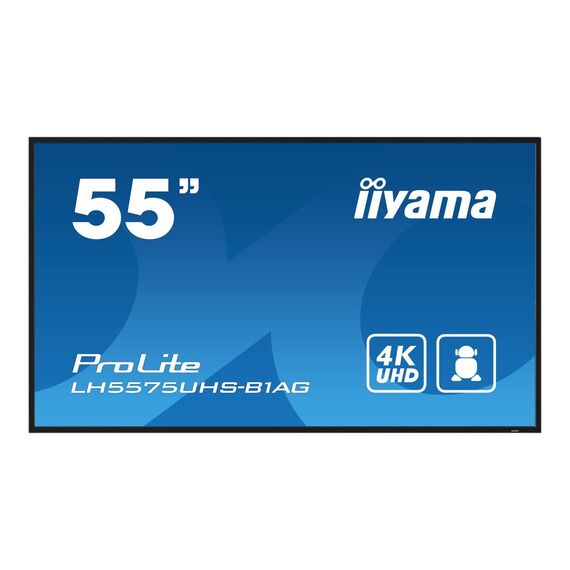

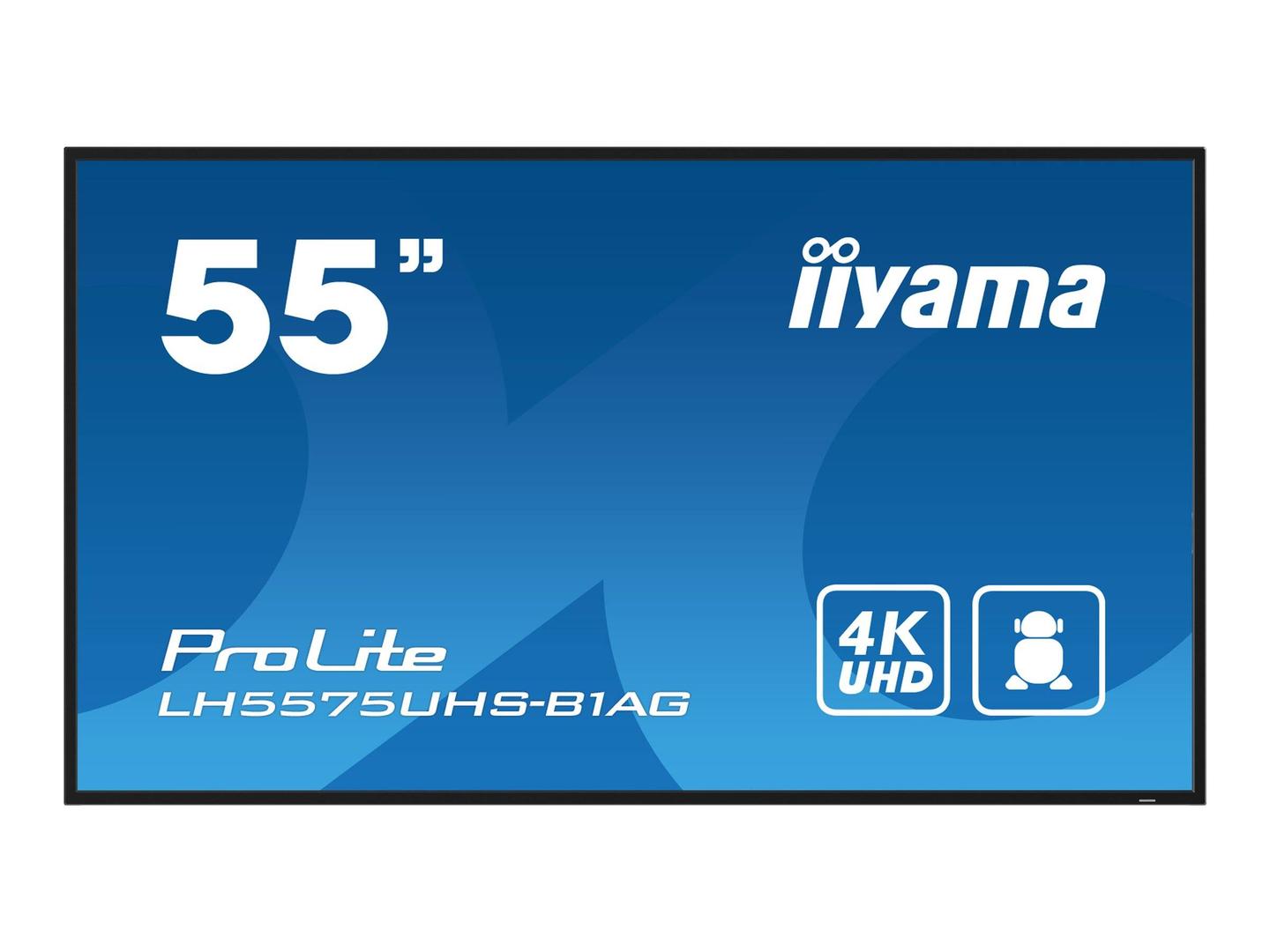

iiyama ProLite LH5575UHS-B1AG / 55" Diagonal Class (54.6" viewable) LED-backlit LCD display / digital signage / with built-in media player, SDM Slot PC / 4K UHD (2160p) 3840 x 2160 / black bezel with matte finish | LH5575UHS-B1AG
Please sign in so that we can notify you about a reply
Product Features
- Effortless connectivity
With a variety of connections including HDMI, DisplayPort, LAN, and USB 2.0, this display offers seamless integration into any setup, ensuring that your content is always presented flawlessly. - Stunning visual experience
Experience clarity and color with a 4K UHD (2160p) resolution, LED backlighting, and support for over 1 billion colors, making every view a vivid one. - Designed for continuous use
Built to operate 24/7 with a fanless design and a metal frame, this display is ideal for digital signage and commercial use, ensuring reliability and durability in any environment. - Interactive media playback
Equipped with a built-in media player, 32 GB storage, and the powerful ARM Cortex-A73 Quad-Core processor, this display offers smooth digital video playback and Internet video playback capabilities. - Wireless and wired network capabilities
Featuring both Wi-Fi and LAN connectivity, along with WOL (Wake on LAN) functionality, this display ensures you can easily share and manage content over the network.
Special Features
- 55-inch 4K UHD (2160p) display for stunning visuals
- 24/7 operation time with a fanless design for continuous use
- Built-in media player and SDM Slot PC for advanced media playback
- Multiple connectivity options including HDMI, DisplayPort, and Wi-Fi
- Energy Class G with a power consumption of 127 W for efficient operation
Product Specification
| Product Type | LED-backlit LCD flat panel display |
| Energy Class | Class G |
| Power Consumption Operational | 127 Watt |
| Power Consumption (On mode) | 127 W |
| Power Consumption SDR (On mode) | 127 kWh/1000h |
| Diagonal Class | 55" |
| Diagonal Size | 54.6" |
| Commercial Use | Yes - digital signage |
| Combined With | Built-in media player, SDM Slot PC |
| Operating System | Android OS 11 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | HDMI, DisplayPort |
| Modes | Portrait mode, landscape mode |
| Picture Enhancements | 72% Colour Gamut NTSC |
| Design | Fanless Design, metal frame, Thin Bezel Design |
| Dimensions | Without stand |
| Width | 123.75 cm |
| Depth | 55 cm |
| Height | 71 cm |
| Weight | 15.2 kg |
| Enclosure Colour | Black bezel with matte finish |
| Display | Display |
| LCD Display Technology | IPS |
| Pixel Pitch | 0.315 mm |
| Colour Support | 1070000000 colours |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 25% haze |
| Image Contrast Ratio | 1200:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178 degrees |
| Viewing Angle (Vertical) | 178 degrees |
| Response Time | 8 ms |
| Display Menu Language | Danish, Czech, Slovenian, English, German, French, Italian, Polish, Finnish, Russian, Spanish, Dutch, Japanese, Chinese |
| Commercial Features | Media player |
| Operation Hours / Days | 24 / 7 |
| Features | Anti-image retention, Daisy Chain, Smart Display Module slot, Signal Failover, Frame Rate Control (FRC), ARC Support through HDMI, 24/7 operation time, iiSignage², 10-bit (8-bit + FRC), MTBF 44000 hours |
| Stands & Mounts | Stands & Mounts |
| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | Media Player |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 4 GB - 32 GB - Mali G52 MP8 |
| Remote Control | Remote Control |
| Type | Remote control |
| Battery Included | Yes |
| Audio System | Audio System |
| Speaker System | 2 speakers |
| Output Power / Total | 20 Watt |
| Speakers | 2 x speaker - 10 Watt |
| Network & Internet Multimedia | Network & Internet Multimedia |
| Functionality | Digital video playback, Internet video playback |
| Connectivity | Wi-Fi, LAN |
| LAN Protocol | Fast Ethernet |
| Wi-Fi Protocol | 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac |
| Connect & Share | EShare |
| Connections | Connections |
| Connector Type | DisplayPort input ¦ 3 x HDMI input ¦ Audio input ¦ RS-232C input ¦ LAN ¦ Infrared input ¦ DisplayPort output ¦ Audio output ¦ RS-232C output ¦ IR loop through ¦ 2 x USB 2.0 ¦ Intel SDM (Smart Display Module) slot |
| Miscellaneous | Miscellaneous |
| Included Accessories | Stickers for screw holes, wire buckles |
| Cables Included | RS-232C cable ¦ HDMI cable |
| Compliant Standards | Plug and Play, DDC-2B, CB, RoHS, WEEE, REACH, TUV Bauart, ERP, EAC, HDCP 2.2 |
| Power | Power |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Features | WOL (Wake on LAN) |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Width (Shipping) | 138.6 cm |
| Depth (Shipping) | 13 cm |
| Height (Shipping) | 84.5 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
