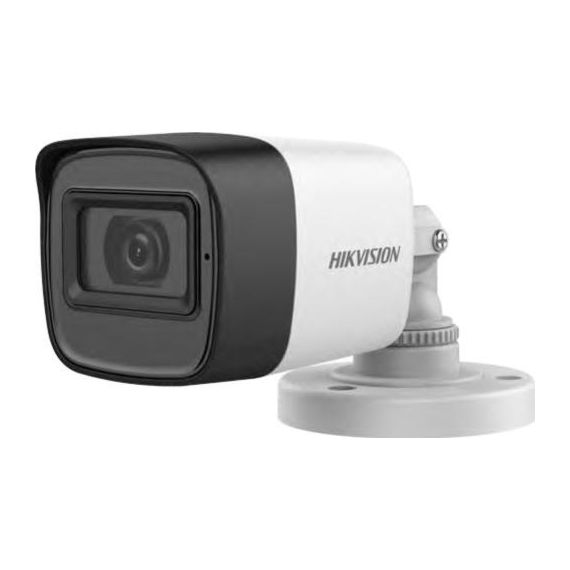

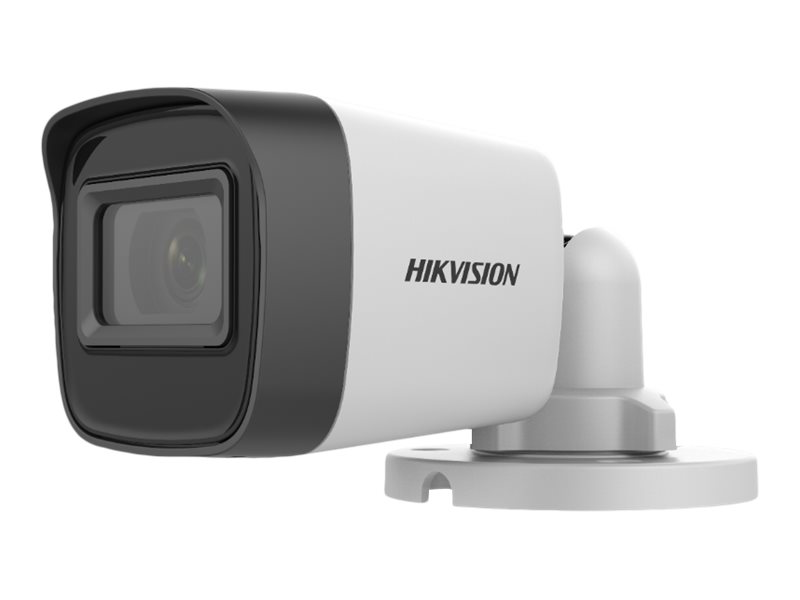

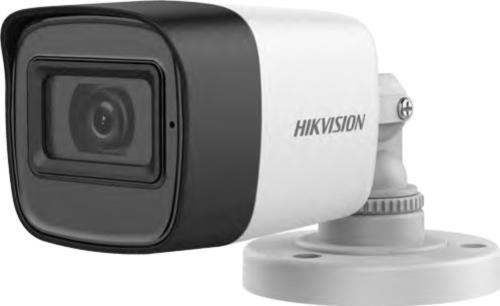

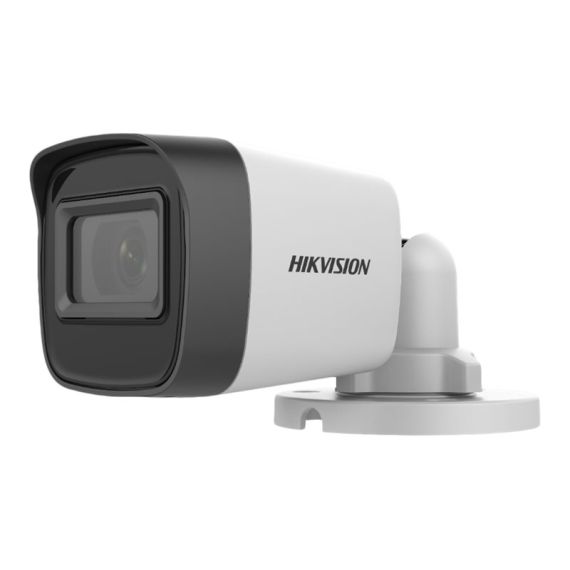

Surveillance camera - dust resistant / water resistant - colour (Day&Night) - 5 MP - 2560 x 1944 - 1080/25p - M12 mount - fixed focal - audio - composite, AHD, CVI, TVI - DC 12 V | DS-2CE16H0T-ITFS(2.8MM)
Please sign in so that we can notify you about a reply
Special Fetures
- 5 MP, 2560 x 1944 resolution
- Digital WDR
- Smart IR, up to 30 m IR distance
- Audio over coaxial cable, built-in mic
- 4-in-1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67 protection
Product Specification
| Device Type | Surveillance camera |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired |
| Width | 6.1 cm |
| Depth | 15.86 cm |
| Height | 5.8 cm |
| Weight | 292 g |
| Camera | |
| Type | Colour - Day&Night - fixed - dust resistant / water resistant |
| Video Format | NTSC, PAL |
| Max Digital Video Resolution | 2560 x 1944 |
| Video Modes | 1080/25p |
| Exposure Range | 1/25 sec - 1/50000 sec |
| Minimum Illumination | 0.01 lux F1.2 - AGC on <br /> 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 2560 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), sharpness control, brightness control, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Smart IR, 2D digital noise reduction (DNR) |
| Image Sensor | |
| Type | 5 MP CMOS |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 85.5 |
| Vertical Field of View (degree) | 63.7 |
| Diagonal Field of View (degree) | 110.7 |
| Panning | |
| Range (degree) | 0 to 355 |
| Tilting | |
| Range (degree) | 0 to 75 |
| Interfaces | |
| Video | Composite video, AHD, CVI, TVI |
| Expansion / Connectivity | |
| Ports | Composite video/AHD/TVI/CVI |
| Miscellaneous | |
| Compliant Standards | IP67 |
| Power | |
| Power Requirements | DC 12 V |
| Power Device | 3.7 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 ?C |
| Max Operating Temperature | 60 ?C |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
Features - Hikvision - DS-2CE16H0T-ITFS(2.8MM)
More Details
Product Code
04:378796
EAN Code
6954273692520
Manufacturer
Hikvision
