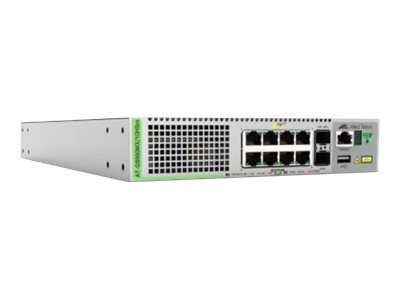

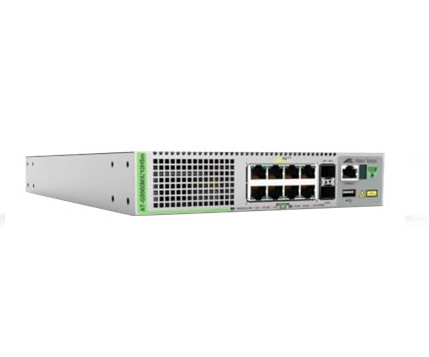

Switch - L3 Lite - Managed - 8 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit SFP+ - rack-mountable - PoE++ (500 W) | AT-GS980MX/10HSM-50
AT-GS980MX/10HSM-50
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust security
Equipped with a comprehensive suite of encryption algorithms including 128-bit AES, 256-bit AES, and Triple DES, the Allied Telesis CentreCOM AT-GS980MX/10HSM ensures secure data transmission across the network, safeguarding sensitive information against unauthorized access. - High performance
With a switching fabric bandwidth of 120 Gbps and a forwarding rate of 89.2 Mpps, this switch is designed to handle high volumes of traffic, ensuring efficient data flow and reducing transmission delays. The low latency rates across various speeds further enhance its performance, making it ideal for demanding network environments. - Advanced management
Support for SNMP, RMON, CLI, and more allows for flexible and comprehensive management of the network. Features like DHCP snooping, ARP inspection, and IP source guard provide additional layers of network security and reliability. - Versatile connectivity
Featuring 8 multi-speed ports with PoE++ support and 2 SFP+ ports, the AT-GS980MX/10HSM offers a range of connectivity options for various devices and applications, from VoIP phones to high-speed storage networks. - Efficient network organization
Support for up to 4094 configurable VLANs, Quality of Service (QoS), and advanced routing protocols enables efficient segmentation and prioritization of network traffic, facilitating optimized bandwidth usage and improved network performance.
Special Fetures
- AlliedWare Plus Enterprise-class operating system
- Compact 1/2 rack-width design enables flexible deployment
- 8x Multi-Gigabit ports (1/2.5/5G) support high-speed Wi-Fi 6 solutions, and network upgrades over legacy cabling
- PoE++ supplies up to 90 Watts per port to connect and power today's high-power devices such as outdoor PTZ cameras with heaters/blowers and enhanced lighting controllers
- PoE power budget of 500 Watts
- Continuous PoE ensures endpoint uptime, even during a switch firmware upgrade
- VCStack up to 4 units locally or over distance to support resilient networking
- Ethernet Protection Switched Ring (EPSRing) supports high-speed resilient ring-based networks
Product Specification
| Device Type | Switch - 10 ports - L3 Lite - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 500 W |
| Performance | Switching fabric bandwidth: 120 Gbps ¦ Forwarding rate: 89.2 Mpps ¦ Latency (10 Gbps): 2.12 µs ¦ Latency (5 Gbps): 3.49 µs ¦ Latency (2.5 Gbps): 5.63 µs ¦ Latency (1 Gbps): 7.89 µs ¦ Latency (100 Mbps): 8.24 µs |
| Capacity | Buffer capacity (MB): 1.5 ¦ Configurable VLANs: 4094 ¦ Priority queues: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Max Units In A Stack | 4 |
| Routing Protocol | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GCM, XTS, DRBG |
| Authentication Method | RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, ARP support, OCSP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Remote Switch Port Analyzer (RSPAN), SNMP trap, DHCP client, Management Information Base (MIB), MAC address lockout, Dynamic VLAN Support (GVRP), Network Access Control (NAC), loop prevention, port isolation, Strict Priority (SP), 802.1x authentication, VoIP support, IP source guard, Ethernet Protection Switched Ring (EPSRing), Logical Link Control, Internet Control Message Protocol (ICMP), Control Plane Prioritisation (CPP), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Digital Diagnostics Monitoring (DDM), MAC address authentication, Network Timing Protocol (NTP), Active Fiber Monitoring, Authentication, Authorization and Accounting (AAA), IGMP querier, VLAN mirroring, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, Weighted Round Robin (WRR), loopback detection, VLAN Tagging, BPDU Guard |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Expansion / Connectivity | |
| Interfaces | 8 x 100/1000/2.5G/5G (PoE++) RJ-45 ¦ 2 x 1/10Gbit LAN SFP+ |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A |
| Localisation | Europe |
| Software / System Requirements | |
| Software Included | Alliedware Plus |
| Dimensions & Weight | |
| Width | 21 cm |
| Depth | 36.2 cm |
| Height | 4.25 cm |
| Weight | 3.5 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 46.1 cm |
| Shipping Depth | 37.1 cm |
| Shipping Height | 15.3 cm |
| Shipping Weight | 5.5 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
