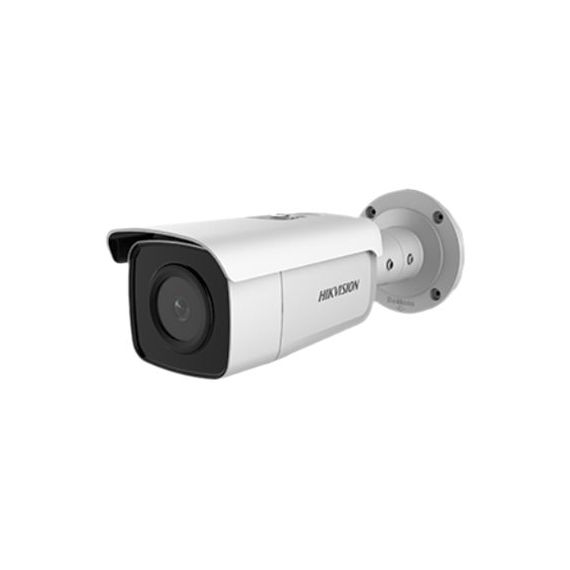

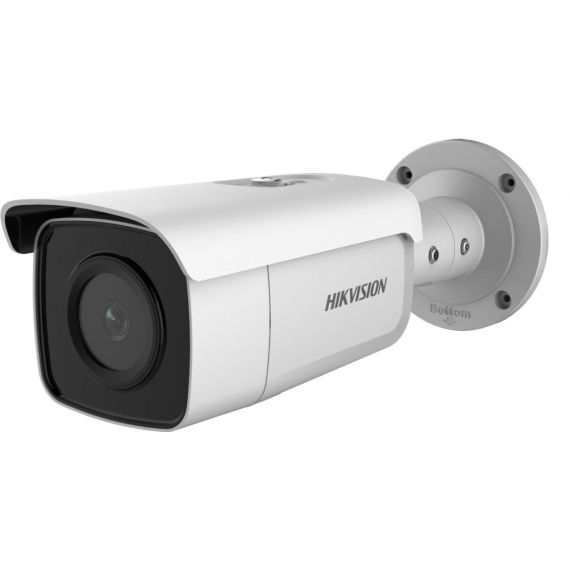

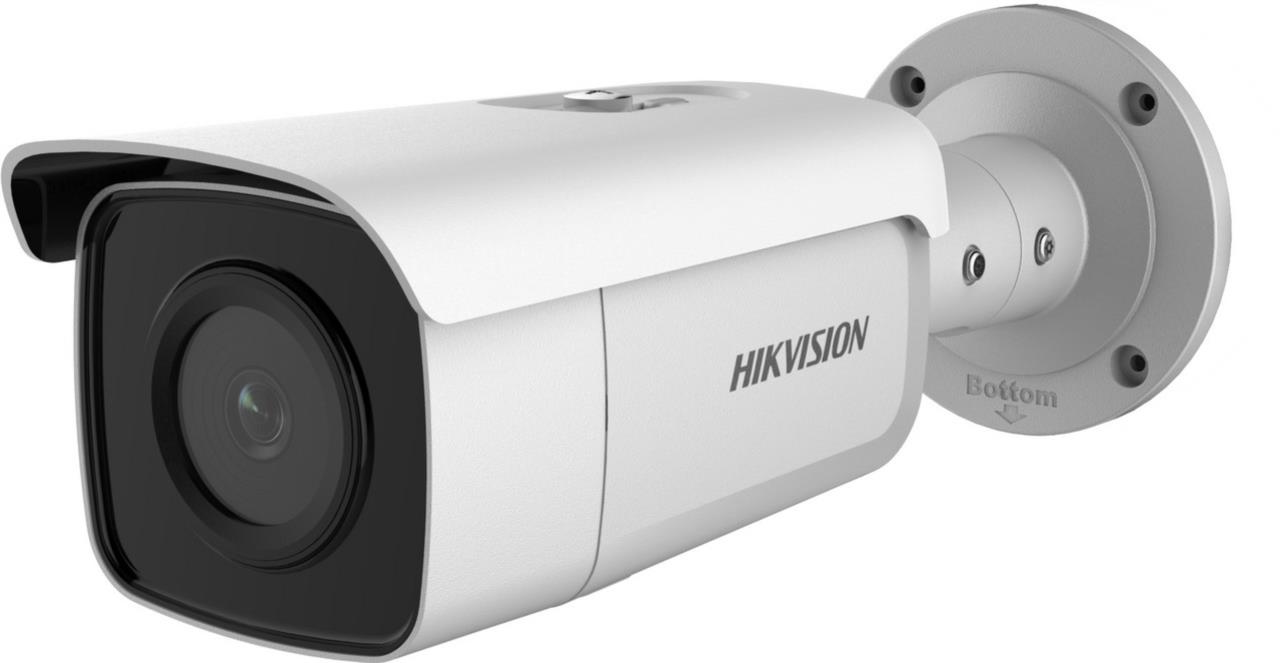

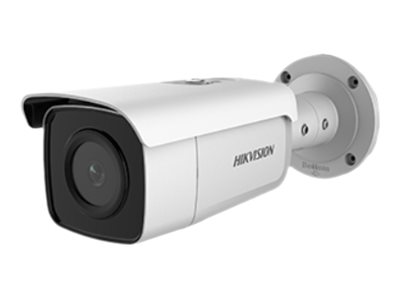

Network surveillance camera - bullet - outdoor - dustproof / weatherproof - colour (Day&Night) - 8 MP - 3840 x 2160 - 4K - M16 mount - fixed focal - LAN 10/100 - MJPEG, H.264, H.265, H.265+, H.264+ - DC 12 V / PoE Class 3 | DS-2CD2T86G2-4I(2.8MM)(C)
DS-2CD2T86G2-4I(2.8MM)(C)
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 10.5 cm |
| Depth | 29 cm |
| Height | 10.5 cm |
| Weight | 1.27 kg |
| Camera | |
| Type | Colour - Day&Night - fixed - outdoor - dustproof / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0 lux - IR <br /> 0.003 lux F1.6 - AGC on |
| Infrared LEDs | Yes |
| Infrared Distance | 80 m |
| Digital Video Capture Resolution | 1280 x 720, 352 x 240, 352 x 288, 1920 x 1080, 640 x 360, 2560 x 1440, 3072 x 1728, 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, progressive scanning, saturation control, brightness control, contrast control, Wide Dynamic Range (WDR), face detection, infrared cut filter, Highlight Compensation (HLC), Scene Change Detection, tamper-detection, Region of Interest (ROI), intrusion detection, object removal detection, Line Crossing Detection, unattended baggage detection, 3D digital noise reduction (DNR) |
| Image Sensor | |
| Type | 8 MP PS CMOS 1/1.8" |
| Lens Construction | |
| Type | M16 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 111 |
| Vertical Field of View (degree) | 59 |
| Diagonal Field of View (degree) | 131 |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv6, Bonjour, RTCP, PPPoE, SMB, IGMP, QOS, CIFS, NFS |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IP67, IEEE 802.3af |
| Power | |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 12 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 38.6 cm |
| Shipping Depth | 15.6 cm |
| Shipping Height | 15.5 cm |
| Shipping Weight | 1.51 kg |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
