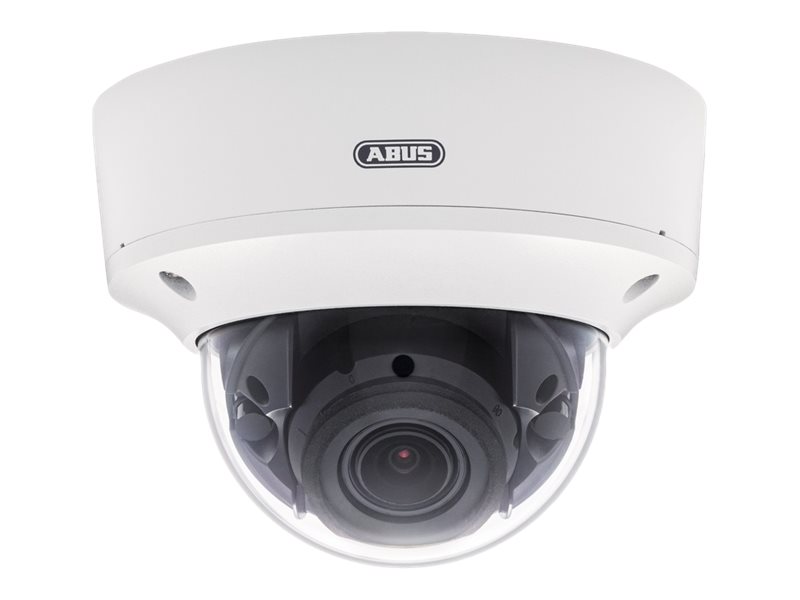

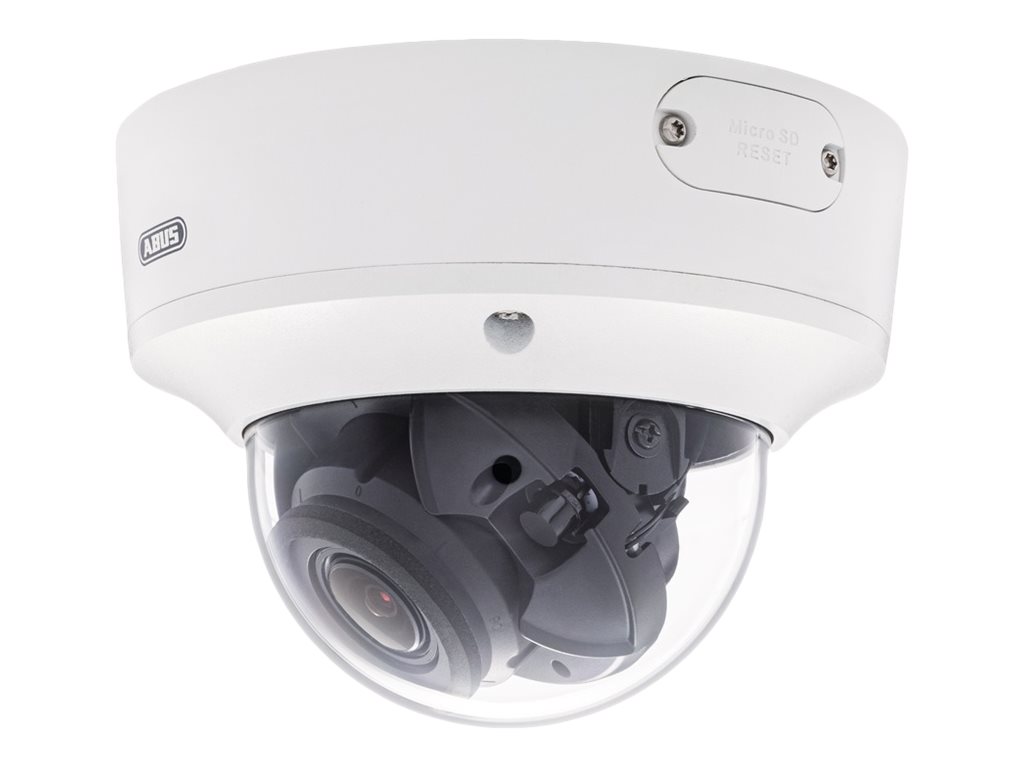

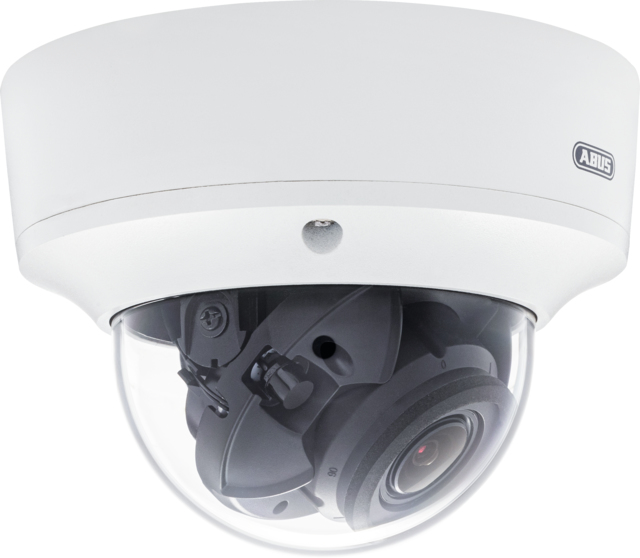

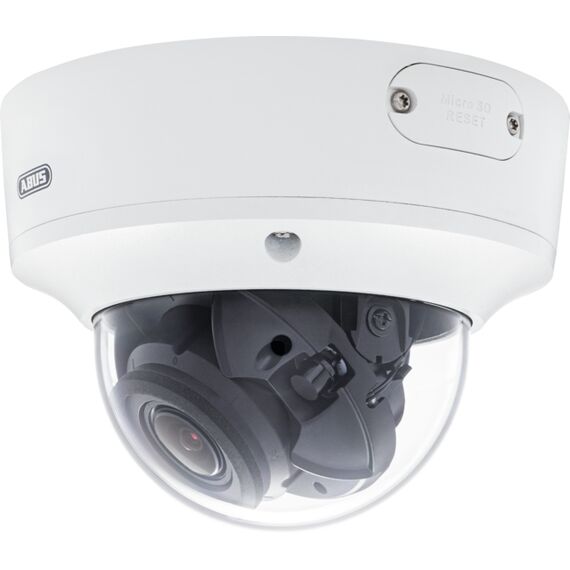

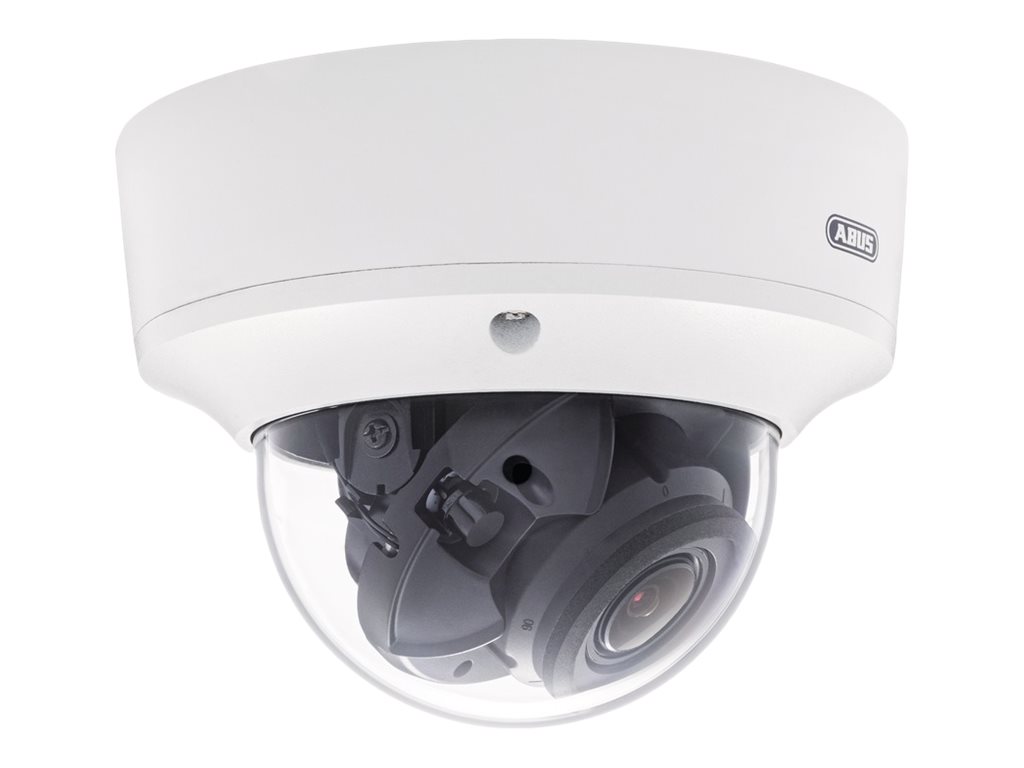

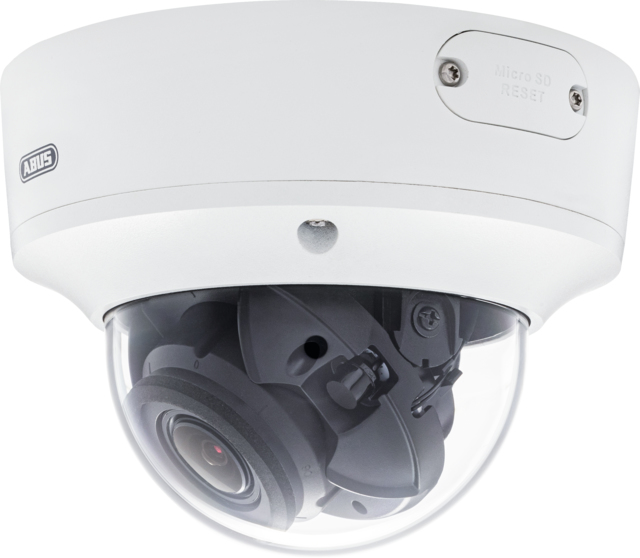

ABUS IPCB74521 - Network surveillance camera - dome - outdoor, indoor - vandal / weatherproof - colour (Day&Night) - 4 MP - 2688 x 1520 - motorized - audio - Ethernet 10GBase-T - MJPEG, H.264, H.265 - DC 12 V / PoE | IPCB74521
Please sign in so that we can notify you about a reply
Product Features
- Strong outside - in any light, against manipulation
With 4 MPx resolution, weatherproof IP67 housing, IK10 vandal protection and powerful IR LEDs, the IP dome is the surveillance camera for 24/7 outdoor surveillance day and night. WDR dynamics and ultra low-light ensure clear images in any light. - Excellent, flexible surveillance in 4 MPx
The motorized zoom lens with 2.8-12 mm focal length covers a range of 30-108° (4.2x optical). Focal length and focus are conveniently and precisely adjusted via the web interface. - Automatic object recognition
The security camera reliably distinguishes relevant movements (people, vehicles) from disturbances (branches, light, etc.) and thus minimizes unnecessary motion alarms. - Recording and compatibility
Recordings are made on an ABUS recorder, on video management software or local microSD card. - Convenient start-up
Suitable for mounting on ceiling or wall, also with protected wiring and for discreet ceiling installation (with installation box/holder).
Special Fetures
- 4 MPx resolution (2,688 x 1,520@25 fps) for crisp surveillance images
- 2.8-12 mm motorized zoom lens (4x optical zoom, 30°-108° viewing angle) for high flexibility in surveillance and choice of installation location
- Ultra low-light performance for excellent image results in poorly lit environments
- 120 dB WDR function to compensate for image contrasts, strong backlighting
- Object recognition (human and vehicle) - motion detection with fully automatic differentiation between people/vehicles and disturbances (branches, light, etc.)
- Very robust, vandalism- and weather-proof housing (IK10 and IP67), in a discreet look with black covered components in the dome
- IR LEDs for very clear images in the dark
- Supports H.264, H.265, MJPEG
- MicroSD card slot for internal data storage
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 15.4 cm |
| Depth | 15.4 cm |
| Height | 11.2 cm |
| Weight | 900 g |
| Localisation | Danish, English, German, French, Italian |
| Camera | |
| Type | Colour - Day&Night - fixed - outdoor, indoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.003 lux - colour ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 40 m |
| Frame Rate (max) | 25 frames per second |
| Features | Backlight Compensation (BLC), e-mail alerts, Wide Dynamic Range (WDR), Highlight Compensation (HLC), Scene Change Detection, Region of Interest (ROI), intrusion detection, Group of Pictures (GOP), Vehicle Detection, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, human detection, tripwire detection, 3 video streams, metal housing, TLS encryption protocol, 4 privacy zones, object classification, 8 motion detection zones, vertical display, NAS alerts, FTP alerts |
| Image Sensor | |
| Type | 4 MP PS CMOS 1/2.7" |
| Effective Pixels | 2688 x 1520 |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 4.2 x |
| Focal Length | 2.8 mm - 12 mm |
| Horizontal Field of View (degree) | 30 - 108 |
| Vertical Field of View (degree) | 17 - 56 |
| Interfaces | |
| Network Interface | Ethernet 10GBase-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP, RTSP, HTTPS, UPnP, IPv4, IPv6, Bonjour, PPPoE, IGMP, QOS, P2P |
| Control Interface | RJ-45 |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line out ¦ Audio line in |
| Supported Memory Cards | microSD Card |
| Miscellaneous | |
| Compliant Standards | IP67, IK10, TLS v1.2, TLS v1.1, IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | 13 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.5 kg |
| Environmental Parameters | |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% |
Features - Abus - IPCB74521
More Details
Product Code
03:196749
EAN Code
4043158193596
Manufacturer
Abus
