AC 200/208/220/230/240 V - 2200 Watt - 2200 VA - 1-phase - RS-232, USB - output connectors: 10 - PFC - 3U | 9PX2200IRT3U
Please sign in so that we can notify you about a reply
Product Features

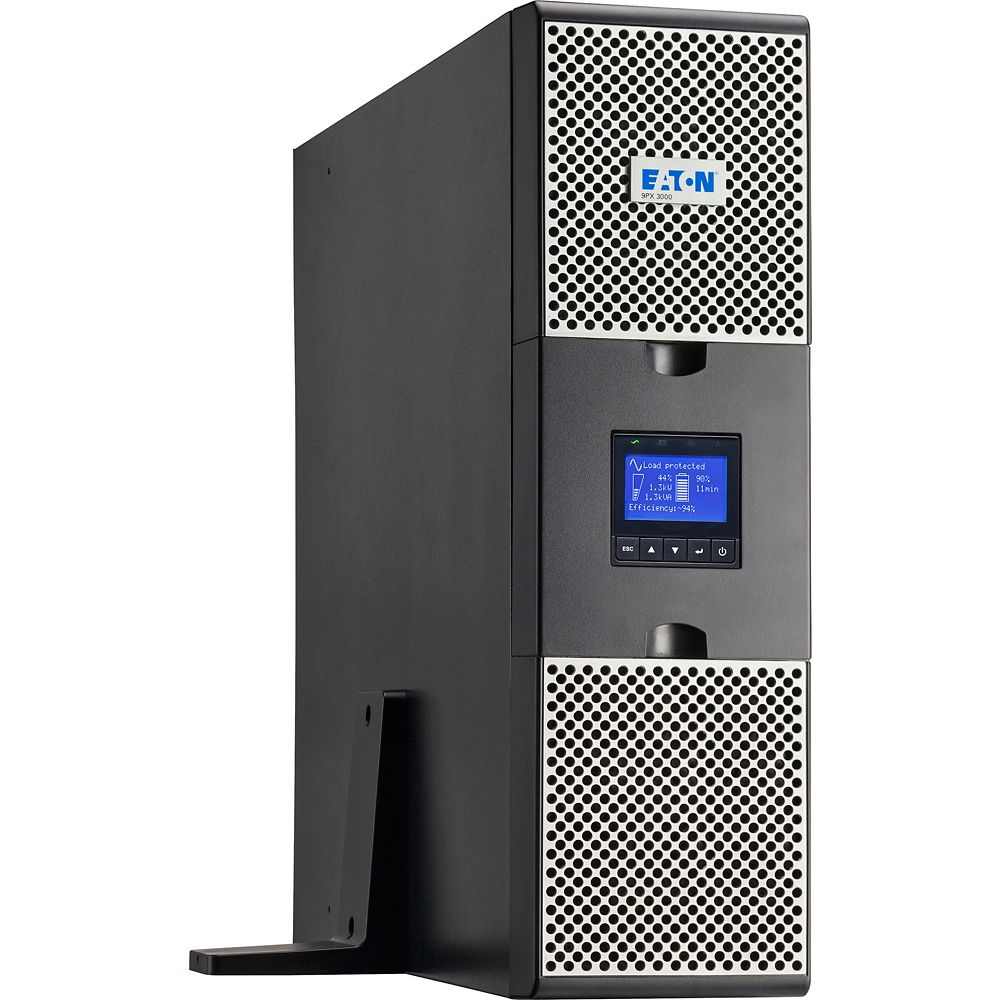

- Graphical LCD display
It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing. - Availability and flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems. - Paralleling functionality
Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology! - Load segment control
It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.
Special Fetures
- On-line double conversion topology, with automatic by-pass and PFC system
- Energy Star UPS (up to 93.5% efficiency in Online mode)
- More real power in watts, Unity power factor (VA=W)

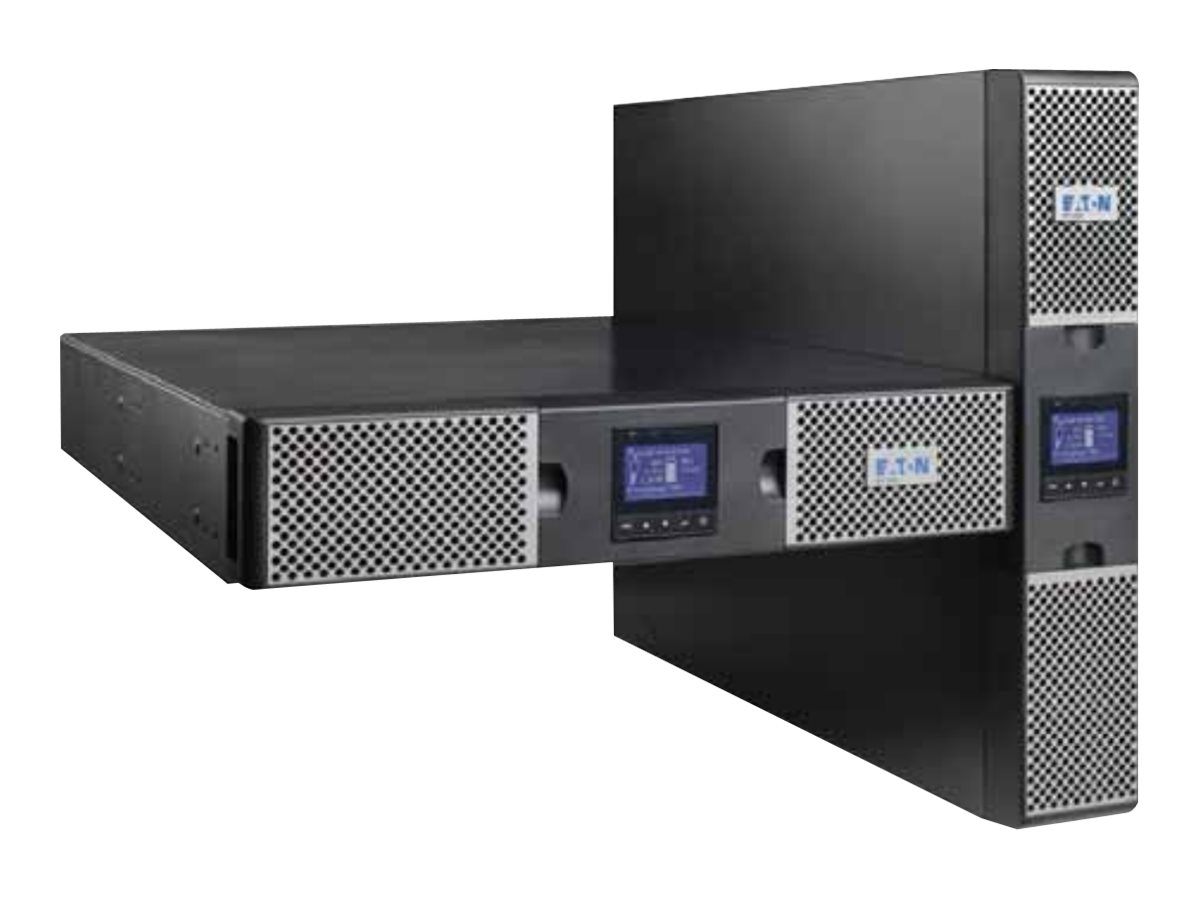

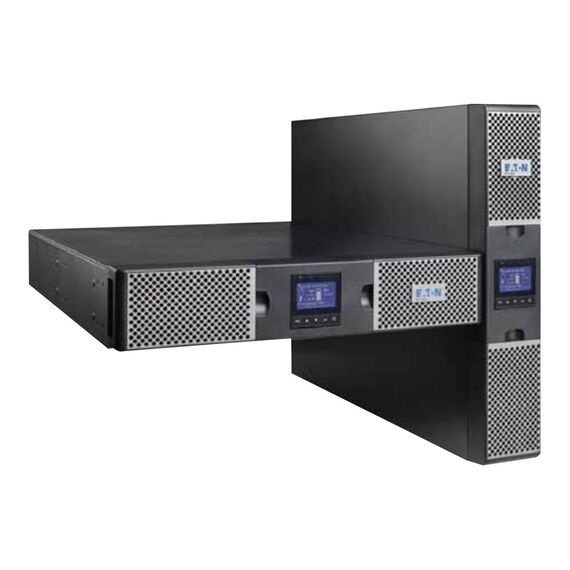

- Flexible RT form factor : convertible Tower / 3U Rack short depth (compatible with 600 mm racks)
- Easy to operate : next-generation multilingual LCD display
- Manageable outlets groups (2 groups) with Energy metering
- 1 USB port + 1 Serial + 3 dry contacts (optocouplers on DB9)
- 1 Slot for optional com card (Network Management card, ModBus/Jbus or Contacts/Serial cards)
- Monitoring & shutdown software for VMware, Hyper-V, Citrix Xen, Windows, Linux, SUN Solaris, HP-UX, IBM AIX
- Advance Battery Management (ABM) technology to increase battery lifetime
- Hot-swappable batteries from front panel
- Long backup time with up to 4 optional EBM cabinets, with automatic detection
- All necessary hardware for rack & tower mounting included
- Connectors for Remote power off, remote OFF/ON function, output relay
Product Specification
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 3U |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 176 - 276 V |
| Input Wiring | 1-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 |

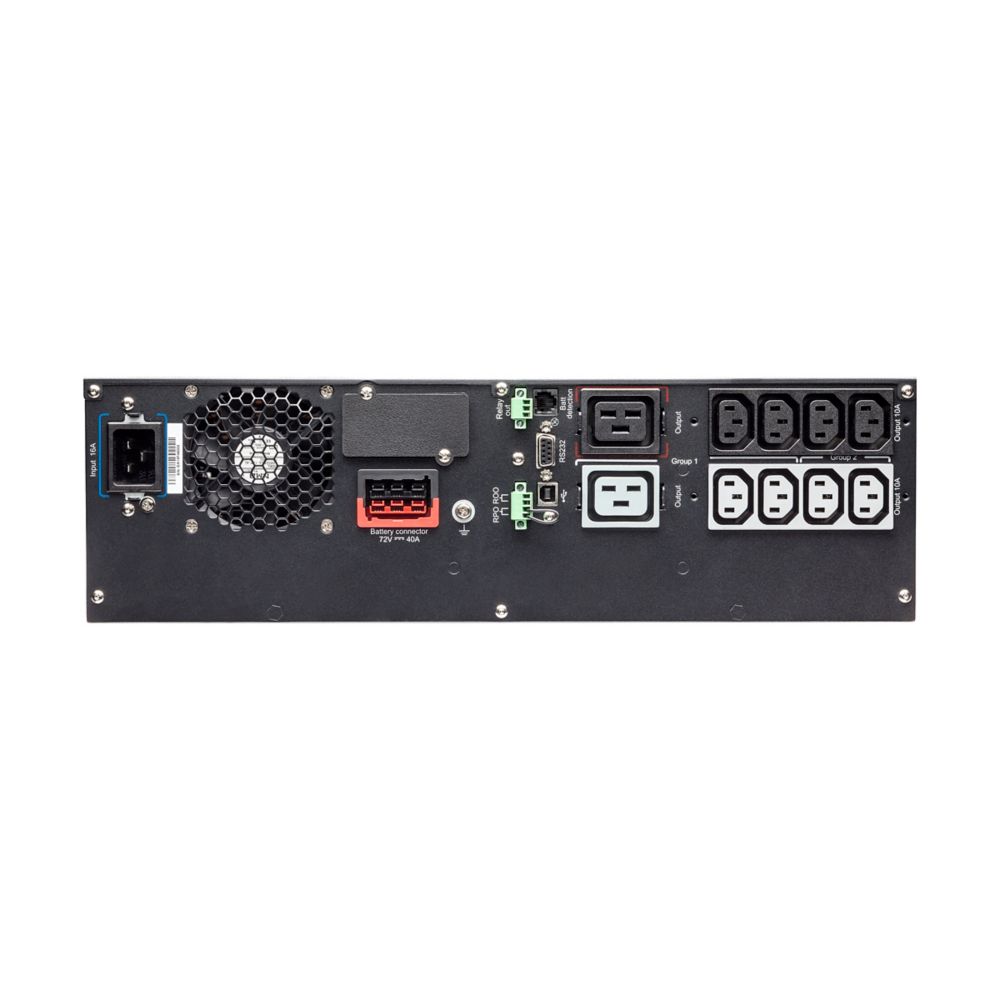

| Power Output Connectors Details | 8 x power IEC 60320 C13 <br /> 2 x power IEC 60320 C19 16A |
| Output Voltage | AC 200/208/220/230/240 V |
| Power Capacity | 2200 Watt / 2200 VA |
| Efficiency | 98% |
| Battery | |
| Run Time (Up To) | 44 min at 300 Watts <br /> 23 min at 500 Watts <br /> 15 min at 800 Watts <br /> 9 min at 1200 Watts <br /> 5 min at 1800 Watts |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) <br /> 1 x management (RS-232) |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | |
| Features | LCD display, internal bypass |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
| Software / System Requirements | |
| Software Included | Intelligent Power Software Suite |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years <br /> Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 40 dB |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 48.5 cm |
| Height | 13 cm |
| Weight | 24.5 kg |
Features - Eaton Power Quality - 9PX2200IRT3U
More Details
Product Code
03:193949
EAN Code
0743172081377
Manufacturer
Eaton Power Quality
