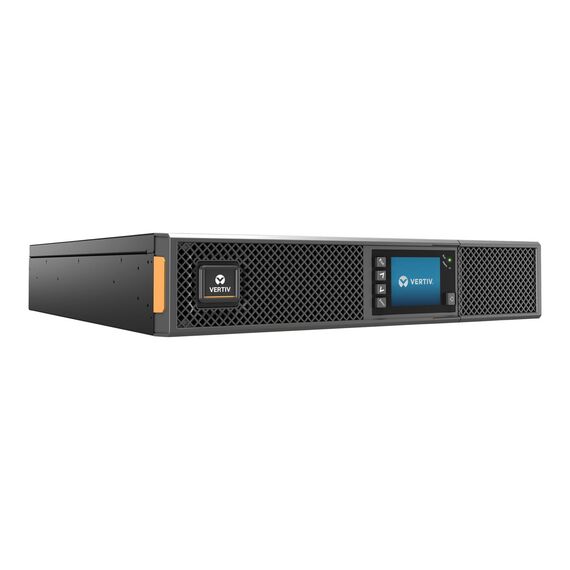

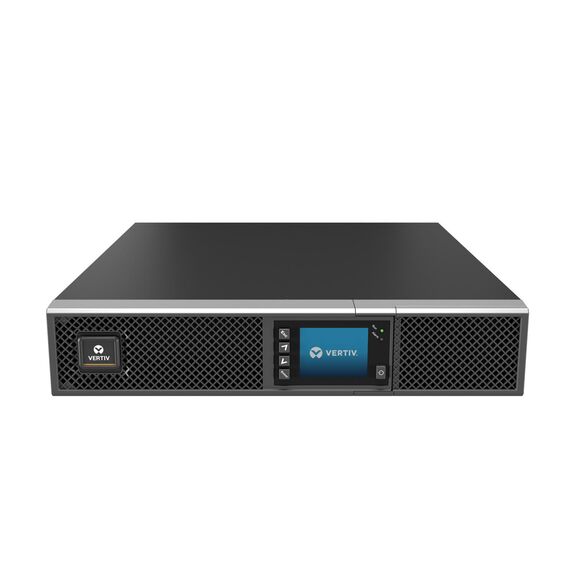

AC 230 V - 750 Watt - 750 VA - 9 Ah - RS-232, RS-485, USB - output connectors: 8 - 2U - with Rail Kit | GXT5-1000IRT2UXL
GXT5-1000IRT2UXL
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Unity power factor
More active power available so more loads can be connected versus lower power factor systems thus saving space and cost. - High efficiency in on-line mode
Higher efficiency means optimized energy management and lower heat dissipation, thus providing energy and cost savings. - Colored graphic LCD display with gravity orientation
User-friendly interface to know UPS status and configuration. - Rack/tower design with short depth
A more compact UPS that will use less floor space and leave more space available for data equipment in a rack. - Battery cabinets with auto-detection
Be confident your UPS is set up correctly to report available run time when used with external battery cabinets. - Intelligent Battery Management
Algorithm to estimate battery health status and replacement date prediction.
Special Fetures
- Top-level on-line double conversion UPS for mission-critical applications
- Unity output power factor
- LCD multi-language color display (gravity sensing)
- On-line (VFI) mode efficiency
- Active ECO mode efficiency
- Controllable and programmable output sockets
- External battery cabinets with auto-detection
- Intelligent Communication ready
Product Specification
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Bundled with | Rail Kit |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 230 V |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Output Voltage | AC 200/208/220/230/240 V |
| Power Capacity | 750 Watt / 750 VA |
| Output Waveform | Sinewave |
| Circuit Protection | Circuit breaker |
| Efficiency | 98% Eco mode, 93% online mode |
| Power Factor (PF) | 1.0 |
| Battery | |
| Quantity | 3 |
| Technology | Lead Acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 8.5 min at full load ¦ 21.5 min at half load |
| Features | Spill-proof, valve-regulated |
| Networking | |
| Remote Management Interface | RS-232, RS-485, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) ¦ 1 x RS-232 ¦ 1 x management (RS-485) ¦ 1 x - terminal block |
| Expansion Slots | 1 (total) / 1 (free) x Liebert IntelliSlot |
| Miscellaneous | |
| Features | LCD display, Eco-Mode, Intelligent Battery Management, double conversion, 2 programmable sockets |
| Compliant Standards | ANSI C62.41, GS, IEC 61000-4-5, CSA C22.2 No. 107.1, EN 62040-2:2006, EN 61000-3-3:2013, IEC 62040-1:2008, ISTA 1A, UL 1778 5th edition |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 43 cm |
| Depth | 40 cm |
| Height | 8.5 cm |
| Weight | 16.5 g |
