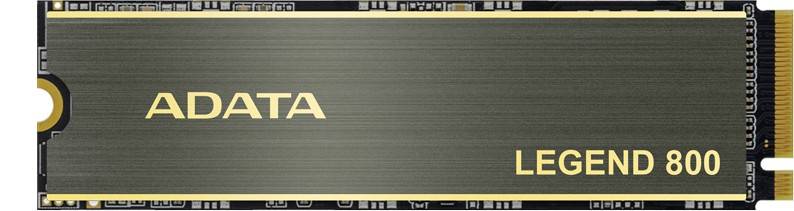

ADATA Legend 800 / SSD / 1000 GB / internal / M.2 2280 / PCIe 4.0 x4 (NVMe) / 256-bit AES / integrated heatsink | ALEG-800-1000GCS
Product Features
- Evolve your creativity
LEGEND 800 supports PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers excellent read and write performance, and support for advanced platforms. Whether on a desktop or notebook PC, progress you creativity. - Unlock inspiration
LEGEND 800 delivers sequential read and write speed of 3.500/2.800MB per second, which is faster. It is backward-compatible with PCIe 3.0 and made for creating, whether 3D graphic of video! - More than ample 2000GB capacity
With 3D-stacked flash memory, the LEGEND 800 provides you with capacities of up to 2000GB. What's more, it comes with various protection and correction technologies, and high TBW (Total Bytes Written) for durability and reliability. - Imagine the possibilities
Creativity can't wait! The LEGEND 800 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity. - Keeping things cool
The LEGEND 800's heat sink design with bronzing trimming and sandblasted surfaces looks cool and keep things cool. Through an advanced surface treatment, it dissipates heat incredibly effectively reducing temperature. - Create without worry
With LDPC (Low Density Parity Check Code), the LEGEND 800 ensures accurate data transmissions.
Special Features
- PCIe Gen4 x4
- Max. read/write speed: 3.500/2.800MB/s
- Capacity: up to 2000GB
- Supports NVMe 1.4
- Supports advanced platforms
Product Specification
Device Type | Solid state drive - internal |
Capacity | 1000 GB |
Encryption Algorithm | 256-bit AES |
Integrated Heatsink | Yes |
Form Factor | M.2 2280 |
Interface | PCIe 4.0 x4 (NVMe) |
Features | 3D NAND Technology, Advanced LDPC ECC Technology, HMB (Host Memory Buffer) supported, NVMe 1.4 |
Width | 22 mm |
Depth | 80 mm |
Height | 2.65 mm |
Weight | 7.3 g |
Performance | Performance |
SSD Endurance | 600 TB |
Internal Data Rate | 3500 MBps (read) / 2800 MBps (write) |
Reliability | Reliability |
MTBF | 1,500,000 hours |
Expansion & Connectivity | Expansion & Connectivity |
Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
Compatible Bay | M.2 2280 |
Software & System Requirements | Software & System Requirements |
Software Included | SSD Toolbox |
Miscellaneous | Miscellaneous |
Compliant Standards | BSMI, FCC, RoHS, KC, EAC, RCM, Morocco, UKCA |
Package Details | Box |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 85 °C |
Shock Tolerance (operating) | 1500 g @ 0.5 ms |
