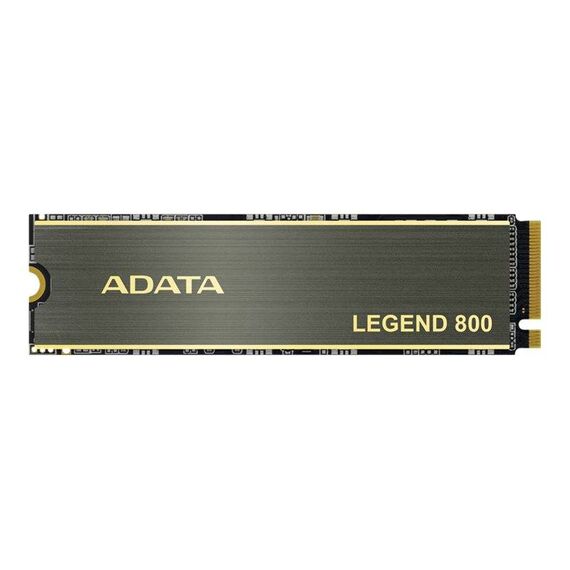

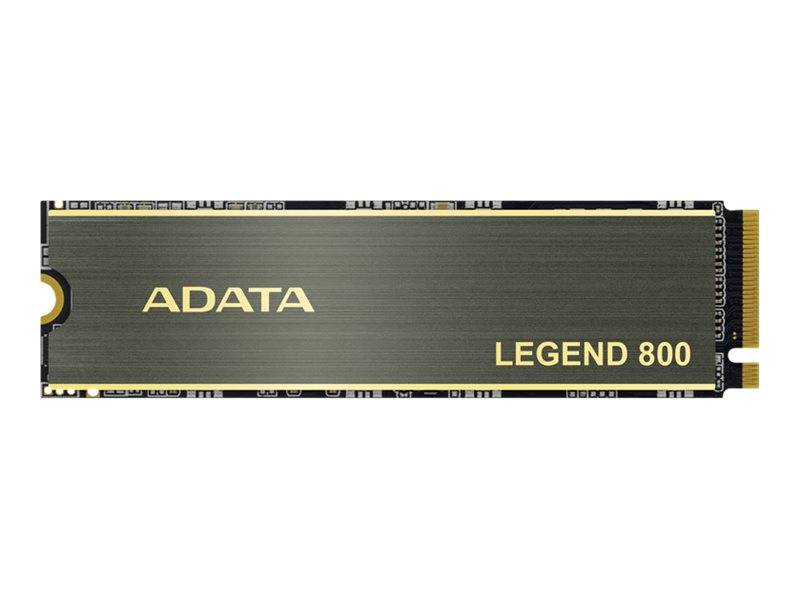

ADATA Legend 800 / SSD / 500 GB / internal / M.2 2280 / PCIe 4.0 x4 / 256-bit AES / integrated heatsink | ALEG-800-500GCS
Please sign in so that we can notify you about a reply
Product Features
- Evolve your creativity
LEGEND 800 supports PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers excellent read and write performance, and support for powerful platforms. Whether on a desktop or notebook PC, progress you creativity. - Unlock inspiration
LEGEND 800 delivers sequential read and write speed of 3.500/2.800MB per second, which is faster. It is backward compatible with PCIe 3.0 and made for creating, whether 3D graphic of video! - Ample capacity
With 3D-stacked flash memory, the LEGEND 800 provides you with a high capacity. What's more, it comes with various protection and correction technologies, and high TBW (Total Bytes Written) for durability and reliability. - Imagine the possibilities
Creativity can't wait! The LEGEND 800 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity. - Keeping things cool
The LEGEND 800's black heat sink design with bronzing trimming and sandblasted surfaces looks cool and keeps things cool. Through a cutting-edge surface treatment, it dissipates heat incredibly effectively reducing temperature. - Create without worry
With LDPC (Low Density Parity Check Code), the LEGEND 800 ensures accurate data transmissions.
Special Features
- PCIe Gen4 x4
- Max. read/write speed: 3.500/2.800MB/s
- High capacity
- Supports NVMe 1.4
- Supports advanced platforms
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 500 GB |
| Encryption Algorithm | 256-bit AES |
| Integrated Heatsink | Yes |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 |
| Features | 3D NAND Technology, Low-Density Parity Check, SLC cache, Advanced LDPC ECC Technology, HMB (Host Memory Buffer) supported, NVMe 1.4 |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.65 mm |
| Weight | 7.3 g |
| Performance | Performance |
| SSD Endurance | 1200 TB |
| Internal Data Rate | 3500 MBps (read) / 2800 MBps (write) |
| Reliability | Reliability |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x PCI Express 4.0 x4 - M.2 Card |
| Compatible Bay | M.2 2280 |
| Software & System Requirements | Software & System Requirements |
| Software Included | SSD Toolbox |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, RoHS, KC, EAC, RCM, Morocco, UKCA |
| Package Details | Box |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
Features - A-Data - ALEG-800-500GCS
Form Factor
- 2.5"
- Internal
Capacity
500GB
Interface
- M.2
More Details
Product Code
04:422550
EAN Code
4711085940216
Manufacturer
A-Data
