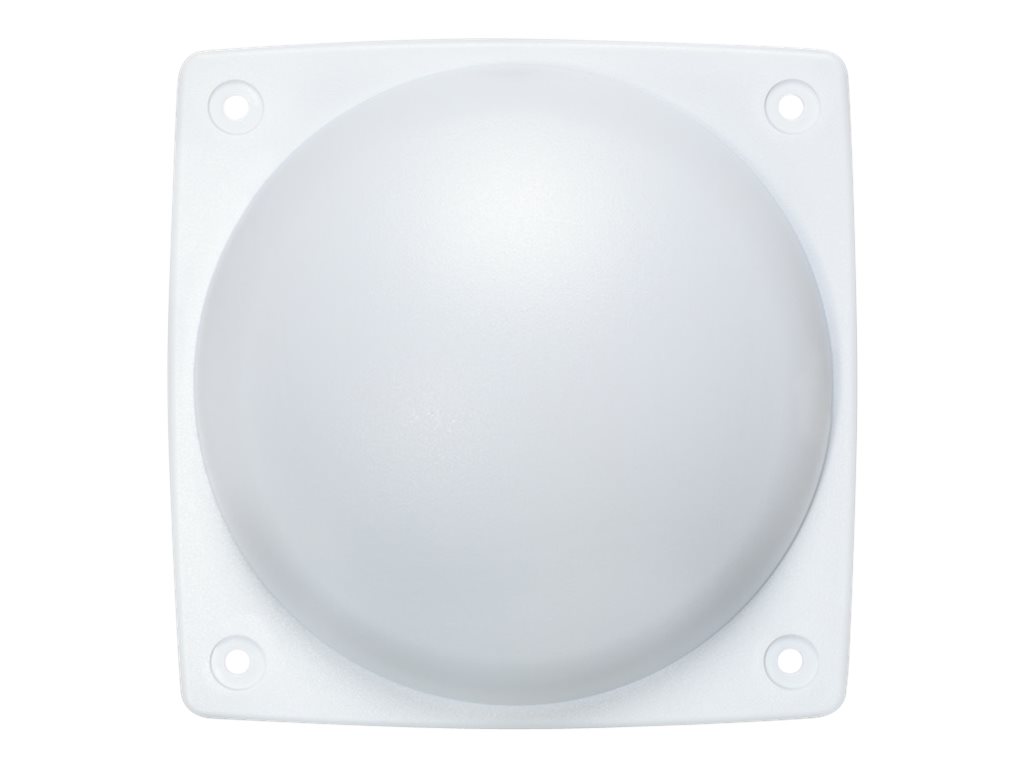

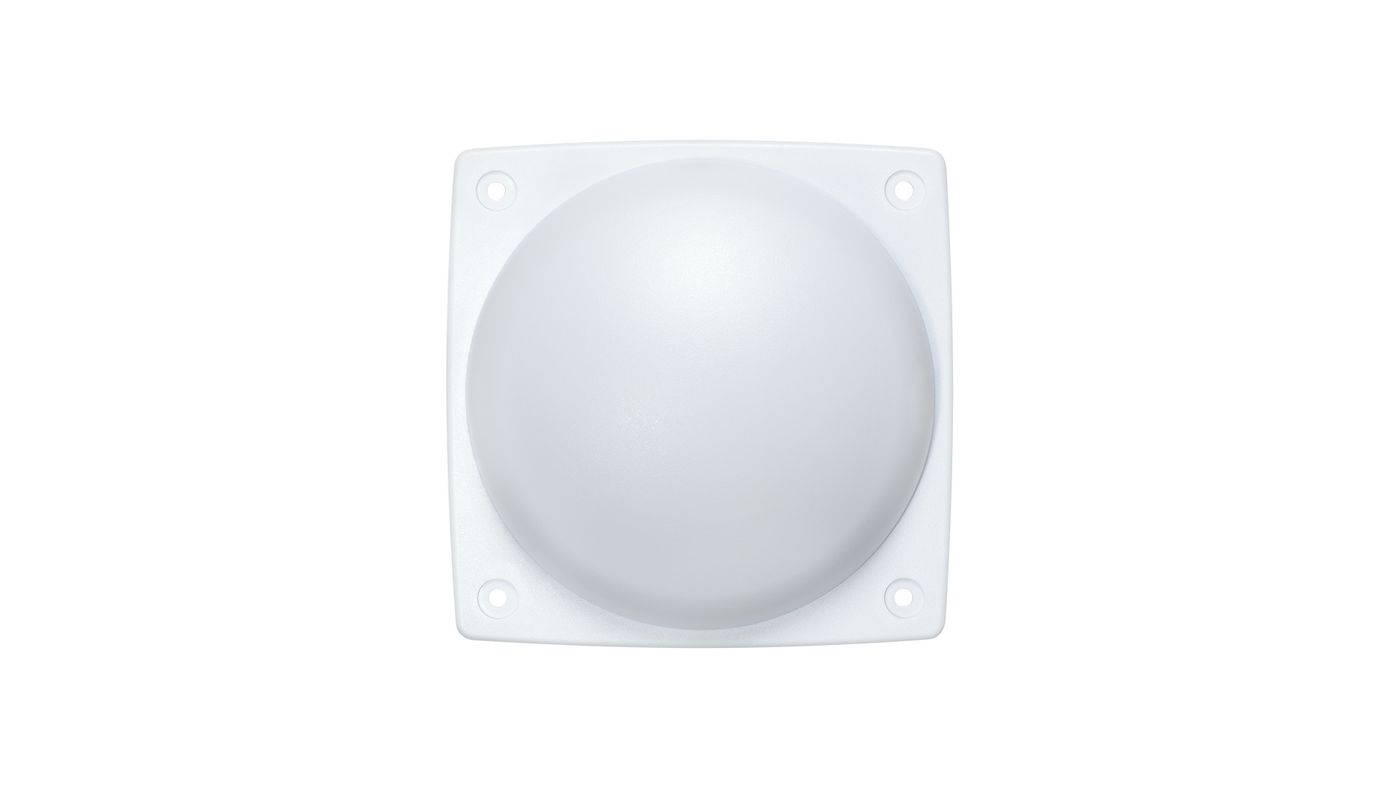

LANCOM AirLancer IN-Q180+ - Antenna - Wi-Fi - 5 dBi (for 5 GHz), 3 dBi (for 2.4 GHz) - ceiling mountable, wall-mountable - white | 61262
Please sign in so that we can notify you about a reply
Special Fetures
- Dual-band ceiling antenna with 180° beam angle and +3 dBi at 2.4 GHz and +5 dBi gain at 5 GHz
- 4 connectors
- MIMO technology for reliable Wi-Fi coverage under difficult conditions
- 4x4 dual band MIMO operation with LANCOM dual-radio access points for parallel operation at 2.4 and 5GHz
- Mounting kit included
- Optimized for 802.11ac and 802.11ax operations
Product Specification
| Product Type | Antenna |
| Product Material | Plastic |
| Width | 13 cm |
| Depth | 13 cm |
| Height | 4.5 cm |
| Weight | 208 g |
| Cable Length | 1 m |
| Enclosure Colour | White |
| Aerial | |
| Intended For | Wi-Fi |
| Aerial Placing / Mounting | Ceiling mountable, wall-mountable |
| Compatibility | 802.11ac |
| Frequency Range | 2.4 - 2.5 GHz, 4.9 - 5.9 GHz |
| Gain | 5 dBi (for 5 GHz), 3 dBi (for 2.4 GHz) |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 - 2.5:1 |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 55° |
| Impedance | 50 Ohm |
| Cabling & Wiring | |
| Connector Provided | 4 x RP-SMA |
| Miscellaneous | |
| Mounting Kit | Included |
| Features | UV protection, MIMO technology |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 65 °C |
Features - Lancom Systems - 61262
More Details
Product Code
04:364837
EAN Code
4044144612626
Manufacturer
Lancom Systems
