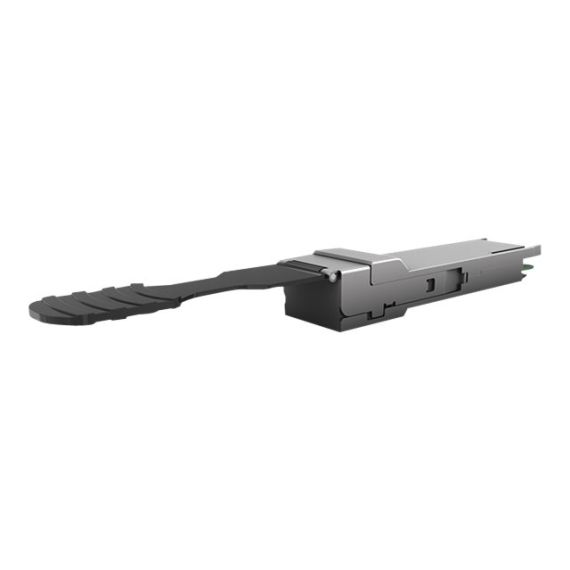

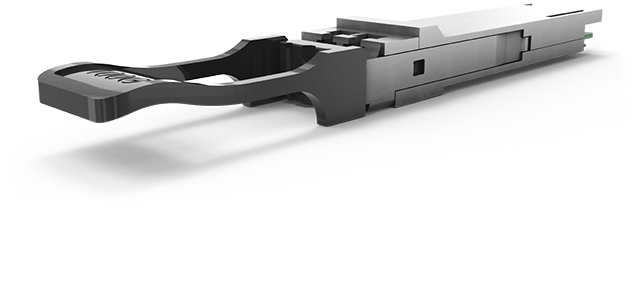

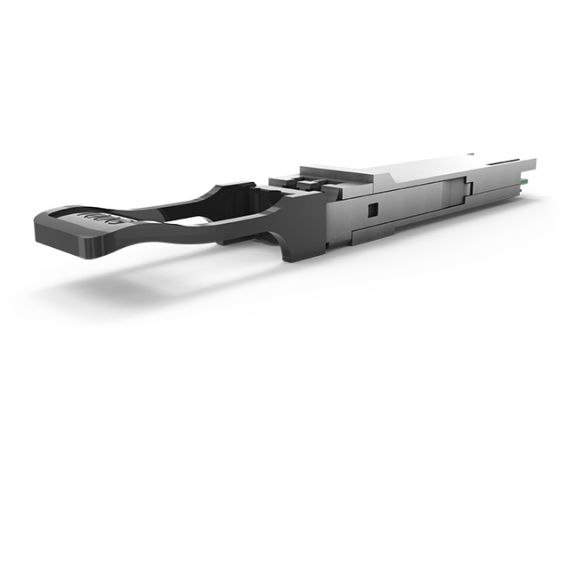

Allied Telesis AT QSFP28-SR4 - QSFP28 transceiver module - 100GbE - 100GBase-SR4 - MPO multi-mode - up to 100 m - 850 nm - for P/N: 3868R | AT-QSFP28SR4
Please sign in so that we can notify you about a reply
Special Fetures
- Compliant to IEEE 802.3bm 100GBASE-SR4 standard (QSFP28-SR4)
- MSA compliant
- Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
- Up to 25Gbps data rate per wavelength
- Up to 10 km transmission on single mode fiber (SMF)
- Operating case temperature: 0~70°C
- Low power consumption of max 2.5W (Typ. 1.8W) (SR4) and 4.0W (LR4)
- MPO connector (SR4)
- LC duplex connector (LR4)
- RoHS-6 compliant
Product Specification
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-SR4 |
| Data Link Protocol | 100GbE |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 100 m |
| Features | Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3bm |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100GBase-SR4 - MPO multi-mode |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA, MSA SFF-8665 |
| Power | |
| Power Consumption Operational | 2.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Compatibility Information | |
| Designed For | P/N: 3868R |
Features - Allied Telesis - AT-QSFP28SR4
More Details
Product Code
425B101
EAN Code
0767035212517
Manufacturer
Allied Telesis
