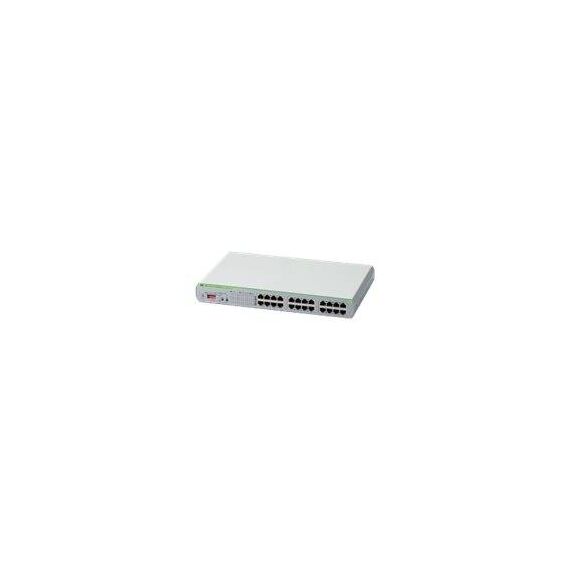

Allied Telesis CentreCOM AT-GS920/24 / Switch / unmanaged / 24 x 10/100/1000 / desktop, rack-mountable | AT-GS920/24-50
Please sign in so that we can notify you about a reply
Product Features
- DIP switches
Normally, configuring functions such as Loop Detection requires the use of a command line or graphical interface. The Allied Telesis GS920 lets you configure these frequently used functions with a DIP switch. - High performance
The Allied Telesis GS920 delivers the high speed and high performance demanded by today's high-bandwidth applications, such as video, graphics and industrial design. - Speed/duplex configuration
The GS920 allows speed and duplex to be set per port. This supports older devices where auto-negotiation is not supported, as well embedded devices which may support a fixed speed/duplex only. - Loop detection
The loop detection feature discovers network loops, and shuts down affected ports. After the loop is resolved, the affected ports are automatically returned to active use. - Flooding mode
Flooding mode allows the easy capture of data steams for troubleshooting and analysis, as they are sent to all ports.
Special Features
- DIP switches
- Loop guard (loop detection) for avoiding loops at the network edge
- Force MDI avoids incorrect cabling and possible network loops
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Flow control
- Speed/duplex configuration
- Flooding mode
Product Specification
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| Performance | Switching fabric bandwidth: 48 Gbps ¦ Forwarding performance (64-byte packet size): 35.7 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | CLI |
| Authentication Method | Extensible Authentication Protocol (EAP) |
| Features | Flow control, auto-negotiation, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Energy Efficient Ethernet, 802.1x authentication, Bridge protocol data unit (BPDU), 524KB packet buffer, Loop Guard |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1x, IEEE 802.3az |
| Flash Memory | 512 KB |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 18 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 34.1 cm |
| Depth | 21 cm |
| Height | 4.4 cm |
| Weight | 2.1 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-GS920/24-50
General
24-Port
More Details
Product Code
425A819
EAN Code
0767035210766
Manufacturer
Allied Telesis
