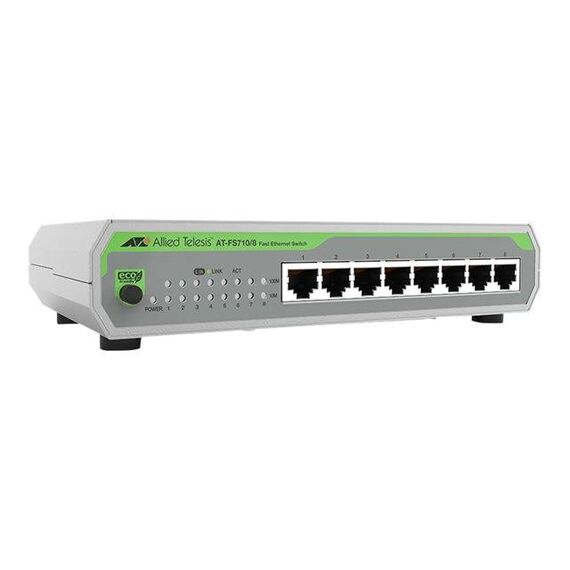

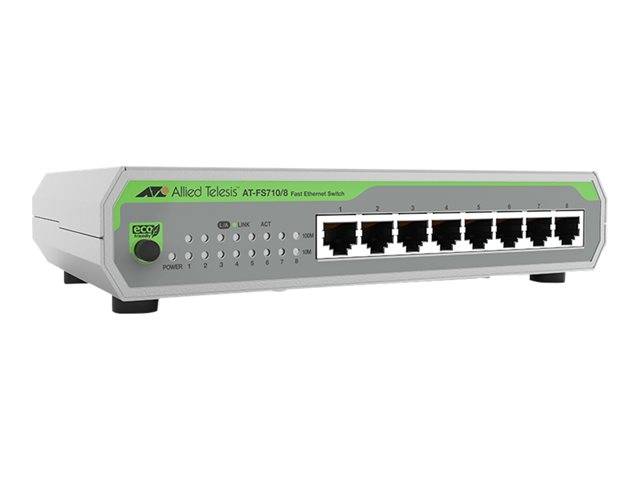

Allied Telesis CentreCOM FS710/8 / Switch / unmanaged / 8 x 10/100 / desktop, wall-mountable | AT-FS710/8-50
Description
The Allied Telesis FS710 Series is the economical and eco-friendly solution for today's networks. The FS710 Series switches provide silent operation, with easy set-up and simple connectivity for desktop and small to medium network environments.
Allied Telesis CentreCOM FS710 / 8 | AT-FS710/8-50
Special Features
- Fanless - silent operation
- Power saving mode
- EAPOL/BPDU forwarding
- Flow control
- Jumbo frames
Product features
- High performance
Full auto-negotiating 10/100 ports allow FS710 switches to detect the speed and duplex modes of attached devices, and automatically configure for excellent performance. - Fanless for silent operation
The FS710 Series are fanless and run silently, making them ideal for the desktop or workspace. Deploy in dusty industrial environments without affecting the expected lifetime. - Simplified installation
Auto-configuration of the FS710 Series minimizes user set-up. Auto-sensing ports enable seamless and simple connectivity between existing 10Mbps Ethernet and 100Mbps Fast Ethernet UTP devices, so installation takes just minutes. All ports support MDI/MDI-X simple connection to other hubs and switches.
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 |
| Performance | Switching capacity: 1.6 Gbps ¦ Maximum throughput: 1.19 Mpps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 2048 bytes |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, fanless, 96KB packet buffer, Back Pressure Support, Bridge protocol data unit (BPDU) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| Interfaces | 8 x 100Base-TX RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 2.5 Watt |
| Compliant Standards | UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, VCCI Class B, FCC Part 15 Class B, EN 55032 Class A, CISPR 32 Class B, RCM Class A, EU RoHS |
| Localisation | Europe |
| Width | 19.6 cm |
| Depth | 12.4 cm |
| Height | 3.8 cm |
| Weight | 710 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-FS710/8-50
General
8-Port
More Details
Product Code
425A915
EAN Code
0767035211848
Manufacturer
Allied Telesis
