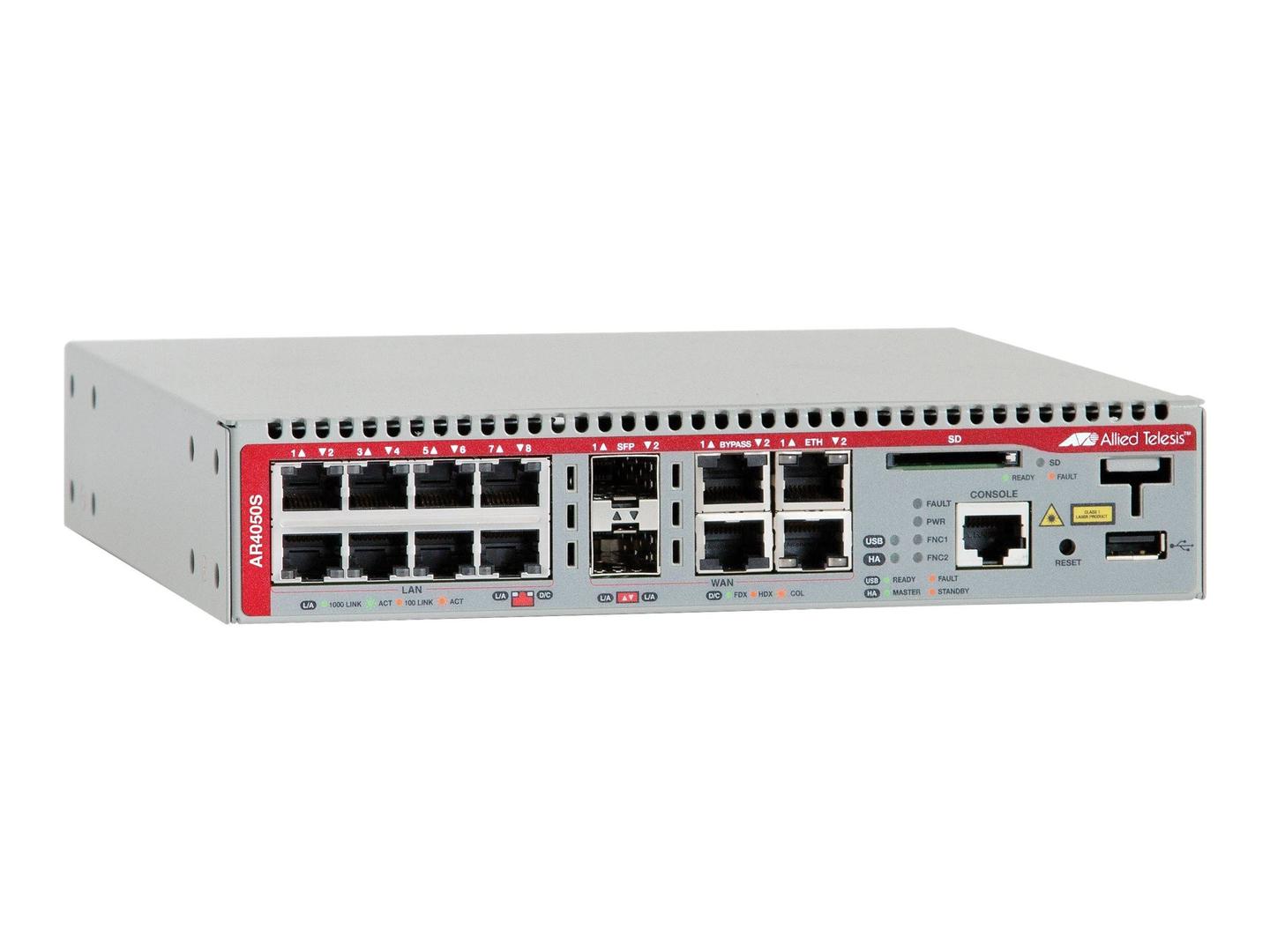

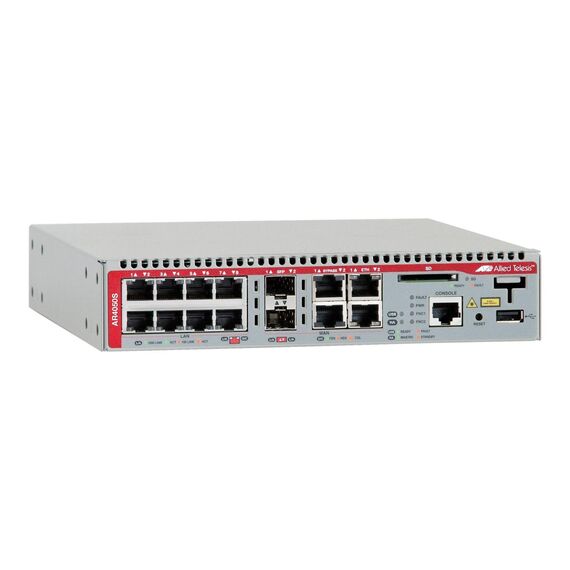

Allied Telesis AT AR4050S / Security appliance / GigE | AT-AR4050S-50
Product Features
- Deep packet inspection
Deep packet inspection engine provides real-time, Layer 7 classification of network traffic. Rather than being limited to filtering packets based on protocols and ports, the firewall can determine the application associated with the packet. This allows enterprises to differentiate business-critical from non-critical applications, and to enforce security and acceptable use policies in ways that make sense for the business. - Intrusion detection and prevention systems
IDS/IPS is an intrusion detection and prevention system that can protect networks from malicious traffic. IDS/IPS monitors inbound and outbound traffic, and identifies threats which may not be detected by the firewall alone. - IP reputation
IP reputation is a method of improving the success of intrusion prevention by reducing false positives. IP reputation provides a variable to the prevention decision, which allows drop rules to be actioned only if the reputation of the web site exceeds a chosen threshold. - High performance
High performance is guaranteed by harnessing the power of multi-core processors and application acceleration engines. This dramatically increases throughput and enables simultaneous packet inspection.
Special Features
- Deep packet inspection
- Intrusion detection and prevention systems
- IP reputation
- High performance
Product Specification
Device Type | Security appliance |
Width | 21 cm |
Depth | 22 cm |
Height | 4.25 cm |
Weight | 1.7 kg |
Localisation | Europe |
Processor / Memory / Storage | Processor / Memory / Storage |
Processors Installed | 1 x 1.5 GHz |
RAM | 2 GB |
Flash Memory | 1 GB |
Networking | Networking |
Form Factor | External |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Switching Protocol | Ethernet |
Network / Transport Protocol | TCP/IP, IPSec, PPPoE, SMTP, FTP, DHCP, L2TPv3 |
Routing Protocol | OSPF, RIP, BGP, IGMP, static IP routing, GRE, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, BGP-4+, VRRPv2, VRRPv3 |
Remote Management Protocol | SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
Performance | Firewall throughput: 1.9 Gbps ¦ IPS throughput: 750 Mbps ¦ Anti-malware throughput: 1.3 Gbps ¦ VPN throughput: 800 Mbps ¦ IP reputation throughput: 1000 Mbps |
Capacity | Concurrent sessions: 100000 ¦ New sessions per second: 12000 ¦ IPSec VPN tunnels: 200 ¦ SSL VPN users: 200 |
Features | Switching, routing, NAT support, VPN support, Syslog support, traffic shaping, DoS attack prevention, ALG support, port mirroring, DiffServ support, manageable, Intrusion Detection System (IDS), IPv6 support, Intrusion Prevention System (IPS), deep inspection, DDos attack prevention, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, IPSec Virtual Private Network (VPN), anti-malware protection, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), bandwidth control, IPv4 support, web threat protection, LACP support, DHCP client, SNMP support, anti-virus protection, Dynamic Device Mapping (DDM) technology |
Encryption Algorithm | Triple DES, AES, SSL, TLS, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, 256-bit SHA |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
IP Telephony | IP Telephony |
VoIP Protocols | H.323, SIP |
Communications | Communications |
Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 1 x console - RJ-45 ¦ 1 x USB ¦ 2 x 1000Base-X - SFP (mini-GBIC) (WAN) |
Miscellaneous | Miscellaneous |
Compliant Standards | FCC Class A certified, UL, TUV, cUL, EN 61000-3-2, EN55024, EN55022 Class A, AS/NZS 60950-1, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03 |
Power | Power |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 27 Watt |
Software / System Requirements | Software / System Requirements |
OS Provided | AlliedWare Plus |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 80% (non-condensing) |
