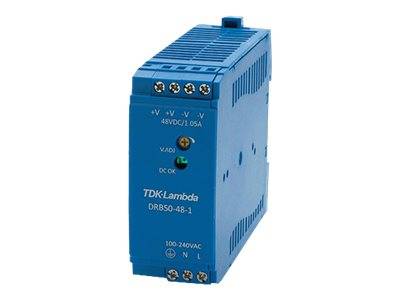

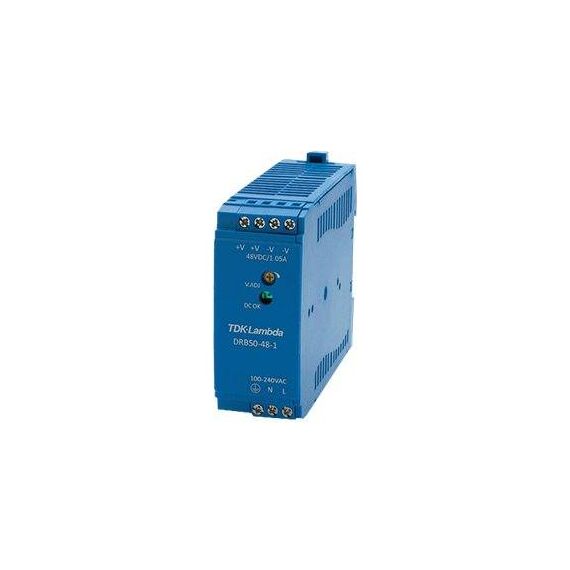

Allied Telesis AT-DRB50-48-1 / Power supply (DIN rail mountable) / AC 85-264/ DC 120-373 V / 50 Watt | AT-DRB50-48-1
AT-DRB50-48-1
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Specification
| Device Type | Power supply - DIN rail mountable |
| Power Device | Power Device |
| Input Voltage | AC 85-264/ DC 120-373 V |
| Frequency Required | 47 - 63 Hz |
| Output Voltage | 48 V |
| Max Electric Current | 50 A |
| Power Capacity | 50 Watt |
| Miscellaneous | Miscellaneous |
| Features | Overvoltage protection |
| Compliant Standards | EN55022 Class B, EN 61000-4-11, EN 61000-4-8, UL 94 V-0, UL 60950-1, EN 60950-1, UL 508, CSA 22.2, EN 61000-4-2 Level 4, EN 61000-4-3 Level 3, EN 61000-4-6 Level 3, CSA 60950-1, EN 61000-4-5 Level 3 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3 cm |
| Depth | 7.5 cm |
| Height | 9 cm |
| Weight | 175 g |
