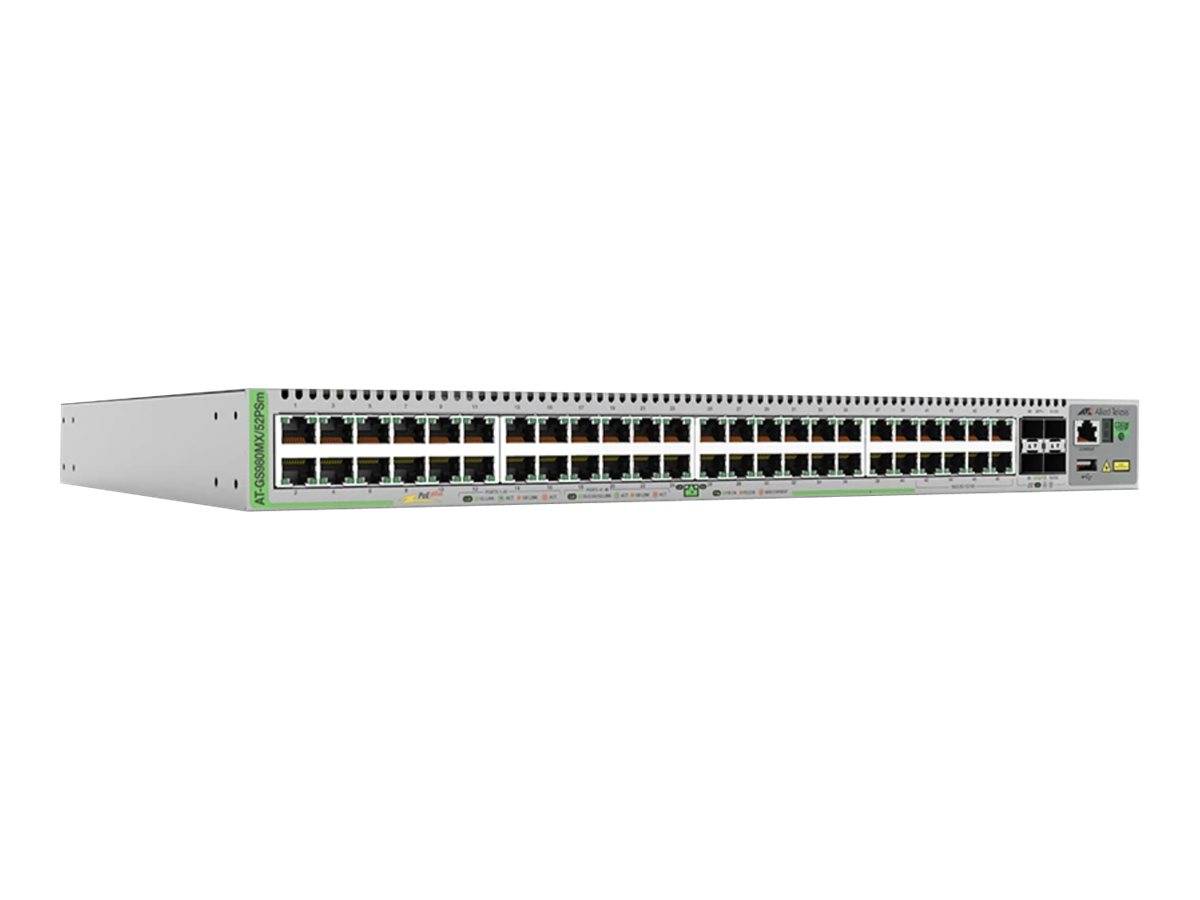

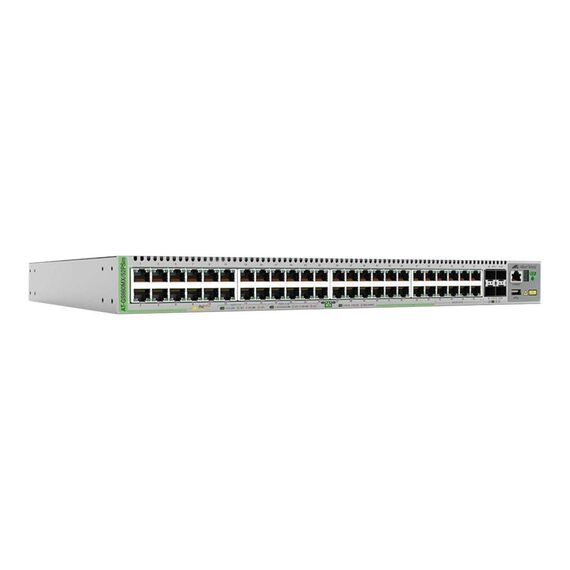

Allied Telesis CentreCOM AT-GS980MX/52PSM / Switch / L3 / Managed / 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ / rack-mountable / PoE+ (370 W) | AT-GS980MX/52PSM-50
Please sign in so that we can notify you about a reply
Special Features
- AlliedWare Plus Enterprise-class operating system
- 2.5G and 5G Multi-Gigabit ports support high-speed Wi-Fi 6 solutions, and network upgrades over legacy cabling
- PoE+ supplies up to 30 Watts per port to connect and power endpoints
- PoE power budget of 370 Watts
- High PoE port-density for powering modern IoT solutions
- Continuous PoE ensures endpoint uptime, even during a switch firmware upgrade
- VCStack up to 4 units locally or over distance to support resilient networking
- Ethernet Protection Switched Ring (EPSRing) supports high-speed resilient ring-based networks
Product Specification
| Device Type | Switch - 52 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching fabric bandwidth: 240 Gbps ¦ Forwarding rate: 179 Mpps ¦ Latency (10 Gbps): 1.67 µs ¦ Latency (5 Gbps): 5.06 µs ¦ Latency (2.5 Gbps): 7.51 µs ¦ Latency (1 Gbps): 7.75 µs ¦ Latency (100 Mbps): 8.34 µs |
| Capacity | Buffer capacity (MB): 1.5 ¦ Configurable VLANs: 4094 ¦ Priority queues: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Max Units In A Stack | 4 |
| Routing Protocol | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GCM, XTS, DRBG |
| Authentication Method | RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, ARP support, OCSP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Remote Switch Port Analyzer (RSPAN), SNMP trap, DHCP client, Management Information Base (MIB), MAC address lockout, Dynamic VLAN Support (GVRP), Network Access Control (NAC), loop prevention, port isolation, Strict Priority (SP), 802.1x authentication, VoIP support, IP source guard, Ethernet Protection Switched Ring (EPSRing), Logical Link Control, Internet Control Message Protocol (ICMP), Control Plane Prioritisation (CPP), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Digital Diagnostics Monitoring (DDM), MAC address authentication, Network Timing Protocol (NTP), Active Fiber Monitoring, Authentication, Authorization and Accounting (AAA), IGMP querier, VLAN mirroring, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, Weighted Round Robin (WRR), loopback detection, VLAN Tagging, BPDU Guard |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 40 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 8 x 100/1000/2.5G/5G (PoE+) RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A |
| Localisation | Europe |
| Software / System Requirements | Software / System Requirements |
| Software Included | Alliedware Plus |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.1 cm |
| Depth | 42.1 cm |
| Height | 4.4 cm |
| Weight | 6.1 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 56.3 cm |
| Shipping Depth | 63.2 cm |
| Shipping Height | 12.8 cm |
| Shipping Weight | 8.1 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-GS980MX/52PSM-50
General
48-Port
More Details
Product Code
CB70780
EAN Code
0767035218434
Manufacturer
Allied Telesis
