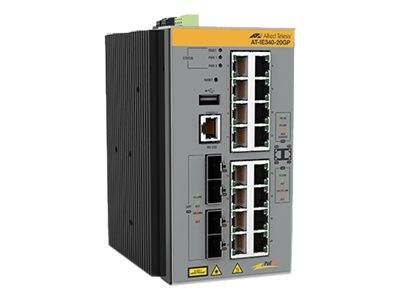

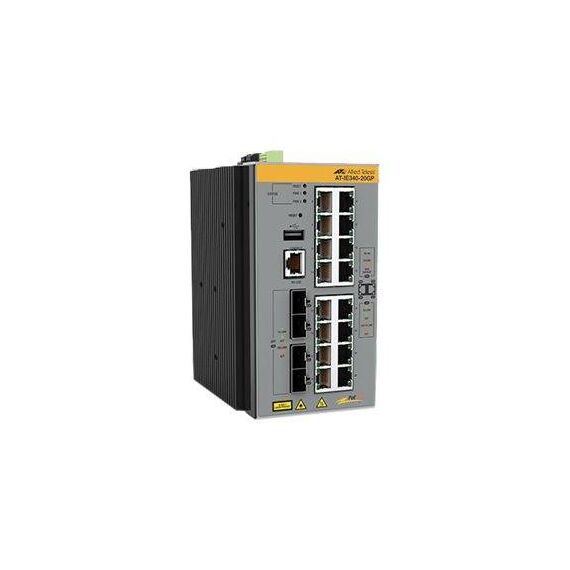

Allied Telesis AT IE340-20GP / Switch / L3 / Managed / 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE) + 4 x Gigabit SFP / DIN rail mountable, wall-mountable / PoE+ (240 W) / DC power | AT-IE340-20GP-80
Please sign in so that we can notify you about a reply
Allied Telesis AT IE340-20GP / Switch / L3 / Managed / 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE) + 4 x Gigabit SFP / DIN rail mountable, wall-mountable / PoE+ (240 W) / DC power | AT-IE340-20GP-80
Product Specification
| Device Type | Switch - 20 ports - L3 - Managed |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching fabric bandwidth: 40 Gbps ¦ Forwarding performance: 29.7 Mpps |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Layer 2 multicast groups: 511 ¦ Layer 3 multicast groups: 256 ¦ QoS queues: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, RIP, RIP-2, IGMP, OSPFv2, static IP routing, OSPFv3, RIPng, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Authentication Method | Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, BOOTP support, trunking, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, High Availability, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, PoE+, fanless, DHCP relay, SNMP trap, DHCP client, Class of Service (CoS), GARP VLAN Registration Protocol (GVRP), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, Ethernet Protection Switched Ring (EPSRing) |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| RAM | 512 MB DDR SDRAM |
| Flash Memory | 128 MB |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 8 x 1000Base-T RJ-45 PoE - 15 W ¦ 4 x 1000Base-X SFP ¦ 1 x console RJ-45 ¦ 1 x USB 2.0 Type A ¦ 2 x alarm |
| Power Device | Internal power supply |
| Voltage Required | DC 18 - 57 V |
| Power Consumption Operational | 271 Watt |
| Compliant Standards | EN 61000-3-2, EN55022, IEC 61000-4-8, EN 61000-3-3, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, IP30, China RoHS, DIN EN 60715, IP31, CAN/CSA-C22.2 No. 60950-1 |
| Width | 9.1 cm |
| Depth | 13.9 cm |
| Height | 15.3 cm |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-IE340-20GP-80
General
16-Port
More Details
Product Code
CA05117
EAN Code
0767035217550
Manufacturer
Allied Telesis
