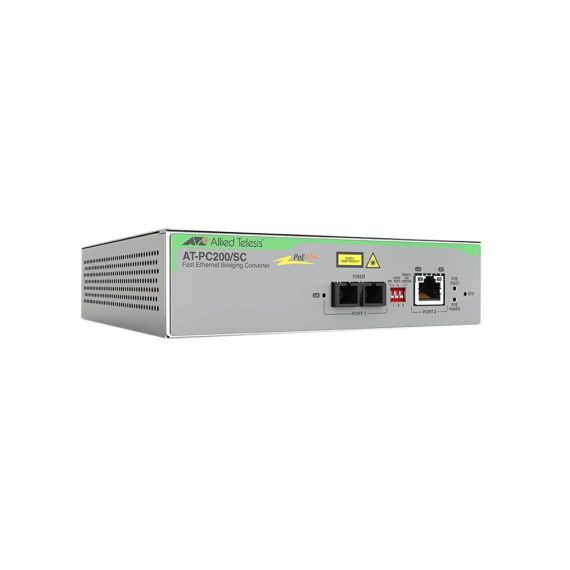

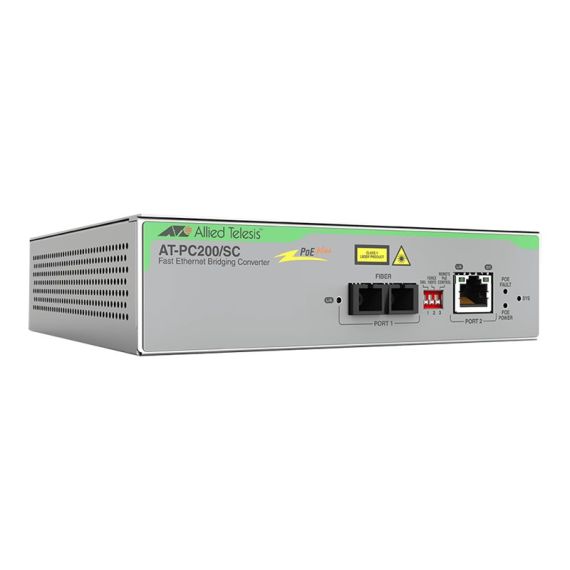

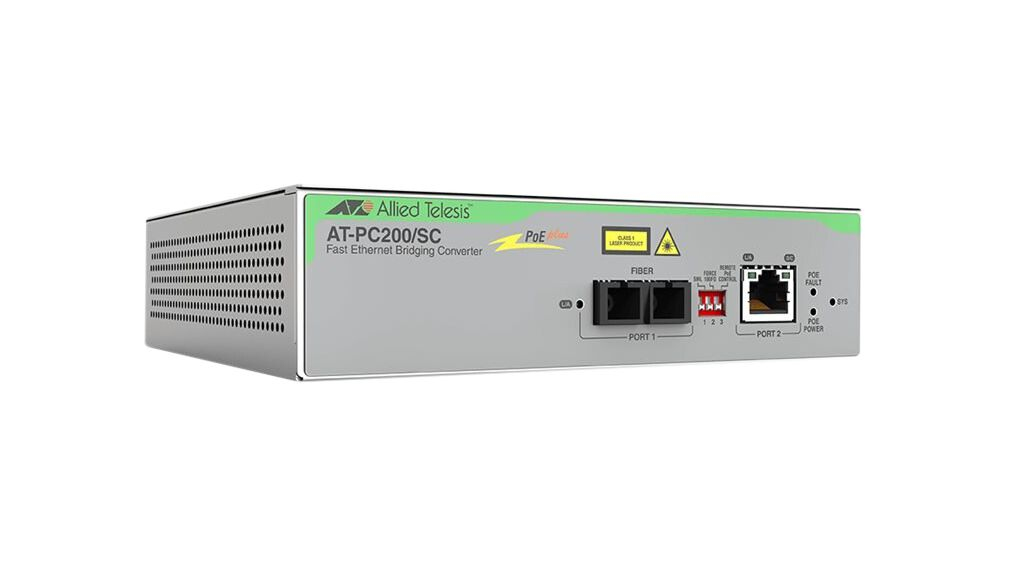

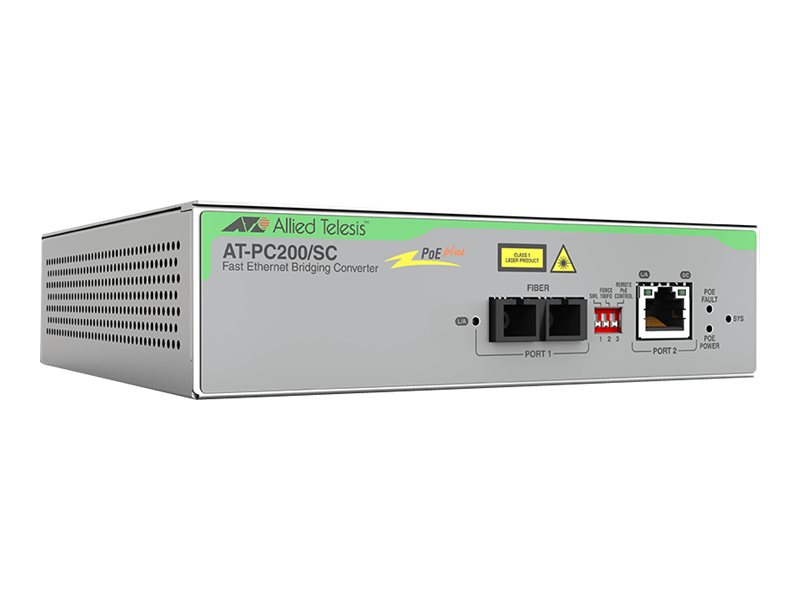

Allied Telesis AT PC200/SC - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX, 100Base-SC - SC / RJ-45 - 1310 nm - TAA Compliant | AT-PC200/SC-960

Product Features

• Remote power cycle
  The PC200/2000 Series offers feature where when the fiber port is dropped the TX PoE+ port will cycle power. It allows a remote administrator to login in a switch and disable the switch port in which the PC200 series is attached and will have the remote PoE+ device to lose power. This can be useful when an administrator needs to reset a remote device without actually physical going to the location.
• VLAN support
  Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that sends extra-long data packets on the network. PC200/2000 Series switches are fully compatible with these long packets, enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets, making them unsuitable for modern networks.
• Small and flexible
  The small size and internal power supply of the PC200 series allows them to be used almost anywhere.
• Smart MissingLinkTM (SML)
  The Smart MissingLink (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.

Special Fetures

• Convert speed as well as media type
• IEEE 802.3at Power over Ethernet (POE+) compliant
• Supplies up to 30 W of PoE+ power
• Auto MDI/MDI-X
• Smart Missing Link ((SML)
• Supports jumbo frames, up to 10K bytes
• Support for multi-mode fiber
• 4K MAC address tables
• Store-and-forward switching mode
• Transparent to IEEE 802.1Q packets
• Standalone or wall mountable
• Internal AC power supply
• AC power cord retaining clip

Product Specification
