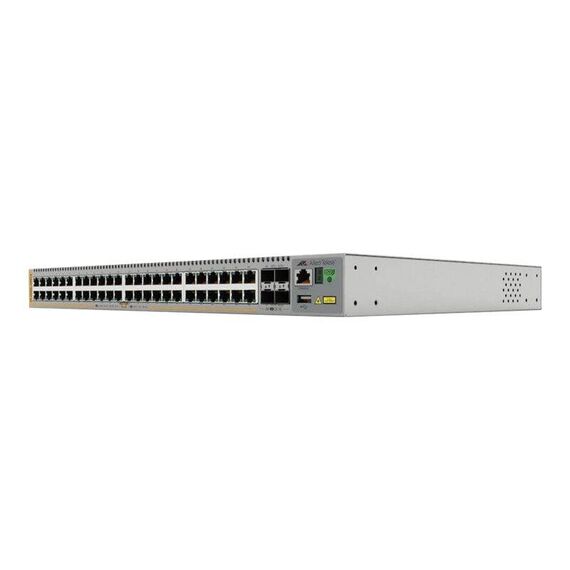

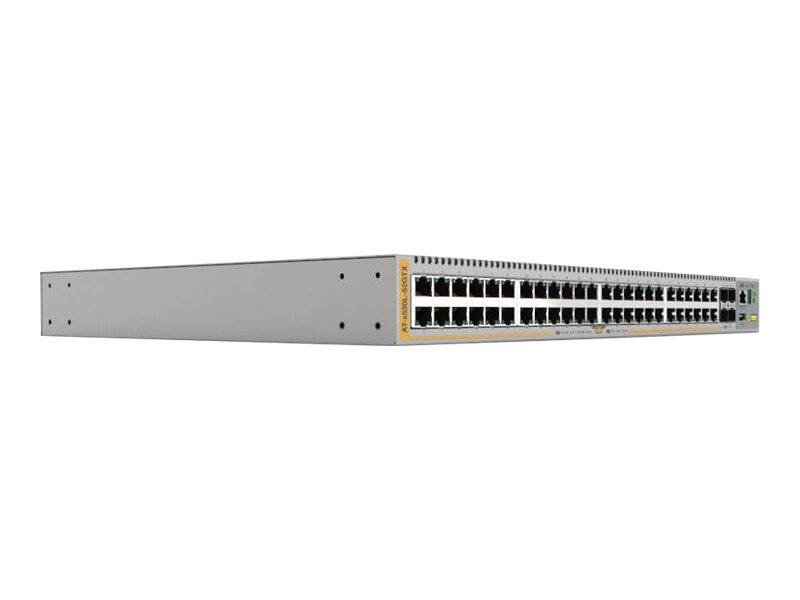

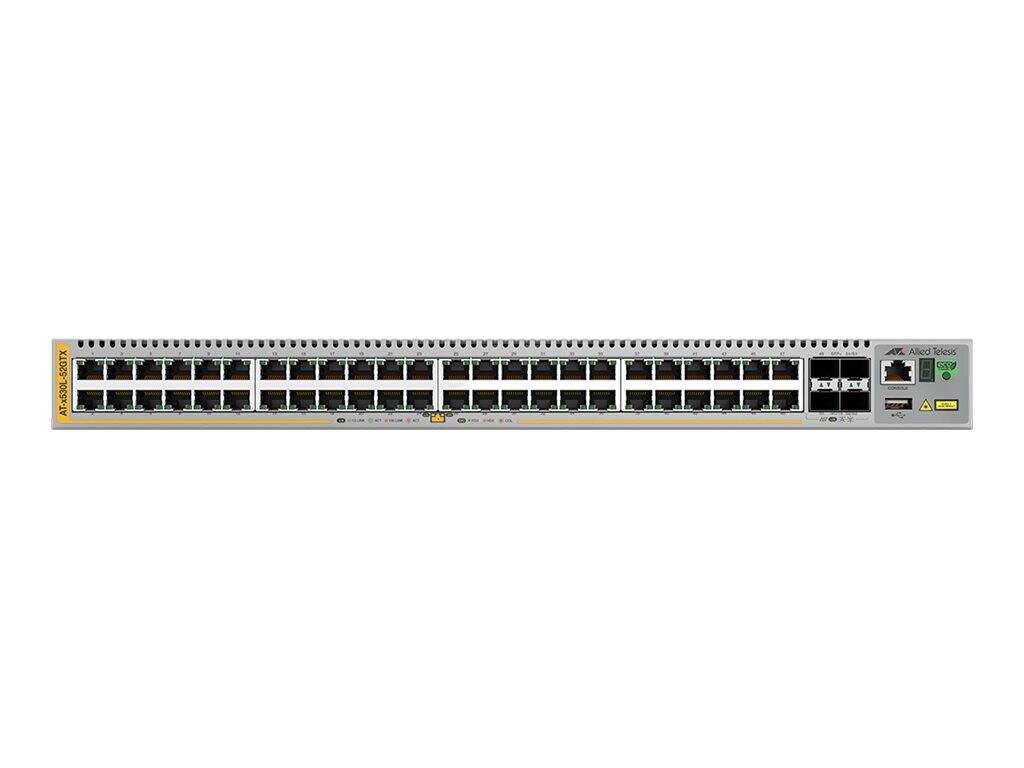

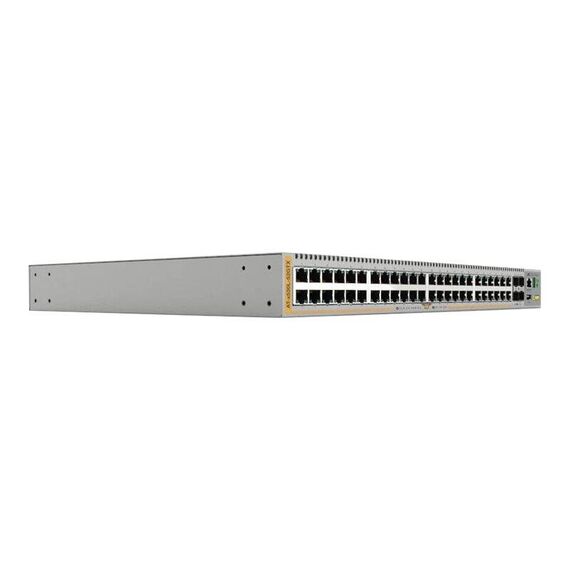

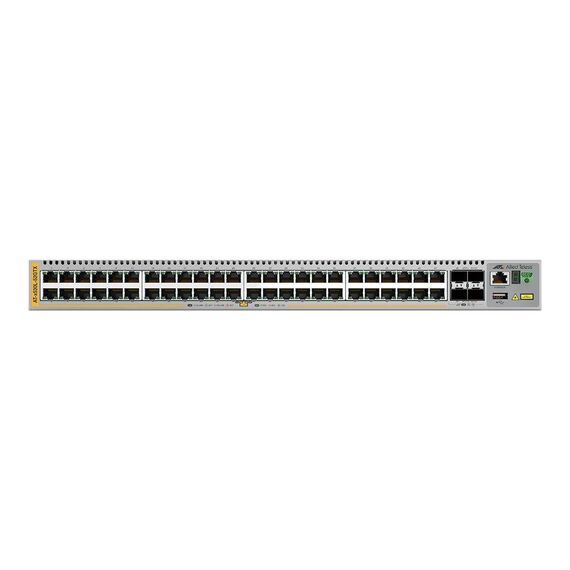

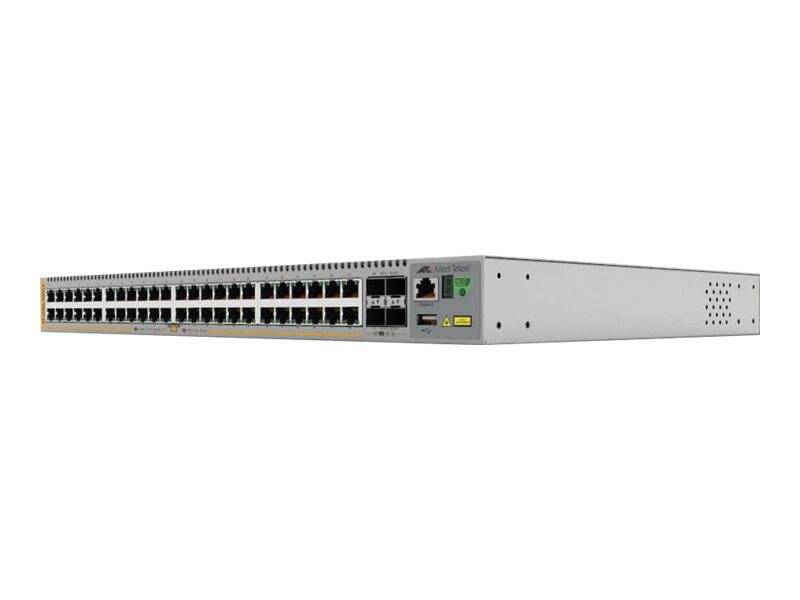

Allied Telesis AT x530L-52GTX - Switch - L3 - Managed - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - rack-mountable | AT-X530L-52GTX-50
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 52 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding rate: 130.9 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Latency (10 Mbps): 30.98 ¦ Latency (100 Mbps): 8.34 ¦ Latency (1 Gbps): 5.27 ¦ Latency (10 Gbps): 1.67 |
| Capacity | Virtual interfaces (VLANs): 4094 ¦ Packet buffer size: 3 MB ¦ OpenFlow flows: up to 1250 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Max Units In A Stack | 4 |
| Routing Protocol | OSPF, RIP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, CIDR, MSTP, RSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP, SMTP, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, SHA-2, TLS 1.2, CRL |
| Authentication Method | Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | DHCP support, BOOTP support, ARP support, OCSP support, Syslog support, DoS attack prevention, DiffServ support, SNTP support, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), DNS relay, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Ethernet Ring Protection Switching (ERPS), MLD proxy, IP source guard, Ethernet Protection Switched Ring (EPSRing), Virtual Chassis Stacking (VCStack), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), black hole routing, Control Plane Prioritisation (CPP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Cable fault locator (TDR), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), Loop Guard, VLAN mirroring, DNS client, NTP client, Connectivity Fault Management (CFM), LLDP-MED, storm protection, User Datagram Protocol (UDP), proxy ARP, Energy-Efficient Ethernet (EEE), View-based Access Control Model (VACM), router advertisement guard, Point-to-Point Protocol (PPP) |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032 |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Status, fault |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1000Base-X/10GBase-X SFP+ uplink ¦ 2 x network stack device |
| Power | |
| Power Device | Internal power supply |

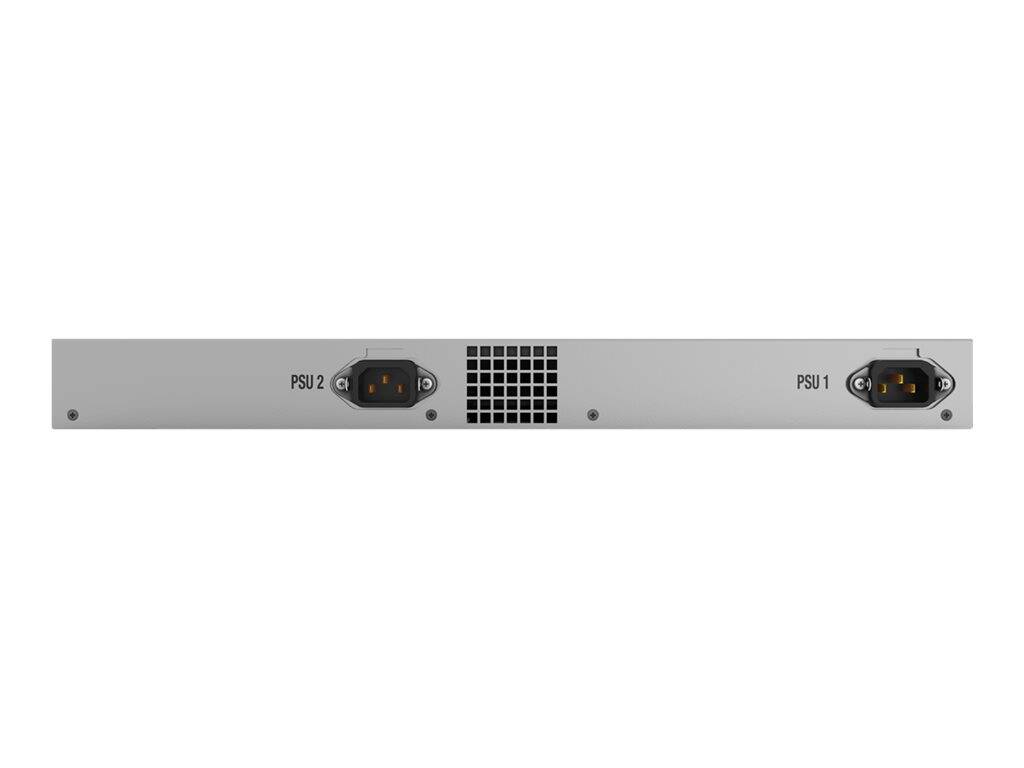

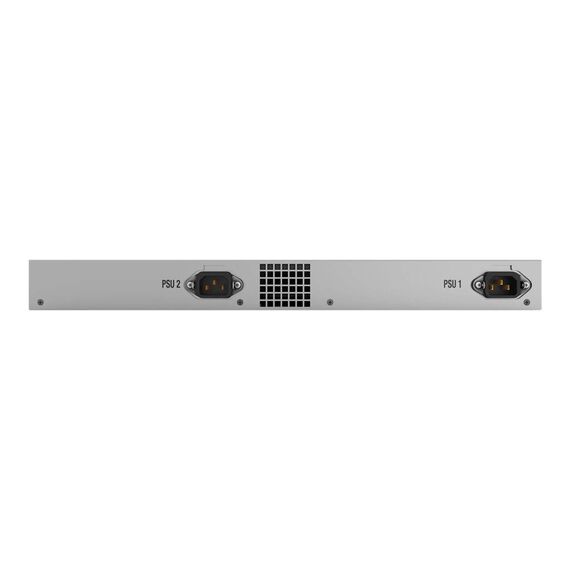

| Installed Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 60 Watt |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55032 Class A, EU RoHS |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 44.1 cm |
| Depth | 32.3 cm |
| Height | 4.4 cm |
| Weight | 5.2 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 57.7 cm |
| Shipping Depth | 44 cm |
| Shipping Height | 12.8 cm |
| Shipping Weight | 7.1 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-X530L-52GTX-50
General
48-Port
More Details
Product Code
CA05112
EAN Code
0767035217048
Manufacturer
Allied Telesis
