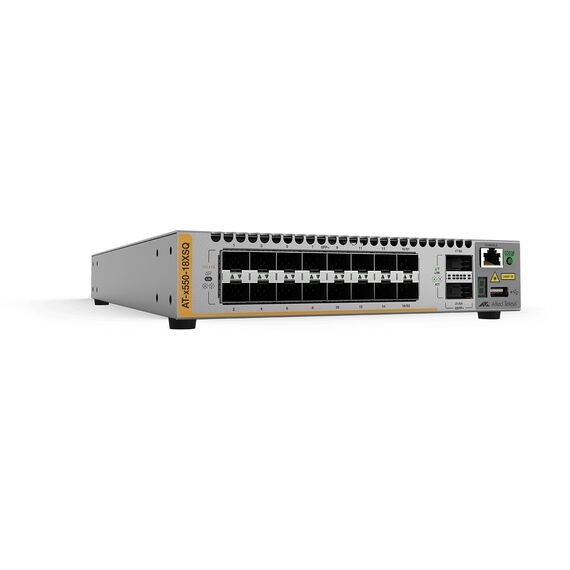

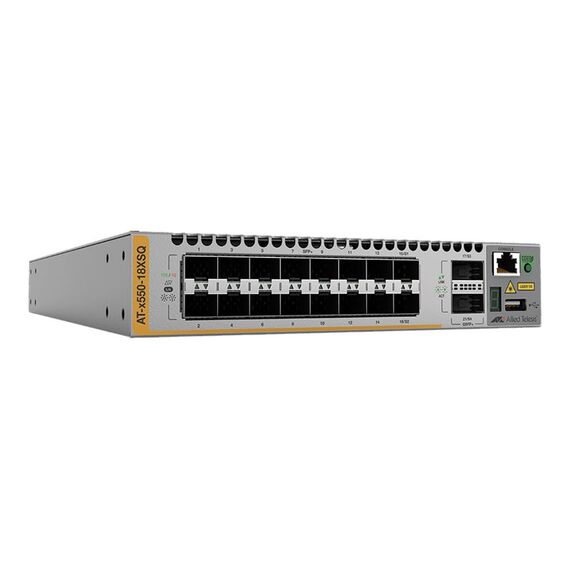

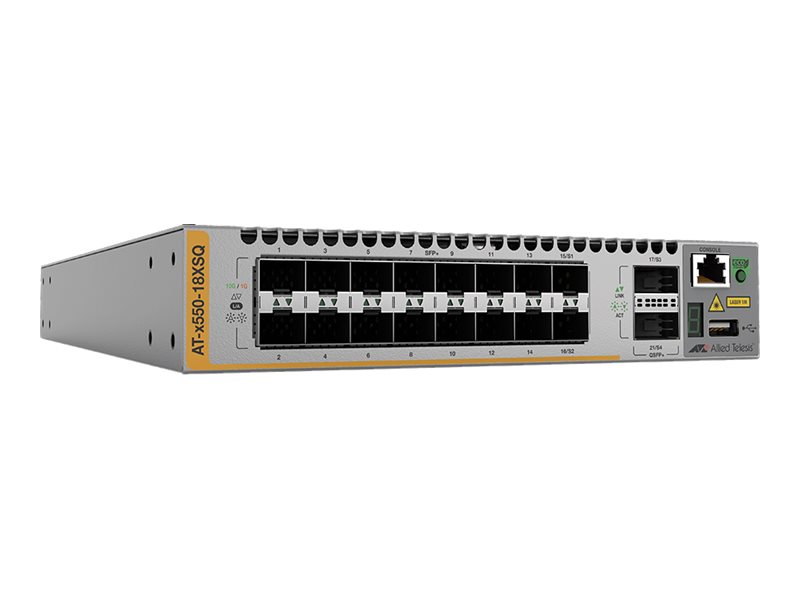

Allied Telesis AT X550-18XTQ - Switch - L3 - smart - 16 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink) - rack-mountable - AC 90 - 260 V | AT-X550-18XSQ-50
Please sign in so that we can notify you about a reply
Special Fetures
- AlliedWare Plus Enterprise-class operating system
- Ethernet Protection Switched Ring (EPSRing) supports resilient high-speed ring-based networks
- SDN-ready with OpenFlow v1.3
- sFlow enables network performance monitoring and optimization
Product Specification
| Device Type | Switch - 18 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 16 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink) |
| Performance | Switching fabric speed: 480 Gbps ¦ Forwarding rate: 357.1 Mpps ¦ Stacking bandwidth: 160 Gbps ¦ Bandwidth per port: up to 64 Kbps ¦ Latency (1 Gbps): 3.9 µs ¦ Latency (10 Gbps): 3 µs ¦ Latency (40 Gbps): 2.2 µs |
| Capacity | Configurable VLANs: 4094 ¦ Priority queues: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 13KB |
| Routing Protocol | OSPF, RIP, IGMPv2, IGMP, IGMPv3, ECMP, policy-based routing (PBR), CIDR |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, SLP, SSH 6 |
| Encryption Algorithm | RSA, MD5, AES, TLS, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, SHA-2, RNG, CRL, CCM |
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Features | Auto-negotiation, BOOTP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, IPv6 support, sFlow, DHCP snooping, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), IPv4 support, Remote Switch Port Analyzer (RSPAN), DNS relay, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Denial of Service (DoS), 4MB packet buffer, SFTP client, Type of Service (ToS), OpenFlow support, Ethernet Protection Switched Ring (EPSRing), Virtual Chassis Stacking (VCStack), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), black hole routing, Control Plane Prioritisation (CPP), SuperLoop Protection (SLP), Long-Distance stacking (LD-VCStack), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Cable fault locator (TDR), Software Defined Networking (SDN), Digital Diagnostics Monitoring (DDM), Network Timing Protocol (NTP), Active Fiber Monitoring, Authentication, Authorization and Accounting (AAA), DNS client, Voice VLAN, LLDP-MED, User Datagram Protocol (UDP), proxy ARP |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX |
| RAM | 1024 MB |
| Flash Memory | 1024 MB |
| Expansion / Connectivity | |
| Interfaces | 16 x 10GBase-X SFP+ ¦ 2 x 40Gbit LAN QSFP+ uplink ¦ 1 x console RJ-45 ¦ 1 x USB Type A |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 90 - 260 V (47 - 63 Hz) |
| Power Consumption Operational | 128 Watt |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, TUV, cUL, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, HMAC, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, DRBG, EN61000-3-2, EN61000-3-3, TLS v1.2, EU RoHS |
| Localisation | Europe |
| Software / System Requirements | |
| OS Required | AlliedWare Plus |
| Dimensions & Weight | |
| Width | 21 cm |
| Depth | 34.6 cm |
| Height | 4.25 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-X550-18XSQ-50
General
16-Port
More Details
Product Code
425A840
EAN Code
0767035210179
Manufacturer
Allied Telesis
