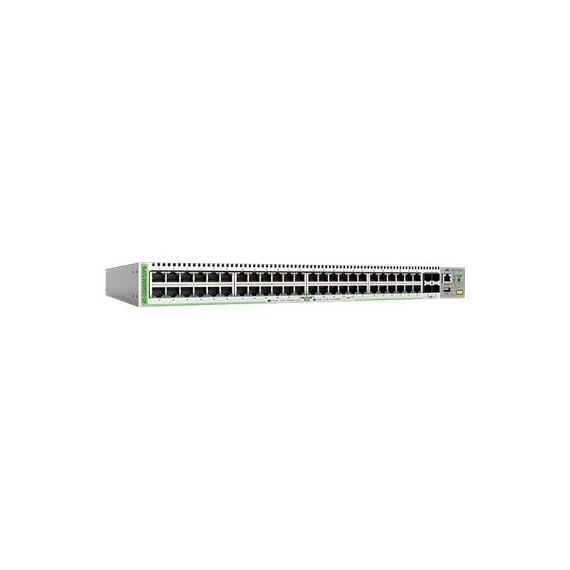

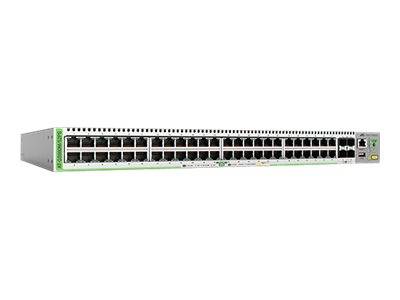

Allied Telesis CentreCOM GS980M/52PS / Switch / L3 / Managed / 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) / rack-mountable / PoE+ (740 W) | AT-GS980M/52PS-50
Please sign in so that we can notify you about a reply
Allied Telesis CentreCOM GS980M/52PS / Switch / L3 / Managed / 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) / rack-mountable / PoE+ (740 W) | AT-GS980M/52PS-50
Product Specification
| Device Type | Switch - 52 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching fabric bandwidth: 104 Gbps ¦ Forwarding rate: 77.4 Mpps ¦ Latency (10 Mbps): 39.6 µs ¦ Latency (100 Mbps): 6.8 µs ¦ Latency (1 Gbps): 3.8 µs |
| Capacity | IPv4 route capacity: 16 ¦ IPv6 route capacity: 16 ¦ IP multicast entries: up to 2000 ¦ Configurable VLANs: 4094 ¦ Priority queues: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GCM, XTS, DRBG |
| Authentication Method | RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, ARP support, OCSP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Remote Switch Port Analyzer (RSPAN), SNMP trap, DHCP client, Management Information Base (MIB), MAC address lockout, Dynamic VLAN Support (GVRP), Network Access Control (NAC), loop prevention, port isolation, Strict Priority (SP), 802.1x authentication, VoIP support, 3MB packet buffer, IP source guard, Ethernet Protection Switched Ring (EPSRing), Logical Link Control, Internet Control Message Protocol (ICMP), Control Plane Prioritisation (CPP), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Digital Diagnostics Monitoring (DDM), MAC address authentication, Network Timing Protocol (NTP), Active Fiber Monitoring, Authentication, Authorization and Accounting (AAA), IGMP querier, VLAN mirroring, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, Weighted Round Robin (WRR), loopback detection, VLAN Tagging, BPDU Guard |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| RAM | 512 MB SDRAM |
| Flash Memory | 128 MB |
| Interfaces | 48 x 1000Base-T RJ-45 24 ports (PoE+) / 48 ports (PoE) - 30 W ¦ 4 x 1000Base-X SFP uplink ¦ 1 x management RJ-45 ¦ 1 x USB Type A |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Electric Current Required | 1 A |
| Compliant Standards | FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A |
| Localisation | Europe |
| Software Included | Alliedware Plus |
| Width | 44.1 cm |
| Depth | 35.9 cm |
| Height | 4.4 cm |
| Weight | 5.8 kg |
| Shipping Width | 57.5 cm |
| Shipping Depth | 52 cm |
| Shipping Height | 15 cm |
| Shipping Weight | 7.8 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Allied Telesis - AT-GS980M/52PS-50
General
48-Port
More Details
Product Code
425B219
EAN Code
0767035215433
Manufacturer
Allied Telesis
