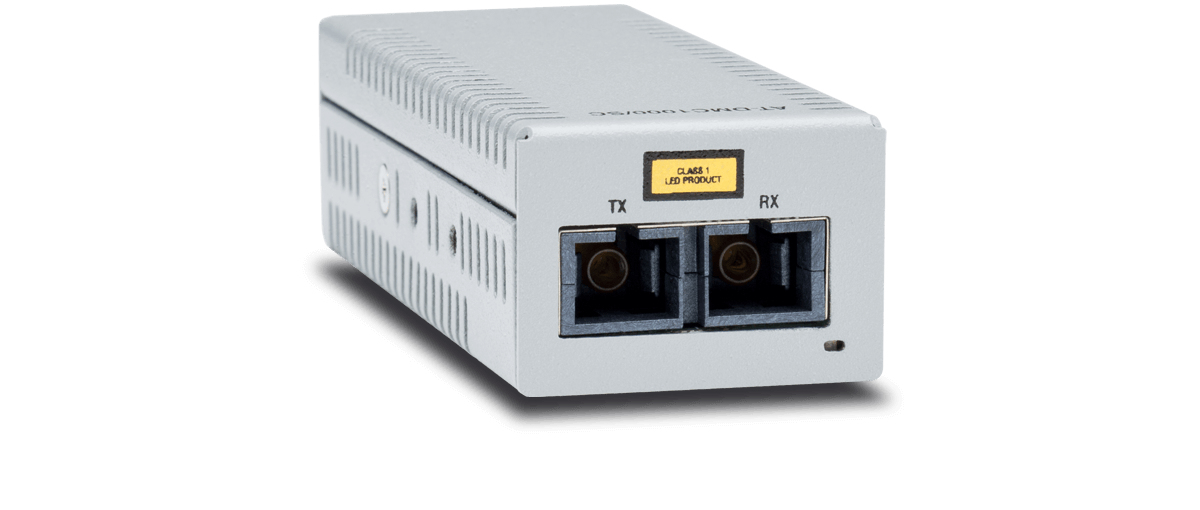

Allied Telesis AT DMC1000 / Fibre media converter / GigE / 1000Base-SX, 1000Base-T / RJ-45 / SC multi-mode / up to 500 m / 850 nm | AT-DMC1000/SC-50
Please sign in so that we can notify you about a reply
Product Features
- Fiber connections
The Allied Telesis range of Gigabit media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting SC, ST and LC fiber connectors, these converters can be used to extend networks with up to 500m of multi-mode fiber. - VLAN support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send data packets on the network. The DMC1000 switches are fully compatible with these packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these packets, making them unsuitable for modern networks. - Smart MissingLink (SML)
The Smart MissingLink (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime. - Simple installation
All Allied Telesis Media Converters feature auto MDI/MDI-X, allowing the converter to be connected to either a PC, hub, or switch with a simple UTP cable. The media converters also allow the installer to test the integrity of the fiber connection, by forcing the converters to communicate over the fiber cable. This Link Test feature allows installers to check for cable faults without the need for expensive fiber- optic test equipment. - Link Restoration
Link Restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them. - Power saving
The AT-DMC series continues Allied Telesis commitment to the environment with over 50% power savings. With just 1.5W of power usage, the AT-DMC series media converters are some of the most efficient in the market today.
Special Features
- Fiber connections
- VLAN support
- Smart MissingLink (SML)
- Simple installation
- Link Restoration
- Power saving
Product Specification
| Device Type | Fibre media converter |
| Form Factor | Desktop |
| Localisation | Europe |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX, 1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 500 m |
| Status Indicators | Link/activity |
| Features | Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), USB powered, Automatic Link Restoration |
| Compliant Standards | IEEE 802.1Q |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - SC multi-mode female x 2 |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB charge cable |
| Compliant Standards | FCC Class A certified, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, RoHS, UL 60950-1, EN 60950-1, EN 55022 Class A |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3.18 cm |
| Depth | 9.14 cm |
| Height | 2.16 cm |
| Weight | 113 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-DMC1000/SC-50
Length
>50m
More Details
Product Code
425A702
EAN Code
0767035206691
Manufacturer
Allied Telesis
