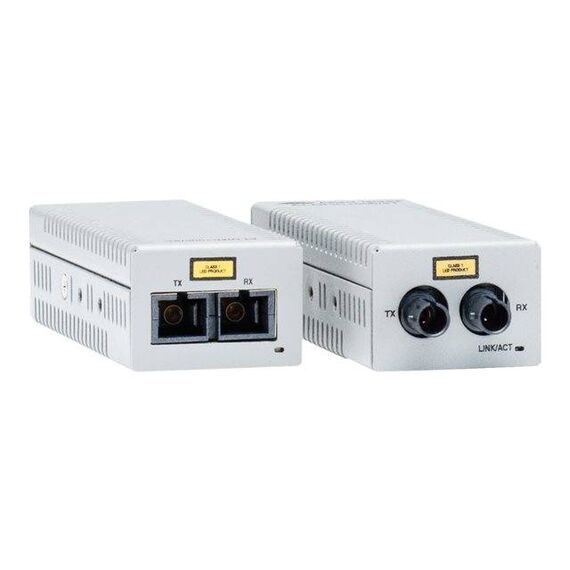

Allied Telesis AT DMC100/ST / Fibre media converter / Fast Ethernet / 100Base-FX, 100Base-TX / RJ-45 / ST multi-mode / up to 2 km / 1310 nm | AT-DMC100/ST-50

Description

The Allied Telesis DMC100 series of Fast Ethernet mini media converters includes very small media converters which can easily fit into the palm of your hand. In addition to being compact - with a small carbon footprint - the DMC100 series can also be powered with the Micro USB to USB cable, and plugged directly into a laptop or PC. This saves installation time and cabling as there are no further power requirements.

Special Features

• Auto-negotiation
• Transparent to IEEE 802.1Q packets
• Auto MDI / MDI-X
• Smart Missing Link
• Link Test feature
• RoHS compliant
• Wall-mountable

Product features

• Fiber connections
  The Allied Telesis range of Fast Ethernet media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting both SC and ST fiber connectors, these converters can be used to extend networks with the multi-mode fiber.
• VLAN support
  Many backbone switch products support IEEE 802.1Q specification for Virtual LANs (VLANs) that send data packets on the network. The DMC100 switches are fully compatible with these packets, enabling them to be used in modern networks.
• Smart Missing Link (SML)
  The Allied Telesis range of Fast Ethernet media converters allow users to extend the size of UTP networks with the use of fiber cabling. Supporting both SC and ST fiber connectors, these converters can be used to extend networks with the multi-mode fiber.
• Simple installation
  All Allied Telesis media converters feature auto MDI / MDI-X, allowing the converter to be connected to either a PC, hub, or switch with a simple UTP cable. The media converters also allow the installer to test the integrity of the fiber connection, by forcing the converters to communicate over the fiber cable. This Link Test feature allows installers to check for cable faults without the need for expensive fiber-optic test equipment.
• Link Restoration feature
  Link Restoration allows the devices, in cases of power failure, link loss, or other interrupted service to automatically restore the link without the need to restart / reset them.
