Allied Telesis CentreCOM AT-GS970M/28PS / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink) / desktop / PoE+ | AT-GS970M/28PS-50
Please sign in so that we can notify you about a reply
Allied Telesis CentreCOM AT-GS970M/28PS / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink) / desktop / PoE+ | AT-GS970M/28PS-50
Description

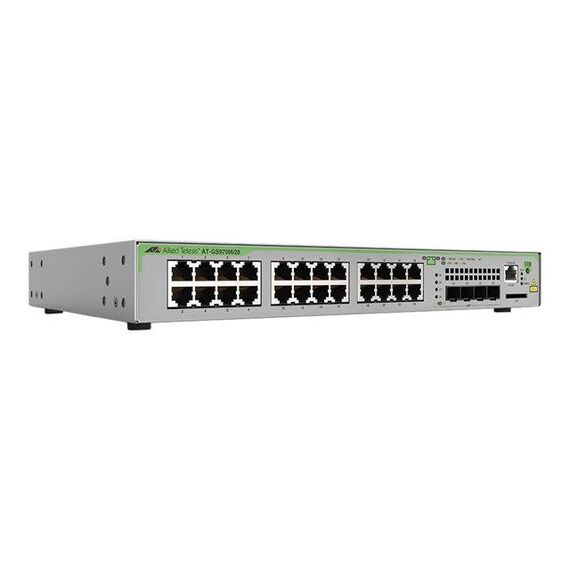

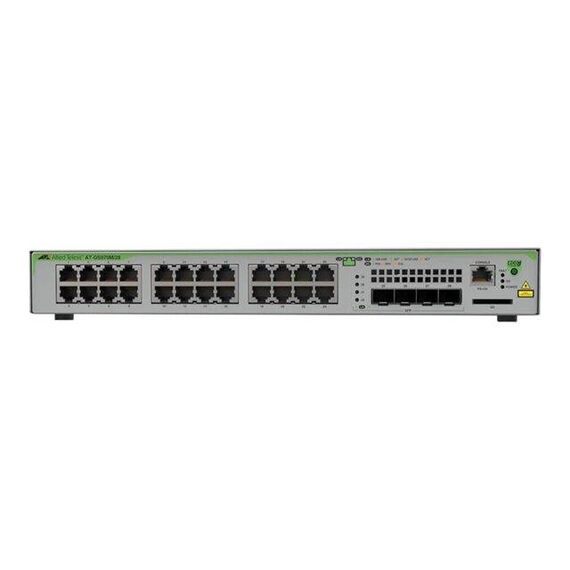

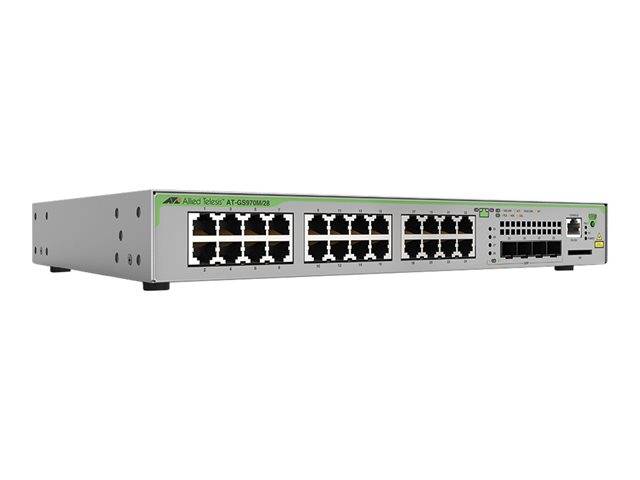

The Allied Telesis CenterCOM GS970M/28PS Layer 3 managed switch features twenty-four 10/100/1000T Gigabit PoE+ ports and four 100/1000X SFP ports. The Power over Ethernet Plus (PoE+) ports provide an ideal solution for connecting and remotely powering wireless access points, IP video surveillance cameras, and IP phones.
Product Specification
| Device Type | Switch - 28 ports - L3 - Managed |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Switching fabric bandwidth: 56 Gbps ¦ Forwarding performance: 41.7 Mpps |
| Capacity | Priority queues: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI, SNMP 6, SSH 6 |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 2.0, PEAP, TTLS, DSA, ECDSA, 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, RNG, 224-bit SHA-2 |
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Features | Flow control, DHCP support, auto-negotiation, BOOTP support, ARP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, full duplex mode, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LLDP support, Link Aggregation Control Protocol (LACP), SNMP trap, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), loop prevention, 802.1x authentication, 1.5MB packet buffer, IP source guard, Ethernet Protection Switched Ring (EPSRing), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Control Plane Prioritisation (CPP), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Digital Diagnostics Monitoring (DDM), Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA) |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ac, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Built-in Devices | SD card reader, SDHC card reader |
| Status Indicators | Status |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ ¦ 4 x 1000Base-X SFP uplink ¦ 1 x console RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Compliant Standards | FCC Class A certified, UL, TUV, cUL, EN55024, EN55022 Class A, RoHS, UL 60950-1, EN 60950-1, cULus, EN 60825-1, HMAC, VCCI Class A, China RoHS, DRBG, EN61000-3-2, EN61000-3-3, CISPR Class A |
| Width | 44 cm |
| Depth | 29 cm |
| Height | 4.4 cm |
| Weight | 4.7 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Allied Telesis - AT-GS970M/28PS-50
General
24-Port
More Details
Product Code
425A865
EAN Code
0767035211374
Manufacturer
Allied Telesis
