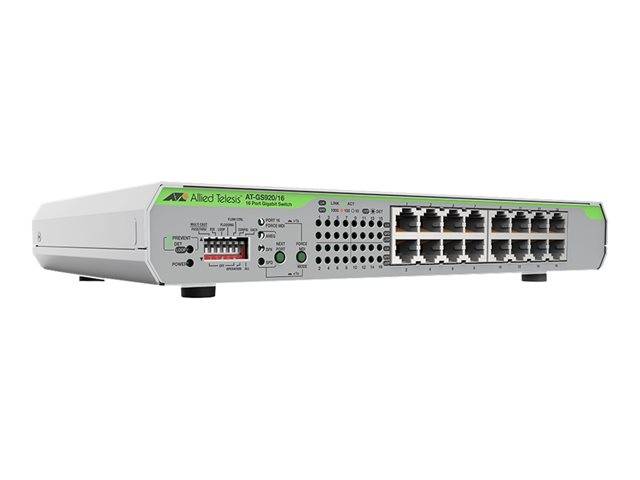

Allied Telesis CentreCOM AT-GS920/16 / Switch / unmanaged / 16 x 10/100/1000 / desktop, rack-mountable | AT-GS920/16-50

Description

The Allied Telesis GS920 Series offers secure unmanaged Gigabit switching solutions for the desktop and small networks. Front-panel DIP switches provide easy configuration of commonly used features.

Allied Telesis CentreCOM AT-GS920 / 16 | AT-GS920/16-50

Special Features

• DIP switches
• Loop Guard (Loop Detection) for avoiding loops at the network edge
• Loop Detection Frames are regularly sent, and affected ports are shut down if a loop is discovered
• Force MDI avoids incorrect cabling and possible network loops
• Flow control
• Speed/duplex configuration
• Flooding mode

Product features

• DIP switches
  Normally, configuring functions such as Loop Detection requires the use of a command line or graphical interface. The Allied Telesis GS920 Series lets you configure these frequently-used functions with a DIP switch.
• High performance
  The Allied Telesis GS920 Series deliver the high speed and high performance demanded by today's high-bandwidth applications, such as video, graphics and industrial design.
• Speed/duplex configuration
  The GS920 Series allows speed and duplex to be set per port. This supports older devices where autonegotiation is not supported, as well embedded devices which may support a fixed speed/duplex only.
• Loop detection
  The Loop Detection feature discovers network loops, and shuts down affected ports. After the loop is resolved, the affected ports are automatically returned to active use.
• Flooding mode
  Flooding mode allows the easy capture of data steams for troubleshooting and analysis, as they are sent to all ports.
